Характеристики
DM-65SS520 65mm square dc gear motor high torque 20kg.cm
1. Main voltage: 3V, 6V, 12VDC, 24VDC
2. Typical applications: Automatic door-lock, projector, hairdressing equipment
3. Square Gearbox size: 65*38*H12mm
4. Torque: 0.5-20kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based
7. Encoder 13PPR available

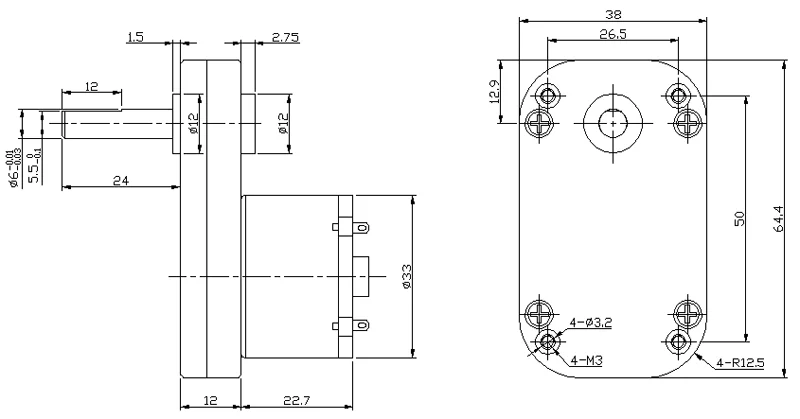

Appearance size:
Gearbox Data :
Number of stages | 3 | 4 | 5 |
Reduction ratio | 40.5,67.5 | 135,225 | 450 |
Gearbox length “L”mm | 12 | 12 | 12 |
Breaking torque(kgf.cm) | 10 | 25 | 35 |
Gearbox efficiency | 73% | 65% | 59% |
Driving Motor Data :
Motor model | Rated Volt. | No load | Load | Stall | |||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
V | mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | |
DM-520-012-3000 | 12 | ≤20 | 3000 | ≤110 | 2200 | 25 | 0.6 | ≥100 | ≥400 |
DM-520-012-4500 | 12 | ≤30 | 4500 | ≤150 | 3300 | 35 | 1.2 | ≥140 | ≥850 |
DM-520-012-6000 | 12 | ≤40 | 6000 | ≤400 | 4500 | 45 | 2.1 | ≥180 | ≥1400 |
DM-520-024-3000 | 24 | ≤15 | 3000 | ≤60 | 2200 | 25 | 0.6 | ≥100 | ≥200 |
DM-520-024-4500 | 24 | ≤20 | 4500 | ≤80 | 3300 | 35 | 1.2 | ≥140 | ≥420 |
DM-520-024-6000 | 24 | ≤30 | 6000 | ≤200 | 4500 | 45 | 2.1 | ≥180 | ≥700 |
Gear Motor Data:
Motor model | Rated Volt. | No load | Load | Stall | |||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
V | A | r/min | A | r/min | kgf.cm | W | kgf.cm | A | |
DM-65SS52000310000-40.5K | 3.0 | 0.42 | 231.6 | 1.56 | 175.5 | 0.92 | 1.65 | 3.78 | 5.13 |
DM-65SS52000310000-67.5K | 3.0 | 0.73 | 131.7 | 2.11 | 94.3 | 2.02 | 1.95 | 7.10 | 5.58 |
DM-65SS5200123500-225K | 12.0 | 0.02 | 15.1 | 0.14 | 13.3 | 5.14 | 0.70 | 43.35 | 1.04 |
DM-65SS5200124500-225K | 12.0 | 0.05 | 19.8 | 0.22 | 16.5 | 6.96 | 1.18 | 41.35 | 1.03 |
DM-65SS5200125500-450K | 12.0 | 0.05 | 12.0 | 0.23 | 9.7 | 10.31 | 1.03 | 54.55 | 1.01 |
DM-65SS5200128000-135K | 12.0 | 0.24 | 52.6 | 0.67 | 39.3 | 6.57 | 2.65 | 25.90 | 1.94 |
DM-65SS52001210000-225K | 12.0 | 0.14 | 43.2 | 0.50 | 33.7 | 6.81 | 2.36 | 30.95 | 1.77 |
DM-65SS5200244500-450K | 24.0 | 0.02 | 9.2 | 0.08 | 7.1 | 7.60 | 0.56 | 33.00 | 0.29 |
DM-65SS5200245500-450K | 24.0 | 0.04 | 11.6 | 0.17 | 9.0 | 10.92 | 1.01 | 48.77 | 0.60 |
Curve Chart :
Model: DM-65SS5200128000-135K
Model: DM-65SS5200244500-450K
Remark:
Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects

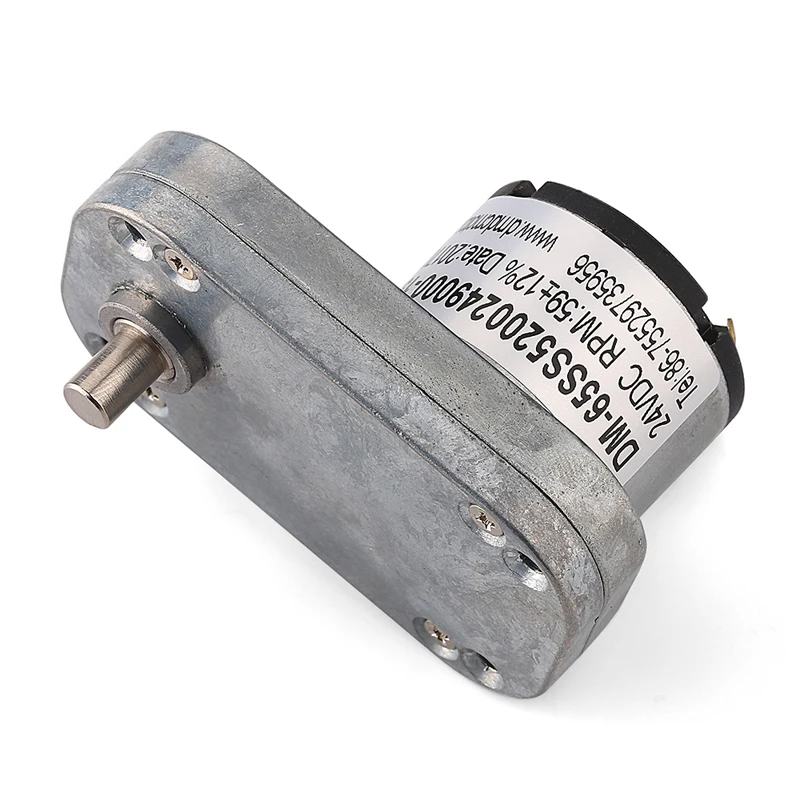

Product picture
Office
Workshop
Machine and Testing Equipment
Delivery
About us
Shenzhen Dongming Motor Co., Ltd. is expecialized in micro dc motors and dc gear motors. With 10-year-experience and a professional R & D team, Dongming Motor stands out in gear motor market in China. We have successfully worked out over 100 series of micro DC motors. Our products are widely used in household appliances, audio/video products, office equipment, health-care and beauty-care facilities, medical appliances, high-class toys, electronic tools, electronic commodity, automotive parts and automatic systems.
