Мощная усиленная портативная угловая машина для резки железа стального
- Категория: Отрезной станок >>>
- Поставщик: Henan,Landao,Machinery,And,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 714.62 $* | 750.28 $* |
| Aug-18-2025 | 708.8 $* | 743.29 $* |
| Jul-18-2025 | 594.6 $* | 624.94 $* |
| Jun-18-2025 | 696.63 $* | 731.73 $* |
| May-18-2025 | 606.79 $* | 636.86 $* |
| Apr-18-2025 | 684.69 $* | 718.74 $* |
| Mar-18-2025 | 678.21 $* | 712.4 $* |
| Feb-18-2025 | 672.76 $* | 706.33 $* |
| Jan-18-2025 | 666.49 $* | 699.75 $* |
Характеристики

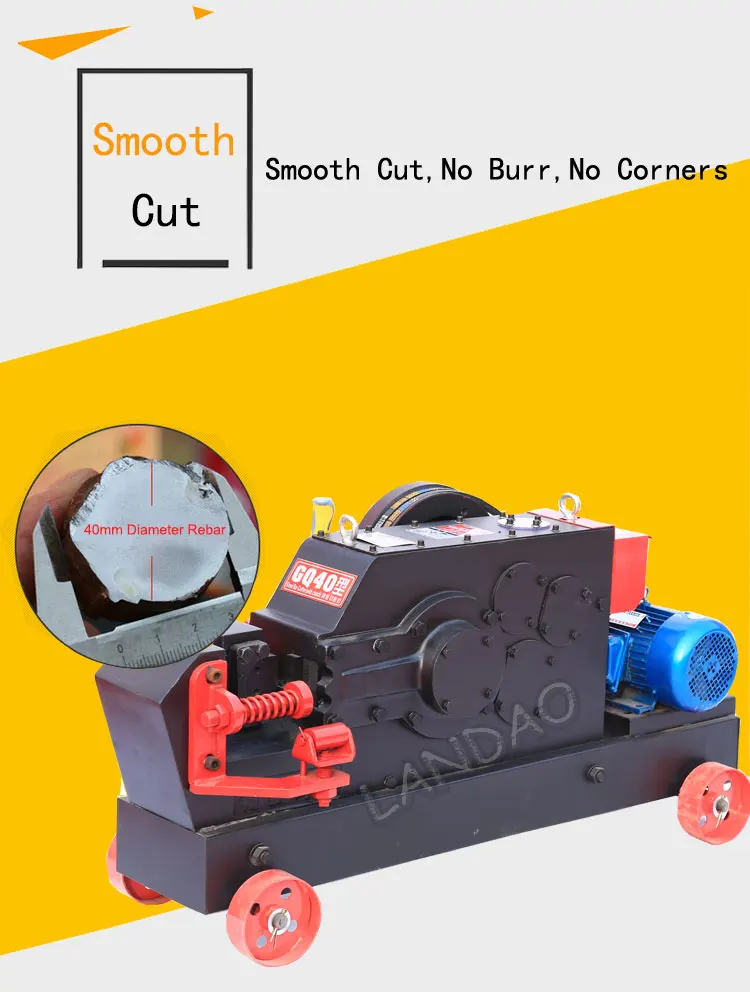

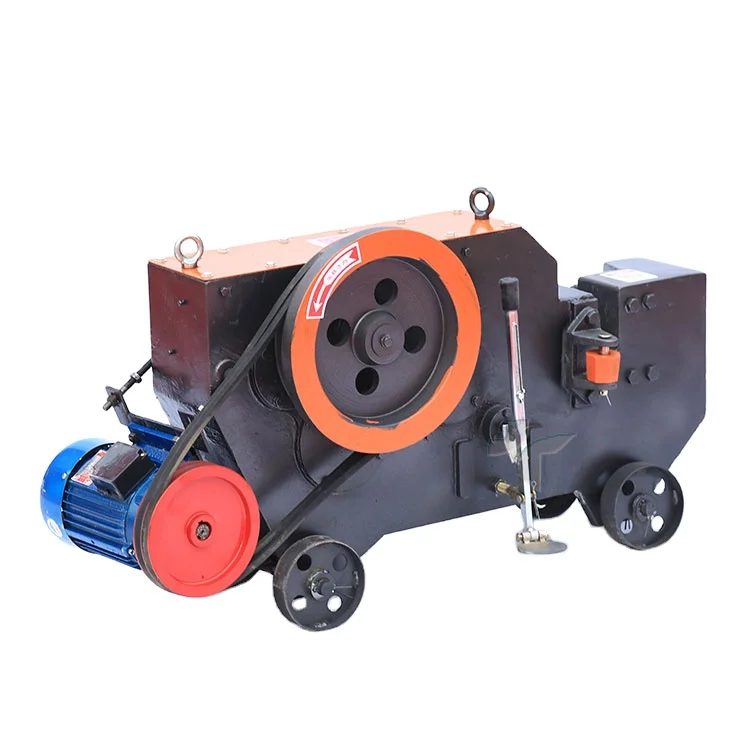

Heavy Duty Reinforced Portable Angle Iron Cutting Machine For Steel Bar
Product Description
Steel bar cutting machine is applicable to normal carbon steel, hot rolled round steel and screw steel in all kinds of reinforced concrete in construction engineering.Flat, square and Angle steel can be cut off.
Technical Parameters
Specifications:
Model | GQ40 | GQ50 | GQ60 | GQ70 | |
Cutting range | Carbon steel | ≤Φ40mm | ≤Φ50mm | ≤Φ55mm | ≤Φ65mm |
II-grade deformed steel | ≤Φ32mm | ≤Φ42mm | ≤Φ42mm | ≤Φ50mm | |
Cutting Specification | Flat Steel | 70x15mm | 80×18mm | 80×18mm | 80×18mm |
Square Steel | 32x32mm | 40×40mm | 40×40mm | 40×40mm | |
Angle Steel | 50x50mm | 63×63mm | 63×63mm | 63×63mm | |
Cutting Frequency | 32times/min | 28times/min | 28times/min | 25times/min | |
Power of Motor(KW) | 2.2/3 | 4/3.0 | 5.5KW-2P | 11 | |
Motor Speed(r/min) | 2890 | 2890 | 2890 | 1440 | |
Rated Voltage(V) | 220V~440V | 220V~440V | 220V~440V | 220V~440V | |
Dimension(mm) | 1250×500×730 | 1420X530X850 | 1800x500x970 | 1550×750×1000 | |
Whole Weight(Kg) | 450 | 580 | 800 | 1300 | |
What can we do for you?
1.We can change the color according to your actual requirements.
2.Custom the voltage motor based on your country standard.
Features
Heavy Duty Reinforced Portable Angle Iron Cutting Machine For Steel Bar
Features
1. Move easily. small size,compact structure, solid fuselage. With scrollable casters it can be moved easily and flexibility. |
2. Good lubricating properties.It adopts full close structure and lubricates by using gears splash. It can operate more than three months continually if it is added oil(8-10kg) at a time. |
3. Little power loss. For lubrication conditions improving,gear-side uses rolling bearing, the resistance is small, compared with the similar cutting machine with load power can reduce by one third. |

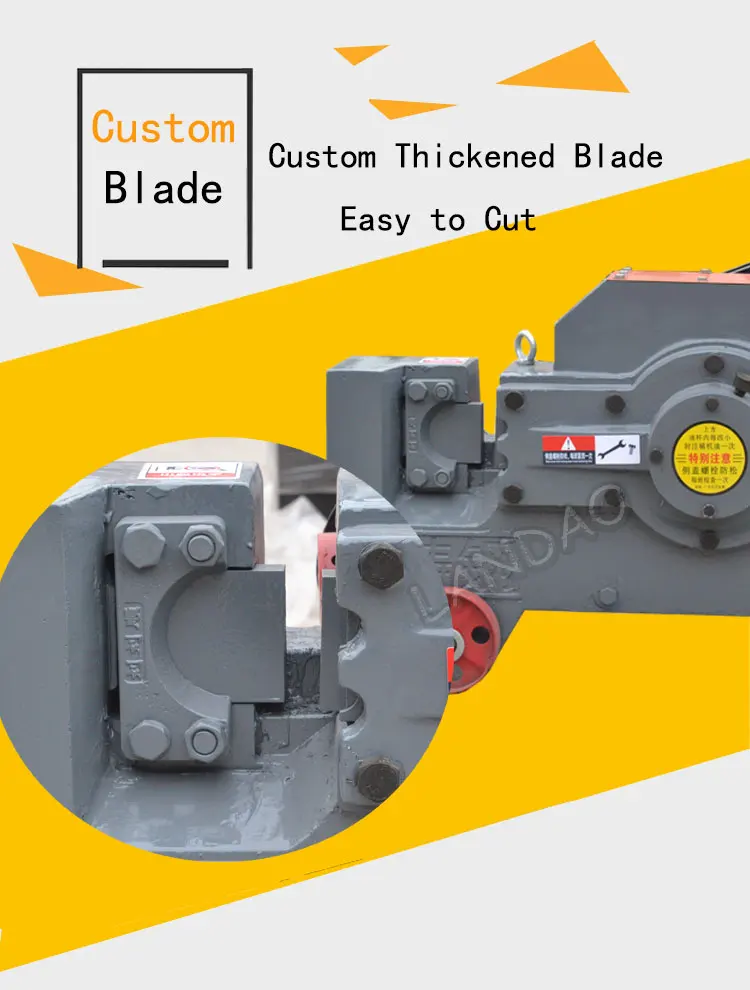

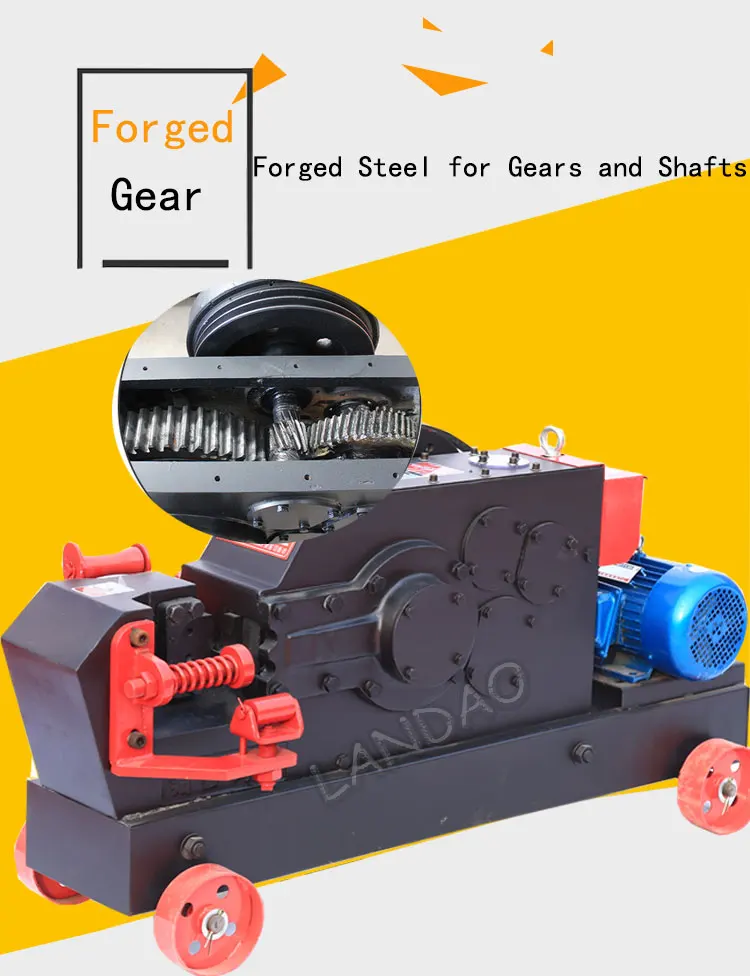

4. Work longer. It adopts the high steel knife block,connecting rod, high speed international standard motor, its quality is more stable and it will last longer. |
5.Thread cutting machine with arc blade, makes the material head rules neat and is more suitable forfurther processing |
6.Special curved axis, enhance to cut off the power, expand the range of cutting tool and convenient from top to down bar |
Packaging & Shipping
Tray and carton. one 40 container can be loaded about 50pcs bar cutting machine and bar bending machine |

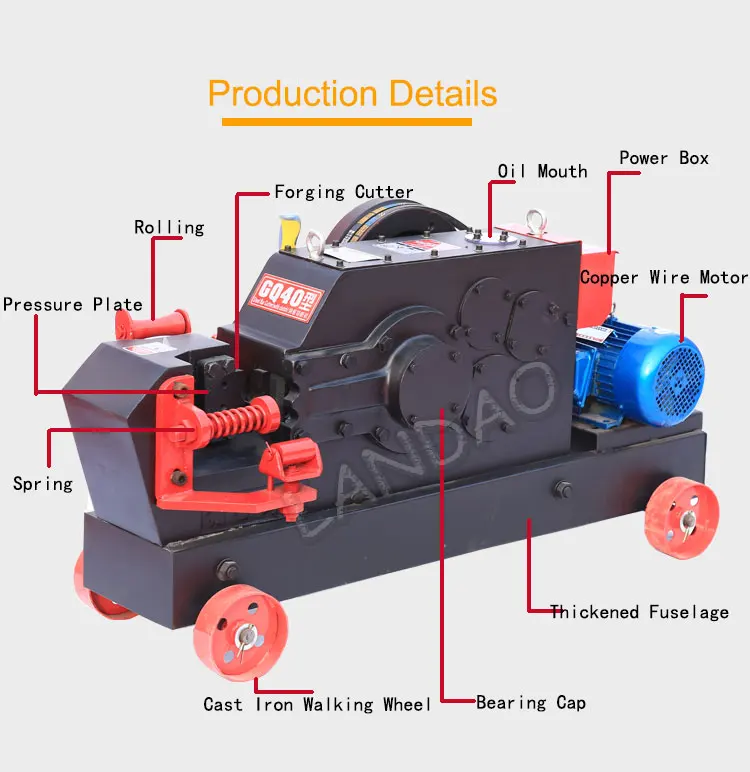

Factory Photo & Product Details
Heavy Duty Reinforced Portable Angle Iron Cutting Machine For Steel Bar
Company Information
ABOUT LANDAO |
Henan Landao Machinery And Equipment Co., Ltd. is a manufacturer and trader specializing in the research, development and production of construction machinery for nearly 20 years.and main manufacture concrete mixer,concrete batching plant,batch plant parts,dry mortar production line,steel bender machine,winch and so on. Our purpose is to build up win-win principle with you. |
FAQ
Heavy Duty Reinforced Portable Angle Iron Cutting Machine For Steel Bar
FAQ
| 1. What kind model do you have of steel bar cutting machine? |
| GQ40/50/60/70/16/25 |
| 2. Do you have the machine with diesel engine? |
| Yes, we have the bar cutting machine with diesel engine. it is powerful. |
| 3. How long will be delivery if I order? |
| Usually it will take one week for the delivery, but according to your order, please confirm with us while you are ordering. |
