China automatic girth horizontal in situ pipe welding systems equipment machine india south africa
The KHPP Magnetic Type Orbital Welder is a customized machine, which is used for fabricated tube orbital welding projects - the pipe is fixed, welding carriage do all-position welding around the tube with the efficiency-cost MIG welding process. Suiting for large sizes tube Diameter≥140mm (≥5 inch), thickness 4 - 60mm. KHPP could solve the issue of operator error in gas tungsten arc welding(GMAW/MIG/MAG). KHPP is composed of the power supply with integrated computer control and the welding head.
KHPP could process carbon steel, stainless steel , alloy steel, etc. KHPP Mainly used in oil, gas, water treatment industry, petrochemical industry, chemical industry, construction machinery, power plant and other industries. KHPP could be used for Tube to tube, tube to elbow, tube to neck flange, tube to Tee joint, tube to concentric reducer and so on, with wire feeding.
Advantage:
1.To solve the issue of operator error in GMAW / MIG / MAG. PLC-controlled process runs with little intervention from the operator.
2.Magnetic Type carriage - can run around the tubes for doing all-position welding work.
3.OSC/AVC functions - with oscillation OSC and arc voltage control AVC.
4.To guarantee high quality repeatable welding. a successful programming monitors variables and performs periodic samples during its test welding. LCD touch screen, easy to input.
5.Intelligent welding . 100 successful programming stored in PLC, just pick one.
6.High productivity. 2-3 times higher than conventional MIG welding.
7.10 hours continuous welding. qualified welding torch and power and water cooling system make it.
8.Car-integrated design, freedom of movement.
9.Small space of scientific design

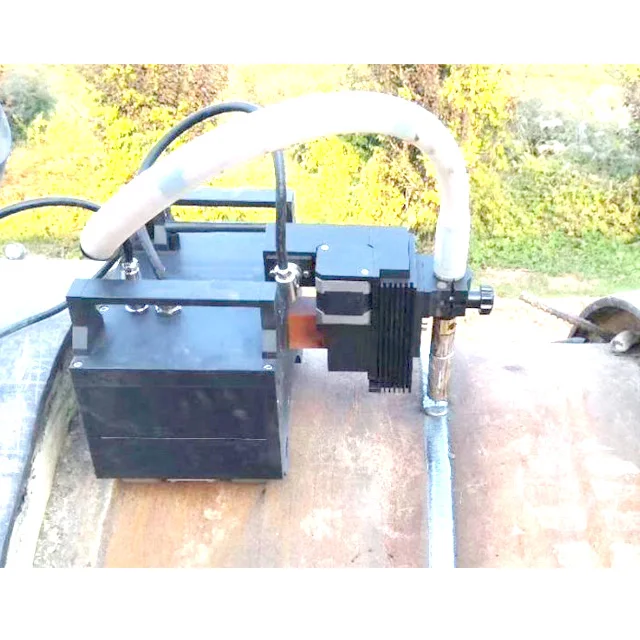

Detailed Images
Main Technical Specifications：
Tube Out Diameter
≥140mm (≥5 inch)
Tube thickness
4-60mm
Power brand
Kemppi HiArc 500A
Voltage (3-Phases 50/60Hz)
380±10% 3 phases 50/60Hz
Rated Power
60% 24.5KVA 100% 17KVA
Output 40℃
500A / 39.0V 500A / 39.0V
Fuse
35A
Filler Wire Speed
0~1500mm/min
Welding range
13-50V
Size(L*W*H) of power source
716*385*485mm
Weight of power source
41 kg
Total Weight
90 kg
Electromagnetic compatibility
A
Protection grade
IP23S
NOTES: 1.The Power source is optional part, also can use others common models as recommend.
2.the tubes must be standard type, the deviation must be within machine tolerance.
3.A trained operator is necessary to make sure its normal work.
Application
Application for chemical tube, pipe, boiler, heat exchanger, pressure vessel, pharmaceutical, construction machinery, military and nuclear power industries.

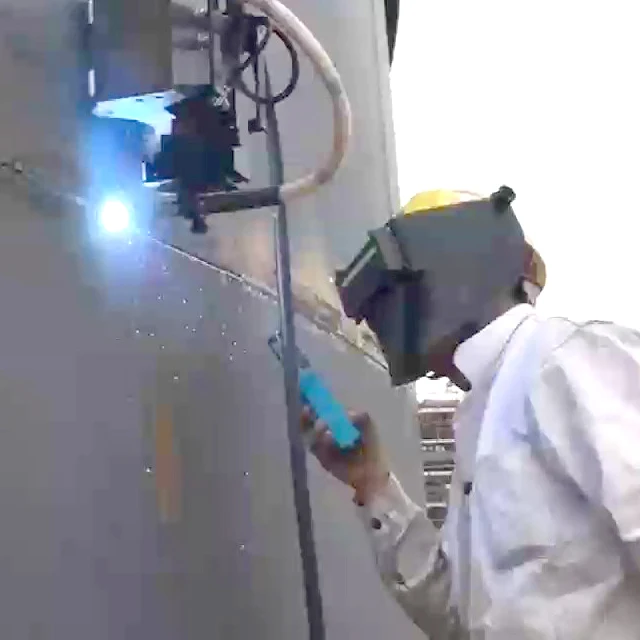

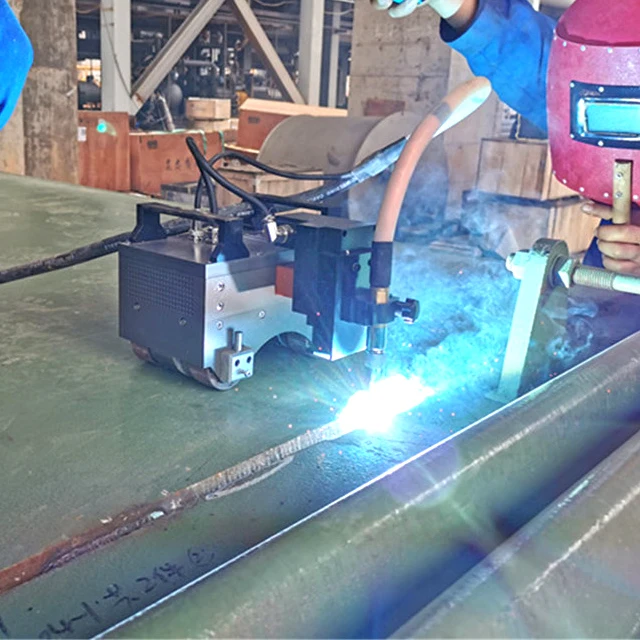

This is the reality effect show uesd of our Digital Welder.
Other Type Orbital Welding Machine
Packing & Delivery
Packed in wooden cases with shockproof foam up to about 30mm thick to ensure the safely. Professional logistics system to deliver the goods to port on time.
Certifications
Our Company
Zhengzhou Kehui Technology is a professional integrated welding project solution supplier. We located in zhengzhou - capital of henan province, and we have more than 300 employees.
We have four manufacture basements in China, total 26000 m2, Each basement has experienced workers, is capable of technical programming, site construction, manufacture, technical support, installation, commissioning and system integration. What is more, share resource and well cooperation could strongly support big project.
