Цельнолинейный преобразователь и ПЛК-контроллер инвертированный вертикальный Большой диаметр толстая машина для

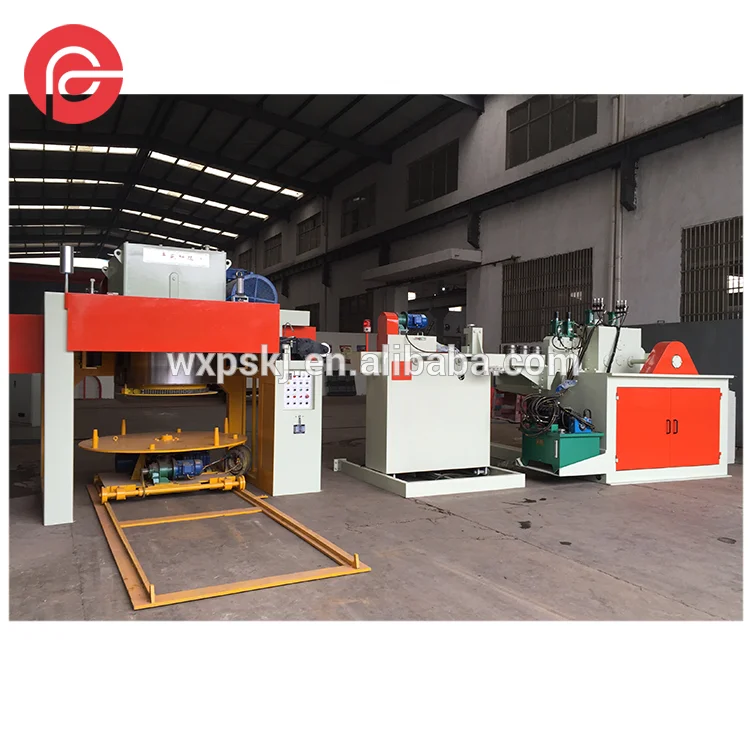

 1. Purpose of Inverted vertical wire drawing machine

It is applicable for continuous production process of coil with heavy charging box.

The product is developed for the non-slip drawing of medium & low carbon steel wire, special shaped steel wire and nonferrous metals with thick & medium diameters. It is specially suitale for the drawing of medium & low carbon steel wire in standard parts and supermarket shelf industry. The maximum inlet diameter can reach 30mm and diameter of capstan is 550-1300mm.

Transmission part of the system can apply cycloidal speed reducer, harden gear surface reducer orrockerreducer. Its electric system applies international famous brand frequency converter with stable performance.

2. Features

1.It is applicable for continuous production process of coil with heavy charging box.

2.Easy operation and reliable control enables safe production and convenient maintenance.

3.Application of 3- phase AC variable- frequency speed adjustment realizes smooth step less speed regulation and saves more than 30% electric power.

3. Specification

Capstan diameter: 1200mm

Maximum diameter of inlet wire: 24mm

Intensity of material: ≤1200 Mpa

Compression rate:  20-30%

Maximum drawing speed: 100m/min

Motor power: 90Kw
