1/4 "Мужской NPT 200 psi установите устройства контроля давления Серия ST латунный предохранительный клапан

Relief pressure preset to 200 psi with flow rate of 178 cfm

1/4" male NPT threaded inlet connection

Brass construction and stainless steel spring for corrosion resistance

250 degrees F maximum temperature for use in high temperature applications

ASME safety rated with UV and NB marks

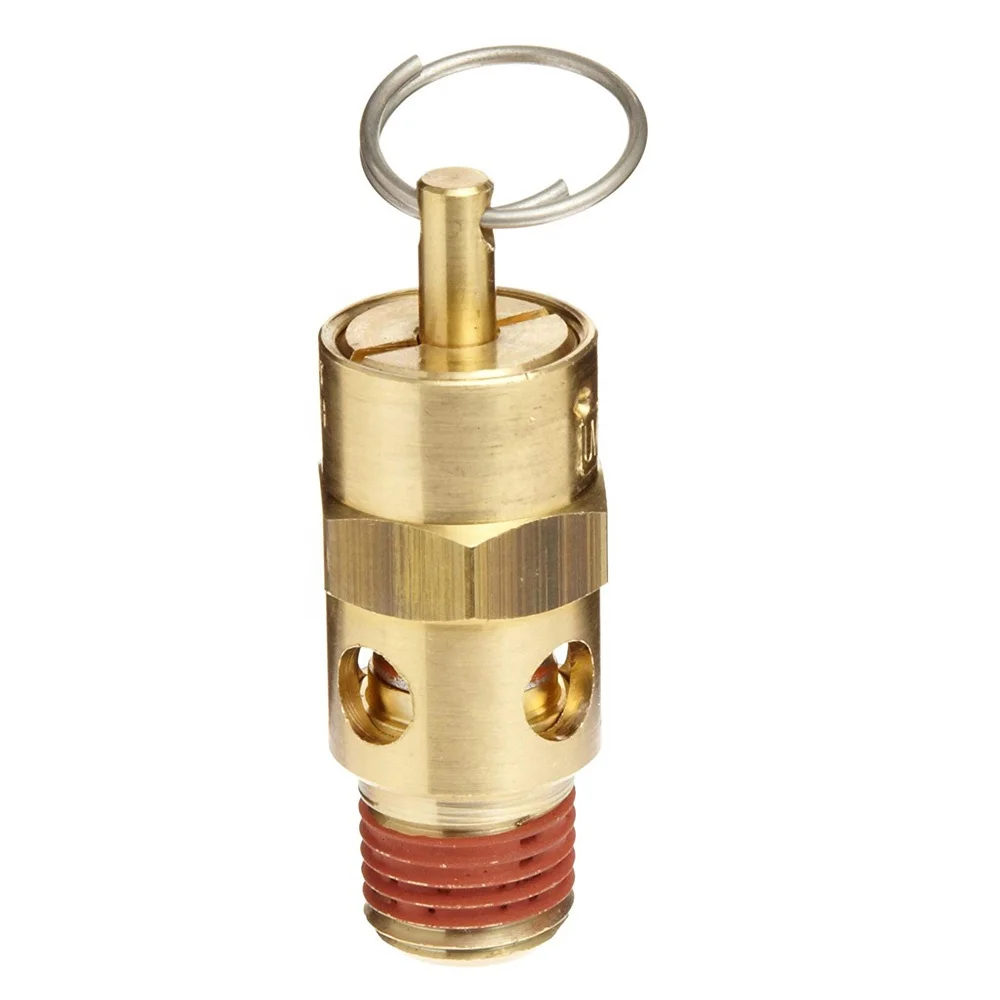

This Control Devices ST25-1A200 ASME safety valve has a brass body, a 200 psi relief pressure, a 1/4" male NPT threaded inlet connection, and a stainless steel pull ring for manual pressure relief. The valve's brass body, brass valve seat, and the zinc plated steel spring resist corrosion and can be used in operating temperatures up to 250 degrees F. The preset relief pressure is accurate to within +/- 3 percent and a silicon O-ring provides a leak-proof seal to within +/- 10 percent of the relief pressure. This safety valve is American Society of Mechanical Engineers (ASME) safety rated and displays the UV mark for pressure vessel safety valves. It also displays the NB mark for certification in accordance with NB-501, National Board Certification of Pressure Relief Devices. This safety valve has a 178 cubic feet per minute (CFM) flow rate and is suitable for low capacity pressure relief applications such as in home construction air compressors.
Relief valves remove excess pressure or vacuum from a system. The valve openings allow fluids or gases to escape to decrease pressure, and then close once the valve reaches the reseating pressure limit. They also relieve excess vacuum by opening to release a gas into the system and then closing after it reaches its low-pressure limit. Some relief valves have an adjustment mechanism to set the pressure where the valve opens, making it suitable for various applications. Relief valves are rated according to the volume of liquid or gas that can flow through them and the material that the valve is constructed from must be suitable for the fluid or gas, which may be corrosive or at an extreme temperature, in which it operates. Relief valves are used in a variety of applications, such as air compressors, petrochemical and chemical manufacturing, natural gas processing, and power generation.

Size	1/4" male NPT threaded inlet connection
Working Pressure	200PSI
maximum temperature	250 degrees F
Certificate	ASME safety rated with UV and NB marks

Material Test Tools

Fanovo imported Spectrometer machines for metal test, keep materials of each order meet Customers' need. The metal includes stainless steel 304, 316L, lead free NSF brass, CW 617, Monel 400, etc.

 Material Analysis Equipment

 All incoming material before production will be tested by material analysis machine

Material Test Report

Material test report will be shipped with each order, Fanovo guarantees the materials qualified for customers.

Spectrometer Machine for Material Test

Fanovo is capable to test brass, stainless steel, Aluminum etc.

Fanovo Images

Incoming Quality Control

Fanovo will do 100% inspection for incoming material, brass bar, stainless steel, steel etc.

Lean Manufacturing

IPQC department will inspect the process of Turning&milling, Fanovo do production accord to DWG.

Imported CNC

5-axis machining involves using a CNC to move a part along five different axes simultaneously

6 Pcs 400T forging machine

Automatic Assembly for valves



5S management assembly Line



Certification

Fanovo are carrying out Total Quality Management and obtained  ISO 9001 for management  The quality responsibility is divided into quality divisions ( SQC, IQC, IPQC, FQC, OQC). Fanovo promises Just-in-time delivery and fine manufacturing for our customers. Meanwhile Fanovo has the certification of NSF/ANSI 61, UPC/ CE for main products including brass valves, fittings, couplings, etc.

Delivery Packaging

Fanovo's delivery packing by sea is in Carton Box and pallet. Ensure your shipment arrives safely and on time by packing your goods well. It's one of the most important things Fanovo can do to reduce the risk of delays and damage during transit.

Inner Box :White Box or Color Box

Carton Box: Corrugated Box With Item Label

Pallet Packing:  By Sea/ By Air

Sea shipping

Fanovo recommend to ship by sea if quantity is big that saves much freight for customers.

DHL/ UPS/ FEDEX/TNT/ Special Air Delivery

Good for sample delivery and small volume
