Промышленный водяной спринклер из АБС-пластика для охлаждающей

Промышленный водяной спринклер из АБС-пластика для охлаждающей

Категория: >>>
Поставщик: Shandong,Handun,Environmental,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.10 $*	0.10 $*
Aug-15-2025	0.88 $*	0.51 $*
Jul-15-2025	0.71 $*	0.66 $*
Jun-15-2025	0.49 $*	0.61 $*
May-15-2025	0.27 $*	0.47 $*
Apr-15-2025	0.94 $*	0.55 $*
Mar-15-2025	0.46 $*	0.11 $*
Feb-15-2025	0.18 $*	0.77 $*
Jan-15-2025	0.64 $*	0.47 $*

Характеристики

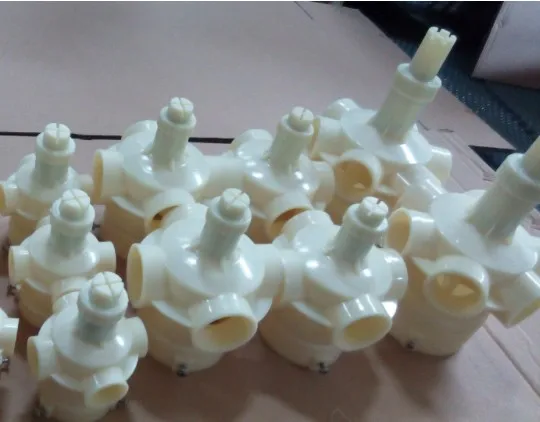

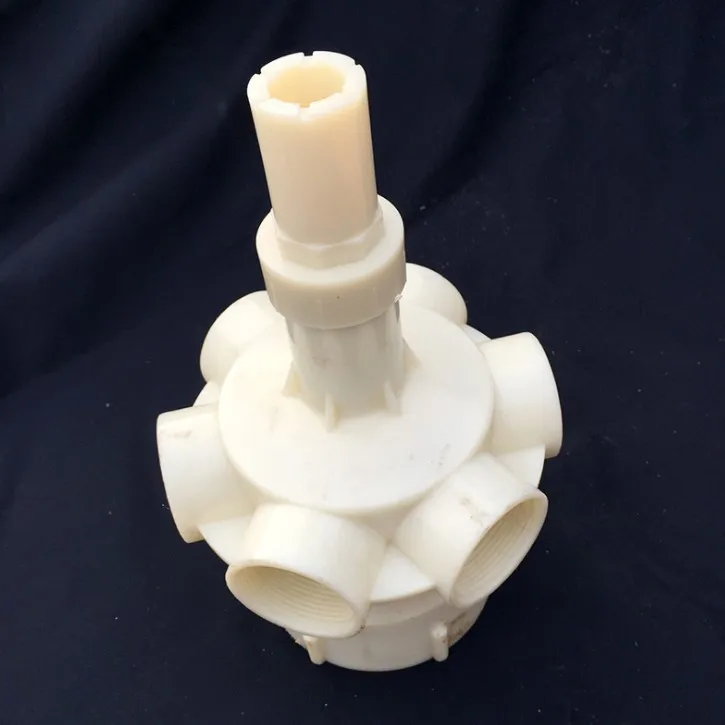

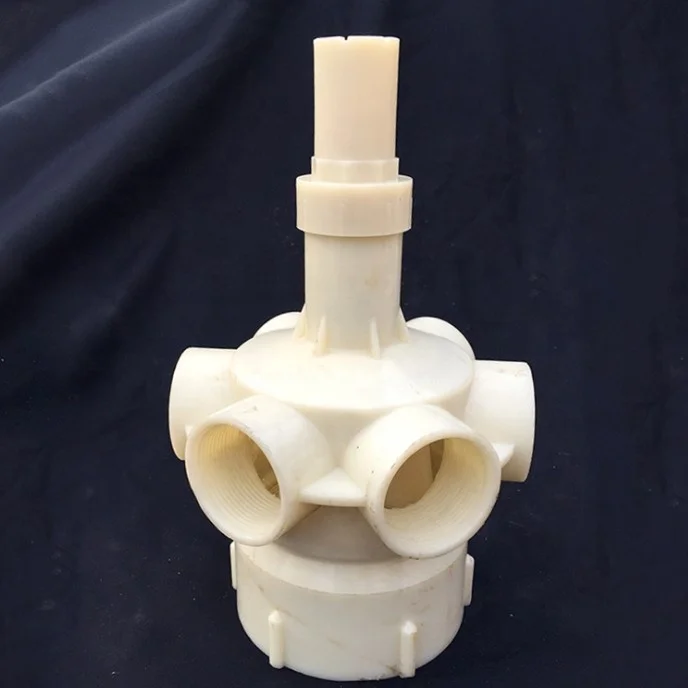

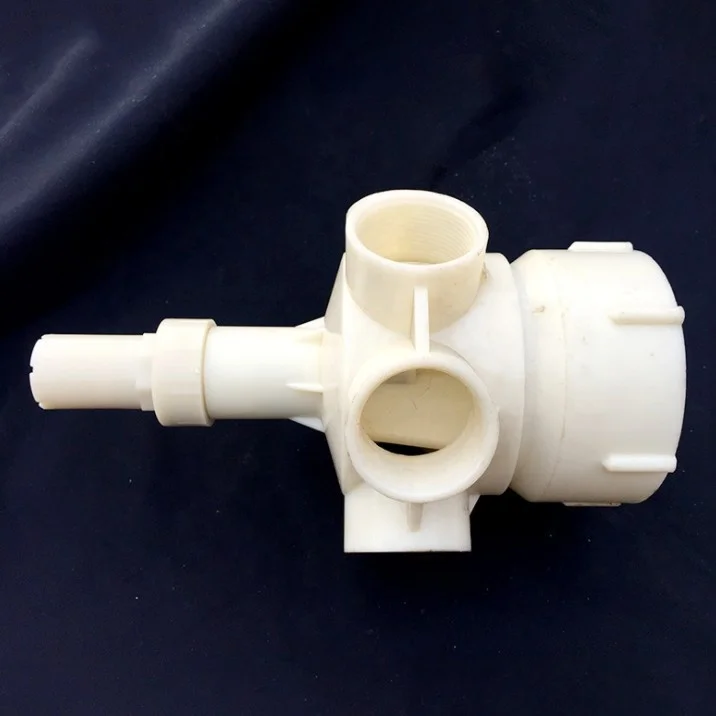

ABS Water Sprinkler

Finished Products

Cooling Tower_11.jpg

Product Description

The FRP cooling tower has the corrosion resistant,high strength,light weight,small volume, saving space, attractive and durable and other features. Also it is convenient to transportation,installation and maintain. It is widely used in each department of national economy ,especially for the cooling water circle system such as central air-conditioning, refrigeration,air compression station,heating furnace and so on.The round shape counter flow cooling tower adopts to the counter flow heat exchange technology;The materials of filler is high-quality PVC so it can diffuse the water drenching area; we realize the uniform water distribution and better cooling performance via the spray water or spinning water.

ABS NOZZLE.JPG sprinkler 3.JPG

Tower Model Choose

Technical Parameters

DBNL3 industrial cooling tower parameter table
Model (T)	T=28℃ cooling Capacity		T=27 ℃ cooling Capacity		Main Size mm		Air Capacity m3/h	Air blower Diameter	Motor power	Weight		Inlet Water Pressure 104Pa	Noise			Diameter
Model (T)	T=5℃	T=8℃	T=5℃	T=8℃						NET	working
12	12	9	15	10	2033	1210	7200	700	0.75	206	484	1.96	54.0	40.3	36.6	1.5
20	20	15	24	17	2123	1460	12400	800	0.8	230	514	2.00	54.0	41.1	37.5	1.5
30	30	22	35	27	2300	1912	18000	1200	0.8	406	956	2.21	55.0	43.5	39.9	1.8
40	40	30	46	34	2342	1912	21500	1200	1.1	478	1118	2.6	55.0	43.5	39.9	1.8
50	50	37	57	44	2430	2215	28000	1400	1.5	596	1480	2.65	55.0	44.7	41.1	2.1
60	60	44	68	51	2580	2215	32300	1400	1.5	642	1592	2.90	56.0	45.7	42.0	2.1
70	70	51	79	60	2600	2629	39200	1600	2.2	790	2064	2.78	56.0	47.0	43.0	2.5
80	80	61	92	70	2700	2629	43400	1600	2.2	875	2243	3.03	56.5	47.5	43.5	2.5
100	100	74	114	86	3000	2780	56000	1800	3.0	973	3064	2.68	57.0	50.0	46.0	3.0
125	125	92	142	108	3544	3134	67200	1800	4.0	1063	3290	3.15	58.0	50.7	47.4	3.0
150	150	112	171	129	3553	3732	84000	2400	4.0	1695	4125	2.90	58.5	52.0	48.6	3.6
175	175	131	200	150	3803	3732	94300	2400	5.5	1835	4461	3.15	59.5	53.0	49.6	3.6
200	200	153	231	180	3835	4342	112000	2800	5.5	2132	5592	3.01	59.5	53.0	49.6	3.6
250	250	186	283	215	4085	4342	134300	2800	7.5	2344	6365	3.26	61.0	55.6	52.3	4.2
300	300	225	334	260	4223	5134	168000	3400	7.5	3558	9229	3.50	6100	56.8	53.5	5.0
350	350	267	395	304	4473	5134	187400	3400	11.0	3860	9906	3.75	61.5	57.3	54.0	5.0
400	400	301	455	341	4618	6044	224000	3800	11.0	4300	12086	3.60	62.0	58.8	55.7	5.9
450	450	343	514	387	4868	6044	242000	3800	11.0	4646	13464	3.85	62.0	58.8	55.7	5.9
500	500	375	576	427	5219	6764	280000	4200	15.0	5768	16258	3.70	62.0	60.0	56.9	6.6
