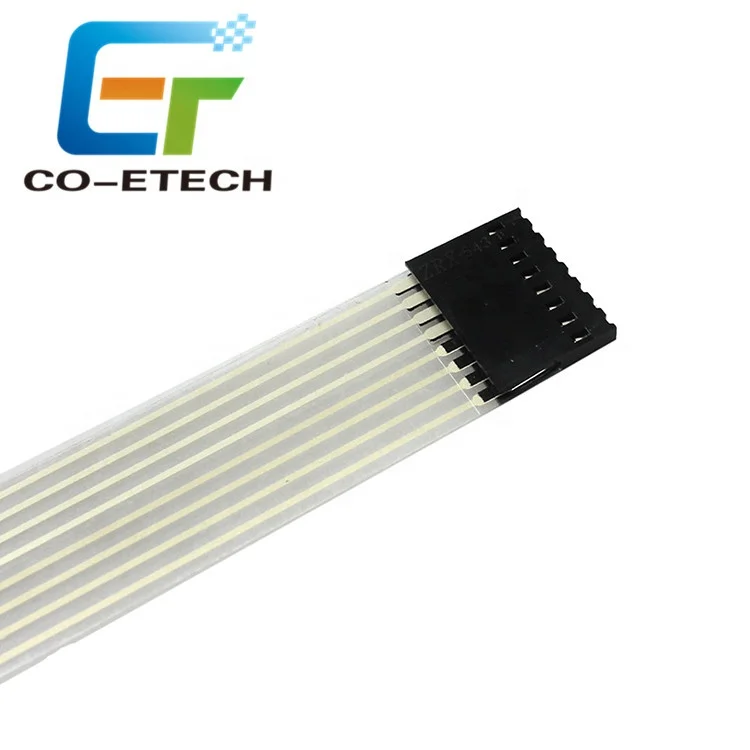

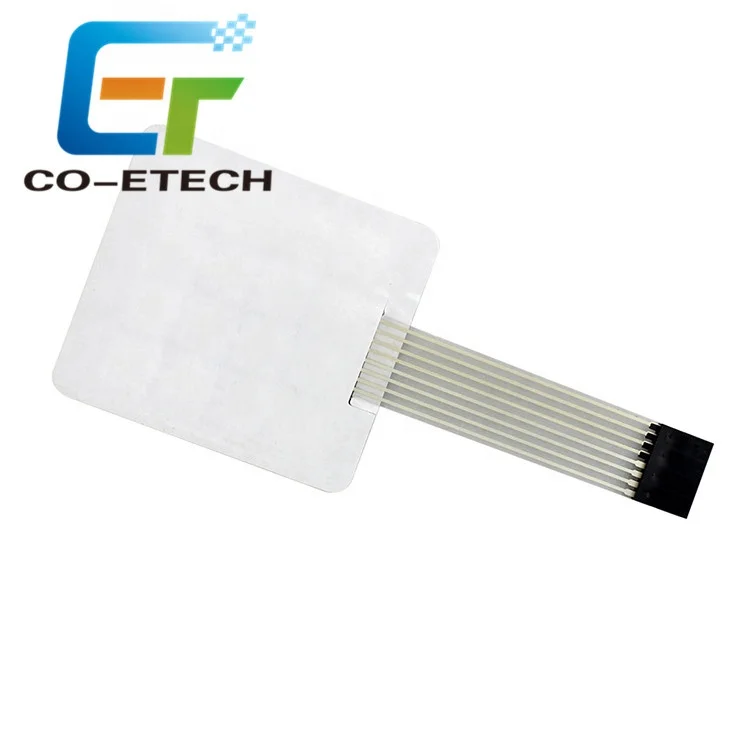

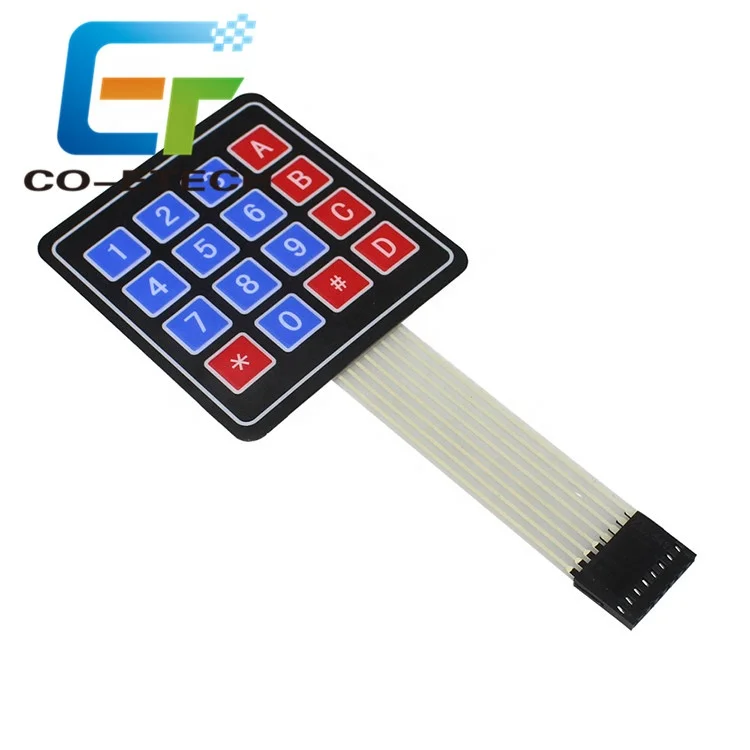

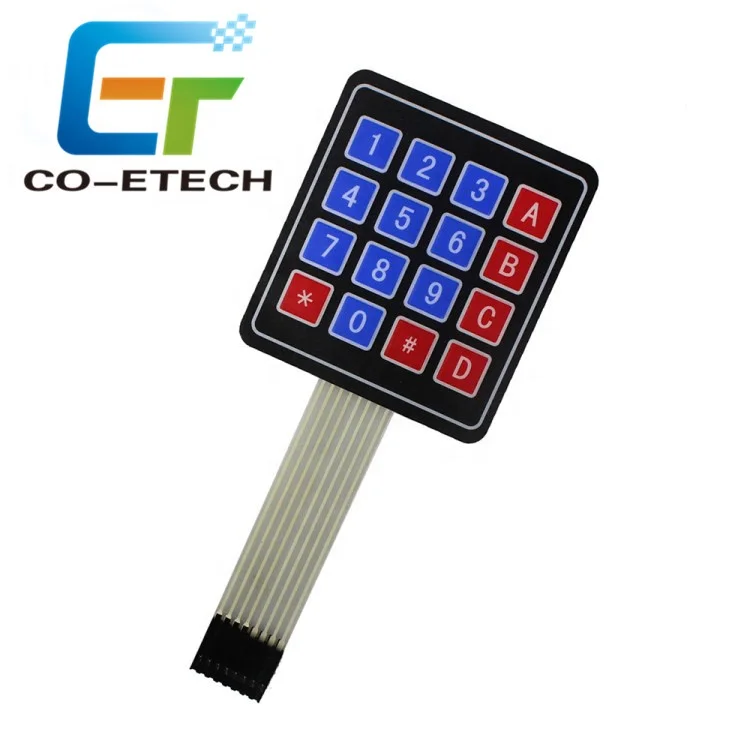

16 клавиш мембранная переключатель клавиатура 4x4 4*4 матричная для набора

Key Operating Force:150-200N
Rebound time:1 (ms)
Life:100 million (times)
Operating Temperature:60℃
1.The electronic characteristics:
Circuit Rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω ~ 500Ω
(Varies according to the lead lengths and different from those of the material used)
Insulation resistance:100MΩ 100V
Dielectric Strength:250VRms (50 ~ 60Hz 1min)
Electric shock jitter:<5ms
Life span:tactile type:≥ one million times
2.The mechanical properties
Operating pressure:Touch feeling: 170 ~ 397g (6 ~ 14oz)
Switch travel:touch-type: 0.6 ~ 1.5mm
3.The environment parameters
Operating temperature:-40℃ to +80℃
Storage temperature: -40℃ to +80℃
Temperature:from 40℃,90% to 95%, 240 hours
Vibration:20G, max. (10 ~ 200Hz, the Mil-SLD-202 M204.Condition B)
