Полупроводниковый тензометрических

Категория: Приборы >>>
Поставщик: Shenzhen,Sensor,And,Control,Company,Limited

Цена:2,00 $ - 3,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	2.16 $*	2.19 $*
Aug-17-2025	2.51 $*	2.35 $*
Jul-17-2025	2.89 $*	2.30 $*
Jun-17-2025	2.29 $*	2.48 $*
May-17-2025	2.56 $*	2.66 $*
Apr-17-2025	2.43 $*	2.99 $*
Mar-17-2025	2.45 $*	2.21 $*
Feb-17-2025	2.27 $*	2.83 $*
Jan-17-2025	2.47 $*	2.67 $*

Характеристики

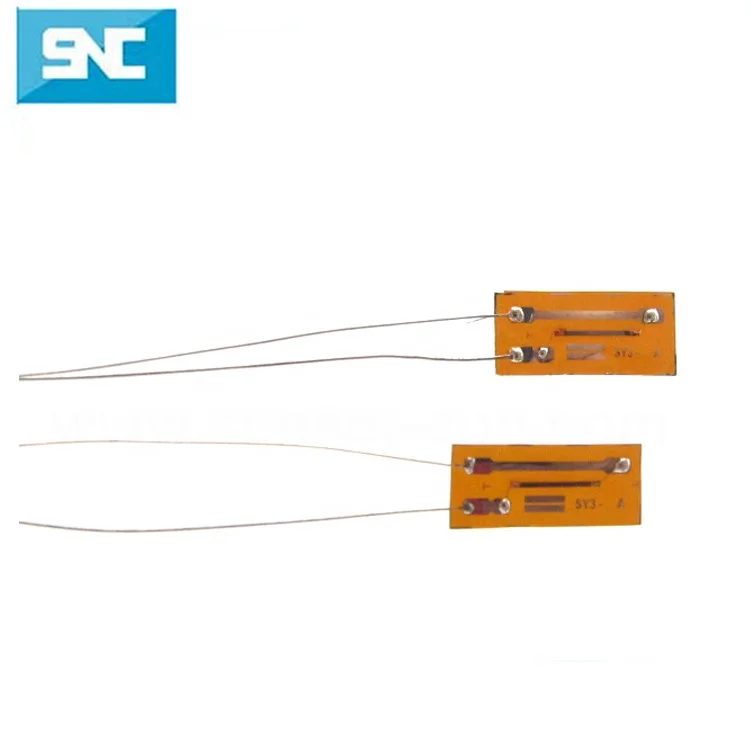

semiconductor strain gauges

Product Overviews

Features:

Model	SG-15	SG-30	SG-60	SG-120	SG-350	SG-600	SG-1000
Resistance (Ω) nominal value	15±5%	30±5%	60±5%	120±5%	350±5%	600±5%	1000±5%
Strain gauge size	B	B	B	A or B	B	C	C or D
Basement size	0, F2, F3, F4, F5	0, F2, F3, F4, F5	0, F2, F3, F4, F5	0, F2, F3, F4, F5	0, F2, F3, F4, F5	0, F2, F3, F4, F5	C:0, F2, F3, F4, F5
							D:0, F1, F3
Sensitive coefficient K of nominal value	100	100	120	A:150	150	200	C:200
				B:120			D:150
Temperature coefficient of resistance %/℃	0.1	0.1	0.15	0.13	0.3	0.45	C:0.40
							D:0.30
Temperature sensitivity %/℃	-0.12	-0.12	-0.18	A:-0.35	-0.35	-0.48	C:-0.48
				B:-0.18			D:-0.35
Max. operating current(mA)	50	50	50	A:20	30	20	20
				B:50
Operating temperature	NO basement: -4℃~+150℃ With basement: -30℃~+80℃
Ultimate strain(mε)	5000	5000	5000	5000	5000	5000	5000

Semi-conductor Strain Gauge Buying Guide

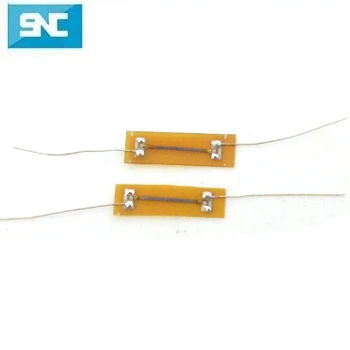

semiconductor strain gauges

Semi-conductor strain gauge is certain electric components for load cell and engineering stress analysis .

It has advantage of high sensitivity, low mechanical hysteresis, wide resistance and low transverse effect.

Due to its high performance in analyzing stress distribution and power-electricity conversion, it is widely

used in static measurement of mechanical, aviation, vessel, bridge and other engineering structures.

Not only can we use it for complicated stress analysis also in nonlinearity compensation of foil load cells.

We provide all kinds of stain gauges including mid and high temperature strain gauges and with or without backing.

Product Uses

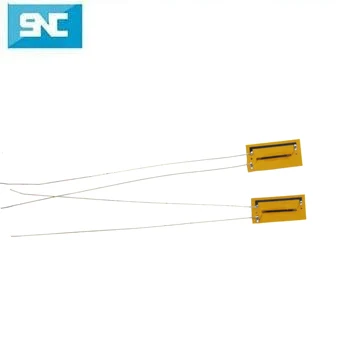

semiconductor strain gauges

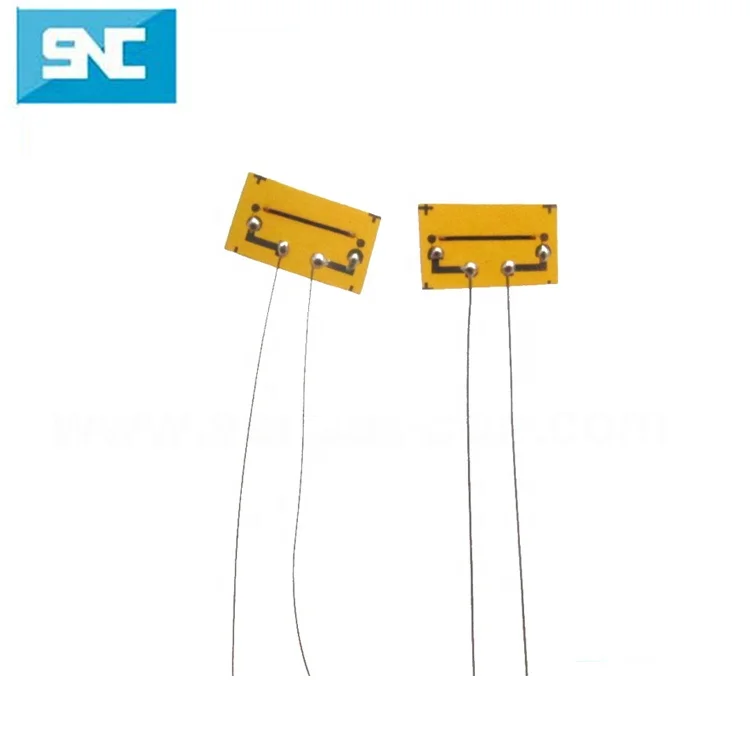

Strain Gauges Series

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

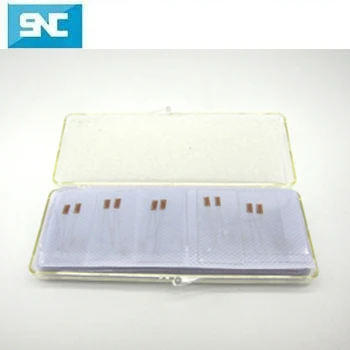

semiconductor strain gauges

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.

Why Choose Us

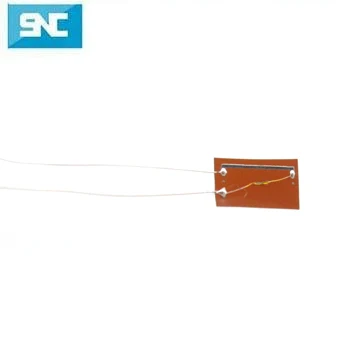

semiconductor strain gauges
