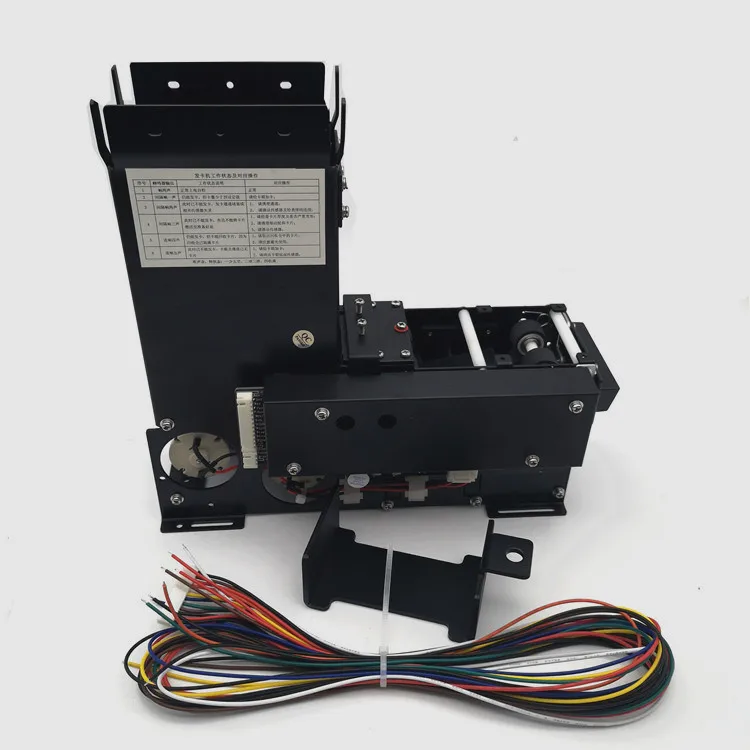

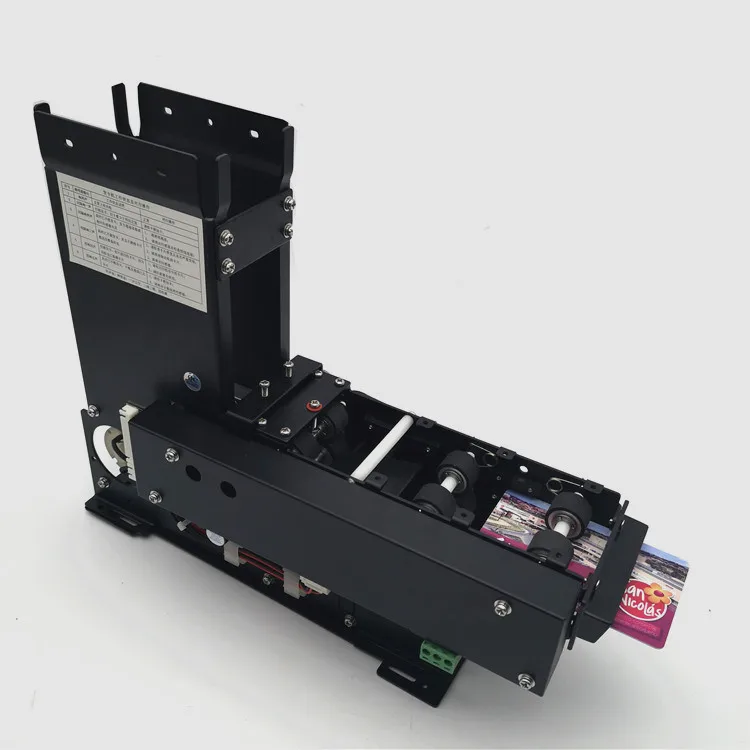

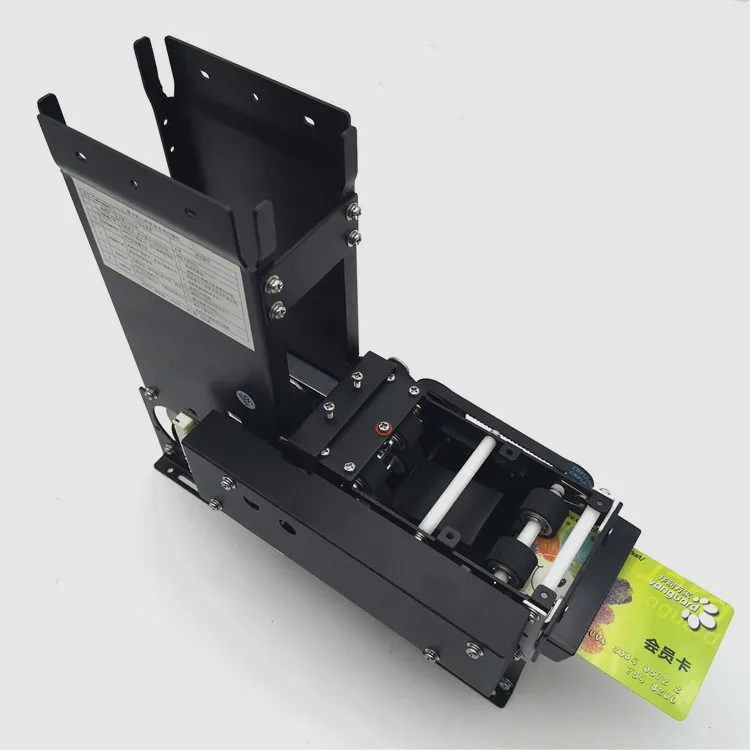

ICD-400S Card Dispenser Selling Point

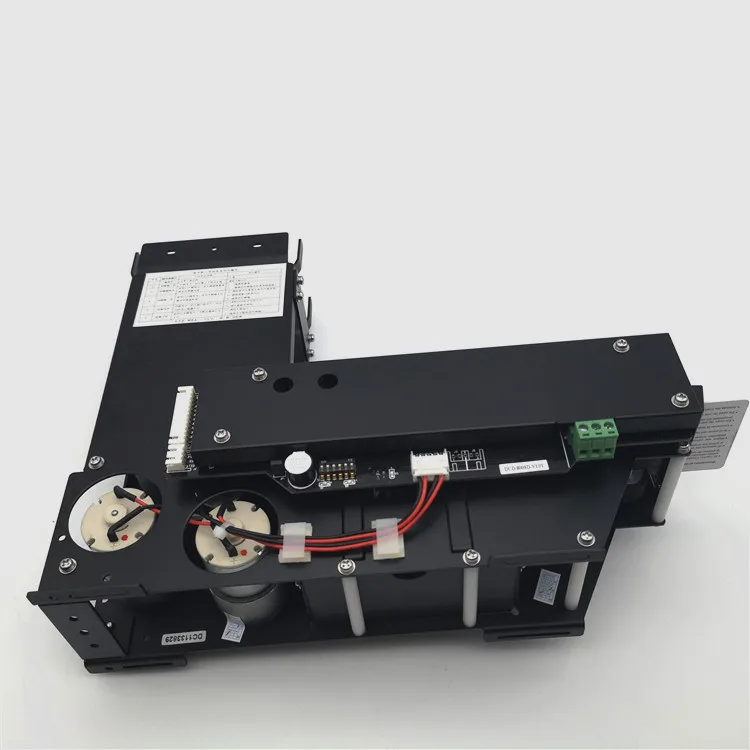

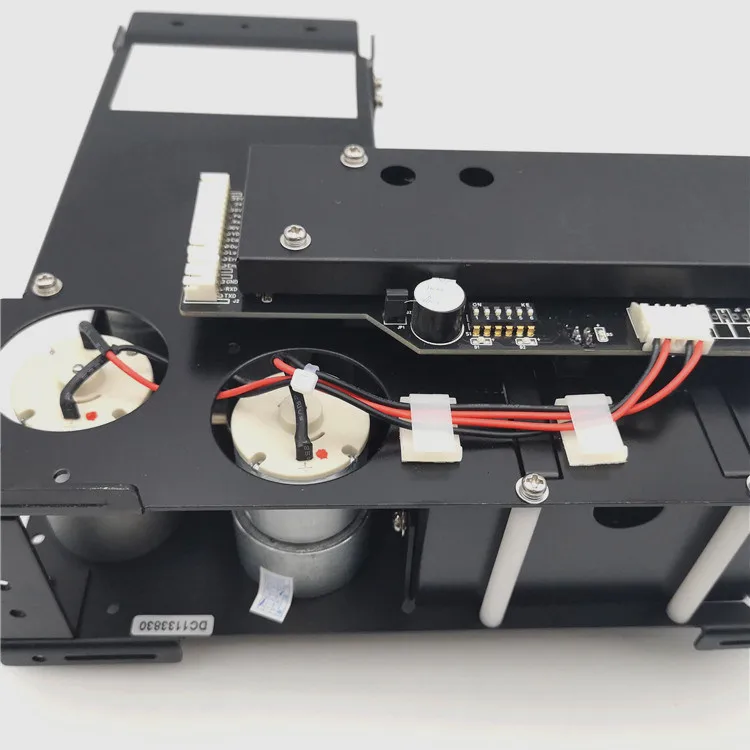

• Integrated design of the whole PCB board, which brings convenience to later maintenance, welding, and production.
• Adopt a reflective photoelectric switch sensor which makes the machine More stable and reliable
• New card machines have also been improved in terms of anti-fly-card and card-out coherence.
• We have reduced the speed of the motor, effectively preventing the flying card and making the card accurate to the intended position
• In the high-level series card machine, we add 485 output input interface, make it better and external application connection, meet the different user demand
• In order to protect the card effectively, the machine works normally. We add a full number of cards to the police and allow 6 more invalid cards to be recovered
• The ICD-400S series card machines use 6 dial control switches when the dial card is closed, Make control and maintenance more convenient and flexible.

ICD-400S Card Dispenser Features

• Direct connectivity to the inductor
• Automatic buzzer alarm when fewer cards or failure
• Provide RS232 and me/o voltage two control interface
• Card recycling capacity is 40pcs, automatic buzzer alarm when cards warehouse is full
• Automatic reset after the wrong alarm 100 seconds
• security recoveries: prevent cards lost (only TCD800 series)
• The adjustable capacity of card warehouse
• Card thickness:0.2mm-1.5mm(adjustable)
• Motherboard slip design makes the installation and removal simple, convenient and fast

Application

• Toll system of car parks
• Access control system
• Entrance tickets issued
• Self Vending System
• Game card distribution system
• Parking charge system
• Toll system of car parks
• Security protect system

Technical Parameter

Specification	Automatic card dispenser
Card size	86x55mm
Card Thickness	0.2-1.5mm
Stacker capability	150pcs(0.8mm card)
Extension Stacker	100pcs/stacker
Error Card Bin Capability	40pcs(0.76mm standard card)
Short card alarm value	10-70pcs(adjustable)
Communication	RS-232,TTL
Operation	0~50°C/0~90%RH(Non-condensing)
Temperature	-10~75°C/0~95%RH(Non-condensing)
Power supply	DC 24V +/-10%
Dimension	230*78*228mm





About US: Integer (CHINA) TECH CO., LTD. is a leading hi-tech company, We have over 12+ years experience in the installation and or sales of the top selling gate operators and access controls in the industry.  The company's main products:barrier gate , vehicle loop detector , Parking Guidance System , Automatic card dispenser&collector , Long Range Reader , Turnstile Gate , RFID cards , Parking Lock and Portable Bluetooth printer .With years of development, we have established long-term partnerships with many global buyers from over 50 countries around the world.  When you order a single product or a full project from integer you are not just getting the complete package for a good price, you are getting the knowledge and support of industry professionals.











Related Products







1. Can machines be used outside?
With waterproof function, could be used outside
2. What is the warranty for the machine?
Within two years, if any problems, we will offer the accessories(but you pay the freight cost)
3. When will you make the delivery?
Regular products:(3-5 days)
4. How does your factory control the quality?
Quality controlling from the beginning to the ending.
5. What is your MOQ?
Any quantity is acceptable.
6.payment term?
30% by T/T, 70% by T/T before delivery.
