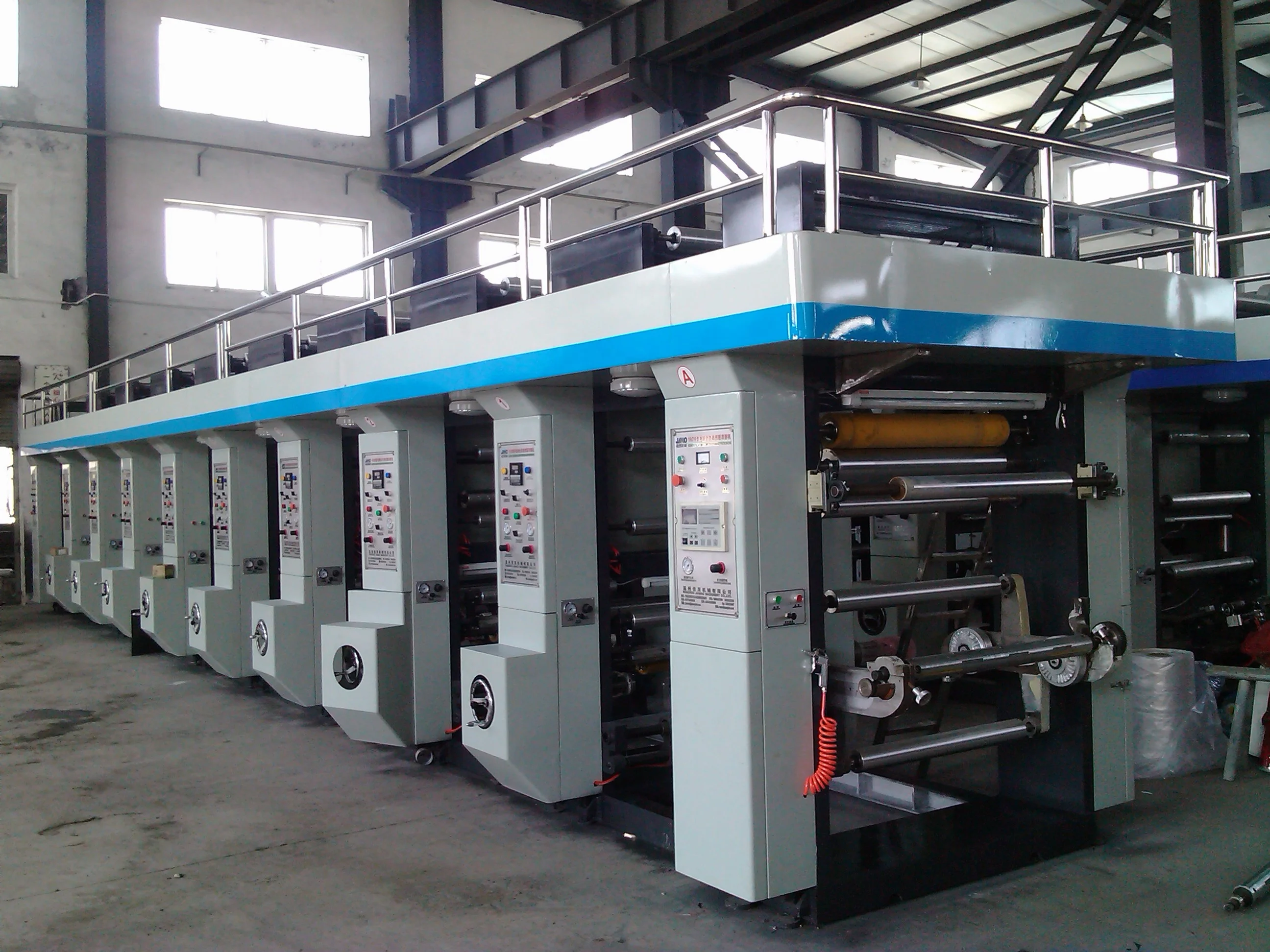

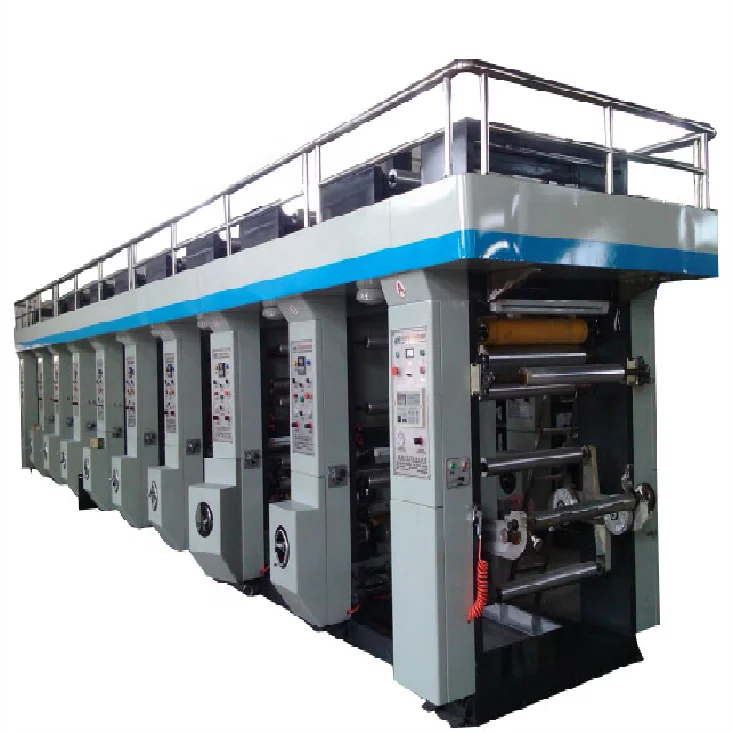

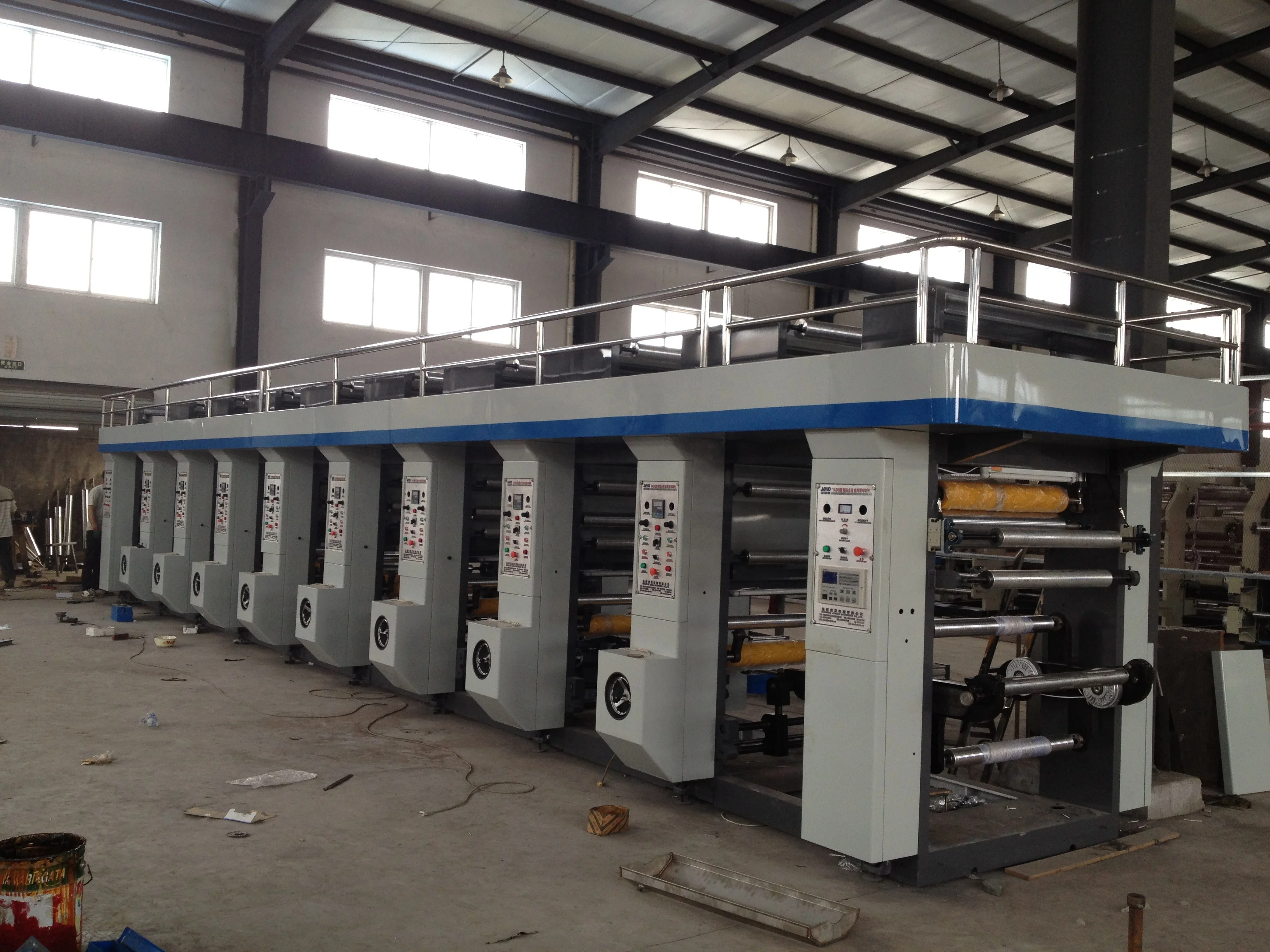

Ротогравировальная печатная машина 8 цветов для

1.0 Structure:

This machine is base on the operation surface, Which include electrical system and

form-roll driven department, From left to right charge department (feed-in

department), the 1st printing color group-the 1-9th printing color group, delivery

department (receiving department) in sequence.

Unwinding unit 1set

Standard printing group 1- 9sets

Rewinding unit 1set

Electrical system 1 set

Form-roll driven device 1set

2.0 Technical Specification:2.01 The flow: From left to right

2.02 Printing color: 1-9colors

2.03 Max printing width: 600-1300mm

2.04 Max machine speed: 130m/min

2.05 Max printing speed: 120m/min

2.06 Unwinding material roll diameter : ￠ 600mm

2.07 Rewinding material roll diameter : ￠600mm

2.08 Printing cylinder diameter: ￠120-￠300 mm

2.09 Registration accuracy：Vertical±0.15mm (Automatic registration system by

photo sensor )

Horizontal<±0.15mm(Manual register)

PET、OPP materials ±0.15 mm

2.10 Tension range：2-30kg

2.11 Tension precision：±0.1kg

2.12 Rewinder＆Unwinder paper core ：￠76mm

2.13 Impressing power: 600kg

2.14 Doctor blade movement：±5mm

2.15 Drying Mode：By electricity
