Переключатель сварочного
- Категория: Rotary Switches >>>
- Поставщик: Yueqing,House,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.5 $* | 0.96 $* |
| Aug-15-2025 | 0.37 $* | 0.89 $* |
| Jul-15-2025 | 0.77 $* | 0.85 $* |
| Jun-15-2025 | 0.53 $* | 0.45 $* |
| May-15-2025 | 0.96 $* | 0.30 $* |
| Apr-15-2025 | 0.50 $* | 0.89 $* |
| Mar-15-2025 | 0.22 $* | 0.59 $* |
| Feb-15-2025 | 0.58 $* | 0.54 $* |
| Jan-15-2025 | 0.30 $* | 0.46 $* |
Характеристики
PRODUCT IN GENERAL

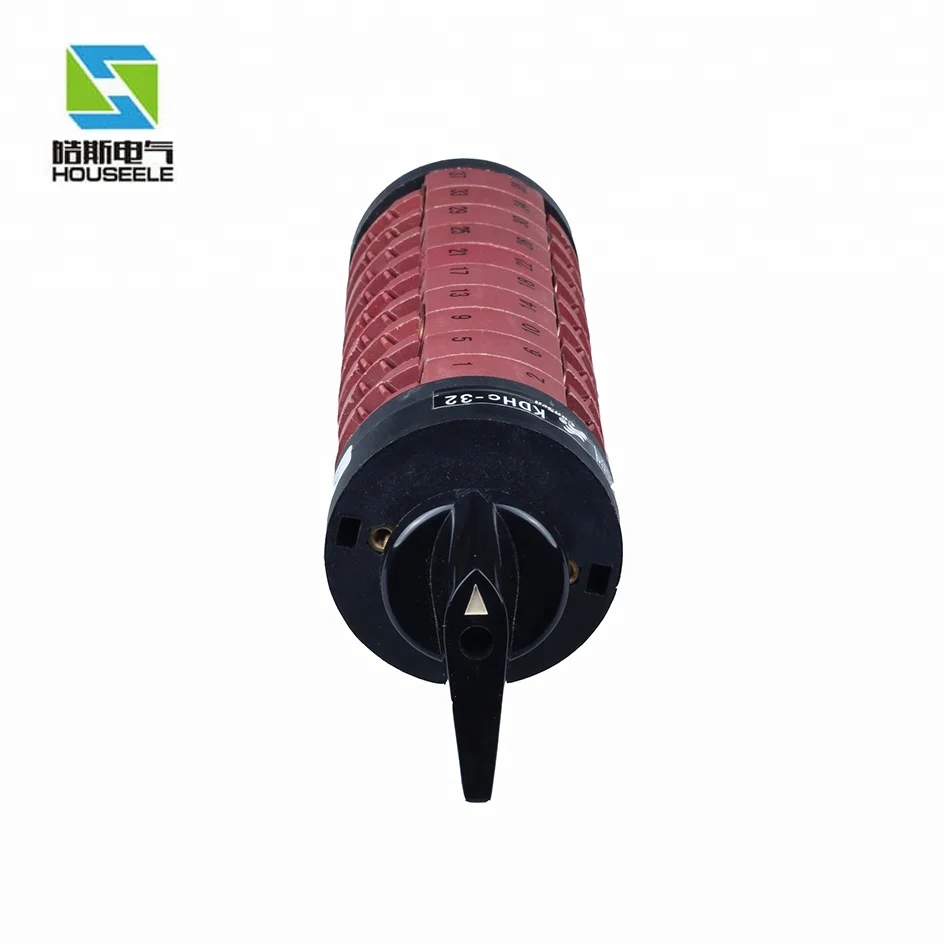

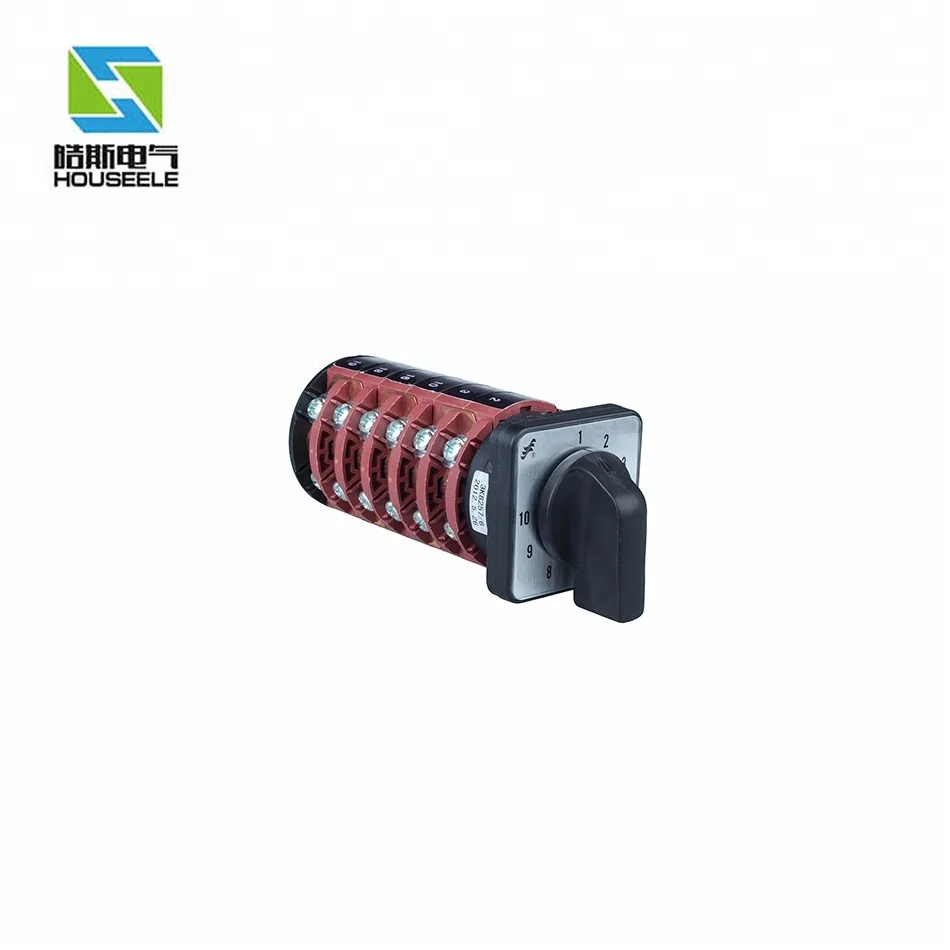

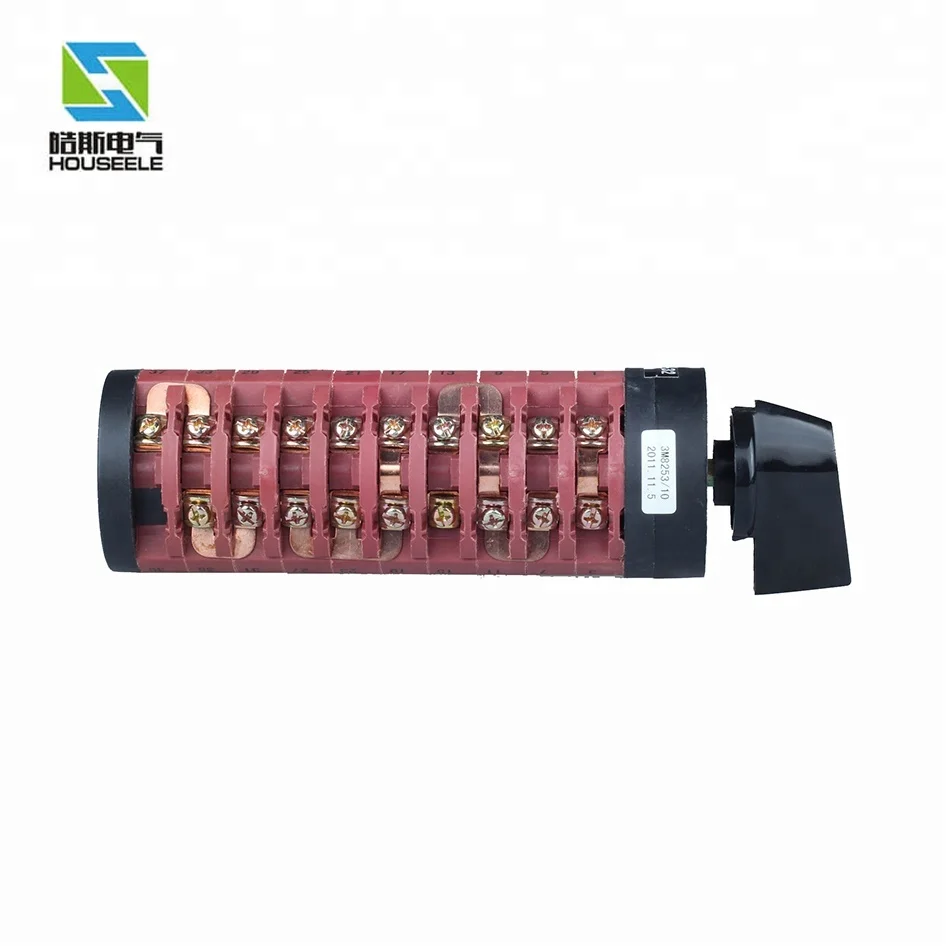

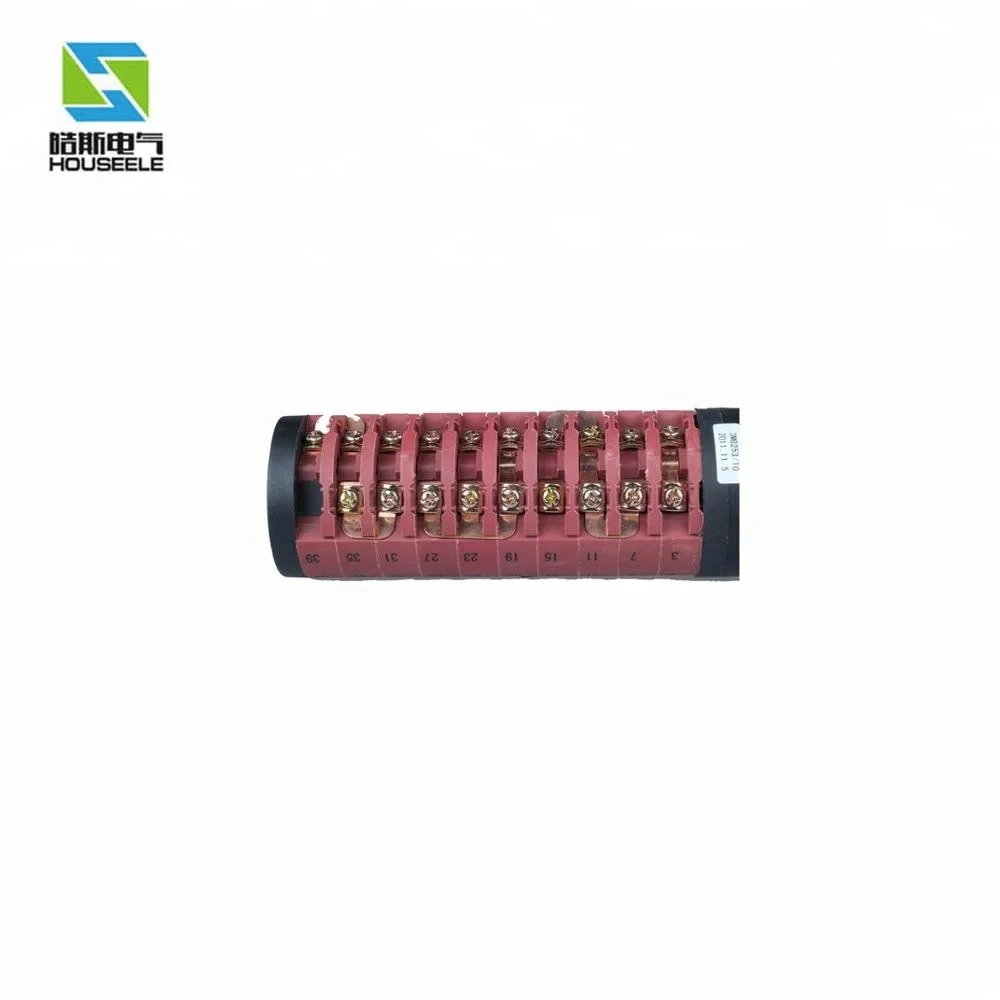

WELDING MACHINE SWITCH
Introduction
The KDHc electric welding machine switch applied to AC 50Hz or 60Hz,440V and below 200A and below,forcontrol of welding machine and control of main circuits as well.
Technical parameters
Description | KDHc-20 | KDHc-25 | KDHc-32 | KDHc-40 | KDHc-63 | ||
Rated thermal current | ITH | A | 20 | 25 | 32 | 40 | 63 |
Rated workig voltage | Ue | V | 240/440 | 240/440 | 240/440 | 240/440 | 240/440 |
Rated working current | Le | ||||||
AC-21A | A | 20 | 25 | 32 | 40 | 63 | |
Operation | |||||||
non-load | 8500 | 8500 | 8500 | 8500 | 8500 | ||
load | 1500 | 1500 | 1500 | 1500 | 1500 | ||
| Total | 10000 | 10000 | 10000 | 10000 | 10000 | ||
frequency | 120 | 120 | 120 | 120 | 120 | ||
Dimensions and installation
Deiscription | Diemnsions(mm) | Installation(mm) | ||||||
| Lmax | Imax | A | E | F | G | G1 | G2 | |
KDHc-20 | 25+12n | 38 | 48±0.31 | 32±0.16 | 36±0.31 | Φ9.5 | Φ3.5 | Φ4.5 |
KDHc-25 | 34+13.3n | 37 | 64±0.37 | 36±0.31 | 48±0.31 | Φ9.5 | Φ4.5 | Φ4.5 |
KDHc-32 | 34+13.3n | 37 | 64±0.37 | 36±0.31 | 48±0.31 | Φ9.5 | Φ4.5 | Φ4.5 |
KDHc-40 | 34+17.5n | 37 | 64±0.37 | 36±0.31 | 48±0.31 | Φ9.5 | Φ4.5 | Φ4.5 |
KDHc-63 | 34+17.5n | 37 | 64±0.37 | 36±0.31 | 48±0.31 | Φ9.5 | Φ4.5 | Φ4 |
