033 U-образная машина для производства питьевой соломы
US $9200-$9500
Новый высокоскоростной 3 слоя Ppaper 10 режущие лезвия бумаги машина для изготовления трубочек машины с бумага
- Категория: оборудование для производства соломы >>>
- Поставщик: Wenzhou,Anchuang,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 30797.94 $* | 32337.50 $* |
| Aug-17-2025 | 30538.85 $* | 32065.35 $* |
| Jul-17-2025 | 25621.40 $* | 26902.83 $* |
| Jun-17-2025 | 30021.15 $* | 31522.64 $* |
| May-17-2025 | 26139.35 $* | 27446.2 $* |
| Apr-17-2025 | 29503.56 $* | 30978.10 $* |
| Mar-17-2025 | 29244.89 $* | 30706.53 $* |
| Feb-17-2025 | 28986.27 $* | 30435.21 $* |
| Jan-17-2025 | 28727.26 $* | 30163.18 $* |
Характеристики
Product Description
Usage:

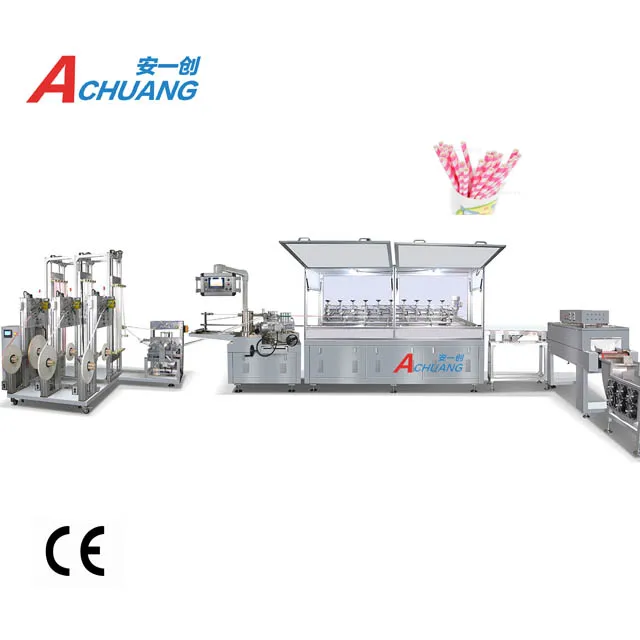

AC-12G High Speed Paper straw machine is used to produce paper straw.
item | parameter |
Paper layer | 3-4layers |
Inner diameter of paper straw | 4-12mm |
Wall thickness of paper straw | 0.07-0.15mm |
Stable speed | 70-100 m/min |
Cutting model | Ten Blade |
Cutting system | Servo motor synchronous tracking, multi knife online cutting |
Gluing type | Single and double side |
workers | 1-2 persons |
Voltage | 380V 3phase 50Hz |
Air requirement | Pressure 0.5-0.8mpa,Consumption ≥0.2m³/min |
Total power | 7 kw |
Machine Weight | 1500 kg |
Operating area | 7200*4800*1500mm |
Detailed Images
paper feeder
--surface paper :15mm,one side printing option,other side with glue.
--middle paper:14mm,being glued on double side.
--inner paper:13.7mm,without any glue
glue station
White oil device is placed on the upper layer, which is used for paper lubrication and convenient for coil forming.
The middle and lower layer of glue plate, through the middle paper and inner paper, using the fixed device to reduce the amount of glue.
winding and cutting part
three layer paper wii be winding by the paper straw mandrel .
Then the cutting knife will cut the long peper tube into different size paper straw.
Machine configurates Schneider servo motor and Airtac air cylinder ,High speed ,stable quality .
Then the cutting knife will cut the long peper tube into different size paper straw.
Machine configurates Schneider servo motor and Airtac air cylinder ,High speed ,stable quality .
Dryer and collection machine
Dryer and collection machine can take the water of paper straw and make paper straw more solid.
the average temperature is 150°C,the paper straw is being heating and transfer to the collection hopper,which has six fans to
Production Process &Detial
The production process is big paper roll printing ---------big paper roll slitting -----paper straw making----------bendy paper
straw making----sharp open paper straw making ----single paper straw packing/ multi-paper straw packing ---bendy paper straw packing
straw making----sharp open paper straw making ----single paper straw packing/ multi-paper straw packing ---bendy paper straw packing
Certifications
Company Introduction
Wenzhou Anchuang machinery technology Co., Ltd.
Anchuang is a manufacturing & technology company which is specialized in processing and distribution of paper straw machine. Adheres to the principles of high quality, low prices, quick reaction and flexibility to build business partnerships. Through the continued
support of old and new clients, we are certain the future holds great success for us
support of old and new clients, we are certain the future holds great success for us
Exhibition
Product packaging&Shipping
FAQ
--1.What is the lead time for the machine?
1 machine can be prepared in a week.The dilivery time depend on the quantity of the order.
--2.What services does the supplier provide?
One year guarantee from the machine start production.within the guarantee,we don’t charge the money for spare parts(except cutting knife and belt),but you should afford the delivery fees.
--3 How about for machine installation?
We provide engineer oversea installation service.The buyer is responsible for the travel, accommodation and salary of the engineer, which is 100 dollars per day.
--4.How many people work at this company & when was it established?
We established in 2010,and we have 40-50 workers
