Шкив SPZ Европейского типа с

Application

Pulley is often used for transmission power with long distance ,such as output of small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

	Belt Section	SPZ
	Specification	SPZ125-04
	Product Code	CP041241
	Groove Number	4
	Pitch Diameter (P)	125mm
	Outside Diameter (O)	129mm
	J	96mm
	L	32mm
	M	20mm
	F	52mm
	Match Taper Bush	2012
	Weight	2.24Kg
	Surface Treatment	Black E-coat
	Balance	Static

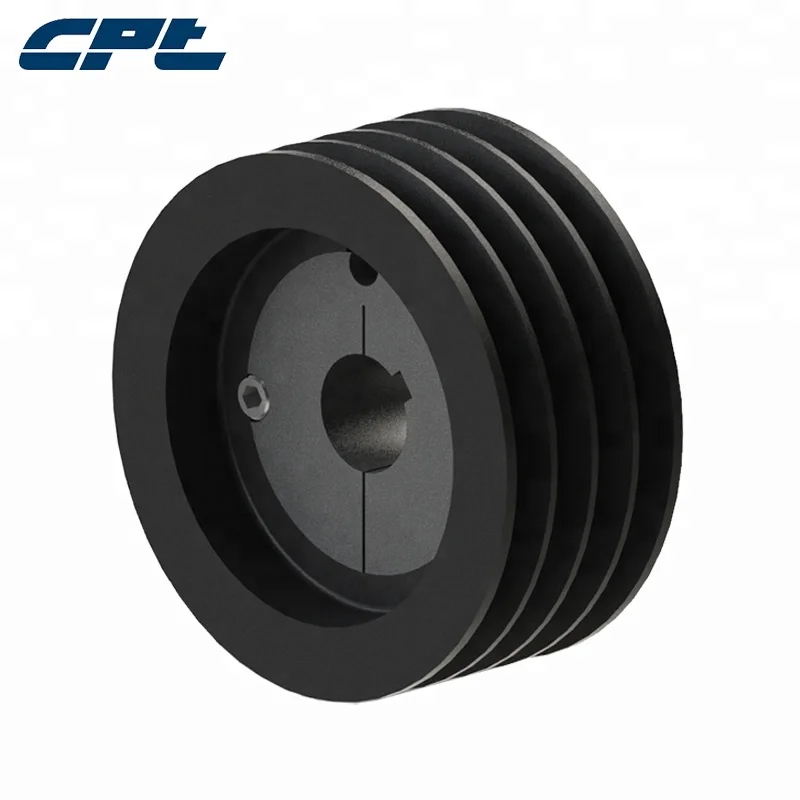

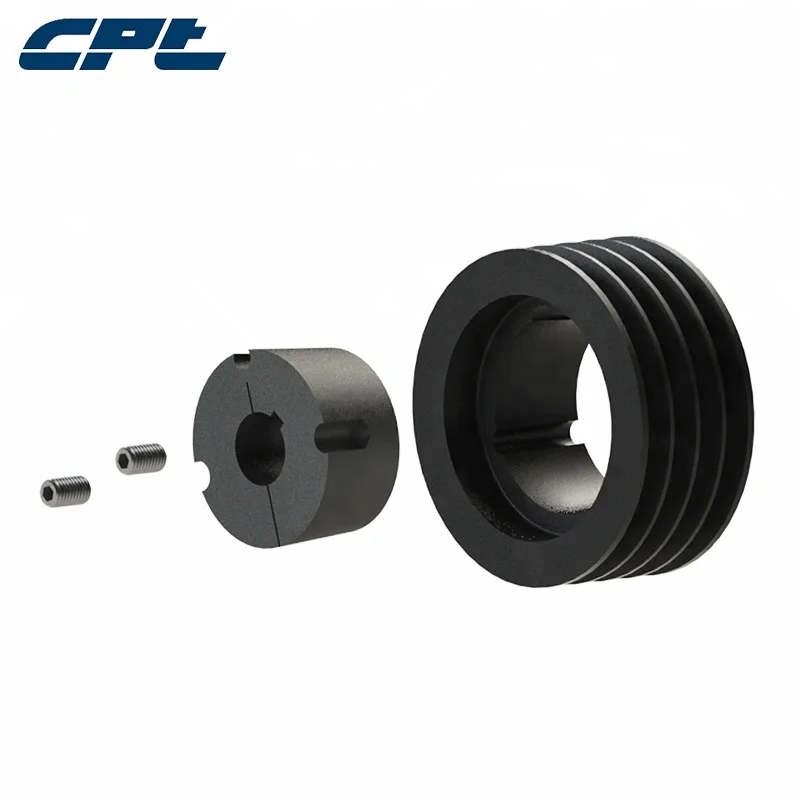

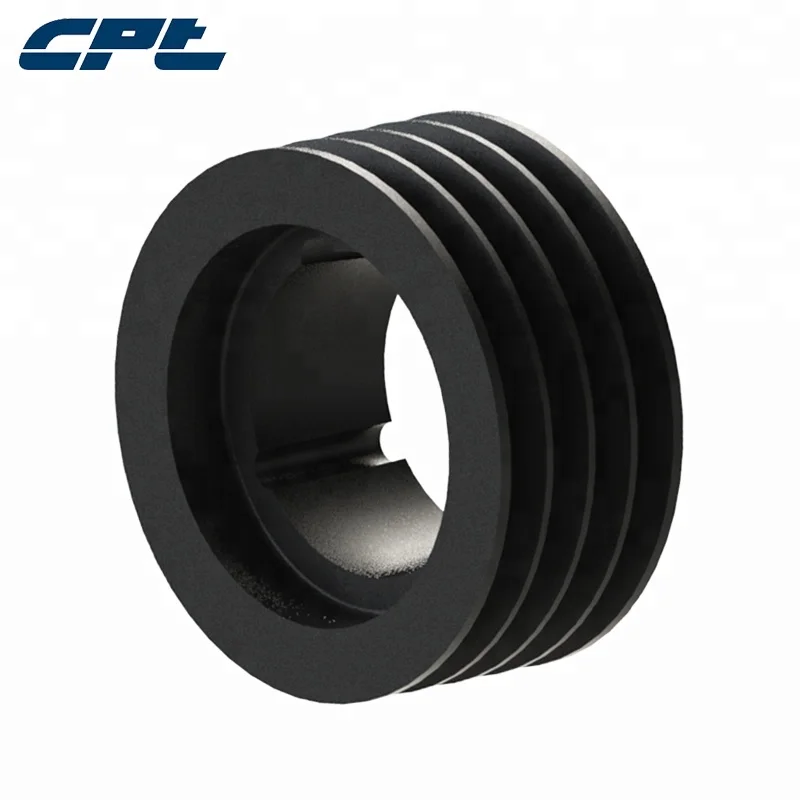

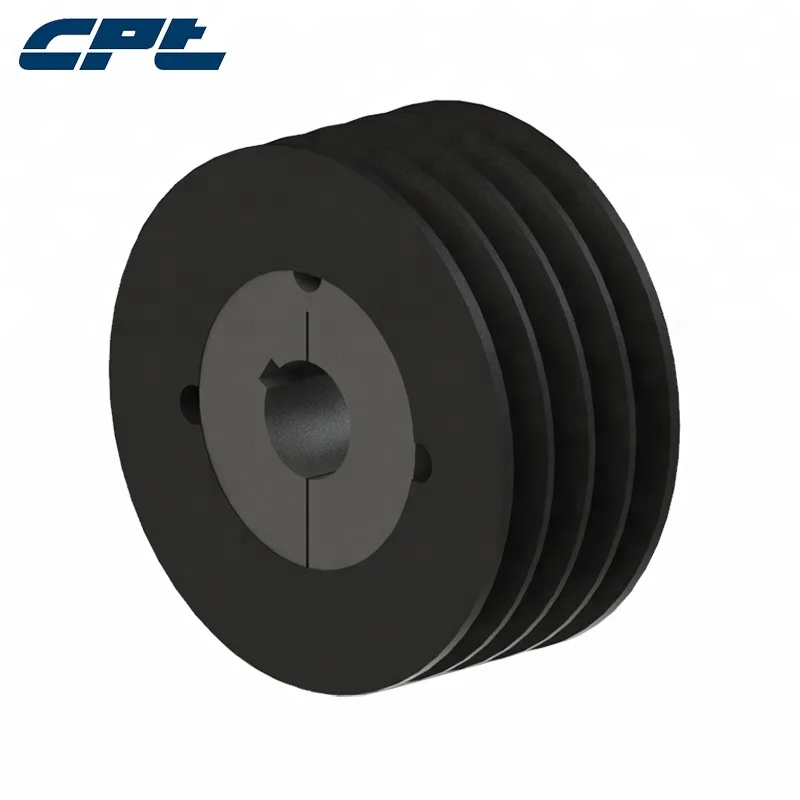

Pulley Detail Photo

Grooved pulley belt pulley Drawing & Belt pulley 3D model

SPZ 4 grooves v pulley Dimensions / Catalog

Product Name:V Belt Pulley

Belt Section:SPZ

Grooves:4

Equipped with Bush:

European standard taper bush
	Bush	Bore Range (mm)
	1610	14,15,16,18,19,20,22,24,25,28,30,32,35,38,40,42
	2012	18,19,20,22,24,25,28,30,32,35,38,40,42,45,48,50
	2517	20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60
	3020	25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
	3030	25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
	3535	35,38,40,42,45,48,50,55,60,65,70,75,80,85,90
