Дизельный молоток свайный драйвер используется
- Категория: Pile Driver >>>
- Поставщик: Shandong,Hengwang,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.32 $* | 0.63 $* |
| Aug-17-2025 | 0.95 $* | 0.57 $* |
| Jul-17-2025 | 0.60 $* | 0.57 $* |
| Jun-17-2025 | 0.81 $* | 0.61 $* |
| May-17-2025 | 0.71 $* | 0.87 $* |
| Apr-17-2025 | 0.8 $* | 0.5 $* |
| Mar-17-2025 | 0.62 $* | 0.14 $* |
| Feb-17-2025 | 0.22 $* | 0.29 $* |
| Jan-17-2025 | 0.71 $* | 0.27 $* |
Характеристики
Product Description
Multifunction full hydraulic solar pile driver Introductions
2. The drilling rig structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.
3. The drilling rig is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.
SPECIFICATIONS | ||||||
Engine power | 80kw | Working pressure | 20MPA | |||
No. of cylinders | 4pcs | Rubber track weight | 5T | |||
Engine brand | Weicai engine | Total displacement | 1860 | |||
Working pressure | 16-20MPA | Total bearing weight | 5000KGS | |||
Working flow | 120L/Min | Walking speed | 0-3kw/h | |||
Wheel distance | 2M | Ground connection beta ratio | 0.036 | |||
Machine size | 4100×2000×2200mm | Pulling capacity | 4300KGS | |||
Machine weight | 3.5T | Clambing ability | ≤ 30 | |||
Drill rod diameters | 70mm | Drill rod weight | 19KGS | |||
Hydraulic hammer weight | 230KGS | Working flow | 40-70L/Min | |||
Working pressure | 110-140bar | Impacting frequency | 500-900bpm | |||
Pile height | 4500mm | |||||
Multifunction full hydraulic solar pile driver
Pile driving speed,the average 2 minutes can realize piling 6 meters deep,namely a hole 3 minutes to play.Oil province,is a common driver uses around half of a year can be a driver left money for you.
Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.Crawler walking,high walking and climbing abilityThe frame can be moved back and forth,bit can be adjusted,high piling position accuracy.
360 degree hydraulic rotation, pile travel is 6m, the highest domestic military hydraulic system configuration, imported gas,oil dual use power head, 8 tons of chassis. Can configured with a set of piling function, a set of drilling function.
Certifications
Detailed Images
Machine Parts
Machine Parts
Name: Hammer pile driver
Brand: HWZG
Original: China
Weichai engines, strong driving force, low fuel consumption, high economic
Main Features
Name: Square hydraulic hammer
Brand: HWZG
Original: China
this hammer used for pressing the pile into the soil
Machine Parts
Name: Round hydraulic hammer
Brand: HWZG
Original: China
Function 1:this hammer can drill the hard rock with air compressor.
Function 2:this hammer can drill the soil with the screw pipe.
Main Features

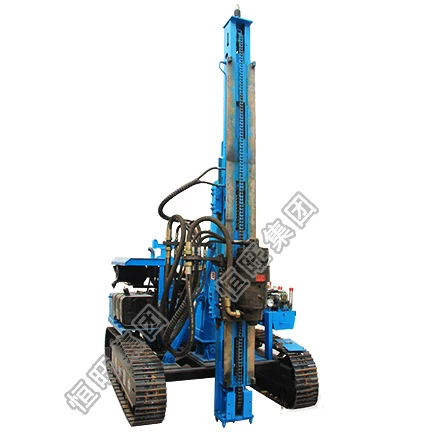

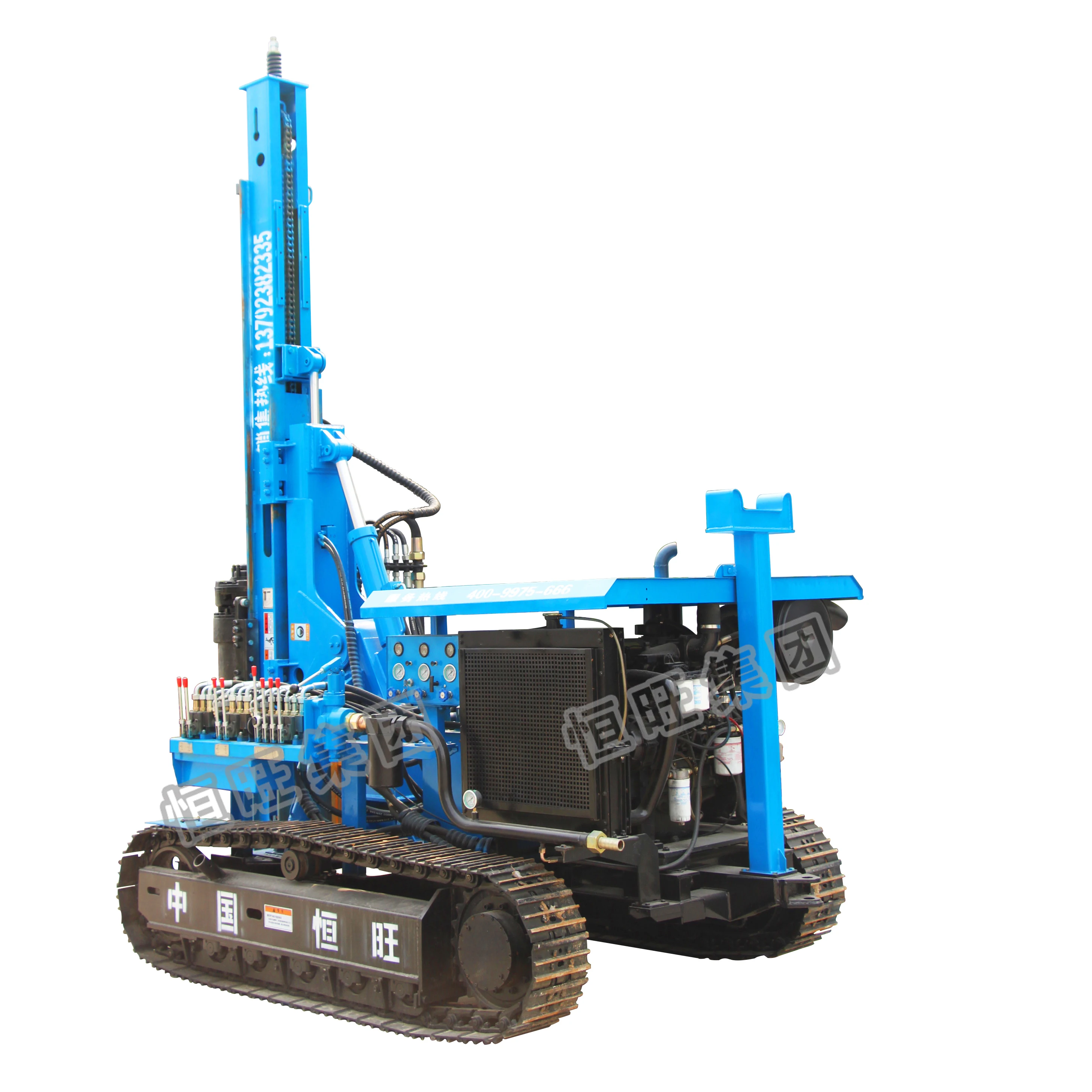

Name:Multifunction pile driver
Brand: HWZG
Original: China
this is the multifunction pile driver,we can change the different hammer to do the different works.it can press the pile,can drill the soil,also can drill the rock.
