CE сертификация двухсторонний пневматический насос для циркуляции воды

Описание и отзывы

Трекер стоимости

Характеристики

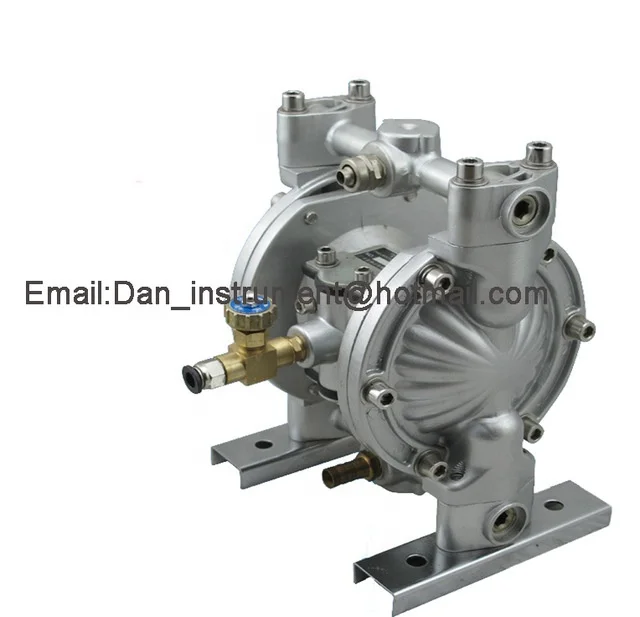

CE Certification Double-way Pneumatic Circulating Pump BML-10

Circulation pump technique parameters

Origin :  Made in China

Model No. : BML-10

Type: flow pump

Driving method: pneumatic

Material: aluminium alloy

Impeller: notching

Pump axis position: sided vertical type

 Circulating  pump All Models and Specifications:

Spec./Model			BML-5	BML-10	BML-15	BML-20
Max.Flow Rate			10L/min	15L/min	35L/min	54L/min
Sunction Lift			2m	5m	7m	7m
Lift			4m	60m	70m	70m
Max.Discharge Pressure			0.5Mpa	0.7Mpa	0.7Mpa	0.7Mpa
Limit of Slurry			2mm	2mm	2mm	3mm
Air Supply Pressure Range			0.2-0.5Mpa	0.2-0.7Mpa	0.2-0.7Mpa	0.2-0.7Mpa
Body Material			aluminium alloy	aluminium alloy	aluminium alloy	aluminium alloy
Material of Diaphragm			PTFE	PTFE	PTFE	PTFE
Nominal Port Size			1/4"	3/8"	1/2"	3/4"
Weight			1.8KG	3.5KG	4.5KG	6KG



 Circulating  Pump Characters

1. Use the compress air as motivation, no sparkle, static electricity and magnetism, can be used in the inflammable and flammable place.

2. The pump is made of antirust and stainless steel, and the special diaphragm has resistance to all kinds of organic corrosive.

3. It can largely save the gas flow rate, has strong self absorption, and it is very easy to clean.





  Circulating  Pump Functions

It is suitable for the circulating system of  the machine, fsuitable for  circulate those fluids with granule and combustible fluid.
