Henan Hongke Factory Price Vertical Shaft Impact Crusher for Sale
Product Description
1. Introdution of Vertical shaft impact crusher
Vertical shaft impact crusher, also called sand making machine, is a kind of sand crusher,which is developed by Henan Hongke Heavy Machinery Co.,Ltd with the introduction of the principle and technology of the famous stone crusher of
American Barmark Company, and combining with the actual situation of domestic sand production,
it is developed with domestic and international characteristics.
The sand making machine is widely used in all kinds of rock, abrasive, refractory, cement clinker, quartz stone,
iron ore, concrete aggregate and so on.

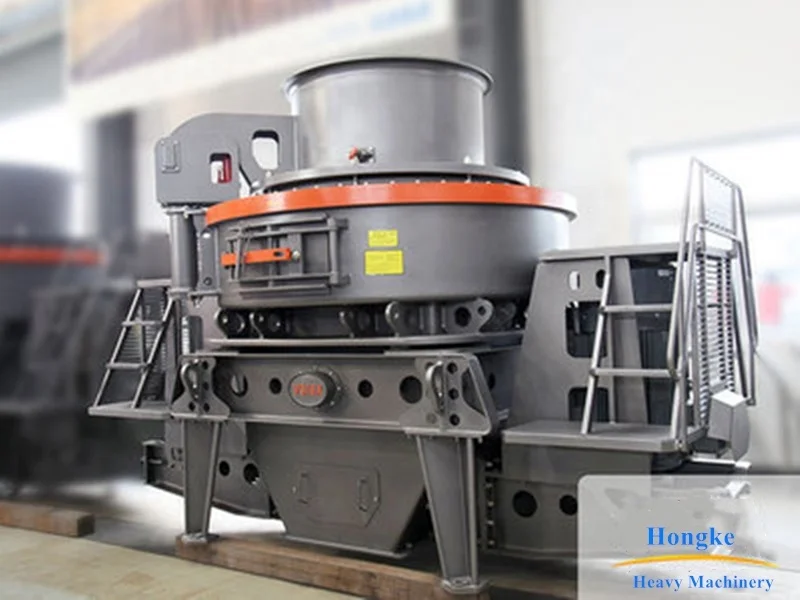

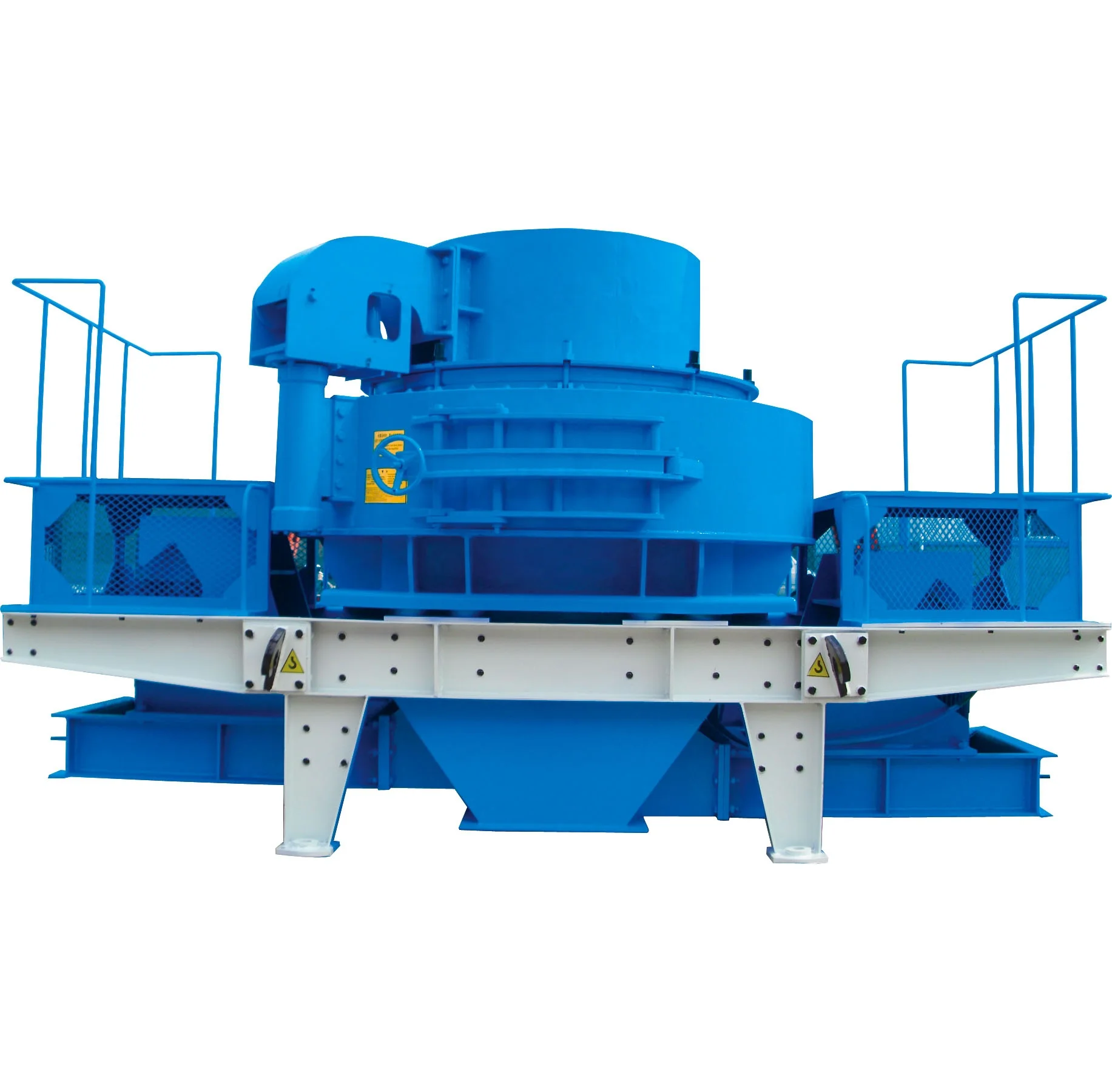

2. Pictures of Vertical shaft impact crusher
3. Working principle of Vertical shaft impact crusher
The material is entered into the crusher by the feed hopper, and the material is divided into two parts by the splitter.
One part is entered into the high-speed rotating impeller by the splitter, and the acceleration is rapidly accelerated in the impeller, and the acceleration can reach several hundred times the gravity acceleration.
Then, at a speed of 60-70 m / s, the impeller was ejected from the three evenly distributed channels.
First, it was smashed with the impact of a portion of the material that had been collected and dropped around the splitter,
and then it hit the material liner in the vortex support chamber together, and was rebounded by the material liner.
Oblique impact on the top of the vortex chamber, and then change the direction of its motion, deflecting downward motion, from the impeller runner out of the material emitted from the formation of a continuous material curtain.
A sample piece of material is subjected to two or more chances of impact, friction and grinding in the vortex crushing chamber.
The broken material is discharged from the lower discharge port.
And cycle screening system to form closed circuit, generally three cycles can break the material into less than 20 mesh.
4. Structure of Vertical shaft impact crusher
5.Technical parameters of Vertical shaft impact crusher
Model |
Impeller speed (r/min) |
Max feed size (mm) |
Capacity (t/h) |
Power (kw) |
Weight(kg) |
Overall dimensions(mm) (L*W*H) |
PCL-600 | 2000-3000 | 30 | 12-30 | 2*30 | 5.6 | 2800*1500*2030 |
PCL-750 | 1500-2500 | 35 | 25-55 | 2*45 | 7.3 | 3300*1800*2440 |
PCL-900A | 1200-2000 | 40 | 55-100 | 2*55 | 12.1 | 3750*2120*2660 |
PCL-900B | 1000-1450 | 40 | 65-130 | 2*75 | 13.6 | 3750*2300*2090 |
PCL-1050 | 1000-1700 | 45 | 100-160 | 2*(90-110) | 16.9 | 4480*2450*2906 |
PCL-1250 | 850-1450 | 45 | 160-300 | 2*(132-180) | 22 | 4563*2650*3176 |
PCL-1350 | 800-1200 | 50 | 200-360 | 2*(180-220) | 26 | 5340*2940*3650 |
6. Characteristics of Vertical shaft impact crusher
(1) It is suitable for mass production of 50-300 tons / hour.
(2)The cost of producing finished sand and stone is only 3 / 5 of the conventional production line.
(3) High degree of production automation, less energy consumption, large crushing ratio.
(4) The investment payback period is 4-5 months.
(5) With plastic function, the product is cubic.
(6) The finished product grain size is fine, conforms to the national standard.
