50*50*4.15mm 130W 15a TEC1 12715 Peltier Module Portable

Описание и отзывы

Трекер стоимости

Характеристики

50*50*4.15mm 130W 15a TEC1 12715 Peltier Module Portable Refrigerated

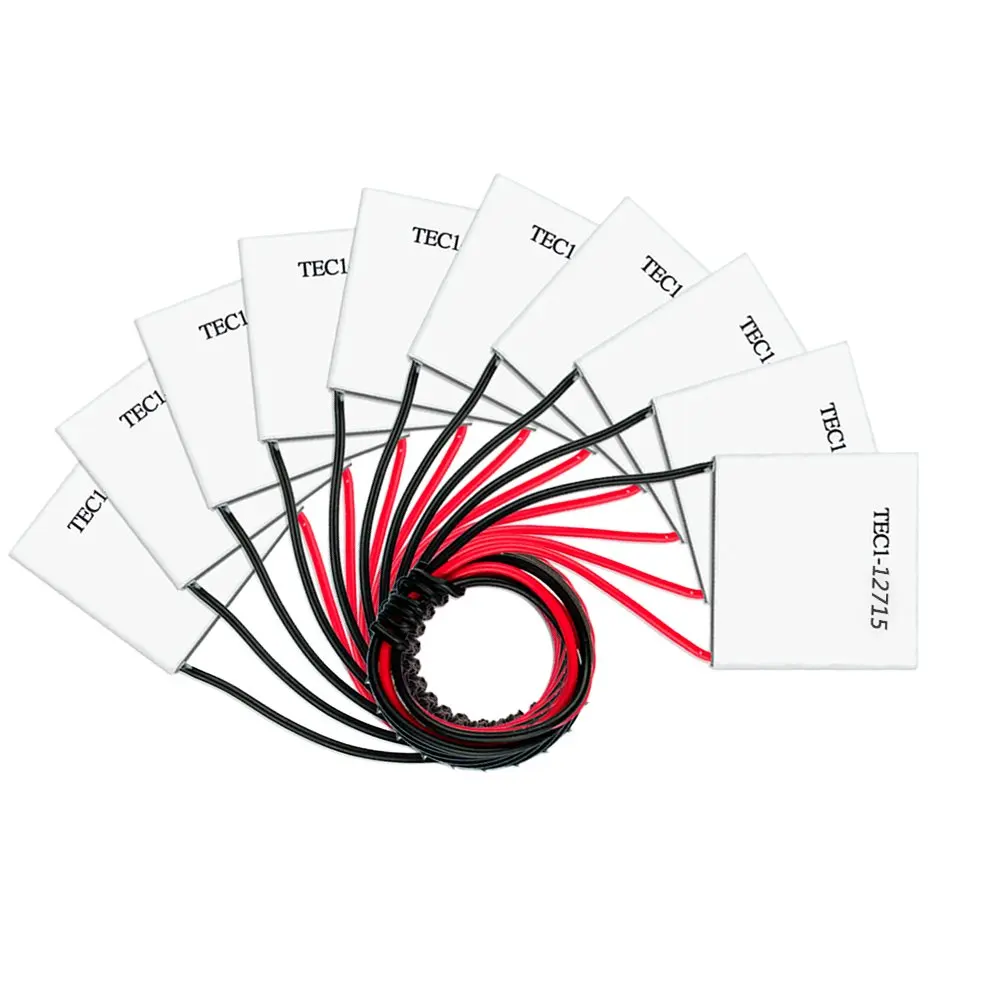

1. Product Pictures of thermoelectric peltier



2.Product Description of thermoelectric peltier

50 * 50 * 3.75 mm Thermoelectric Peltier Module ROHS
Dimensions: 50 * 50 * 4.15 mm



Features

Small and lightweight
Free choice of configuration
Since there are no moving parts, there is no vibration or noisy
With only a power cord, it is easy to handle



Parameter



Model number	Imax(A)	Vmax(V)	Tmax(℃)	Qmax(W)	Tmax(℃)	Qmax(W)	Dimensions(mm)
			Th=27℃		Th=50℃		L	W	H
TEC1-1703NC	3.5	2.1	68	3.9	75	4.3	15	15	4.70
TEC1-3103NC		3.8		7.0		7.7	20	20
TEC1-3503NC		4.2		7.9		8.7	15	30
TEC1-7103NC		8.6		16.0		17.8	30	30
TEC1-12703NC		15.4		29.0		32.0	40	40
TEC1-12703AC		15.4		29.0		32.0	40	40
TEC1-1704NC	4.0	2.1	68	4.2	75	4.6	15	15	4.60
TEC1-3104NC		3.8		7.5		8.3	20	20
TEC1-3504NC		4.2		8.4		9.2	15	30
TEC1-4904NC		5.9		13.5		15.2	25	25
TEC1-7104NC		8.6		19.6		21.6	30	30
TEC1-12704NC		15.4		32.0		35.2	40	40
TEC1-12704AC		15.4		32.0		35.2	40	40
TEC1-1705NC	5.0	2.1	68	5.5	75	6.1	15	15	4.00
TEC1-3105NC		3.8		10.0		11.1	20	20
TEC1-3505NC		4.2		11.0		12.3	15	30
TEC1-7105NC		8.6		23.0		25.7	30	30
TEC1-12705NC		15.4		41.0		45.8	40	40
TEC1-1706NC	6.0	2.1	68	7.1	75	7.9	15	15	4.00
TEC1-3106NC		3.8		13.0		14.5	20	20
TEC1-3506NC		4.2		14.5		16.1	15	30
TEC1-7106NC		8.6		29.0		31.4	30	30
TEC1-12706NC		15.4		53.0		59.3	40	40
TEC1-12706AC		15.4		53.0		59.3	40	40
TEC1-1707NC	7.0	2.1	68	7.5	75	8.3	15	15	3.70
TEC1-3107NC		3.8		13.6		15.1	20	20
TEC1-3507NC		4.2		15.4		17.1	15	30
TEC1-7107NC		8.6		31.0		34.6		30
TEC1-12707NC		15.4		55.0		61.5	40	40
TEC1-12707AC		15.4		55.0		61.5	40	40
TEC1-1708NC	8.5	2.1	68	10.0	75	11.1	15	15	3.50
TEC1-3108NC		3.8		18.0		20.1	20	20
TEC1-3508NC		4.2		20.0		22.3	30	15
TEC1-6308NC		7.6		37.4		41.8	40	20
TEC1-7108NC		8.6		42.0		46.9	30	30
TEC1-12708NC		15.4		75.0		83.9	40	40
TEC1-12708AC		15.4		75.0		83.9	40	40
TEC1-12710AC	10.5	15.4	68	93.0	75	102.0	40	40	3.30
TEC1-12712AC	12.5	15.4	68	110.0	75.0	121.0	40	40	3.70
TEC1-12715AC	15.0	15.4	68	130.0	75.0	145.0	50	50	4.15
TEC1-19903AC	3.5	24.1	68	49.0	75.0	53.0	40	40	4.70
TEC1-19904AC	4.0	24.1	68	55.7	75.0	61.2	40	40	4.60
TEC1-19906AC	6.0	24.1	68	83.5	75.0	91.9	40	40	4.00
TEC1-19908AC	8.5	24.1	68	118.0	75.0	130.0	40	40	3.50
TEC1-19910AC	10.5	24.1	68	148.0	75.0	163.0	40	40	3.30
TEC1-19913AC	13.0	24.1	68	200.0	75.0	224.0	40	40	3.40
TES1-3102NC	2.0	3.8	68	3.7	75	4.0	15	15	4.8
TES1-7102NC		8.6		8.5		9.4	20	20
TES1-12702NC		15.4		15.2		16.9	30	30
TES1-12702AC		15.4		15.2		16.9	30	30
TES1-3103NC	3.0	3.8	68	6.5	75	7.2	15	15	3.9
TES1-4903NC		6.0		10.3		11.3	20	20
TES1-7103NC	3.0	8.6		15.0		16.7	20	20
TES1-12703NC		15.4		27.0		30.1	30	30
TES1-12703AC		15.4		27.0		30.1	30	30
TES1-3104NC	3.9	3.8	68	8.1	75	8.8	15	15	3.7
TES1-7104NC		8.6		18.7		21.8	20	20
TES1-12704NC		15.4		33.4		37.3	30	30
TES1-12704AC		15.4		33.4		37.3	30	30
TES1-3106NC	6.0	3.8	68	12.2	75	13.6	15	15	3.2
TES1-7106NC		8.6		27.9		31.2	20	20
TES1-12706NC		15.4		50.5		56.5	30	30
TES1-12706AC		15.4		50.5		56.5	30	30





3.More Products

1.About us

Qinhuangdao Fulianjing Electronic Co., Ltd. was founded in 1988. As a joint investment by Fujitaka (Japan), Chinese Academy of Sciences, and Ukraine Research Center, we brought in the world leading cooling technology from Ukraine to accelerate the development of the thermoelectric cooling product, production, and sales. In 2003, Fujitaka and Ukraine Research Center formed a joint venture, in which, Qinhuangdao Fulianjing later became a foreign solely owned corporation.

2.Our Advantage

3. Certifications

4.Exhibition



5.Contact us

We are looking forward to establishing a long-term partnership with you!
