Санитарный клапан-бабочка цена dn100 Вафля трехзажим ручной из нержавеющей стали с
- Категория: Butterfly Valves >>>
- Поставщик: Jiegang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 2236.27 $* | 2281.84 $* |
| Jul-17-2025 | 1814.23 $* | 1850.44 $* |
| Jun-17-2025 | 2201.82 $* | 2245.74 $* |
| May-17-2025 | 2184.77 $* | 2228.34 $* |
| Apr-17-2025 | 1743.69 $* | 1778.54 $* |
| Mar-17-2025 | 2148.25 $* | 2191.32 $* |
| Feb-17-2025 | 2131.59 $* | 2174.71 $* |
| Jan-17-2025 | 2113.17 $* | 2155.92 $* |
Характеристики
stainless steel butterfly valve dn100 sanitary butterfly valve price list wafer butterfly valve
Description
Material | AISI 316L/304(forged) | ||||||
Valve body | AISI 316L/304(forged) | ||||||
Washer and gasket | EPDM conforms to PFA 177.2600 | ||||||
Hande | AISI 304/PP | ||||||
Surface finishing | Ra < 0.8 | ||||||
Max.pressure | 10bar 1/2"-12", DN10-DN300 / 5bar(DN200/300) | ||||||
Min.pressure | 0.2bar p.abs | ||||||
Operating temperature | -10°C +120°C ( EPDM ) | ||||||
Connection | weld, clamp, thread, flange, etc | ||||||
Size | DN10-DN300, 1/2"-12" | ||||||
Standards | DIN, SMS, RJT, 3A, ISO, IDF | ||||||
Application | food processing, and chemical products, industrial fluid applications. | ||||||
Work Principle.

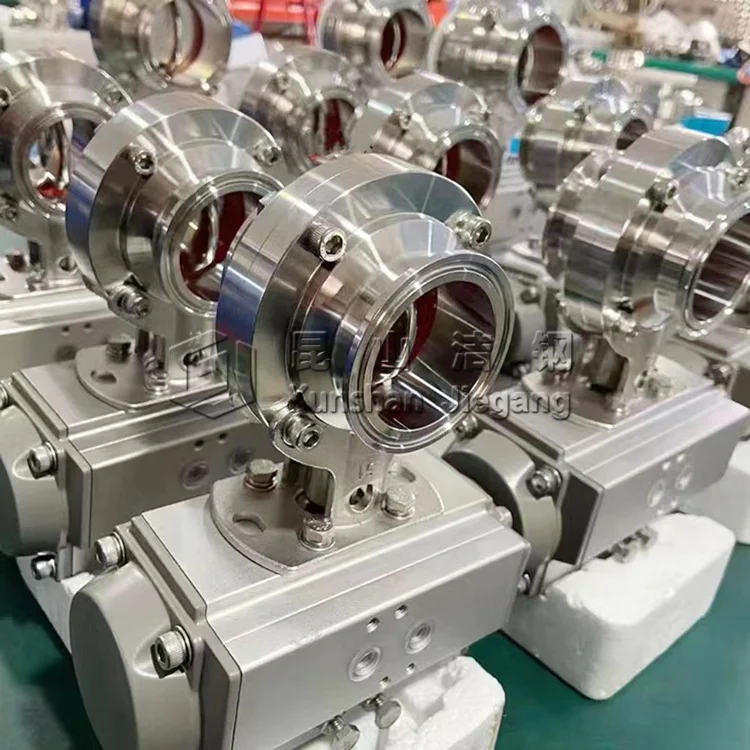

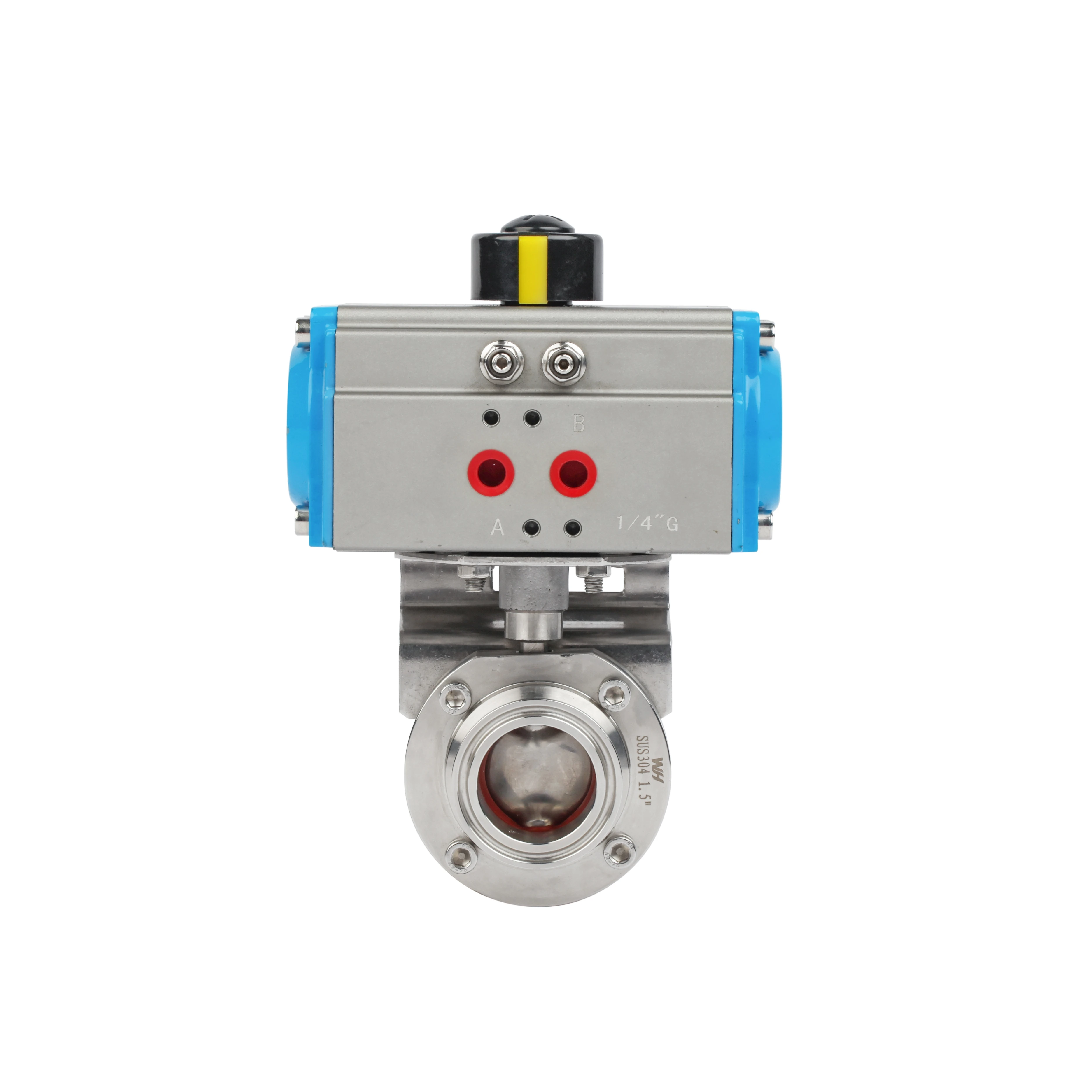

This kind of valve can be handled by manual an electric actuator, and also can be handled by a pneumatic actuator.Electric actuator or pneumatic actuator covert the axialmovement of piston to be 90°rotation of valve shaft. So that the valve can be open or close to achieve the requirement ofcontrol and open/close for the pipeline system. They have three type of actuator : normally open (NO) , normally closed(NC), air/ air (A/A).
Muti-position handle regulates the valve by 15 · in its open orclose 12 seats achiening control of medium flow purpose:Pulling handle regulates the valve through four multi-functionpositioning, in its open or close four position,also achieves control of medium flow purpose.
Muti-position handle regulates the valve by 15 · in its open orclose 12 seats achiening control of medium flow purpose:Pulling handle regulates the valve through four multi-functionpositioning, in its open or close four position,also achieves control of medium flow purpose.
Features
Compact and robust design

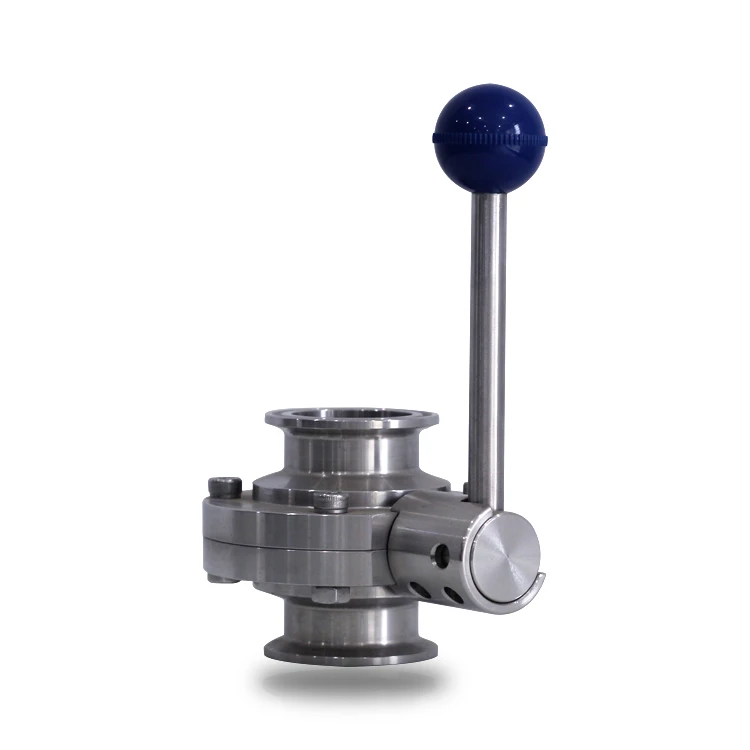

Multi-position handle: Plastic type for 1/2"-4", stainless steel type for 1/2'-6"

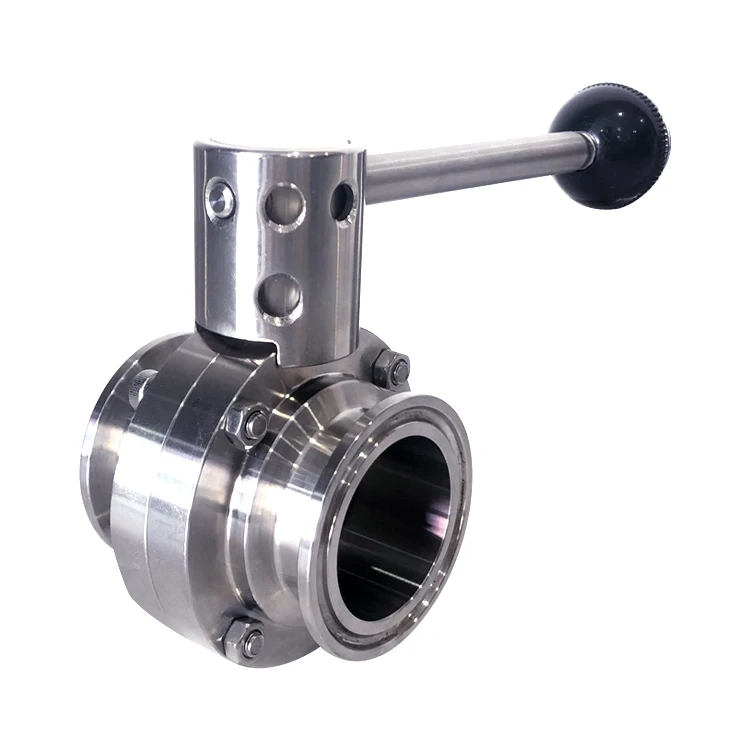

Pull handle, is suitable up to DN25-1 to DN300-12 valve
Manual handle, pneumatic and electric actuator can be exchangeable with each other
PED97-23EC
The valve body can be changeable with any kind of connection
Widely used in food, beverage, bioengineering, water treatment, daily chemical, petroleum and chemical industries.
Product Paramenters
