Дрон с долгим сроком службы для воздушного наблюдения отображения и бензинового двигателя БПЛА топливная мощность неподвижным крылом
- Категория: Aircraft >>>
- Поставщик: Shenzhen,Deeya,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 6374218.31 $* | 6501702.26 $* |
| Jul-20-2025 | 5169641.19 $* | 5273034.38 $* |
| Jun-20-2025 | 6273836.41 $* | 6399313.41 $* |
| May-20-2025 | 6223646.98 $* | 6348119.16 $* |
| Apr-20-2025 | 4968878.23 $* | 5068256.33 $* |
| Mar-20-2025 | 6123264.94 $* | 6245729.97 $* |
| Feb-20-2025 | 6073073.7 $* | 6194534.9 $* |
| Jan-20-2025 | 6022883.6 $* | 6143341.6 $* |
Характеристики
Product Description

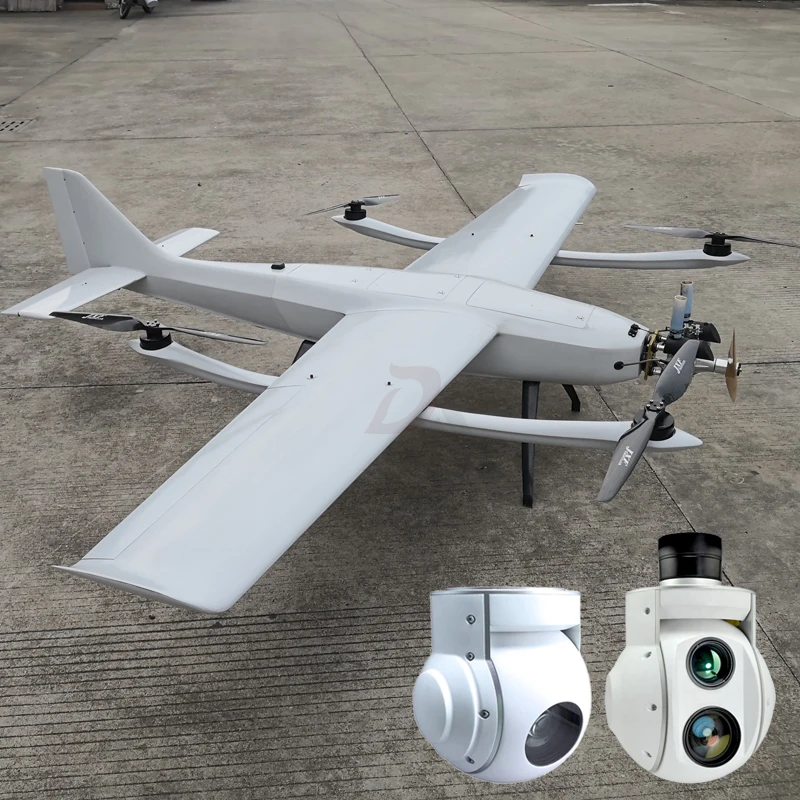

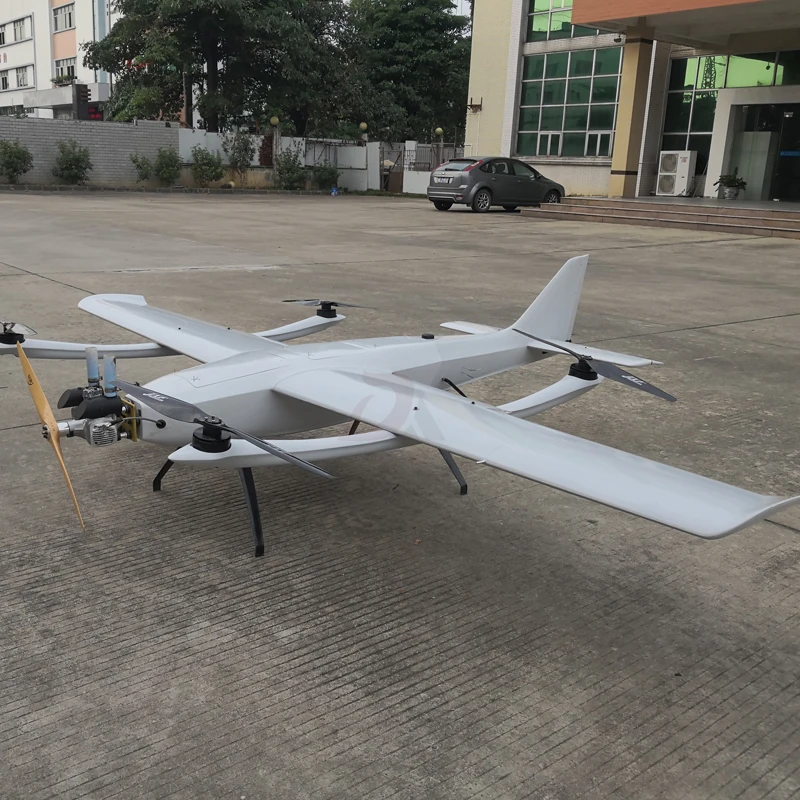

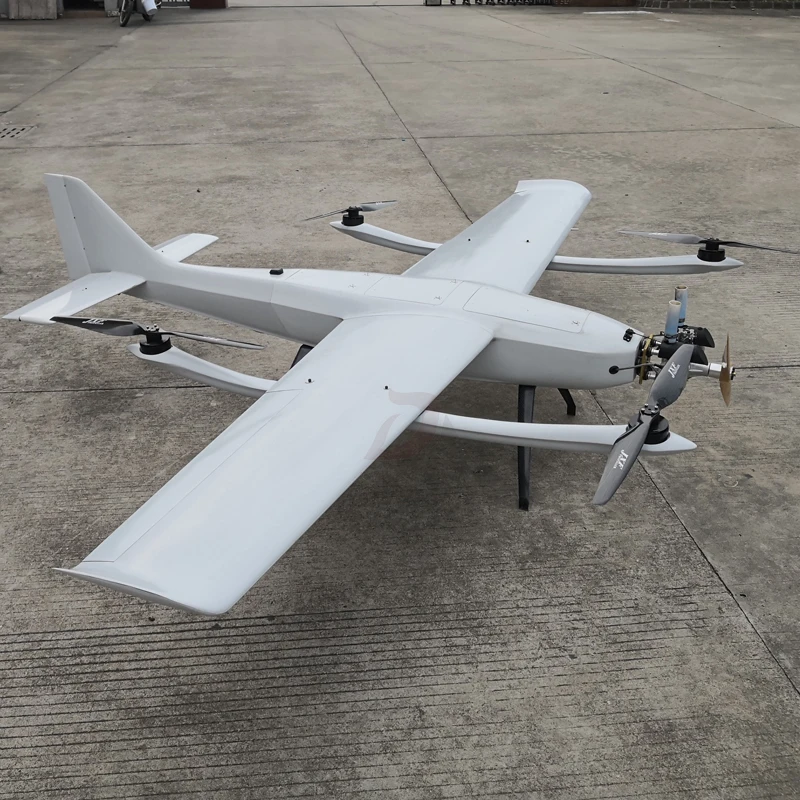

Long Endurance Fuel Power Fixed Wing VTOL UAV Surveillance Survey Mapping Gasoline Engine Drone
| Model features | |
| Vertical take-off and landing | Low requirements for landing and landing points, high operating efficiency. |
| Simple structure | Easy to operate in a short time. |
| Full autonomous flight | One-button take-off, safe and efficient. |
| High security | Double protection for emergency landing and open umbrella. |
| Flight duration | 5-8 Hours |
| Aircraft Parameters | |
| Cruise speed | 100-120Km/H |
| Aircraft length | 2.1M |
| Wing width | 3.3M |
| Maximum takeoff weight | 40KG |
| Flight altitude | Maximum 4500m |
| Payload | Maximum 10KG |
| Wind resistance | Grade 6 |

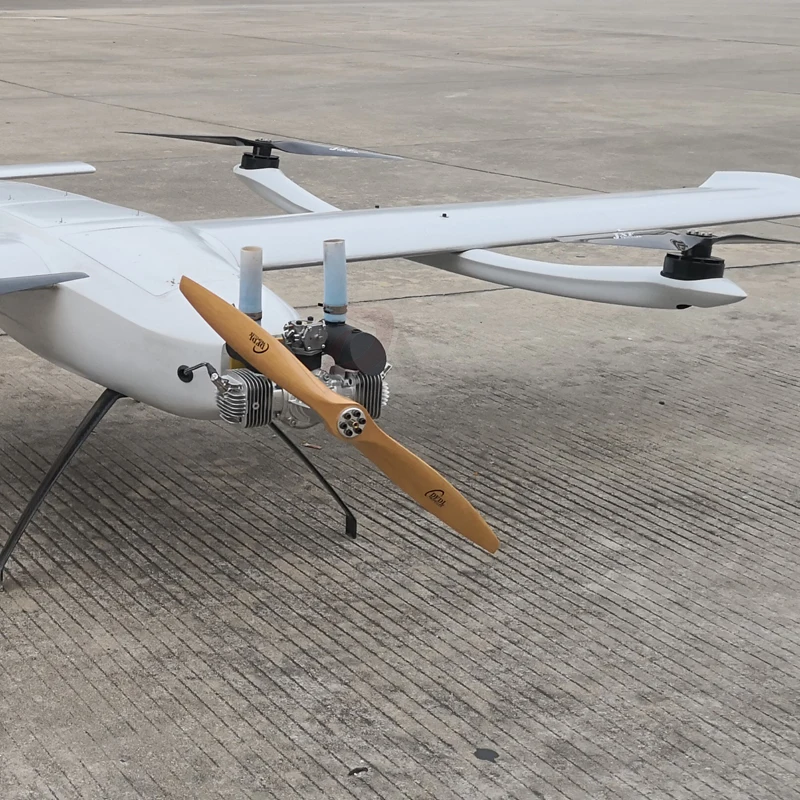

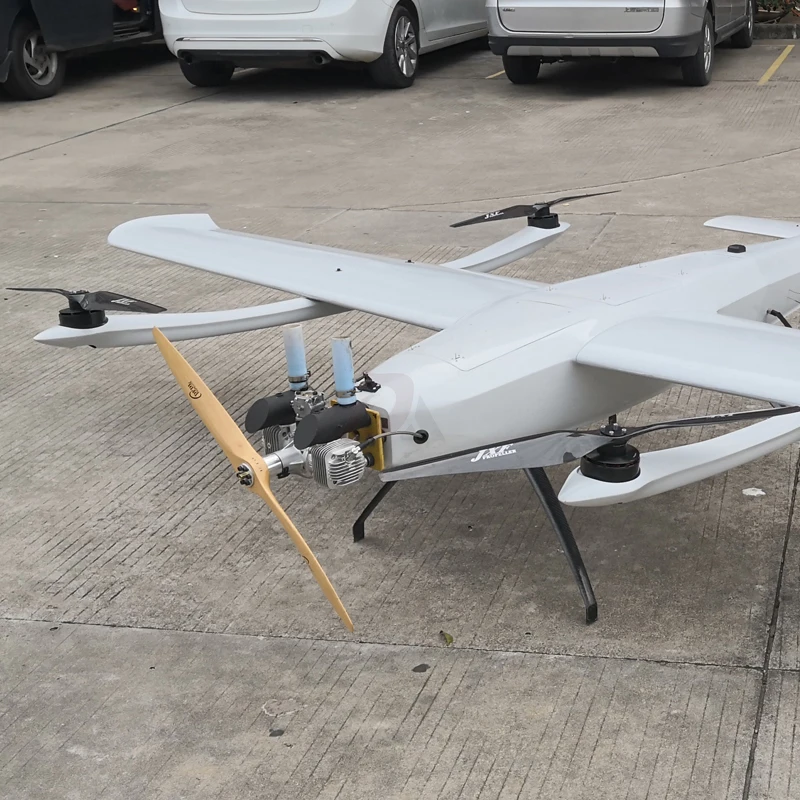

| Power System | 60cc-100cc Gasoline Engine-Electric |
| Body material | Full composite material |
Autopilot performance:
full coverage of the model;
Satellite navigation
[real-time GPS/GLONASS/Galileo/B Multi-system signal reception];
attitude accuracy 0.5°, heading accuracy 1°;
centimeter-level positioning;
High precision and high dynamic motion measurement.
| ITEM | Functions/Technical Parameters |
| FEATURES |
1. UAV control: parameter setting, flight check, route planning, flight data display, flight status monitoring, abnormal alarm, flight data saving and playback; 2. Video image display: real-time display of the pod capture image: 3. Data link: integrated flight control data link, HD Image transmission link; 4. 12V DC power supply: 12V DC power output (maximum power 24W); 5. WiFi function: The computer can connect to the public network via WiFi; 6. USB interface: 3 USB device connection interfaces; 7. Image output: 1 HD HDMI video output interface; 8. Can integrate image transmission and digital transmission links; 9. Other functions can be customized according to customer requirements. |
30x zoom optical camera+ 25mm 640 thermal imaging camera
SONY EV7520 30x Starlight Camera
Imager sensor: 1/2.8-typeExmor R CMOS
Lens: 30x zoom 4.3 ~129 mm F1.6 to F4.7
Digital zoom: 12x (360x with optical zoom)
Minimum illumination Colour: 0.01 lx(F1.6, AGC on,1/30 s)
S/N ratio: More than 50 dB
Backlight compensation: YES
High Definition: 1920x1080P(Full-HD)
Minimum object distance: 10 mm (wide end) to 1200 mm (tele end) (Default: 300 mm)
Video Output: HDMI/SDI/SD Card/RJ45
Infrared Thermal Imaging Camera
Detector: Uncooled long wave (8μm~14μm) thermal imager
Detector pixel: 640*480
Lens: 25mm
NETD: ≤50mK (@25℃)
MRTD: ≤650mK(@characteristic frequency)
Color palette: Black, white, pseudo color
OBJECT TRACKING
1,Function description
Build-in normalization ,cross-correlation and tracking algorithm,
combining with object missing recapture algorithm, achieve stable
track of the target.
Support custom characters of user OSD, adaptive gate, cross
cursor, trace information display.
2,Tracking performance
1)Update rate of deviation pixel 50Hz
2)Output delay of deviation pixel <15ms
3)Minimum target contrast 5%
4)the minimal signal-to-noise ratio ( SNR) 4
5)Minimum target size 16*16 pixel
6)Maximum target size 160*160 pixel
7)Tracking speed 32 pixel/frame
8)The mean square root values of pulse noise in the target
position<0.5 pixel
Packaging & Shipping
By sea(boat). By air(airplane), By Express(DHL, UPS, EMS, FEDEX, SF, TNT, etc.) based on your requirement.
Our Services
1. We provide free maintenance service. Buy with confidence and technical support.
2. If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.
3. If item is defective in 3 months, We will send you a replacement without extra charger, or offer refund after we receive the defective item.
4. If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.
