Водонепроницаемый сверхмощный замок для парковки автомобиля с тремя режимами

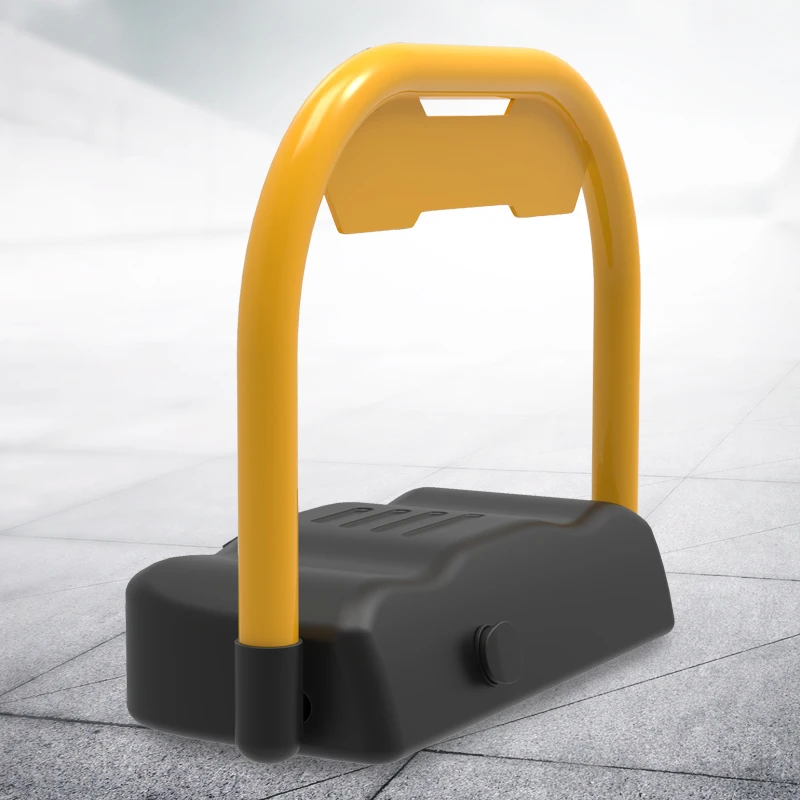

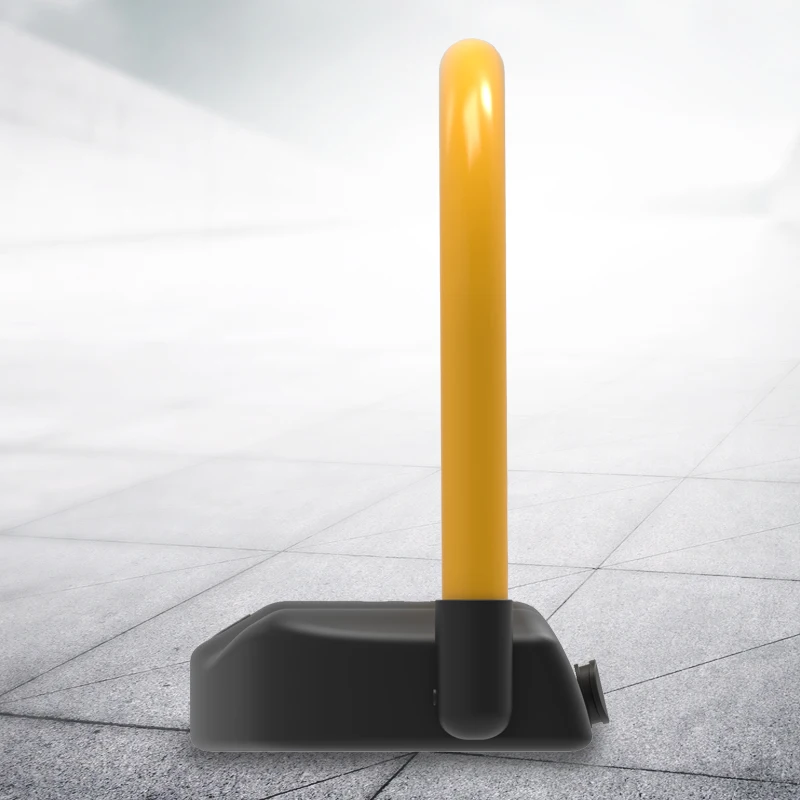

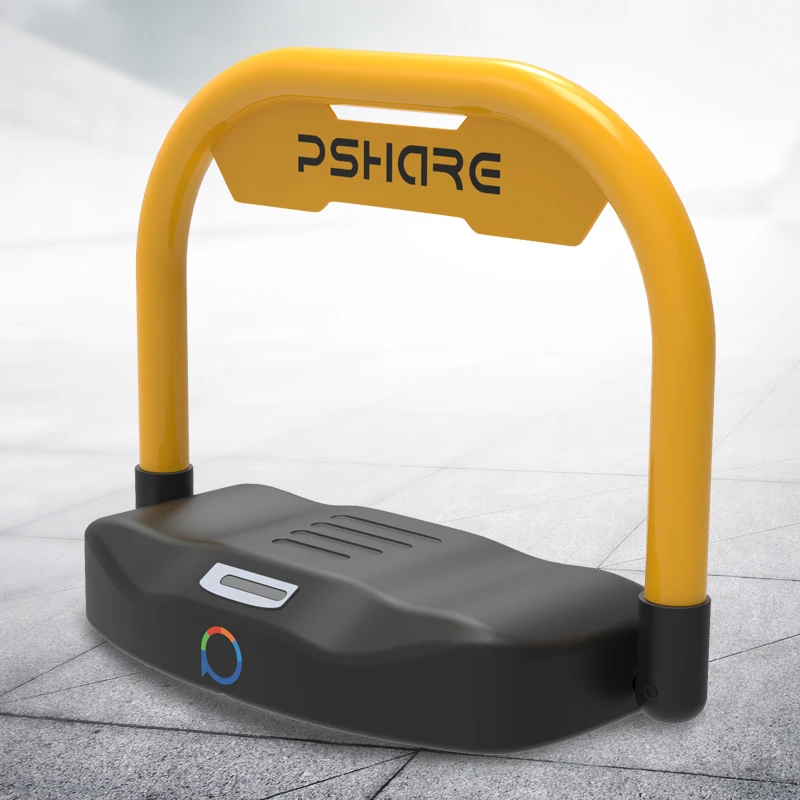

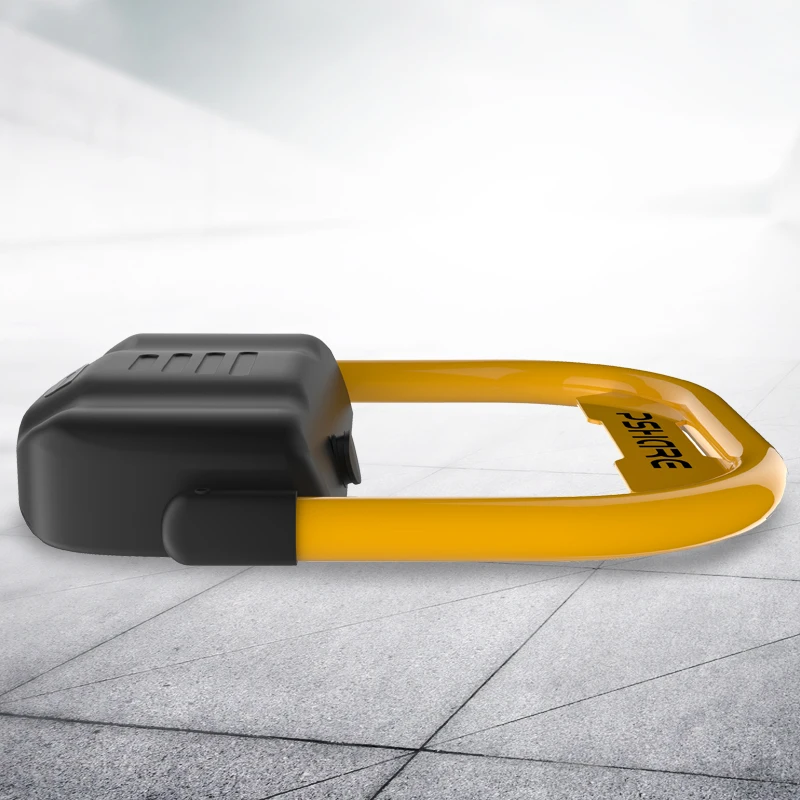

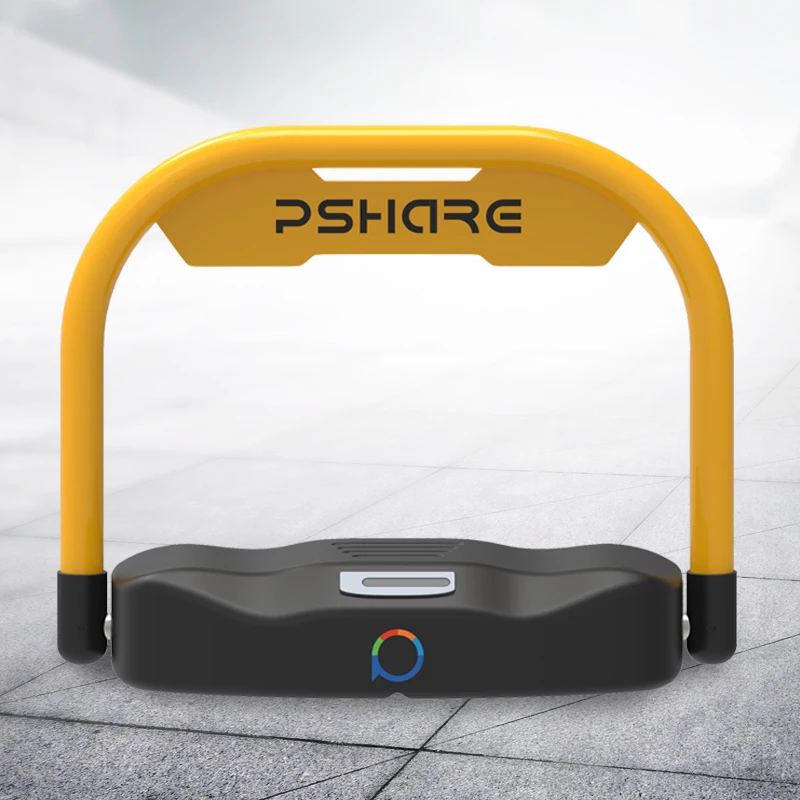

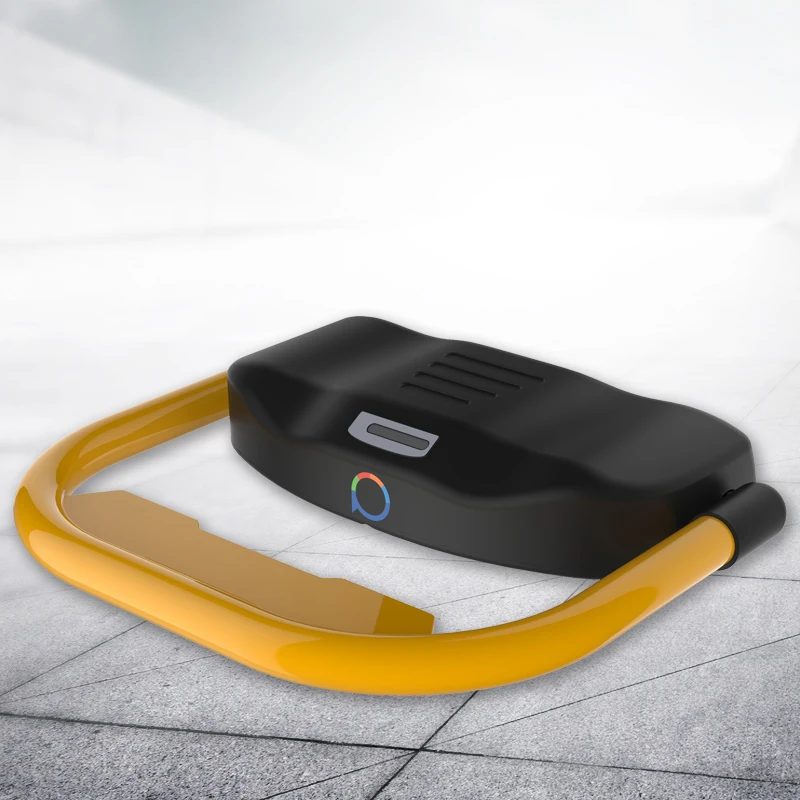

 Pshare-01AY is a new generation parking lock of Triple Mode Control developed by Hangzhou Pshare Technology Co., Ltd., which can be controlled in 3 modes: traditional remote controllers, autosensing fob and mobile APP. It consists of remote controller, autosensing fob and  parking lock. Installed in the car, the autosensing fob can be matched with the  parking lock. When the car arrives, the parking lock can detect it and the arm will fall automatically; when the car leaves, it will rise up automatically too, without any manual operation. Pshare-01AY can be controlled by 3 modes: APP, remote controller and autosensing fob.

Specifications

Product Items	Technical parameters
Dimensions	480MM*370MM*75MM
Net Weight	7KG
Rated Voltage	DC6V
Working Current	≤1A
Standby Current	≤1mA
Standby Time	3-6 months
Effective Control Distance	≥30M
Rise/Fall Running Time	≤5S
Environment Temperature	-30°C~70°C
Effective Load	2000KG
Protection Grade	IP67





 Order Note:
a.Can choose power supply patterns: dry batteries, storage batteries and power supply line;
b. Provide SDK package free of charge; can develop tailored APP and management platform based on customer’s requirenments.



Features



Easy to Use

Touch the remoter to lower your automatic parking lock to lay flat, then drive your vehicle into parking space; When leaving, touch the remote, and your parking lock will automatically rise up to prevent anyone else from using your parking space.



Easy to Install

Fix parking lock onto the ground by expansion bolts, that is all!



Rechargeable Battery with Long Continuous Use

Your parking lock is powered by a rechargeable battery. After being recharged, it will lasts for about 1000 uses, or about 6 months continuous use. Your parking lock comes with a recharging power pack.



Heavy Duty and Durable

The housing adopts high quality steel rolling which can bear Max. 5 ton weight. With spray plastic coating, the housing is waterproof, rustproof and dustp-roof enough to last about 5 years in hard weather. The sway arm made of steel rolling won`t deform even it is crushed by a vehicle.



Well Performance in Water and Dust

Thank to the IP68 protection grade, the parking lock is water-proof and dust-proof which make it suitable for various parking environments. It is even working fine in the water for couples of hours.



Burgla-proof for safety

The expansion bolts are placed inside the housing of parking lock, can`t be removed without a key of the housing. In case someone tries to remove it without permission, the parking lock will alarm loudly to remind its owner and also scares the thief.



Auto-reposition

In case a vehicle hit the parking lock from its front side, the sway arm will be forced to close down with alarm sound, and once the vehicle left the sway arm will automatically raise up till vertical. With the remoter, you can even hold position of sway arm when it was hit by a vehicle.



180 Degree Anti-collision

In case a vehicle hit the parking lock from its front side, the sway arm will be forced to close down with alarm sound, this will protect both vehicle and the parking lock.



Anti-disconnecting for Power Safety

The power connection is anti-disconnecting design in case the use misplace the battery causing short circuit



Alarm Against a Hit

In case a vehicle hit it, the parking lock will alarm loudly to remind the driver.



Noise-free

The transmission design on motor makes almost zero noise, which is good for battery and motor longevity and less friction, also goods for quiet environment.



Manual control in case of no power

In case the power is off, just manually control the parking lock in emergency.



Alarm Against a Low Battery

If the battery is low, the parking lock will alarm to remind the owner to recharge the battery.



Contact us for catalogue and pricelist covers all models of automatic remote control Parking Lock.

Packaging & Shipping

Company Information

FAQ

Q1: Are you trading company or manufacturer ? A:We are factory.
Q2. Can I have a sample order for Smart Parking Lock?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q4. Is it OK to print my logo on Smart Parking Lock product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
