Машина для снятия фаски с
- Категория: Кромкозакругляющий станок >>>
- Поставщик: Zhangjiagang,Sanco,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 9520.44 $* | 9996.16 $* |
| Aug-18-2025 | 9440.48 $* | 9912.75 $* |
| Jul-18-2025 | 7920.85 $* | 8316.46 $* |
| Jun-18-2025 | 9280.10 $* | 9744.22 $* |
| May-18-2025 | 8080.85 $* | 8484.13 $* |
| Apr-18-2025 | 9120.1 $* | 9576.51 $* |
| Mar-18-2025 | 9040.26 $* | 9492.42 $* |
| Feb-18-2025 | 8960.30 $* | 9408.58 $* |
| Jan-18-2025 | 8880.26 $* | 9324.39 $* |
Характеристики
Product Description
Product Application
www.sancomachine.com to know more about us.
Working video of machine: https://www.youtube.com/watch?v=vRlvCI5T-J8

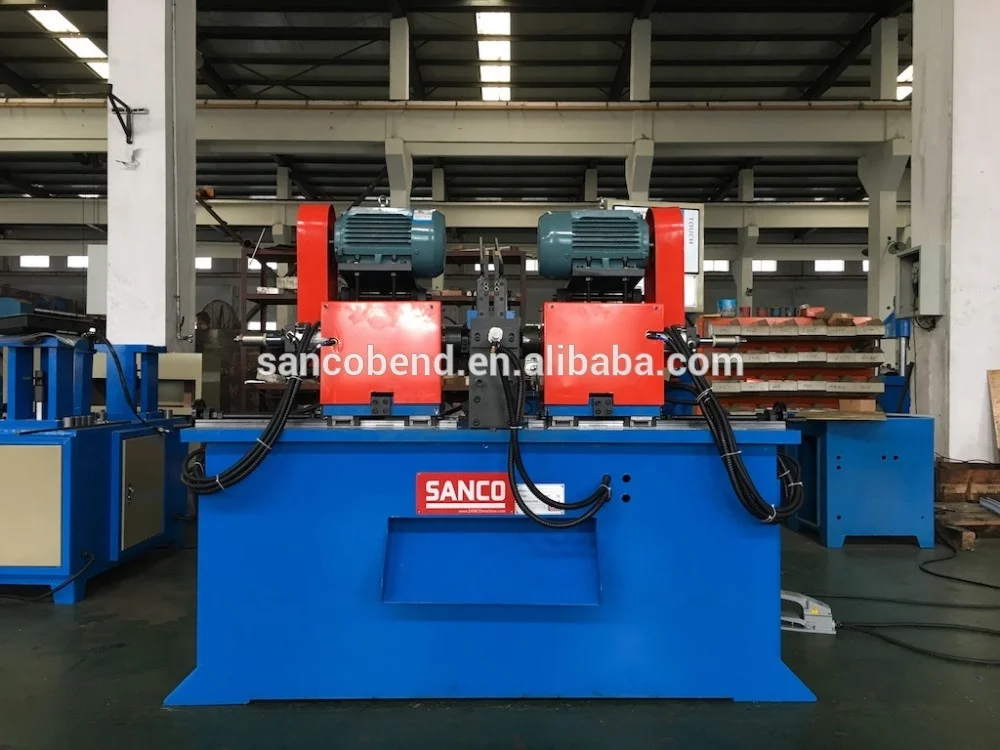

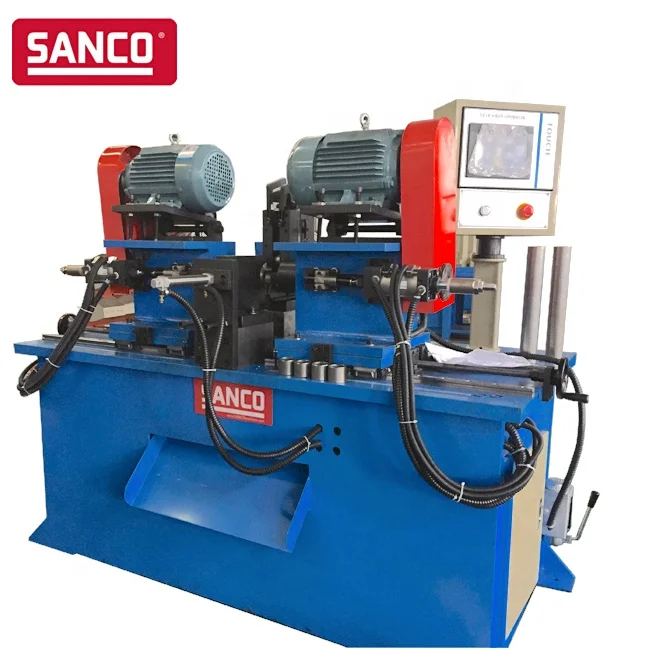

Round Bar Chamfering MachineDJ-52P-II double head chamfering machine is controlled by pneumatic, it can finish two ends of pipe / bar one time. Feeding / retracting and clamping by pneumatic, auto unloading. It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results. Changing sizes of cut are conveniently made by simply adjusting and changing cutterhead and clamp. With Taiwan core tech since 1989.
DJ-52P-II
P Pneumatic type
II Double head
Capacity Pipe Φ9 - 52 mm
Bar Φ6 - 38 mm
Pipe length 30 - 500 mm (standard) or customized
Cutterhead Φ20 - 52 mm (standard) or Φ9 - 18 (Option)
Motor 1.5 Kw, 4 pieces
Air Pressure 6-9 kg/cm2, 60 ml/min, 0.6-0.9 Mpa
Automatic lubrication system
Pipe material: steel, iron, stainless steel, aluminum, bronze,
non-ferrous metal, plastic and graphite fiber ...
Round pipe and bar
CE, ISO90001 marked
Options
Cutterhead Φ3.2 - 12 mm is avaible
Auto loading
Custom circular clamping mold
Adjusted clamp vice without changing tooling, which is suitable for customer with many diamter of products
Detailed Images

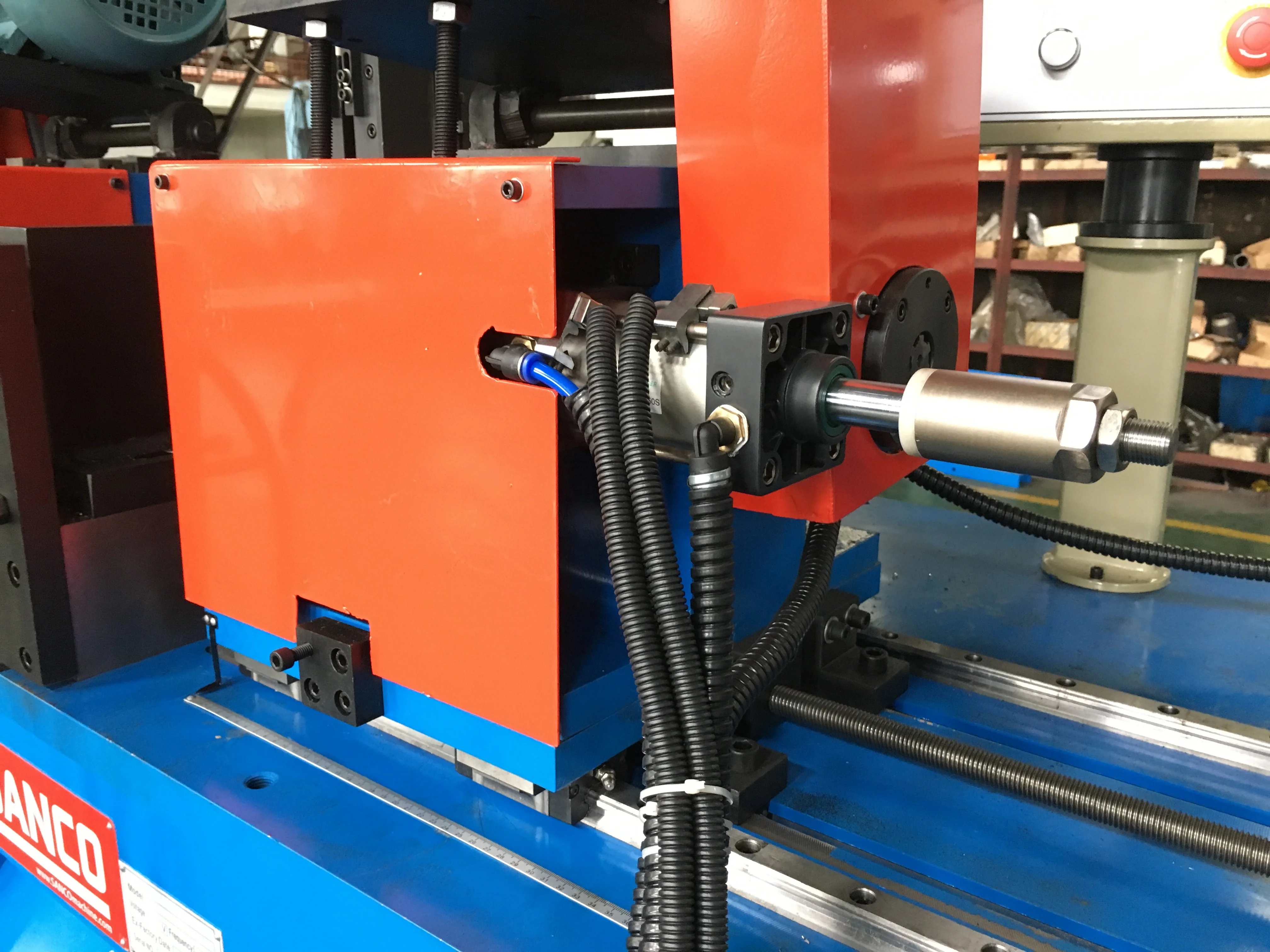

Name:Cutterhead
Brand: Sanco
Original: China
Auto loading
Machine Parts

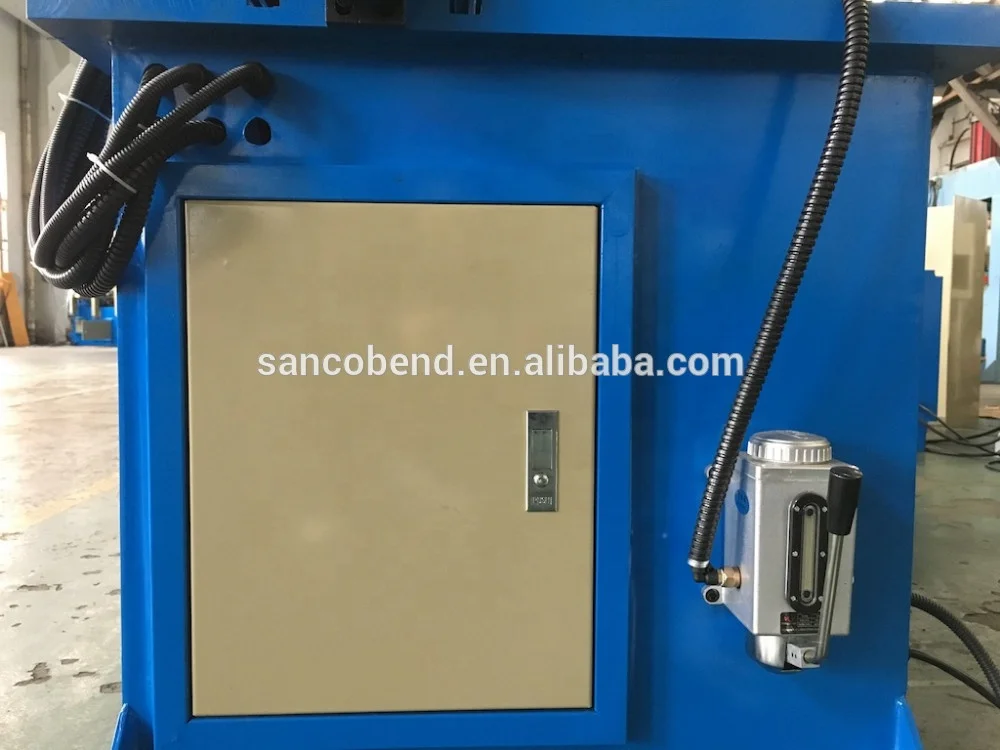

Name: Auto lubricaor
To longer machine lifetime
Main Features

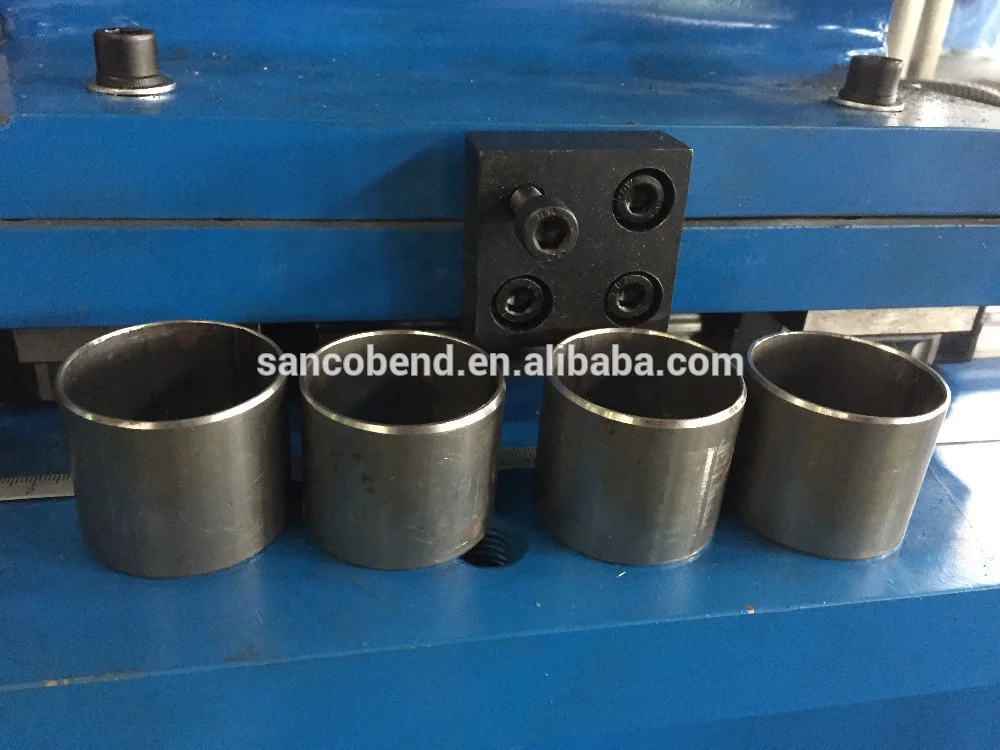

Chamfer inner, outer, and plane surface of tube
Suitable for both tubes and bars, as well as bolt with screw
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
| \t | |
| \t | \t |
| \t | \t |
| \t | \t |
Related Products
End forming machine
Tube polishing machine
Circular cutting machine
Contact
SANCO MACHINERY CO., LTD Since 1984
Add: 17#, Economic Development Zone, Nanfeng Town, Zhangjiagang City, China.
Tel / Fax: +86-0512-58900248
Cell phone / WhatsApp: +86-158-9547-5880
Skype: asky-sanco
www.sancomachine.com
Product lines
Finishing workshop 2
5 sets CNC Centers
Finishing workshop 2
CNC Punching Machine
Machine Body welded
In Stock to ensure short delivery time
