Кольцевой вакуумный насос для воды/жидкости
- Категория: Tools & Hardware >>>
- Поставщик: Shandong,Boshan,Water-Pump,Equipment,Factory,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 655.24 $* | 688.63 $* |
| Aug-17-2025 | 649.98 $* | 681.43 $* |
| Jul-17-2025 | 545.20 $* | 572.84 $* |
| Jun-17-2025 | 638.2 $* | 670.17 $* |
| May-17-2025 | 556.69 $* | 584.25 $* |
| Apr-17-2025 | 627.65 $* | 658.44 $* |
| Mar-17-2025 | 622.55 $* | 653.80 $* |
| Feb-17-2025 | 616.39 $* | 647.84 $* |
| Jan-17-2025 | 611.25 $* | 642.7 $* |
Характеристики
Specification | |||
Ultimate pressure | 33hPa | ||
Max.pumping capacity | 0.45-8.33m3/min | ||
Power P | 0.81-15KW | ||
Motor | Brand optional,100% Copper Wire | ||
Voltage | 380V/415V/660V/1140V | ||
Material | Cast Iron/SS316/SS304/Copper,Can be customized | ||
Scope of supply | Pump,Motor,Coupling,Base,Gas-water separator,Flange,Wearing parts,Other Accessories | ||
Certification | ISO 9001 | ||
Warranty | One Year/According to customer requirements | ||
The 2BV series vacuum pump is suitable for pumping out gas and water vapor, and the suction pressure can reach 33 mbar absolute pressure (97% vacuum).When the vacuum pump is operated under the condition that the suction pressure is lower than 80 mbar for a long time, the cavitation protection tube should be connected to protect the pump.If equipped with an atmospheric injector,the suction pressure can be up to 10 mbar.
Models of 2BV series are expressed by 7 words (letters) and numbers as follows:
2BV-- <1><2><3><4>
2BV is the name of the single-stage liquid ring vacuum series;
2BV-- <1><2><3><4>
2BV is the name of the single-stage liquid ring vacuum series;
<1> stands for the model,
<2><3> stands for the nominal radius cm of the impeller,
<4>stands for code of nominal width-diameter ratio of the impeller
If you have any questions, please send me an inquiry, we will choose the model and quotation for you.
Lynn Cheng/Sales Engineer
E-mail: lynncheng@sdbspump.com
Wechat/Whatsapp/Skype: +86-17753311244
Tel: +86-533-4662488/M: +86-17753311244
E-mail: lynncheng@sdbspump.com
Wechat/Whatsapp/Skype: +86-17753311244
Tel: +86-533-4662488/M: +86-17753311244
2BV2 and 2BV5,suitable for pumping dry and wet gases, mainly non-flammable, non-corrosive atmosphere and atmospheric / steam mixture.

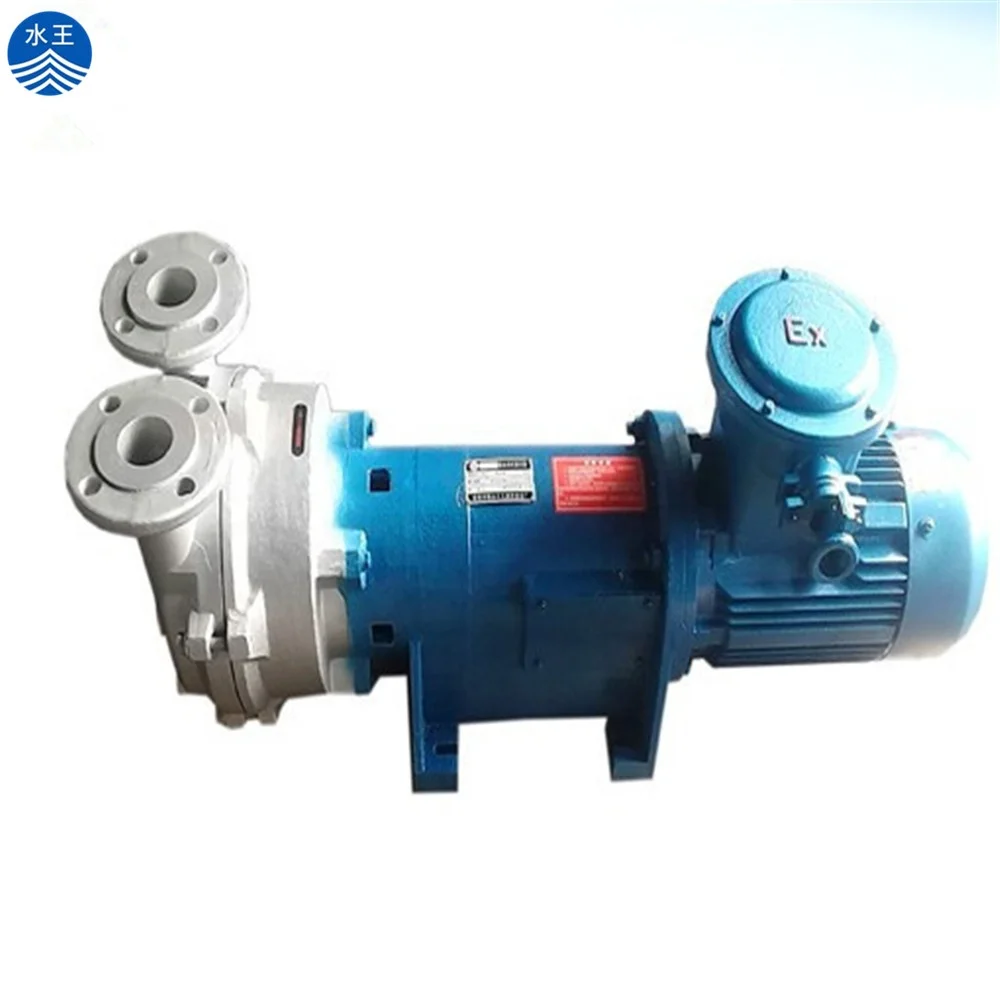

2BV6 is suitable for pumping flammable and explosive gases.
2BV6 is suitable for pumping flammable and explosive gases.
1) The motor and pump are connected directly and coaxially to save space.It is easy to install.
2) Mechanical seals are adopted as standard configuration, eliminating leakage, easy maintenance.
3) The operation is stable and the noise can be as low as 62 decibels.
4) Corrosion-resistant design, bronze impeller improves pump corrosion resistance, stainless steel is more suitable for more demanding applications.
5) The unique flexible vent design eliminates over-compression and ensures 2BV is most efficient in its performance range.
2) Mechanical seals are adopted as standard configuration, eliminating leakage, easy maintenance.
3) The operation is stable and the noise can be as low as 62 decibels.
4) Corrosion-resistant design, bronze impeller improves pump corrosion resistance, stainless steel is more suitable for more demanding applications.
5) The unique flexible vent design eliminates over-compression and ensures 2BV is most efficient in its performance range.
1 / Q: Are you a manufactory or trading company?
A: We are water pump manufactory with more than 30 years production experience.
2 / Q: What’s your MOQ?
A: Trial sample order is OK .
3 / Q: What’s your payment terms?
A: T/T , L/C , ......
4 / Q: What certificates do you have ?
A: CE , ISO 9001 , UL .....
5 / Q: How about the warranty ?
A: One year warranty for pumps .
6 / Q: What is the delivery time ?
A: 10-30 days according to customer quantities .
7 / Q: Can you do OEM brand ?
A: Yes, Welcome.
8 / Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the gas ?
Air?Water vapor?Oxygen?
What is the pressure ?The Max.suction capacity range ?
Other conditions from customer if possible,pump type,motor ?
With complete information, then we selected the pump and feedback to you.
If you have special requirement,such material,please inform us .
9 / Q: How to replace parts ?
A: In the order period, we will list our vulnerable parts and their quantities to our customer, and sold at competitive price,then ship together with pumps if customer needs.
FOR MORE QUESTIONS, PLEASE CONTACT OUR SALES.
