Антенна 868 МГц 915 с высоким коэффициентом усиления 12 дБи gsm 806-960 для уличной базовой станции майнинга
- Категория: Communication Antenna >>>
- Поставщик: Shenzhen,Qifan,Communication,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.63 $* | 0.92 $* |
| Aug-17-2025 | 0.72 $* | 0.85 $* |
| Jul-17-2025 | 0.88 $* | 0.32 $* |
| Jun-17-2025 | 0.1 $* | 0.12 $* |
| May-17-2025 | 0.52 $* | 0.82 $* |
| Apr-17-2025 | 0.87 $* | 0.70 $* |
| Mar-17-2025 | 0.85 $* | 0.86 $* |
| Feb-17-2025 | 0.29 $* | 0.52 $* |
| Jan-17-2025 | 0.24 $* | 0.75 $* |
Характеристики
Product exhibition
Specifications
Electrical Specification | ||
Frequency Range | 806~960 MHz | |
Gain | 12dBi | |
Polarization | Vertical | |
Horizontal Half-power Beam width | 65° | |
Vertical Half-power Beam width | 30° | |
Front to back ratio(dB) | ≥25 | |
VSWR | ≤1.5 | |
Input Impedance | 50Ω | |
Maximum input power | 400W | |
Lightning protection | DC Ground | |
Mechanical Specification | ||
Input connector type | N Female or Customized | |
Dimensions(Heigh/width/depth) | 700*320*160mm | |
Antenna weight | 6.0kg | |
Radome material | UPVC | |
Radome color | Gray | |
Mechanical tilt | 0°~10° | |
Operating temperature | -40℃~60℃ | |
Rated Wind Velocit | 60m/s | |
Mounting hardware | ￠35mm~￠90mm | |
Products Details
Radome Seal
The seal is made from high-molecular polymer silica gel that can form a seamless waterproof layer for all terrible conditions.
Redome
The antenna shell is made from PVC material which is nonflammable ,high-strength and excellent geometric stability.
Heat-Resistant Circuit Board
Made from rogers material covered with anthracene dye that is effective to prevent external disturbance and increase the antenna gain.
Zinc Alloy Vibrator/ Radiation
The vibrator is covered with tin plating which is effective to prevent deterioration and prolong life-span of antenna and reduce the loss and ensure the antenna gain.

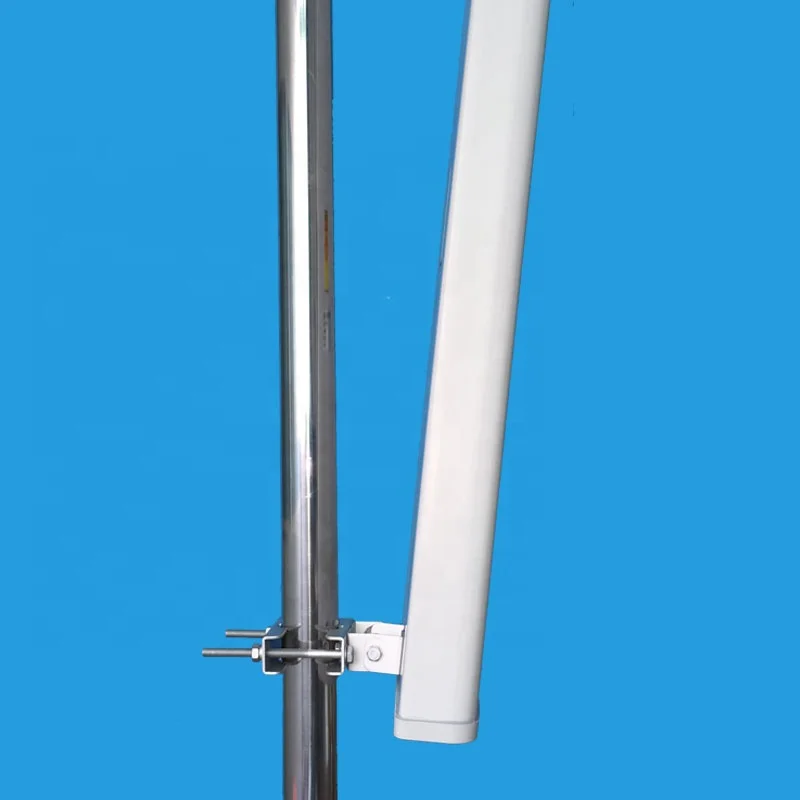

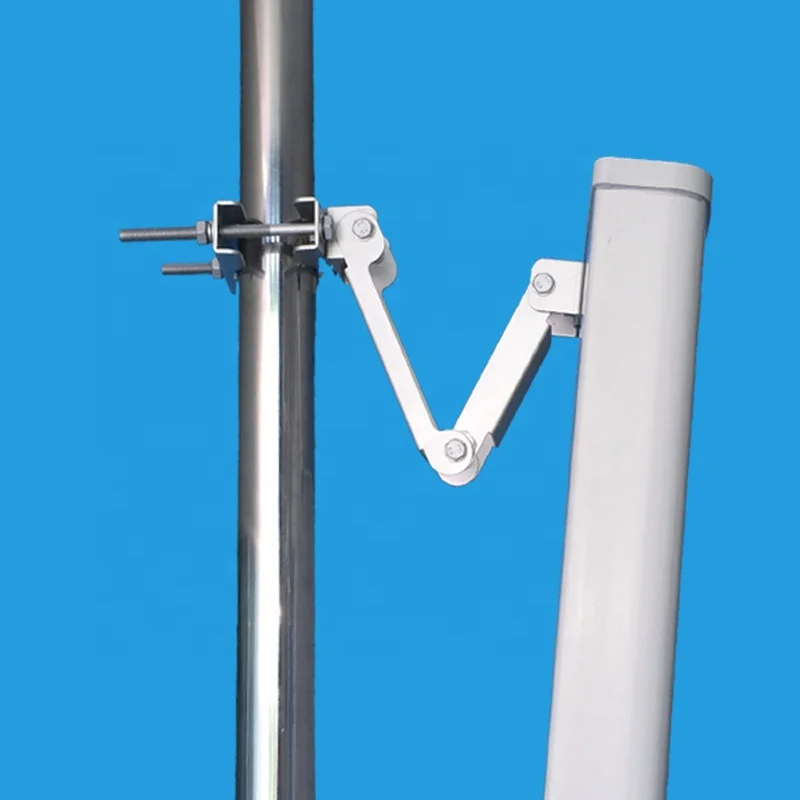

Multifunctional Adjustable Mounting kits:
Made from stainless steel material of removal hydrogen that is stable and durable. The mounting kits can be adjustable according to your specific situation in order to realize perfect coverage of signal.
N-K connector
Known as N-Female connector, made from fine overgilded copper which is effective to reduce signal loss and help the antenna work more efficient.
Test Report
Our Company
Factory
We have our own research and development team and building,which have exprienced engineers.
Production Workshop
All our employees are well trained before beginning work and many of them are skilled and exprienced.
Office
We have about 30 responsible salemen,who focus on domestic and global bussiness.
Team
We have energic colleague relationship and prefessional working ability.
Sample room
More than 500 antenna types are available for customers.
Warehouse
Adequate finished antenna storage space.And all products are well packaged before shipping.
Our Certifications
Packing & Delivery
Packing Details : well packaged and safety coverage.
Delivery Details : 6-15 days after payment
Special EPE protection
Suitable carton size
Customized packaging box
The products can be sent to you by International Express:DHL; UPS, TNT, EMS, FEDEX etc / Air transport .
FAQ
Q: How is your product quality?
A: All our products have strict QC process and will be 100% tested before shipping. And Our antennas engineers have more than 10 years experience.
Q: Do you accept customized ?
A: Sure! We have own professional researching team and we do produce as customer requirement .OEM&ODM are welcome.
Q: Could you offer free sample to test ?
A:In general , for new customer you pay the sample fee first, but when you order required amount we refund the sample cost back to you.
Q: When can you ship the items ?
A:Usually , we take about 6-15 days to prepare your bulk order.
Q: What is your payment term?
A: 50% payment should be paid when you make the order and the 50% should be paid when the products are ready for shipping.
