Power meter fiber optic optical fiber tester PG-OPM520 built-in VFL

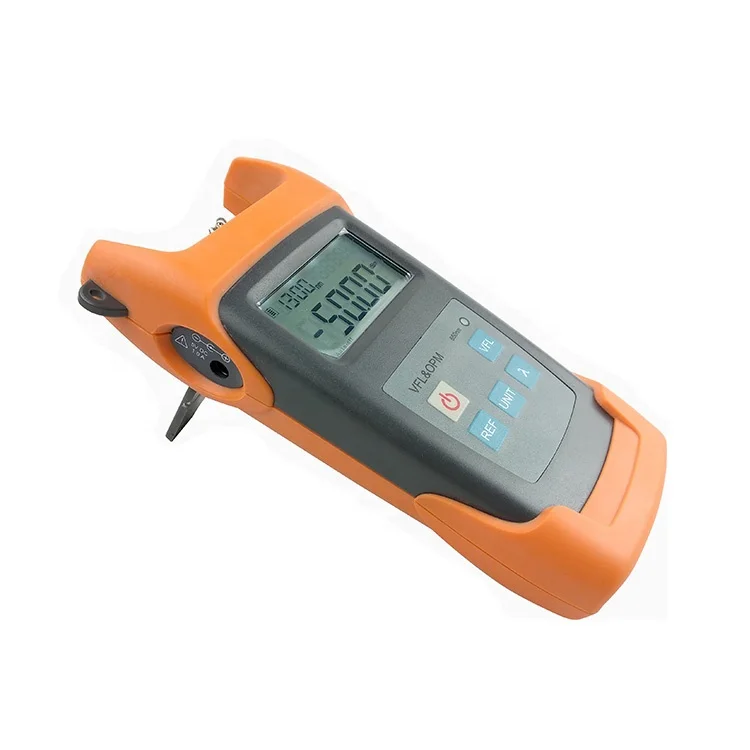

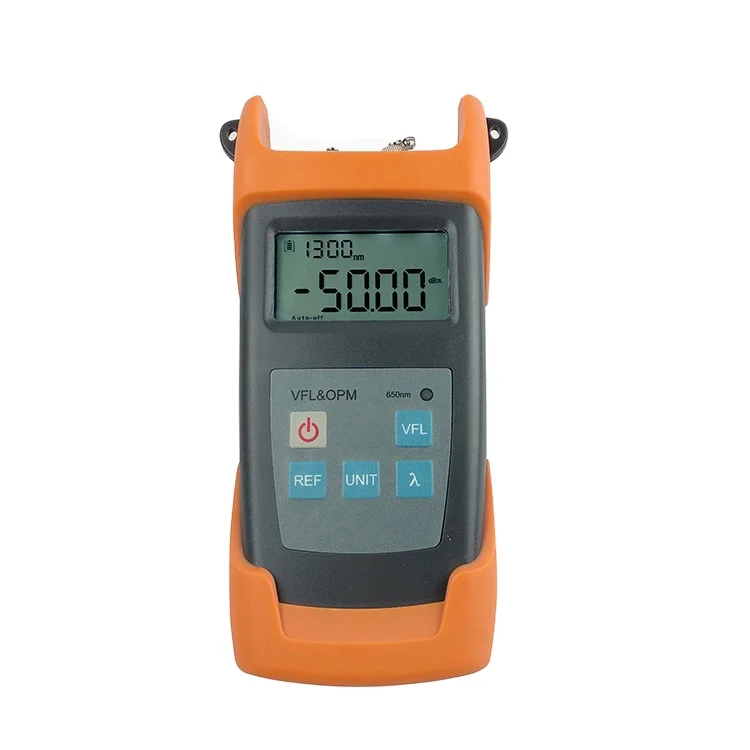

PG-OPM520 Is a handheld optical power meter, can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. A 1.0mm photosensitive area photodiode is used to significantly improve the stability and the reliability. It features ingenious appearance, a wide range of power measurement, high accuracy, an user self-calibration function and a reference power level storage.



Features :

Reference power level storage(Ref Setting)

User self-calibration function

Comfortable LCD display and backlight LCD display supports

night operation.

Power measurements in dBm or mw and insertion loss in dB

Optional 10 minutes Auto-off function

AA alkaline batteries can last more than 140 hours, AC adaptor also available

Low battery power indication

With VFL(10mW)



Applications:

Maintenance in Telecom

Maintenance CATV

Test Lab of Optical Fibers

Other Fiber Optic Measurements



Specification:

Model	PG-OPM520A	PG-OPM520C
Wavelength(nm)	800~1700nm
Detector   Type	InGaAs
Detector Size	Ø  1.0mm
Measurement   Range (dBm)	-70~+10	-50~+30
Uncertainty	±5%
Calibrated Wavelength(nm)	850/1300/1310/1490/1550/1625nm
Resolution(dB)	0.01

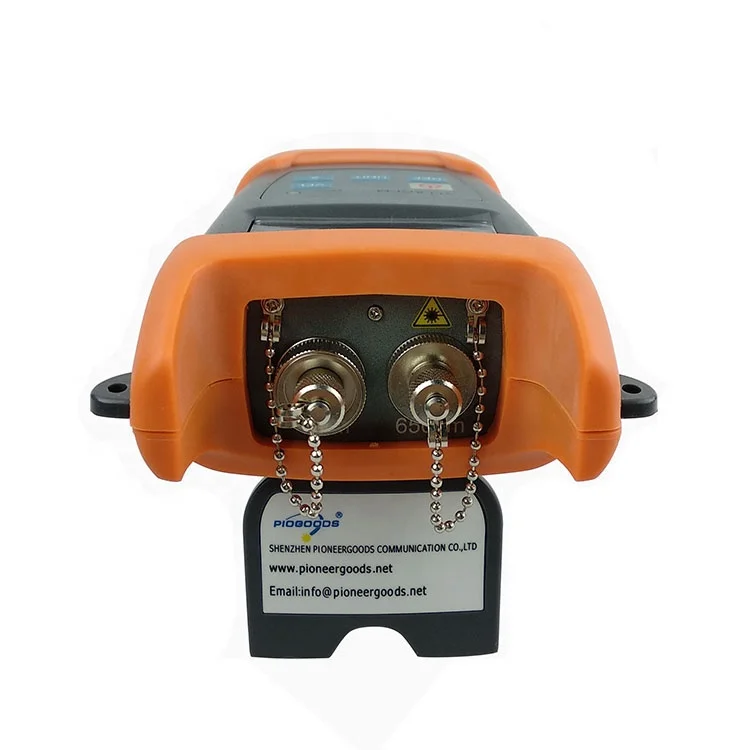

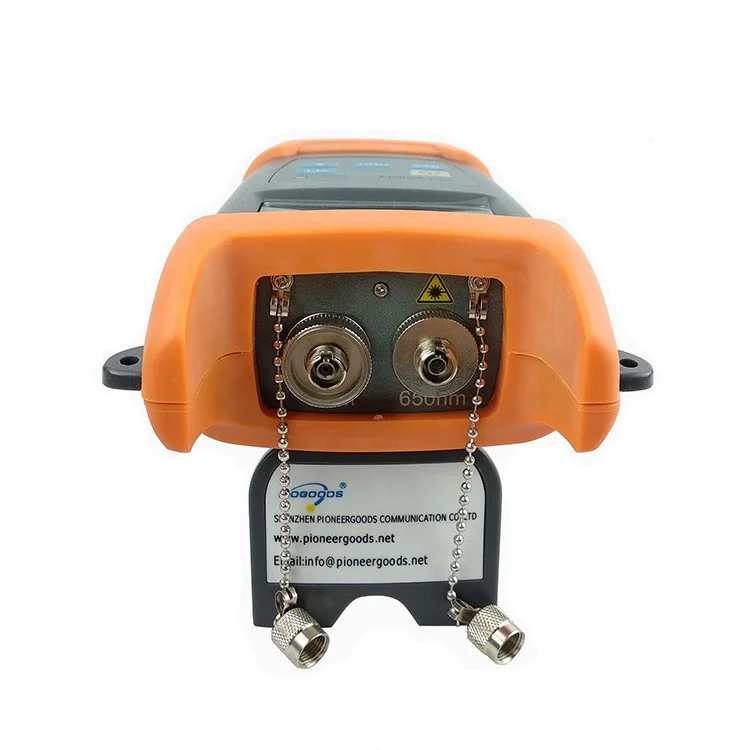

Optical	Connector  FC(interchangeable SC,ST) / as well as 2.5mm universal

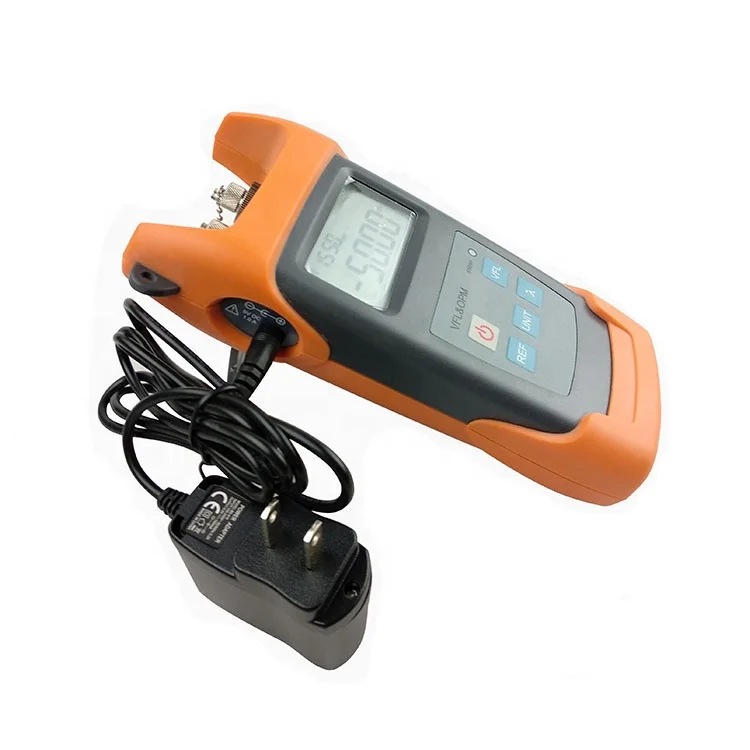

Power Supply	Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V)
Battery Operating Time	140 h with 1.5V Battery(3pcs)
Operating Temperature(℃)	-10 ~ +60
Storage Temperature( ℃)	-25 ~ +70
Relative Humidity	0 to 95% (non-condensing)
Dimension(mm)	190X100X50
Weight(g)	370
Standard Packages
MODEL	INCLUDES

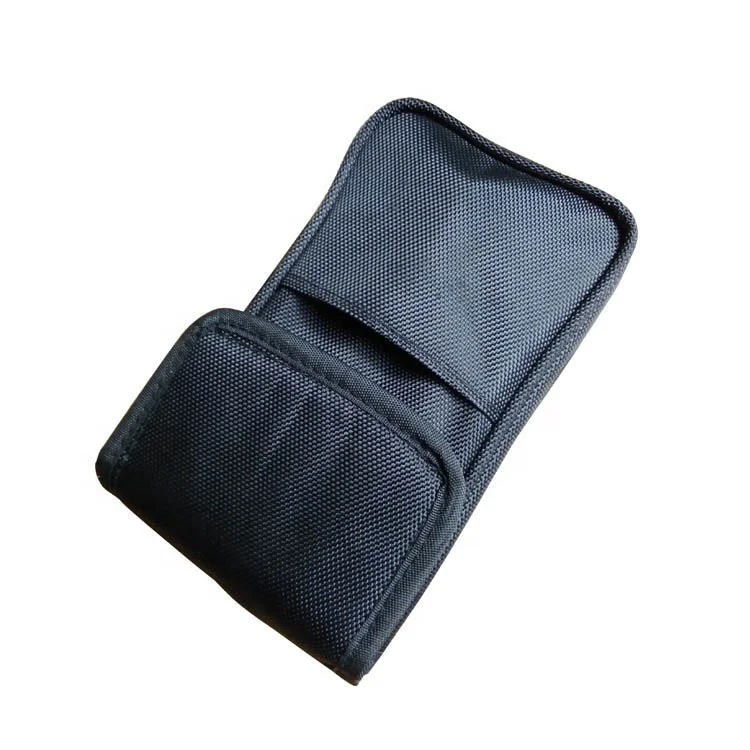

All PG-OPM520 Models	PG-OPM520 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case.
