Alkali-free wax-free fiberglass insulating Yarn



Fiberglass yarn is made from 5-9um fiberglass filament which are then gathered and twisted into one finished yarn. Glass fiber yarn is necessary raw material for all kinds of insulation products, engineering material and electric industry. Ending product of Glassfiber yarn: such as, electronic grade fabric, fiberglass sleeving and so on, E glass twsited yarn is characterized by its high strength, corrosion resistance, heat resistance, low fuzz and low moisture absorption.









Fiberglass Yarn is made from different glass fiber filaments, which are then gathered and twisted into ome individual yarn. It has the characteristics of high intensity, excellent electric insulation and anyticorrosion; It can stand high temperature and humid. Therefore, it can be used weave the coated of wires and cables, sleeves kindling lines and coate materials of electric machinery, also can be used as yarn for kinds woven cloth and other industrial yarn.

Fiberglass textured yarn have three main sizing types: paraffin, silane and starch.

Bobbin weight: 0.7kg/1.5kg/2.0kg/4.0kg

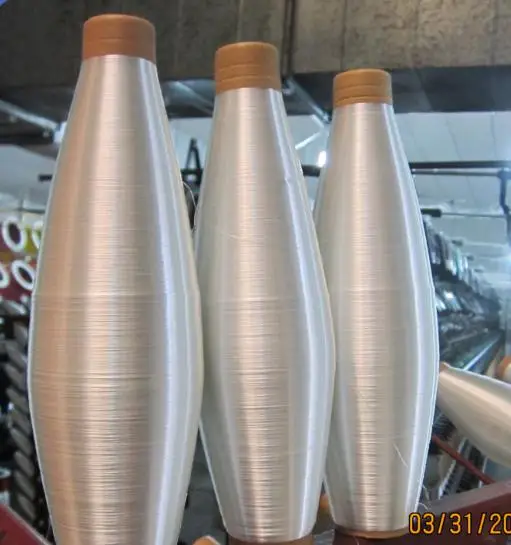

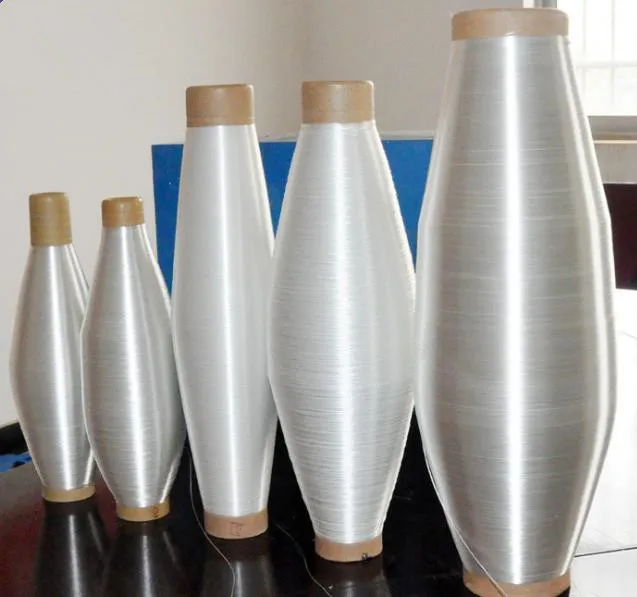

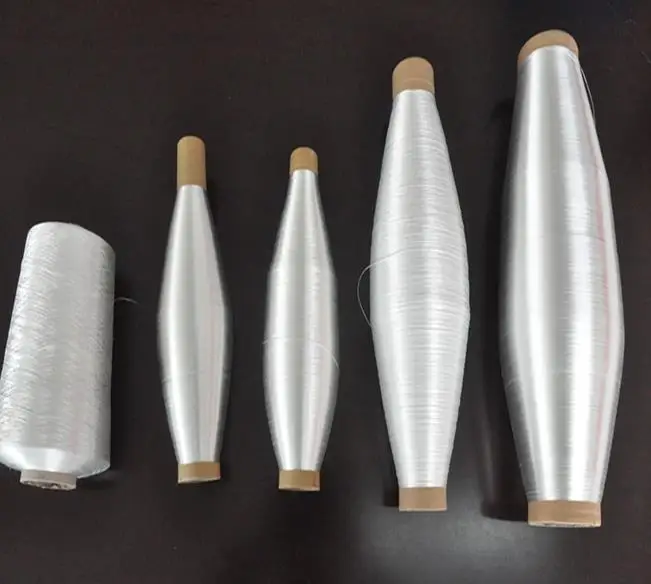

E glass fiberglass yarn shape: paper bobbin,plastic bobbin,milk bottle,cone





Item Code	USA Code	Impregnating Compound Type	Density (Tex)	Bobbin type	Length (m)	Net Weight (kgs)
EC5 5×2 S100	EC D900 1/2 2.5S	Y5	10	B4	80000	2.60
EC 5 5×3 S100	EC D900 1/3 2.5S	Y5	15	B4	53300	2.60
EC5 5×4 S100	EC D900 1/4 2.5S	Y5	20	B4	40000	2.60
EC 5 11×16 Z112	EC D450 1/16 2.8Z	Y5	176	B4	21500	3.60
EC 6 34×2 S100	EC DE150 1/2 2.5S	Y3	68	B4	53000	3.60
EC 6 34×3 S100	EC DE150 1/3 2.5S	Y3	102	B4	35300	3.60
EC 6 34×4 S100	EC DE150 1/4 2.5S	Y3	136	B4	26500	3.60
EC 7 22×2 S100	EC E225 1/2 2.5S	Y1,T1,T4,T5,T6,T7	45	B4	80000	3.60
EC 7 22×3 S100	EC E225 1/3 2.5S	Y1,T1,T4,T5,T6,T7	67.5	B4	53300	3.60
EC 7 22×4 S100	EC E225 1/4 2.5S	Y1,T1,T4,T5,T6,T7	90	B4	40000	3.60
EC 9 34×2 S100	EC G150 1/2 2.5S	Y1,T1,T4,T5,T6,T7	68	B4	53000	3.60
EC 9 34×3 S100	EC G150 1/3 2.5S	Y1,T1,T4,T5,T6,T7	102	B4	35300	3.60
EC 9 34×4 S100	EC G150 1/4 2.5S	Y1,T1,T4,T5,T6,T7	136	B4	26500	3.60
EC 9 68×2 S112	EC G75 1/2 2.8S	Y1,T1,T4,T5,T6,T7	137	B4	26200	3.60
EC 9 68×3 S112	EC G75 1/3 2.8S	Y1,T1,T4,T5,T6,T7	206	B4	17500	3.60
EC 9 68×4 S112	EC G75 1/4 2.8S	Y1,T1,T4,T5,T6,T7	275	B4	13100	3.60
EC 9 136×2 S150	EC G37 1/2 3.75S	Y1,T1,T4,T5,T6,T7	272	B4	13300	3.60
EC 9 136×3 S150	EC G37 1/3 3.75S	Y1,T1,T4,T5,T6,T7	408	B4	8900	3.60
EC 9 136×4 S150	EC G37 1/4 3.75S	Y1,T1,T4,T5,T6,T7	544	B4	6620	3.60
