Серия 2 л пилотный Поршневой Тип взрывозащищенные СОЛЕНОИДНЫЕ клапаны

Model 2L170-10 2L170-15 2L170-20 2L200-25 2L300-40 2L500-50
Fluid Air, Water, Steam
Operation Guide type
Type Normal close type
Aperture (mm) 17 22 30 50
Cv value 4.8 12 20 48
Port size 3/8'' 1/2'' 3/4'' 1'' 1 1/2'' 2''
Operation fl uid viscosity 20 CST Below
Operating pressure 0.1 ~ 1.5MPa
Max. Proof pressure 2.25MPa
Operating temperature -5 ~ 180C
Voltage range ±10%
Material of body Brass(Option: Stainless Steel)
Material of oil seal PTFE

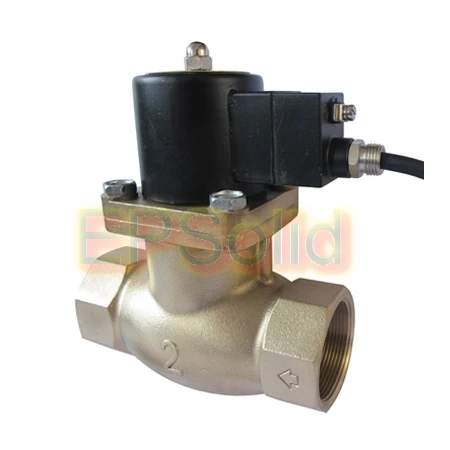

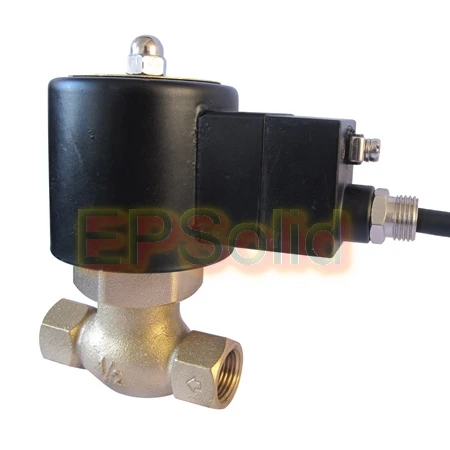

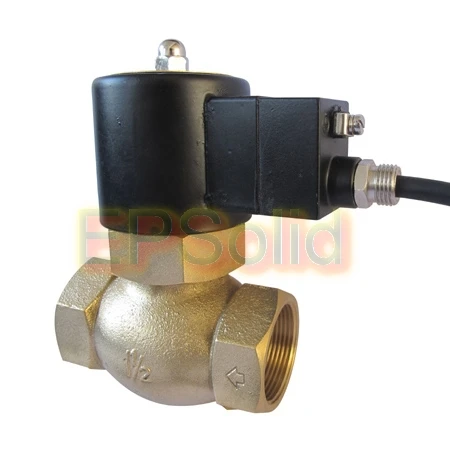

Detailed Images

Model

US(2L)-15

US(2L)-20

US(2L)-25

US(2L)-35

US(2L)-40

US(2L)-50

Working Medium

air,water,steam

Operation

pilot operated

Acting Type

normally closed

Orifice (mm)

22

22

30

50

CV Value

4.8

12

20

48

Port Size

ZG1/2''

ZG3/4''

ZG1''

ZG1-1/4''

ZG1-1/2''

ZG2''

Operate Fluid Viscosity

20CST Below

Operating Pressure

air,water,steam:0.1~1.5MPa

Max. Pressure

1.5MPa

Operating Temperature

-5~185'C Degree

Voltage Range

-10%~+10%

Material of Body

brass or stainless steel

Material of Oil Seal

PTFE
