8 Way 1X8 HDMI  Splitter 4K

(HDCP2.2 , 4K 60hz, IR extension, EDID management, RS232)

Introduction

Shenzhen Suofeixiang Factory:

1. HDMI products factory since 2009 with ISO9001 certified factory

2. HDMI adopter and HDCP adopter

3. CE (EMC,LVD) ROSH,FCC certifications

4. OEM service available, both package and LOGO.

5. Attend CES/HK Fair/ Canton fair/ CEBit exhibition every year

6. Strong technique team support

7. Good after-sale service with 2-year warranty for products

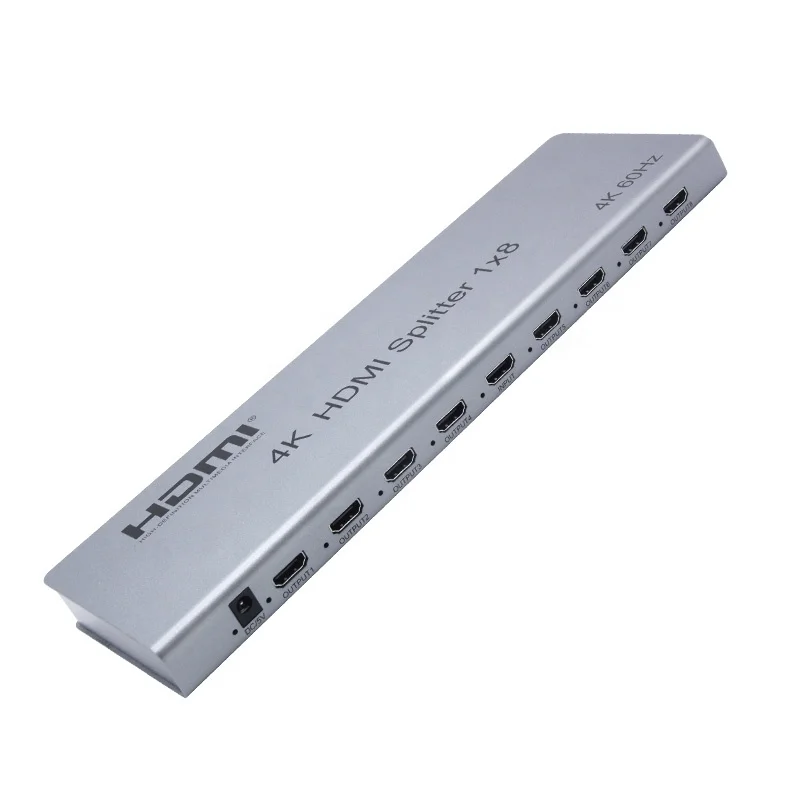

This 1x8 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to eight HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/60Hz.

This splitter supports EDID management function, comes with eight kinds of EDID mode, the users can choose according to their own needs. In addition, this product is also built-in IR extension function, can work with our hdmi repeater which has IR-RX receiving the IR command to control the source.



Model No:  SFX911-8

Features:

1. Support HDMI 4k 60hz, HDCP2.2

2. Support 3D video format

3. Support CEC

4. Support high resolution up to 3840X2160/60HZ

5. Support highest rate of 6G and TMDS clock can be up to 600 MHz

6. Support 8/10/12 bit deep color

7. Support AWG26 HDMI standard cable:

when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.

when the resolution is 4K, input up to 8 meters, output up to 8 meters.

8. Support single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.

9. Built-in IR extension function.

10.Remote control the source via the IR-RX of HDMI repeater which splitter works with to receive the IR command

11.Support serial port online upgrade

12.Support EDID management   5V/3A power adapter

Specifications:

HDMI version	HDMI 4k 60hz
HDCP Version	HDCP 2.2
HDMI resolution	up to 3840*2160/60Hz
Support video color format	8/10/12bit deep color
Support audio format	DTS-HD/Dolby-trueHD /DTS/Dolby-AC3/DSD
Max bandwidth	600 MHz
Max baud rate	6 Gbps
Input cable distance	(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Output cable distance	(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Max working current	2 A
Power adapter format	input AC (50Hz, 60Hz) 100V-240V; output: DC5V/3A
Operating Temperature range	(-15 to +55℃)
Operating Humidity range	5 to 90%RH (No Condensation)
Dimension (L x W x H)	310x90x24 (mm)
Weight	854 g

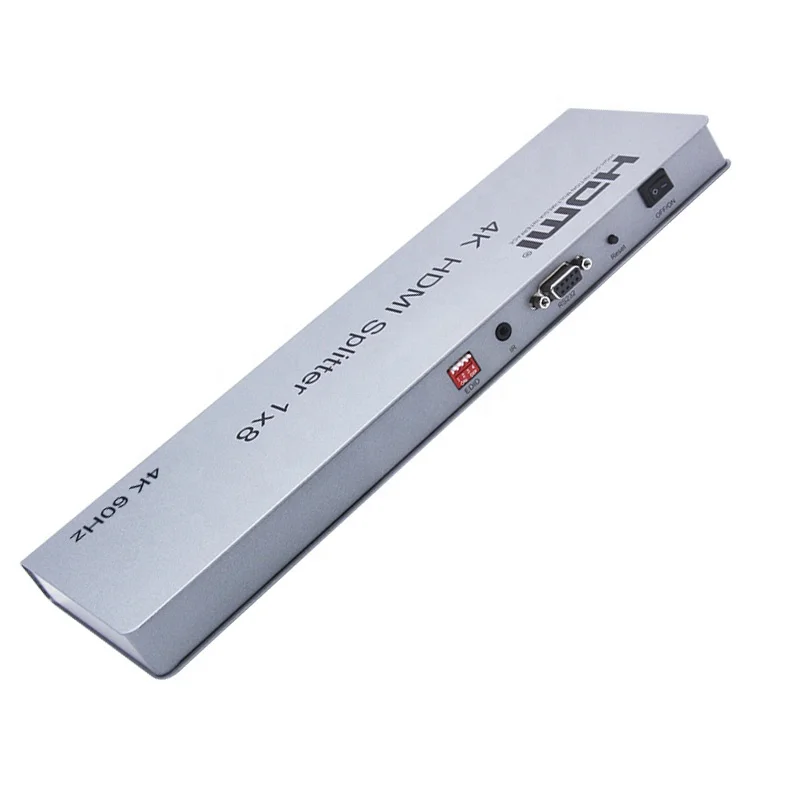

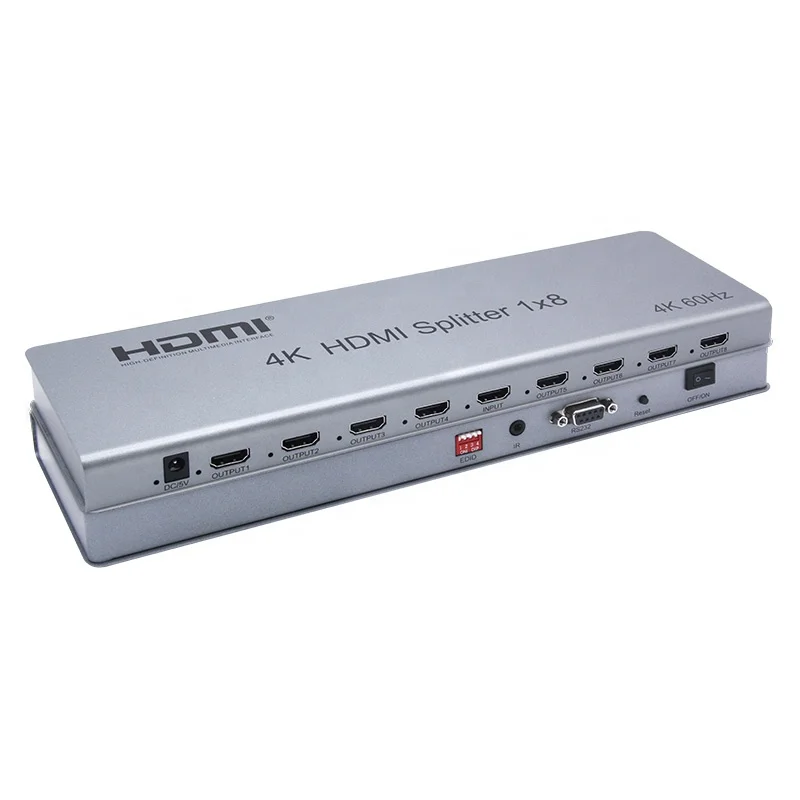

Interface picture:



1) Power adapter indicator

2) 5V Power Interface

3) LED Output indicator

4) HDMI output

5) LED Input Indicator

6) HDMI input

7) DIP switch,using for EDID management

8) IR TX Extension Interface

9) RS232 port,serial port online upgrade

10) Reset Button

11) Power Switch





IR Extension description:
There is an IR TX Extension port, it can work with an optional HDMI 2.0 repeater which works as IR-RX and IR extended via HDMI cable
Output port:
Only output1 can support CEC function, output 2~8 support IR extension function.

Connection and Operation:
1: connect the HD source to the splitter input with one hdmi cable

2: connect the splitter output to the displays with 8 hdmi cables

3: connect 5V/3A power adapter to the splitter

4. Reset button: it’s a Reset key for system Reset.



Package Included:

1. HDMI splitter        x1pc

2. Power adapter     x1pc

3. User manual        x1pc

4. IR cable                x1pair

5. HDMI repeater (optional)
