Характеристики
Product Description

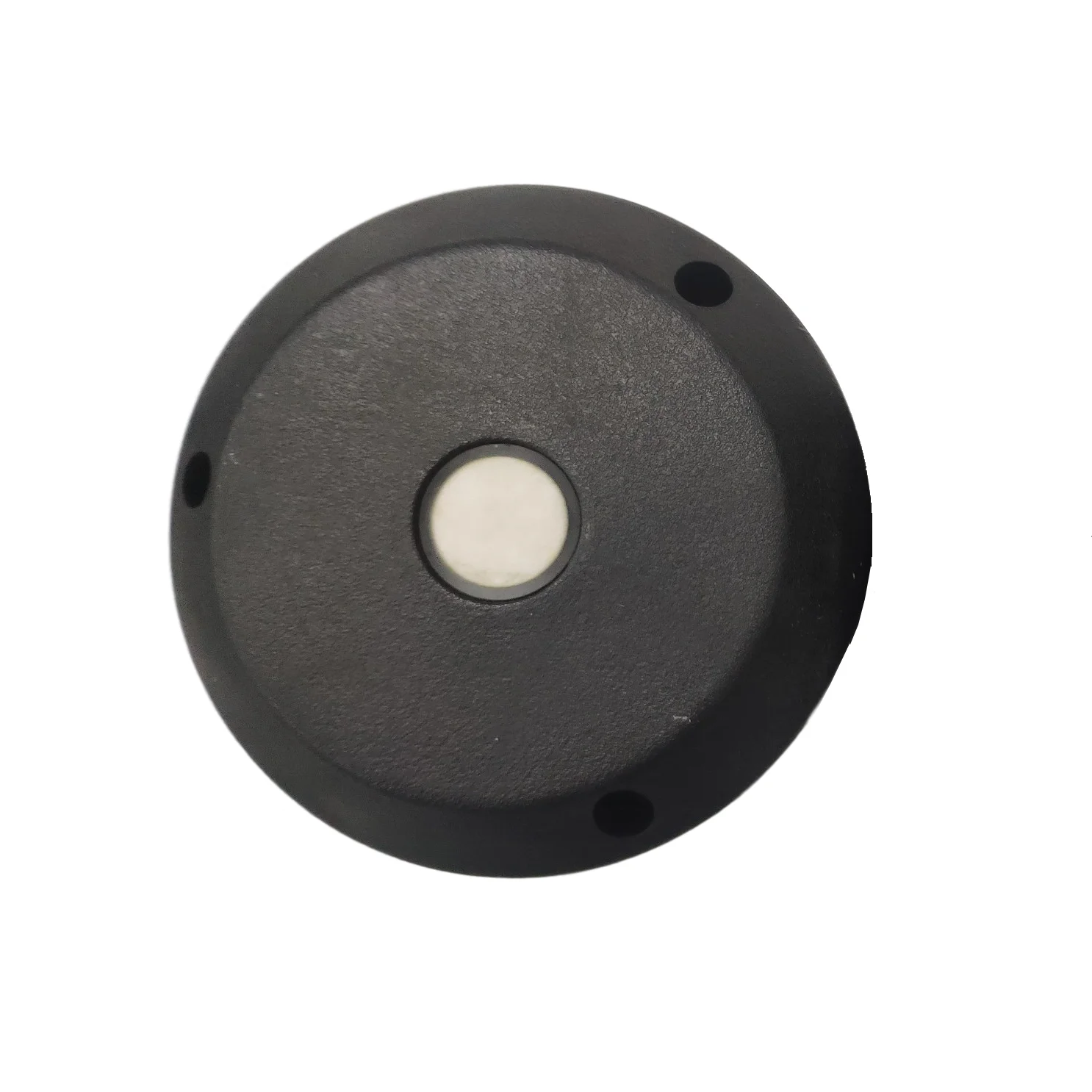

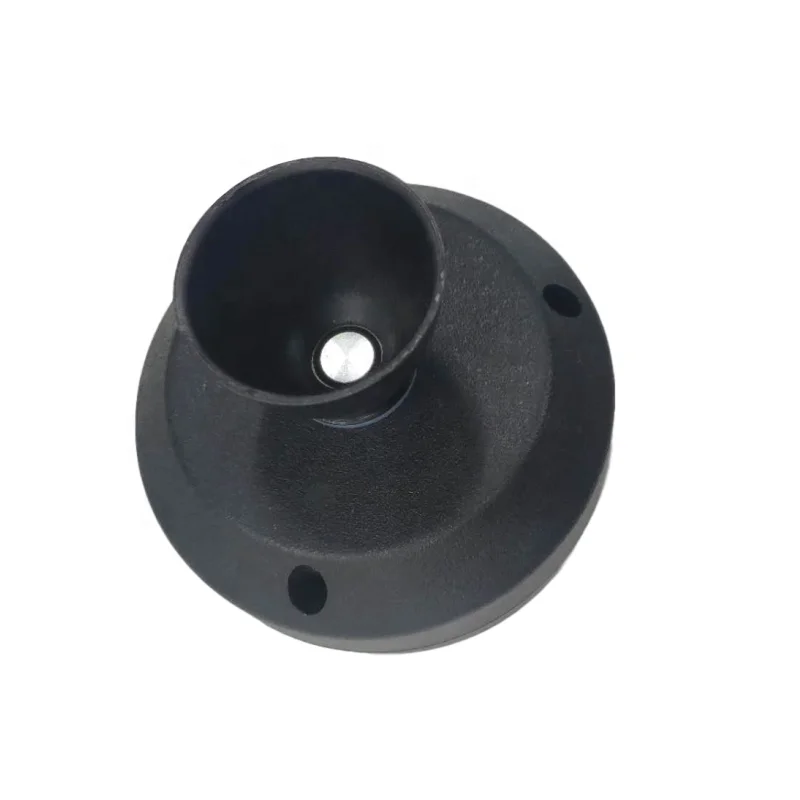

Smart Bin Level Sensor.
The DF702 sensor is designed for waste bin status detection. It detect the following status:
- Full
- Flame risk
- Inclined or not
- Full
- Flame risk
- Inclined or not
GPS function is optional.
As it is with algorithm of low power consumption, the internal battery can work for more than 3 years (at 4 hours interval upload interval).
Through the NB-IoT/Lorawan/Sigfox/GPRS/4G module. it transmit the status to base station or gateway, then via internet network to network server or application server. Finally user can monitor the status remotely.
As it is with algorithm of low power consumption, the internal battery can work for more than 3 years (at 4 hours interval upload interval).
Specification
Overview | Dimension | 115*115*50mm |
Net Weight | 150g | |
Color | Black | |
Shell Material | ABS | |
Detector | Principle | Ultrasonic |
Detection Range | 200cm/500cm | |
Blind area | 0-15cm | |
Accuracy of height | 3mm | |
Accuracy of temperature | 2℃ | |
Accuracy of angel | 2° (optional) | |
Controller | MCU | STM32, 32bit ARM® core controller |
Wireless | Communication | NB-IoT/Lorawan/Sigfox/GPRS/4G |
Battery | Inner Battery | Non-rechargedLithium Battery10500mAh @ 3.6V |
Battery Life | More than 3 years | |
Environment | Operating Temperature | -20 ~ +70℃ |
Storage Temperature | -40 ~ +85℃ | |
Protection Level | IP66 |
Network

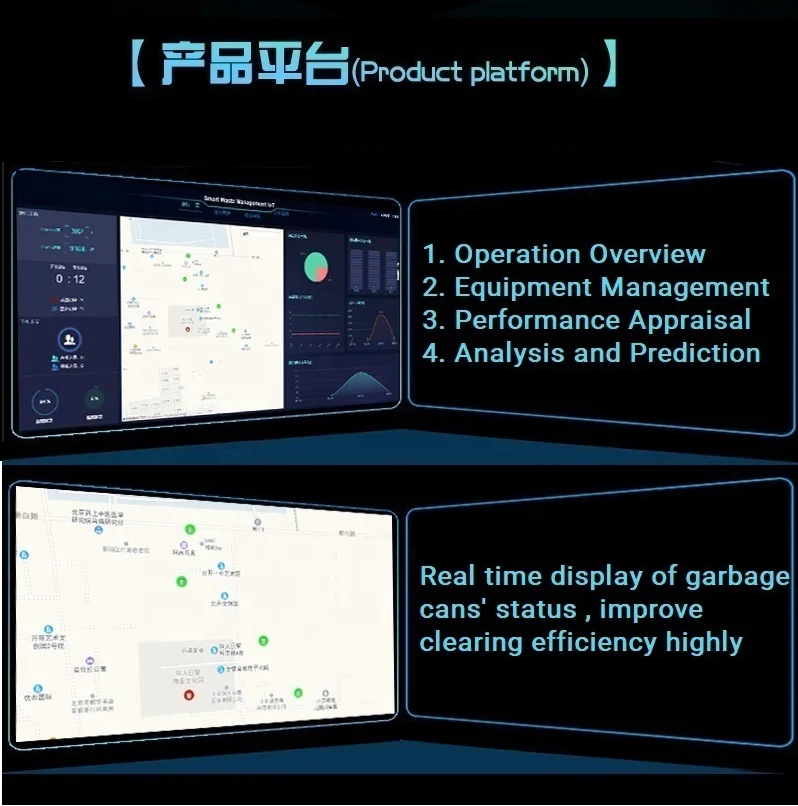

Platform

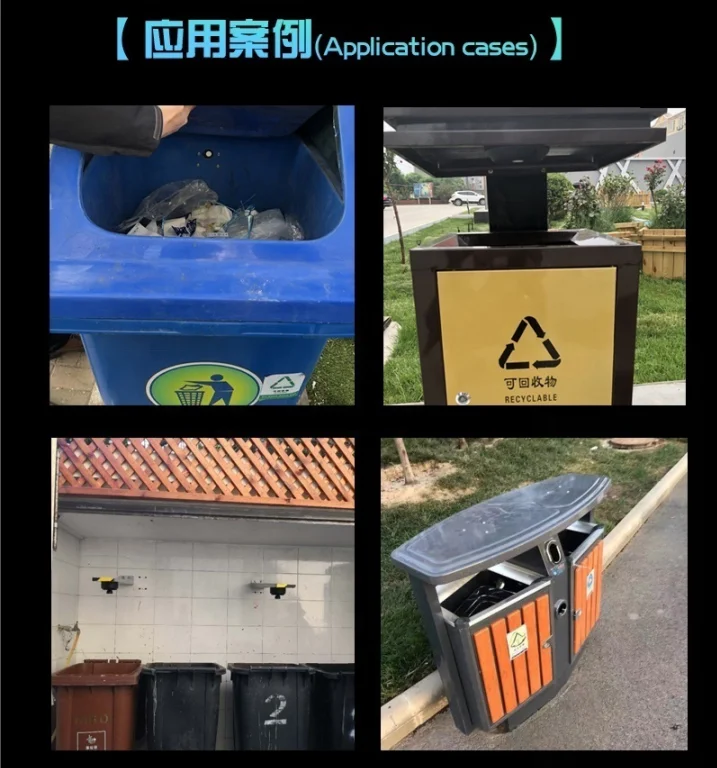

Application Case
Company Profile
Product Lines
➤Parking management. Parking sensor DO200, parking lock DO300, SAAS.
➤Manhole management. Manhole sensor DC400/DC410, SAAS.
➤Level measurement. Top installation DF550, bottom installation DF520, LPG tank sensor.
➤People Counter DC500
➤Air Temperature and Humidity Sensor DT310
➤Door Magnetic Sensor DH100
➤Water Sensor DC500
➤Density measurement. DM500.
➤Cement Mixer sensor. DZ300.
