Germany Design Heating System and Non Autoclave Glass Laminating Equipment



 Specification

The core of Fangding architectural toughened glass laminating equipment is vacuumizing and heating. While heating, the EVA interlayer becomes semi-flowing status and react to adhere to the glass, and the air is sucked out by the vacuumizing system. So after laminating, two pieces(or more) of glass have been combined together.



Technical Parameters

Name	Fangding architectural toughened glass laminating equipment
Brand	Fangding
Type number	FD-J-1-3
Max glass size	2440*1830(mm)
Layers	3
Production capacity	40sq/cycle(6mm+6mm e.g.)
Time per cycle	40~100min
Max glass thickness	36mm
Max height of bent glass	180mm
Vacuum level	100kPa
Laminating temperature	90~140℃
Operating system	Siemens PLC with touch screen
Dimension(L*W*H)	3100*2220*2200(mm)
Weight	2800kg
Power	15kW
Voltage	220~440V(customized)



Description

Fangding architectural toughened glass laminating equipment is used to produce EVA laminated glass with. It is efficient to produce all kinds of EVA laminated glass, such as flat laminated glass, toughened laminated glass, PDLC laminated glass, LED laminated glass, bulletproof laminated glass, laminated PMMA, high quality decorative laminated glass, etc. Even bent toughened laminated glass can be produced through the same process, which is much easier than with autoclaves.

Click here for more information.



Application

The products of Fangding architectural toughened glass laminating equipment, EVA laminated glass is developing rapidly these years, both for architectural and decorative application, for example, curtain walls, stairs, gaurd bars and ceiling boards.





Related products:



                  FD-J-4-4                                   FD-J-2-2                                  EVA film



Advantages

1. 1st to have got CE/ISO9001 certificate in China, qualified machines.

2. Efficient glass laminating equipments, can be used to adopt EVA film, TPU film, SGP film to produce rich range of laminated glass with 99% production yield.

3. 50% more energy saving than other supplied "similar" equipments. Our glass laminating equipments only consume 0.6 kilowatt hour electricity for laminated glass of one square meter.

4. We are the the 1st company who can supply glass laminating equipments with double independent systems in China.

5. Full automatic PLC control system. All the parameter of laminated glass processing, including temperature, time, vacuum level of each secton, can be set through the touch screen. The laminated glass can be finished automatically.

6. Advanced vacuum system. Our glass laminating equipments adopt German designed vacuum pumps which can works constantly 24 hours. The vacuum level of our glass laminating equipments can reach 0.1MPa.



Our corporation

Shandong Fangding Safety Glass Technology Co., Ltd. is the most professional manufacturer of glass laminating equipments and EVA film in China. Fangding is the model enterprise in glass machinery processing industry and the sponsor of technical innovation for glass laminating equipments and EVA film. With13 years experience in glass deep processing, focusing on researching of glass laminating equipments, supplying top grade product and service, creating more value for our customers.

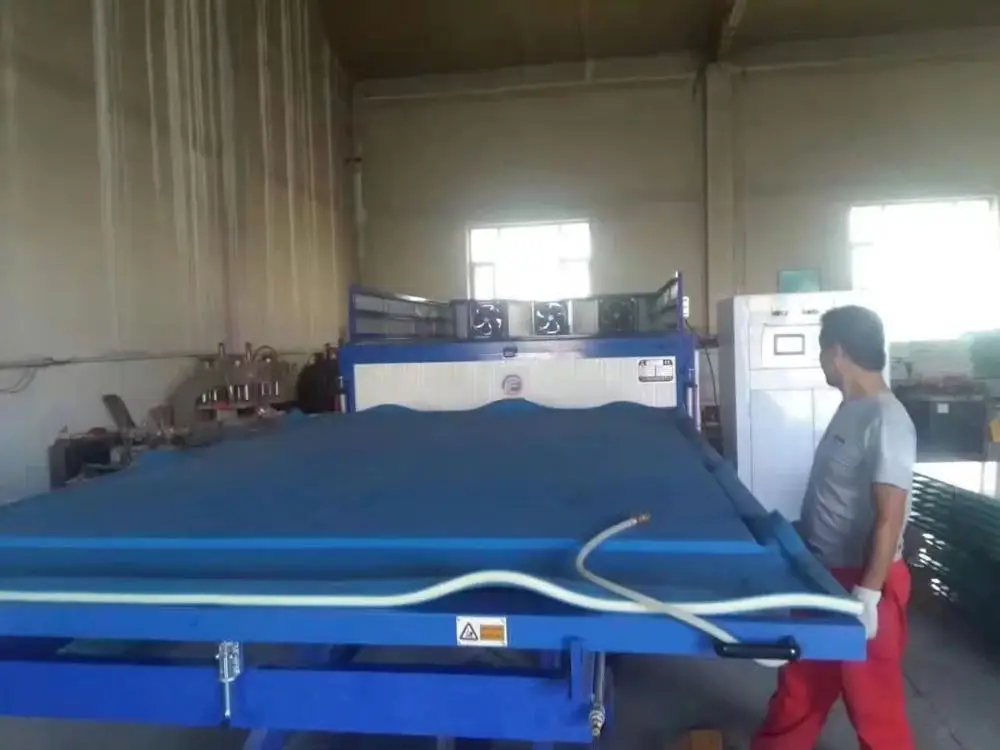

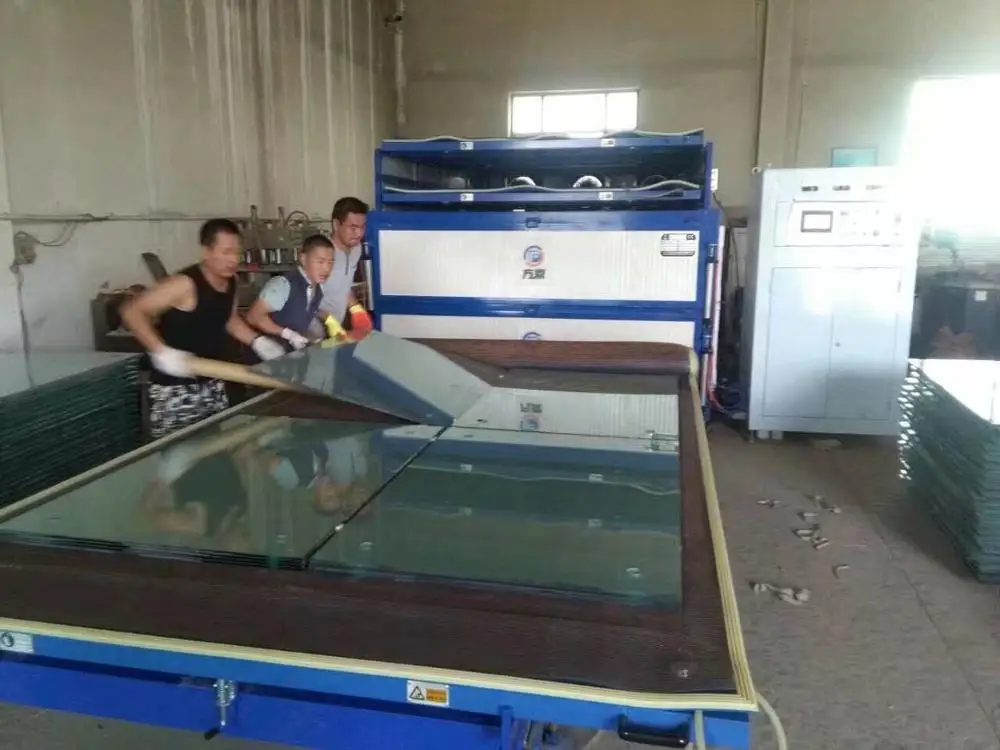

Our factory

Our factory locates in Rizhao city, Shandong province, China(mainland). It's a beatiful seaside city. You are warmly welcomed to visit our factory to see our strength, and visit our city!

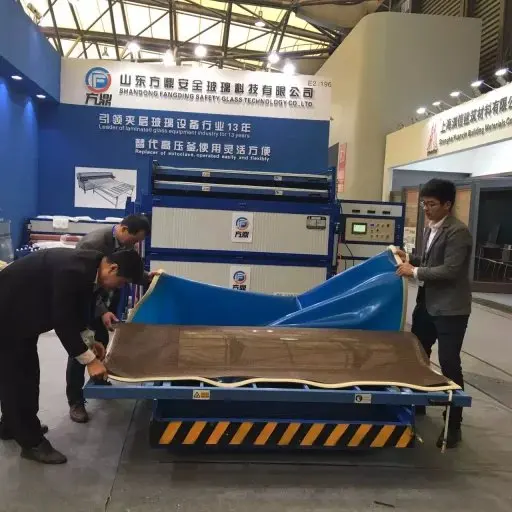

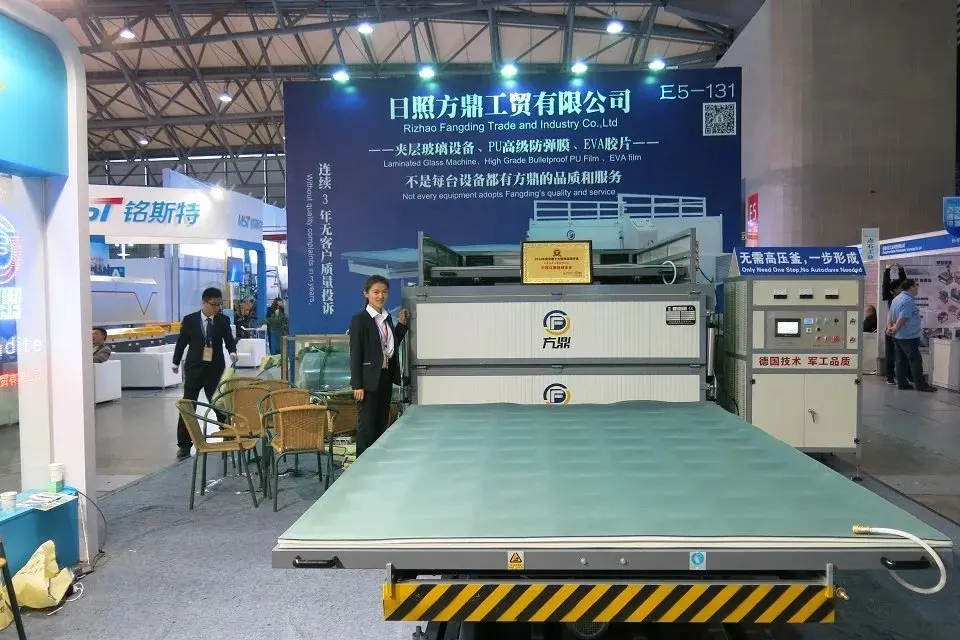

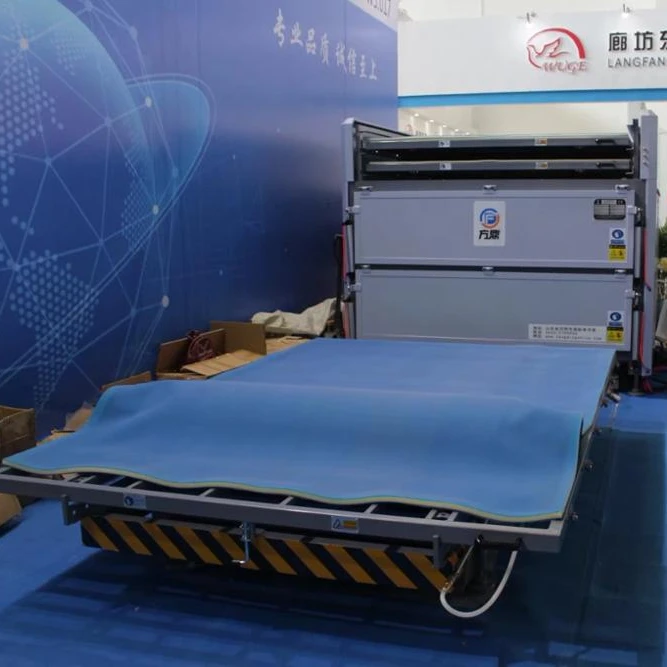

Exhibitions attending

We attend international exhibitions every year, and produce laminated glass with our glass laminating equipments in exhibitions all over the world.









FAQ:

Q: Can your glass laminating equipments laminate bent or thoughened glass?
Re: Yes. Fangding architectural toughened glass laminating equipments can laminate large-size bent or/and thoughened glass in one step, which is very easy to operate.
Q: How many stages your glass laminating equipments can set?
Re: Normally we set 5 stages. It can be customized for you to more stages when needed.
Q: How long will you need to produce your glass laminating equipments ready for delivery after our prepayment?
Re: Normally within in 25 days. It need about 50 days in busy seasons, for example 2 or 3 months after big exhibitions.
Q: what about the terms of payment?
Re: Normally 30% prepayment, 70% before shipment by T/T. L/C and other terms are also available.
Q: Do you glass laminating equipments have any certificates?
Re: Yes. Fangding architectural toughened glass laminating equipments have got CE/ISO9001 certificates.
Q: Could EVA laminated glass used for outdoor building?
Re: Yes. The EVA laminated glass with super clear EVA have can be used for outdoor building.
Q: How to operate the equipment? Is it complicated?
Re: No, our glass laminating equipment is very easy to operate. The equipment will work automatically after you set the parameters through the touch screen. We send you operating manual with the equipment, we also have video for operation for your reference.
