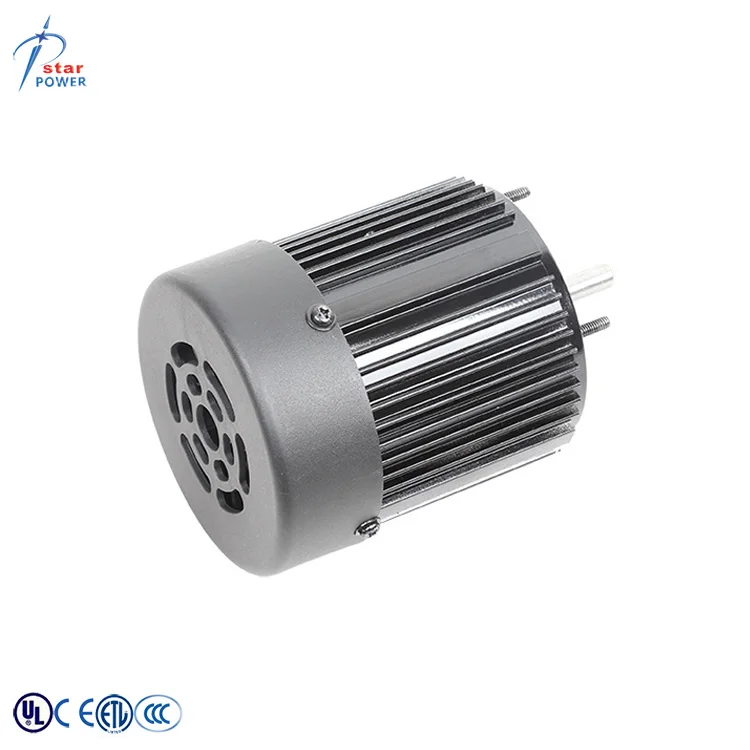

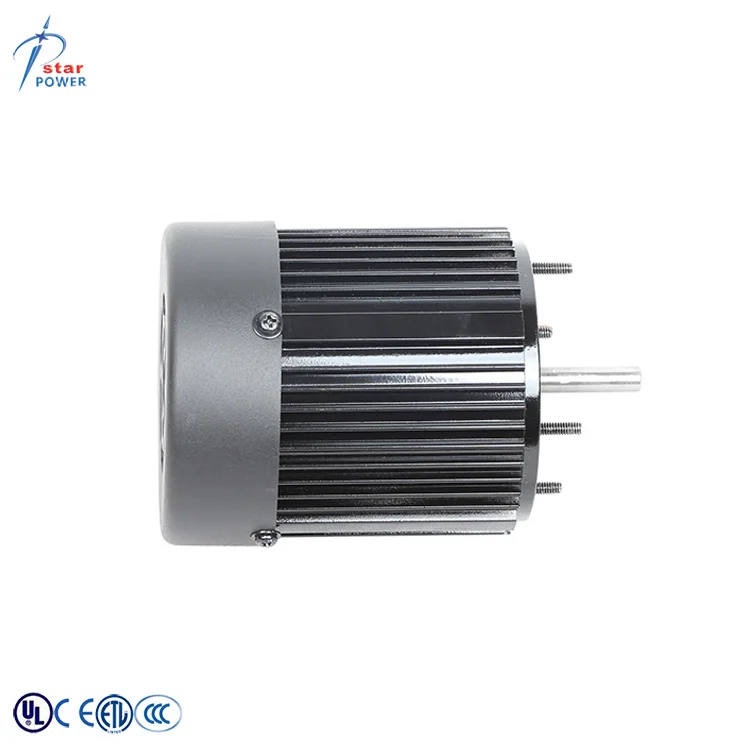

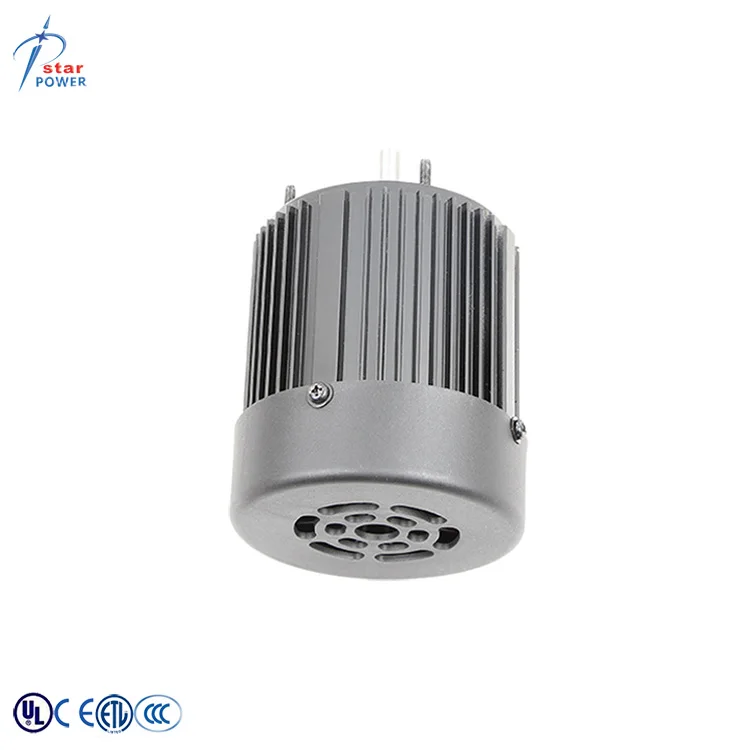

Однофазный 3 '1/4HP небольшой электродвигатель

Features:

• Class H Insulation


• Extra mounting nuts for quick installation


• Energy efficient


• Quiet operation


• Ball bearing


• Dual voltage 115 voltage


• Automatic overload


• Operating temp -10-43 degree


• High efficiency,High reliability,Little vibration,Low noise Thermal protection


• Usage Air over duty,typically for blowers, evaporator fans, fans in household appliances


•








  3.3 inch motor Model power(Hp) voltage(V) frequncy(Hz) pole speen(rpm) rotation shaft bearing DIA protect feature insulation calss YDK-180-2   1/4 115/208-230V 50/60 2 3300 reversible 8X80 ball 3.3" enclosed F YDK-120-2   1/6 115/208-230V 50/60 2 3300 reversible 8X80 ball 3.3" enclosed F YDK-75-2   1/10 115/208-230V 60 4 3300 reversible 8X80 ball 3.3" enclosed F YDK-60-2   1/12 115/208-230V 60 2 3300 reversible 8X80 ball 3.3" enclosed F YDK-50-2   1/15 115/208-230V 60 2 3300 reversible 8X80 ball 3.3" open F YDK-37-2   1/20 115/208-230V 60 2 3300 reversible 8X80 ball 3.3" open F  YDK-30-2   1/25 115/208-230V 60 2 3300 reversible 8X80 ball 3.3" open F YDK-25-2   1/30 115/208-230V 60 2 3300 reversible 8X80 ball 3.3" open F YDK-60-4   1/12 115/208-230V 60 4 1550 reversible 8X80 ball 3.3" enclosed F YDK-50-4   1/15 115/208-230V 60 4 1550 reversible 8X80 ball 3.3" open F YDK-37-4   1/20 115/208-230V 60 4 1550 reversible 8X80 ball 3.3" open F  YDK-30-4   1/25 115/208-230V 60 4 1550 reversible 8X80 ball 3.3" open F YDK-25-4   1/30 115/208-230V 60 4 1550 reversible 8X80 ball 3.3" open F
