Качественный комплект из двух предметов 8 портов FTTH GEPON
- Категория: Other Telecommunications Products >>>
- Поставщик: Shanghai,Baudcom,Communication,Device,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 921.30 $* | 939.67 $* |
| Jul-16-2025 | 747.59 $* | 762.93 $* |
| Jun-16-2025 | 906.70 $* | 924.1 $* |
| May-16-2025 | 899.3 $* | 917.36 $* |
| Apr-16-2025 | 718.75 $* | 732.39 $* |
| Mar-16-2025 | 885.6 $* | 903.85 $* |
| Feb-16-2025 | 877.82 $* | 895.34 $* |
| Jan-16-2025 | 870.44 $* | 887.16 $* |
Характеристики
Product: High quality 8 Ports FTTH GEPON OLT
Overview
1. Introduction
BAUDCOM BD-OLT-8000 is a GEPON Optical Line Terminal (OLT) designed with eight GEPON port, eight Gigabit optical/electrical uplink Interfaces and management port.

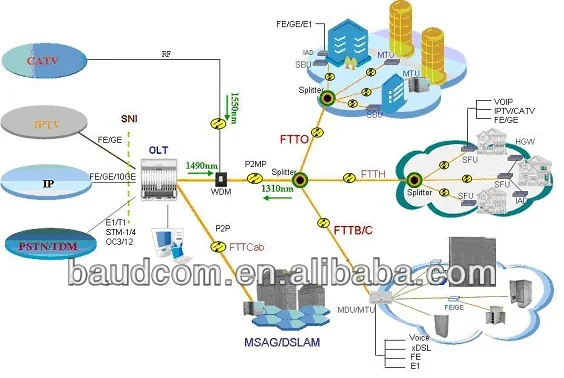

By applications with BAUDCOM GEPON Optical Network Units (ONU) series, BAUDCOM BD-OLT-8000 can provide highly effective GEPON solutions and convenient management for Broadband network. BAUDCOM GEPON technology performs high bandwidth up to 1.25Gbps for both upstream and downstream, and up to 20km Long-Distance Coverage between equipment nodes. It is a cost-effective access technology to bring reliable, scalable and flexible network deployment for Triple-play service applications (voip,data,CATV).
The BD-OLT-8000 is an ideal solution for FTTx applications. The OLT can connect 256/512 remote ONU mostly (by 1:32/1:64 splitter),which can minimize the investment cost for carriers. By using the advanced technology in the telecommunication industry, the BD-OLT-8000 will also provide strong functionalities for Ethernet features such as QoS, VLAN, Multicast, DBA (Dynamic Bandwidth Allocation), and Access Control List.
The OLT system combine the advanced industrial design and manufacturing technology by mini designing.It is high reliability, flexible and easy for installation and maintenance. The OLT is ideal for FTTB/FTTP/FTTH access solutions.
Detailed Pictures

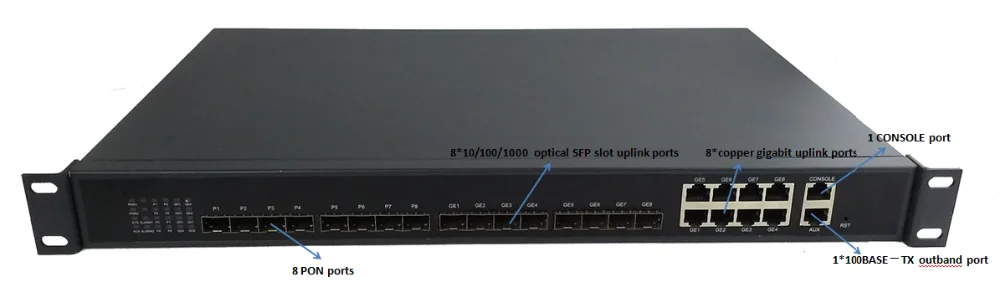

8/16 Ports GEPON OLT Access System GEPON
PON card
Control and uplink card
EMS Network management based on standard SNMP
Ordering Information
| BD-OLT-8000-C | 8ports OLT chassis,4*PON card slots,1*8port uplink card slot,2U high,19",Double power AC 220V or DC48V,4 fans. |
| OLT-8000-M | OLT Switch Control Module,with 8ports uplink port (optical or electrial) |
| OLT-8000-2PON | OLT PON card with 2 Pon ports |
| OLT-8000-4PON | OLT PON card with 4 Pon ports |
| BD-4311S-E2CDA | EPON OLT SFP transceiver, Tx1490nm/ Rx1310nm ,1.25Gbps/1.25Gbps, 1000BASE-PX20 |
| BDTR-GB-P1RC | uplink SFP module,10/100/1000M,copper SFP,1000Base-T |
Feature
High density, flexible networking
PON maximum support 4 PON cards, each card has 2 or 4 PON port, Up to 8 or 16 PON ports can be supported in
Highly reliable case, strong adaptive capacity to environment
2U case, modular design
Redundant power, redundant fans
Layer 2 aggregation switching
Layer 2 wire-speed forwarding; support rich layer 2 protocols
8K MAC address list in Leaflets PON board
8 uplink ports, support up to 4G uplink bandwidth via port aggregation function
Uplink port supports copper SFP modules (1000Base-T) and optical SFP modules, which can be freely configured
Perfect network management function
Support SNMP and WEB interface management
Rich OAM function
Support ONU automatic identification, automatic finding, and automatic registration
Support the function of automatic loop back test to single link
Strong VLAN function, including VLAN Stacking, Trunk, Translation, flexible QINQ
Support flexible controllable multicasting, support IGMP snooping
Specification
System Capacity
wire-speed switching 64K MAC list
4094 VLANs
Max 4 PON uplink cards, each having 2 PON uplink ports - total capacity - 8 ports
Max 8 GE interface ports as SFP slots. Any standard 1.25 G SFP module can be used.
Max 64 ONUs support per PON port
MAIN Interface
8 ports fixed, SFP GE
NMS management port
Uplink ports can be connected to third party VoIP Softswitches what support SIP protocol and operates with BAUDCOM new SIP ONU!
More specifications:
1 Gbps transmission rate
Network reach: 20 km
Transmitter power: 2.5dbm to 7 dbm
Receiver sensitivity: <=-39dBm
Security: ONU authentication
Distance 20 km
Max 64 ONUs support per PON expansion module
Supports 802.3 MPCP protocol;
Supports 802.3 OAM and expanded (slave port) protocol, have abundant OAM function design and offers long distance managment through OLT.
Double channel independent OLT;
Remote software upgrade supported
Data encryption service for downlink, secure data transtion security for end users
ONU authentication, averts illegal ONU access to network
DBA dynamic bandwidth allocation
Single ONU multi LLID registration
IGMP proxy supported
ACL functions supported
QoS functions supported
4K MAC adress with single channel OLT
VLAN's devided by LLID
Suitable for FTTH, FTTB and FTTx
Loads of various statistic information
Hot swap possibility for cards Managed by SNMP/Friendly GUI/Telnet
| Power Supply | OptionI:DC-48V,range DC-36V~DC-72V |
| OptionII:AC220V,range AC165V~AC240V | |
| Power Consumption: <=70 Watts | |
| Environment condition | Operating temperature: 0°c~+50 °c |
| Storage temperature: -20 °c~+70 °c | |
| Relative Humidity:95% (uncondensed) | |
| Dimension | 482.6mm(W) x 400mm(D) x 86.1mm(H) 2U high,19inch rack mounting |
WHY CHOOSE US Baudcom
1. Baudcom has been working hard in supplying various GEPON products for 7 years
2. Getting trusted by more and more customers home and abroad
3. One of the most reliable GEPON distributors for brands like Cisco Finsar brocade etc in China
4. Stable channel ensures the products quality and competitive pricing
We look forward to reaching a cooperation with esteemed your company, by providing the top-class quality products and 100% whole-hearted services!
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging & Shipping
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
Factory Production
Product Testing
Contact Information
| Official Website | http://www.e1-converter.com.cn |
| My name | peter |
| Skype | dora.li693 |
| sales05@ baudcom.com.cn | |
| Whatapp | +8617721351907 |
Trade Shows
