Горячая Распродажа маленький теплообменник HZSS микроканальные тепловые

Горячая Распродажа маленький теплообменник HZSS микроканальные тепловые

Категория: Heat Exchanger >>>
Поставщик: Hangzhou,Shenshi,Energy,Conservation,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.17 $*	0.57 $*
Aug-17-2025	0.35 $*	0.85 $*
Jul-17-2025	0.42 $*	0.49 $*
Jun-17-2025	0.5 $*	0.25 $*
May-17-2025	0.93 $*	0.66 $*
Apr-17-2025	0.59 $*	0.21 $*
Mar-17-2025	0.4 $*	0.86 $*
Feb-17-2025	0.81 $*	0.87 $*
Jan-17-2025	0.63 $*	0.40 $*

Характеристики

Product Description

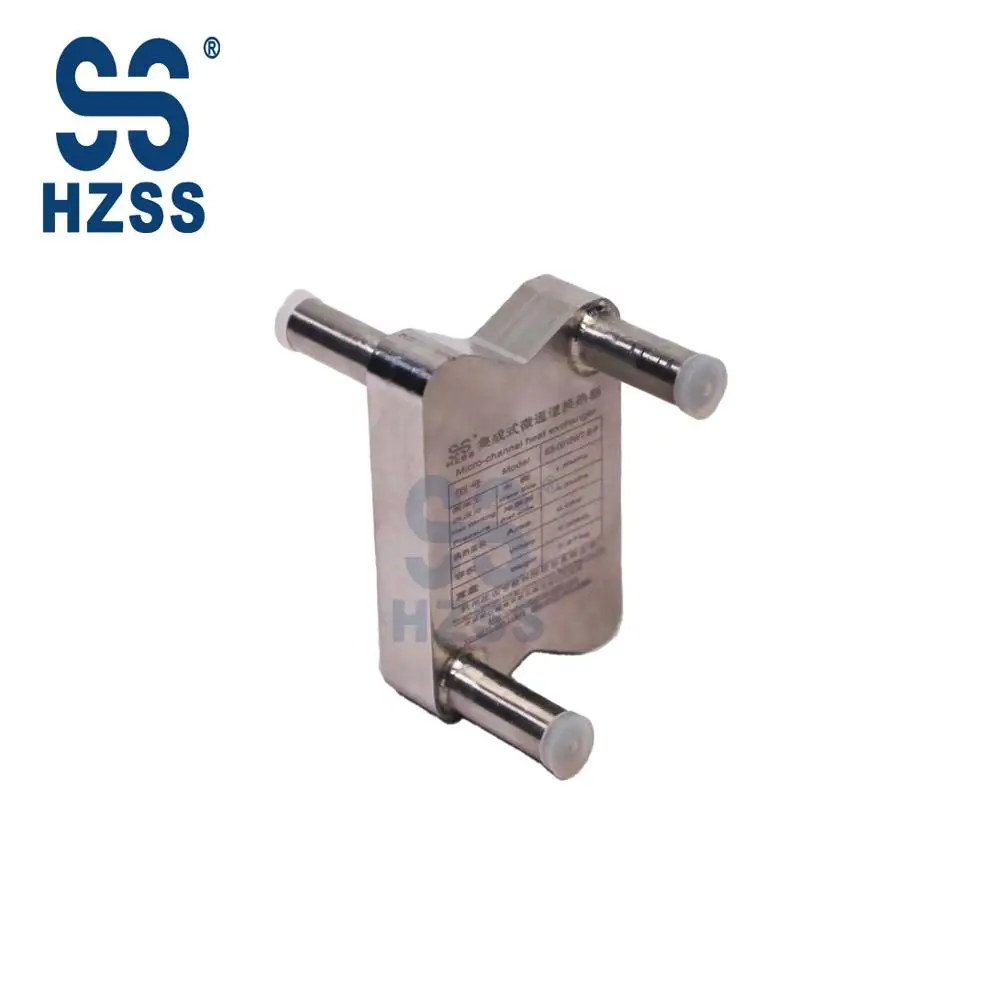

Micro-channel plate heat exchanger

Main Features

(1) High Heat Transfer Co-efficiency

The Microchannel Heat Exchangers are applied in improving the heat transfer performance of fluid. Thousands of micro-scale channels are integrated with the precision three-dimensional hollow bonding technology and there is no contact heat resistance, resulting significant increase in the heat transfer coefficient, up to 5000-10000(W/m2.k)
(2)Less Refrigerant Charge

The channel volume reduces greatly compared with that of the brazed plate heat exchanger having the same heat transfer capacity, by 93%. Thus the refrigrant charge is significantly decreased.
(3)High Compactness

The compactness of IMHEs reach 800 to 2000 m2/m3, being about 3.5 times as that of brazed plate heat exchanger. The heat transfer caoacity per unit volume can attain 20.0W/cm3, while heat transfer capacity per unit mass reaches up to 5 kW/kg. Thus the IMHEs have the advantages of smaller volume and lighter weight in the same heat transfer capacity.
(4)Excellent Pressure Resistance, High Anticorrosion

The channels of IMHE are micro-scale, and employing integrated technology makes the heat exchanger has the same strength as parent material, perssure resistance can be up to 30 MPa. Thus the IMHE is suitable for supercritical CO2 cycle. On the other hand, the anticorrosion is greatly strong because of the application of stainless steel.

(5)Wide Application

The IMHEs have advantages including high compactness, smal volume, excellent pressure applied in laser cooling, precision instruments, armarium, aerospace, ect.

Certifications

Exhibitions

2016 EUREXPO LYON in France

2017 CRH in China-Shanghai

2017 ENVEX in South Korea

2018 AHR in USA-Chicago

Our Company

HZSS Profile.

Hangzhou Shenshi Energy Conservation Technology Co., Ltd.(HZSS) was set up in the year of 2005 (the original name was Hangzhou Shenshi Heat Exchanger Co., Ltd.), and now located in Hangzhou Jiande, Zhejiang Province, China. HZSS is a professional coaxial heat exchanger manufacturer, and owner of the global-leading technology of integrated micro-channel heat exchanger and small climate system. HZSS focus on production and marketing and innovation of high efficiency and energy saving heat exchangers.
