Сухие магнитные сепараторы высокой интенсивности/цена магнитного сепаратора для конвейерных
- Категория: Минеральный сепаратор >>>
- Поставщик: Shandong,Xinhai,Mining,Technology,&,Equipment,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 265258.28 $* | 278521.93 $* |
| Aug-16-2025 | 263029.96 $* | 276180.97 $* |
| Jul-16-2025 | 220677.2 $* | 231711.66 $* |
| Jun-16-2025 | 258571.49 $* | 271500.74 $* |
| May-16-2025 | 225135.42 $* | 236392.78 $* |
| Apr-16-2025 | 254113.57 $* | 266819.85 $* |
| Mar-16-2025 | 251884.23 $* | 264478.49 $* |
| Feb-16-2025 | 249655.87 $* | 262138.90 $* |
| Jan-16-2025 | 247426.68 $* | 259797.93 $* |
Характеристики
Magnetic Drum---Product Description
【Introduction】:A vacuum filter with vertical discs consisted of fanning plates
【Filter area】:9～116m2
【Improvement】:Polypropylene plastic plate, light weight, corrosion resistance, stepless speed regulation, change spindle speed according to different needs.
【Filter area】:9～116m2
【Improvement】:Polypropylene plastic plate, light weight, corrosion resistance, stepless speed regulation, change spindle speed according to different needs.
Product Advantages
![]()
Magnetic Drum---Product Advantages
Large feeding particle size (450～0mm), no classification before feeding;
High strength and high reliability of the mechanical structure guarantee the normal work of the magnetic drum in a variety of
harsh environment.
High strength and high reliability of the mechanical structure guarantee the normal work of the magnetic drum in a variety of
harsh environment.
Product Structure
![]()
Magnetic Drum---Product Structure
The materials are uniformly fed to the belt. When materials go through the permanent magnetic drum, the non-magnetic and low-magnetic particles will leave the belt surface because of the centrifugal force and gravitation. Meanwhile, strong-magnetic particles are absorbed to the belt by magnetic force and then fall into the magnetic trough when the belt leaving the magnetic pulley.
Technical Parameters
Model & Spec. | Diameter of Cylinder (mm) | Length of Cylinder (mm) | Width of Belt (mm) | Surface Magnetic Density (mt) | Capacity (t/h) | Feed Size (mm) | Total Weight (t) |
CTGG-0812 | 800 | 1200 | 1000 | 300~500 | ≤100 | ≤200 | 2.1 |
CTGG-0814 | 800 | 1400 | 1200 | 300~500 | ≤120 | ≤200 | 2.6 |
CTGG-0816 | 800 | 1600 | 1400 | 300~500 | ≤150 | ≤200 | 3.2 |
CTGG-0818 | 800 | 1800 | 1600 | 300~500 | ≤180 | ≤200 | 3.9 |
CTGG-1018 | 1000 | 1800 | 1600 | 300~500 | ≤270 | ≤250 | 4.4 |
CTGG-1218 | 1200 | 1800 | 1600 | 300~500 | ≤350 | ≤300 | 5.0 |
Successful case
![]()

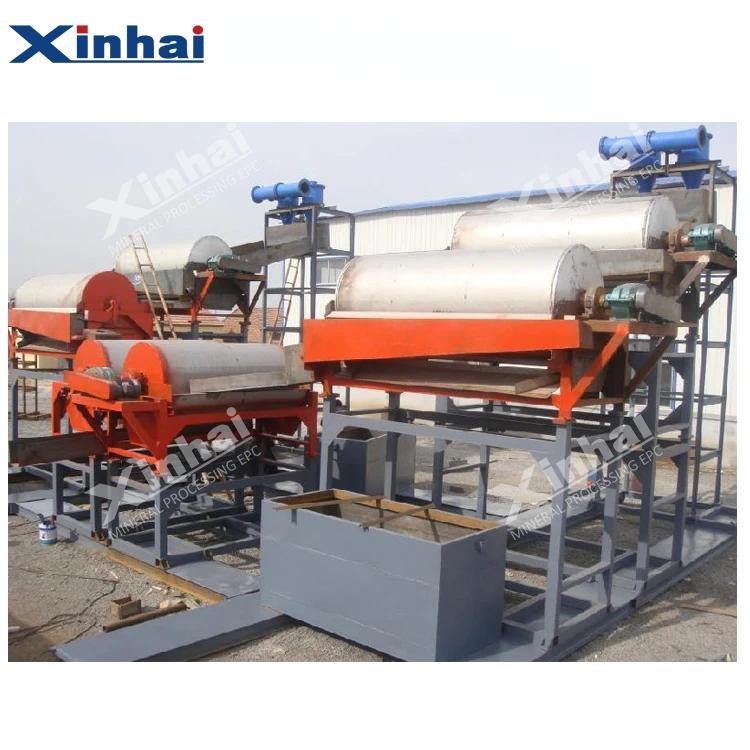

In an iron concentrate plant, the lean ore processed magnetic separation after coarse crushing and medium crushing, in order to restore grade, save energy and improve production, the customer chose magnetic drum, reducing the load of next procedure. Arrangement of two stages magnetic separation, the intensity of magnetic field is large, the magnetic separation effect is very obvious, and production efficiency is improved; at the same time, magnetic drum can also be used to process tailings, which is beneficial to recycle equipment, save the cost and improve grade.
