KR22PP / CF10UUR MCFR22S MCR22S метрический роликовый кулачковый Фиксатор С шестигранным и лабиринтным

Описание и отзывы

Трекер стоимости

Характеристики

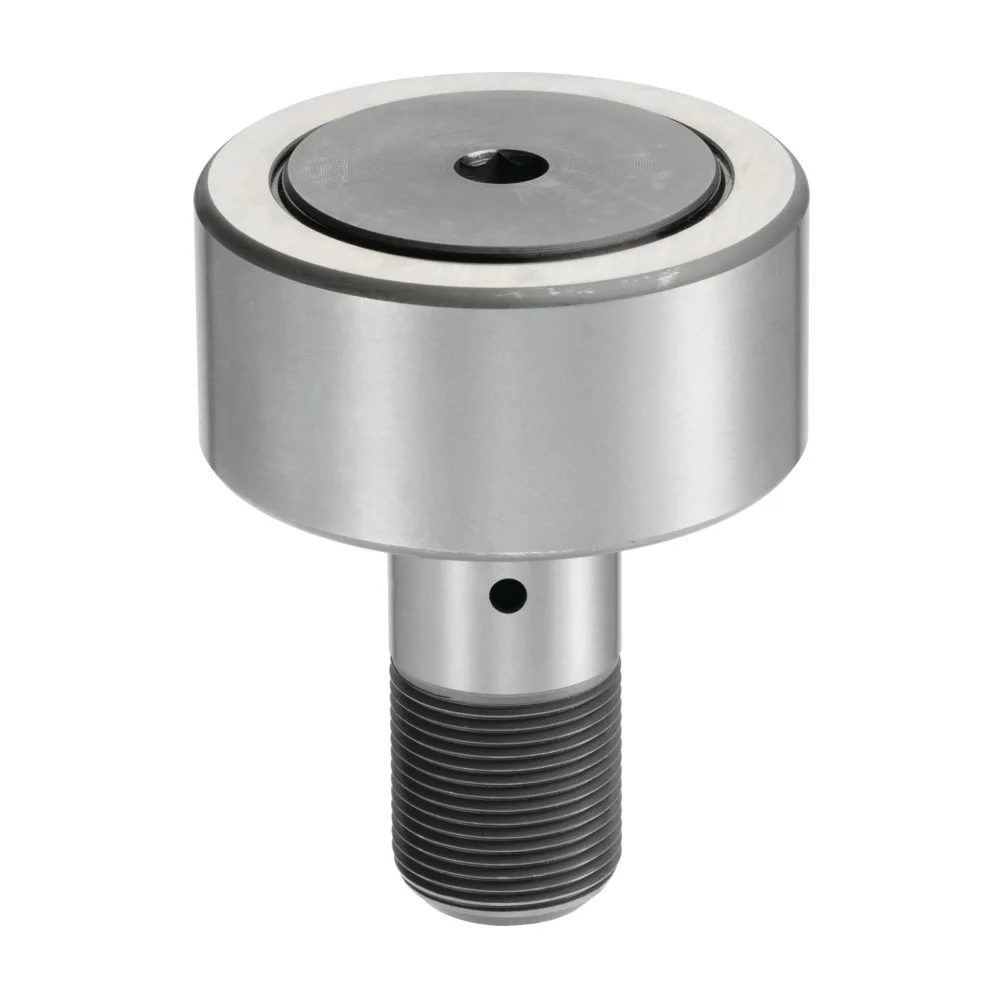

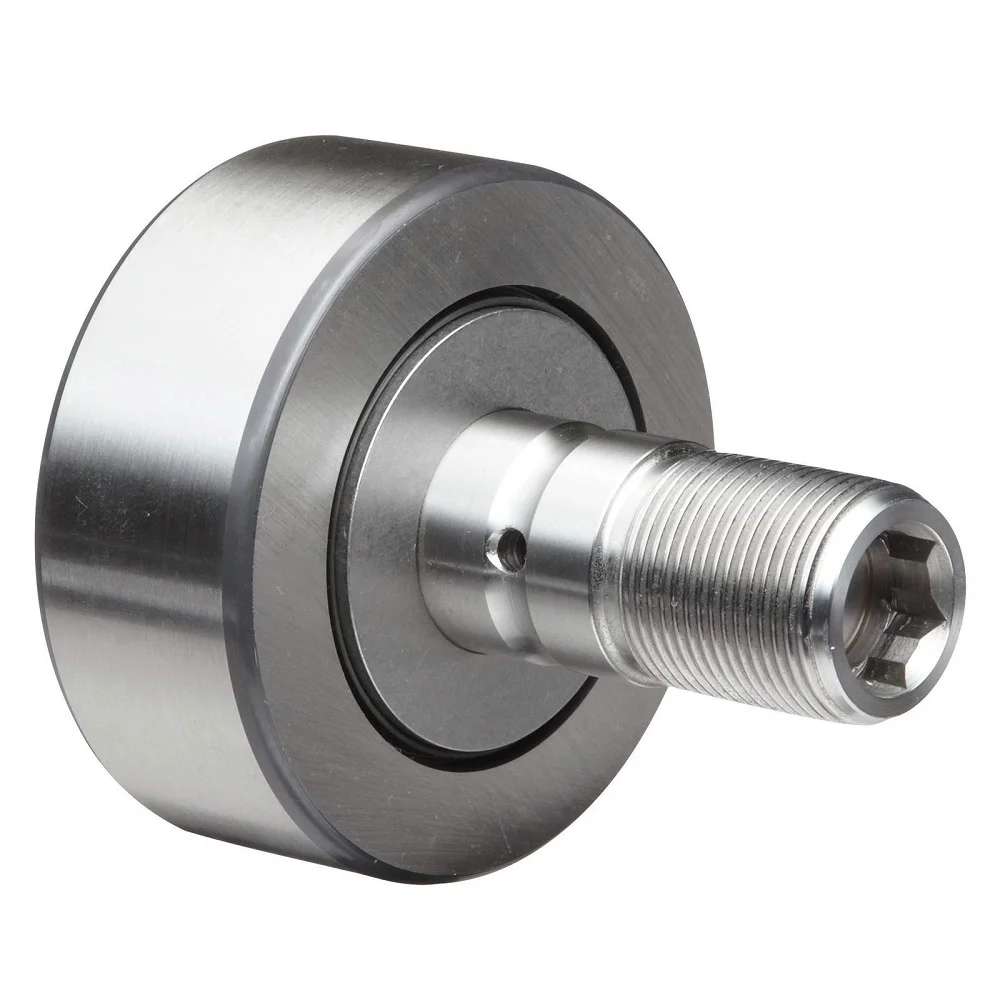

KR22PP / CF10UUR / MCFR22S / MCR22S  Metric Stud Type Full Complement Roller Cam Follower with Hex-Socket and Labyrinth Seals



• crowning outer ring with R 500


• a solid stud with a thread for a fixing


• thrust washers and three-stage labyrinth seal


• a needle-roller and cage assembly


• temperature resistance ranging from -30 °C up to 100 °C

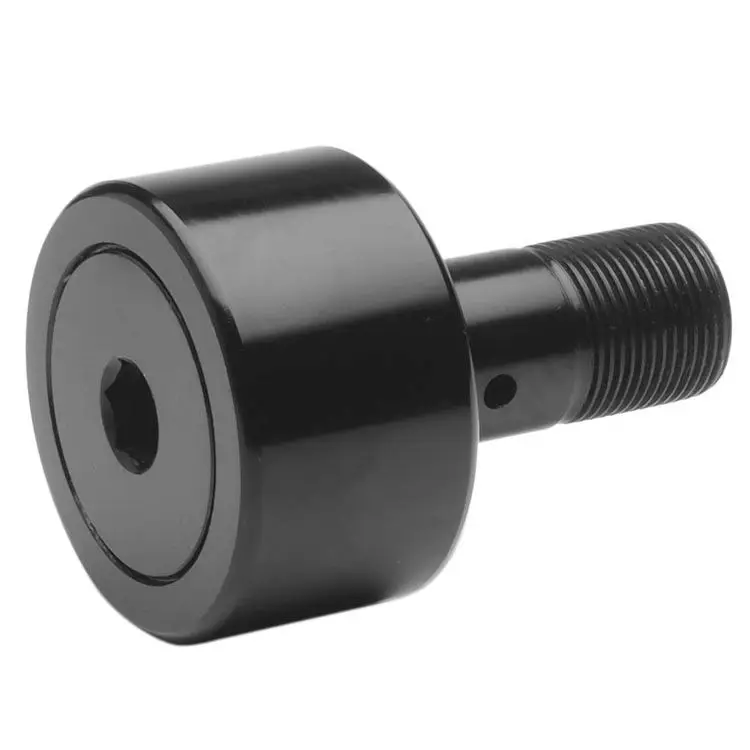

• with or without oxide black surface



Roller diameter (mm):	22
Roller Width (mm):	12
Stud Diameter (mm):	10
Stud Length (mm):	23
Overall Length (mm):	36
Radius (mm):	0.3
Thread :	M10x1
Thread Length (mm):	12
d1 (mm)	17.5
Approx weight:	0.043 kg
Interchange:	KR22PP / CF10UUR / MCFR22S / MCR22S





KR-PP	Dimensions (mm)														Mass
	D	C	d	B	B1	B2	C1	d1	G	G1	M	M1	r	SW	kg
KR13PP	13	9	5	23	13		0.6	9	M5x0.8	7.5			0.3		0.02
KR16PP	16	11	6	28	16		0.6	12.5	M6x1	8	4		0.15		0.02
KR19PP	19	11	8	32	20		0.6	15	M8x1.25	10	4		0.15		0.032
KR22PP	22	12	10	36	23		0.6	17.5	M10x1	12			0.3	5	0.045
KR26PP	26	12	10	36	23		0.6	17.5	M10x1	12			0.3	5	0.061
KR30PP	30	14	12	40	25	6	0.6	23	M12x1.5	13		3	0.3	6	0.09
KR32PP	32	14	12	40	25	6	0.6	23	M12x1.5	13		3	0.3	6	0.1
KR35PP	35	18	16	52	32.5	8	0.8	27.6	M16x1.5	17		3	0.3	8	0.17
KR40PP	40	20	18	58	36.5	8	0.8	31.5	M18x1.5	19		3	1	8	0.25
KR47PP	47	24	20	66	40.5	9	0.8	36.5	M20x1.5	21	8	4	1	10	0.39
KR52PP	52	24	20	66	40.5	9	0.8	36.5	M20x1.5	21	8	4	1	10	0.47
KR62PP	62	29	24	80	49.5	11	0.8	44	M24x1.5	25	8	4	1	14	0.8
KR72PP	72	29	24	80	49.5	11	0.8	44	M24x1.5	25	8	4	1.1	14	1.05
KR80PP	80	35	30	100	63	15	1	53	M30x1.5	32	8	4	1.1	14	1.56
KR85PP	85	35	30	100	63	15	1	53	M30x1.5	32	8	4	1.1	14	1.74
KR90PP	90	35	30	100	63	15	1	53	M30x1.5	32	8	4	1.1	14	1.97
