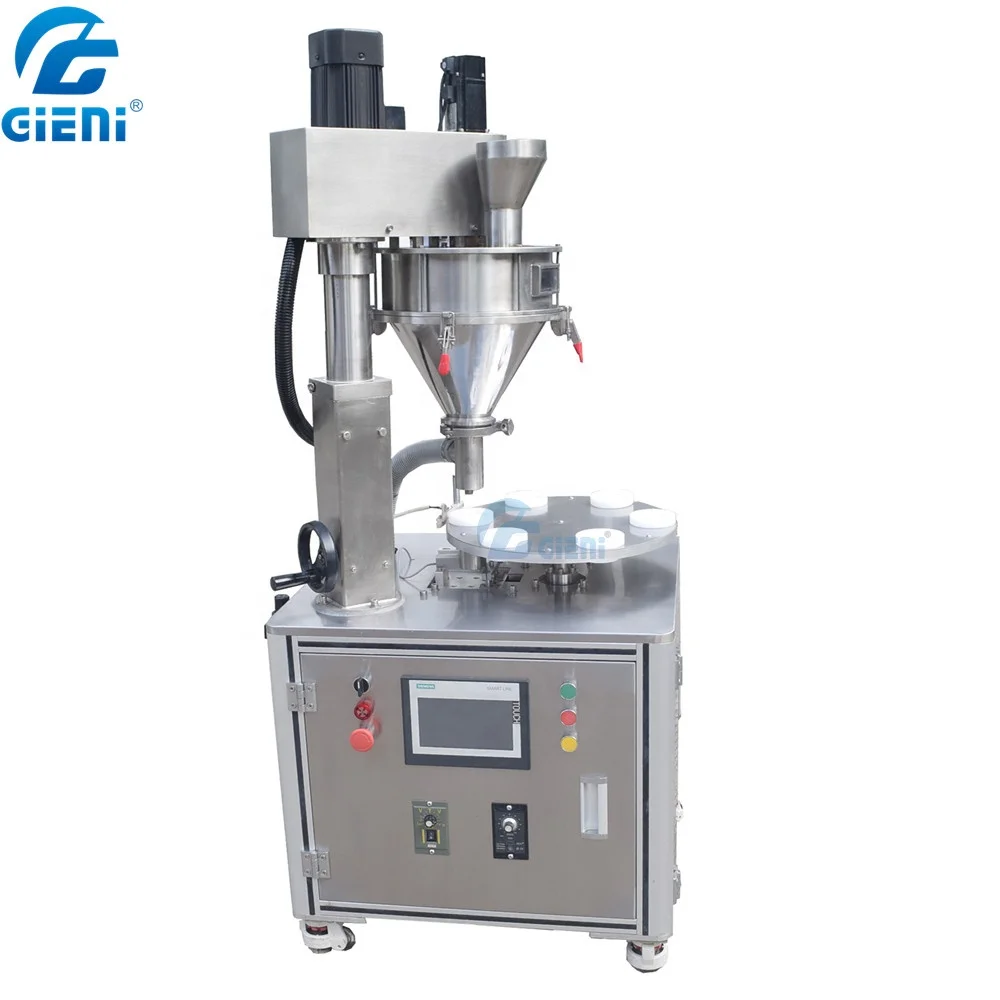

Semi-automatic PLC Control Screw Loose Powder Filling Machine for Nail Dip










The machine is especially for loose type products such as nail powder, eyeshadow powder, talcum powder and so on. It adopts different filling to aim at different manufacture requirements. The ration is precision, cleaning is convenient and operator is easy.



Features:

1. The machine adopts screw feeding and vacuum filling two ways.

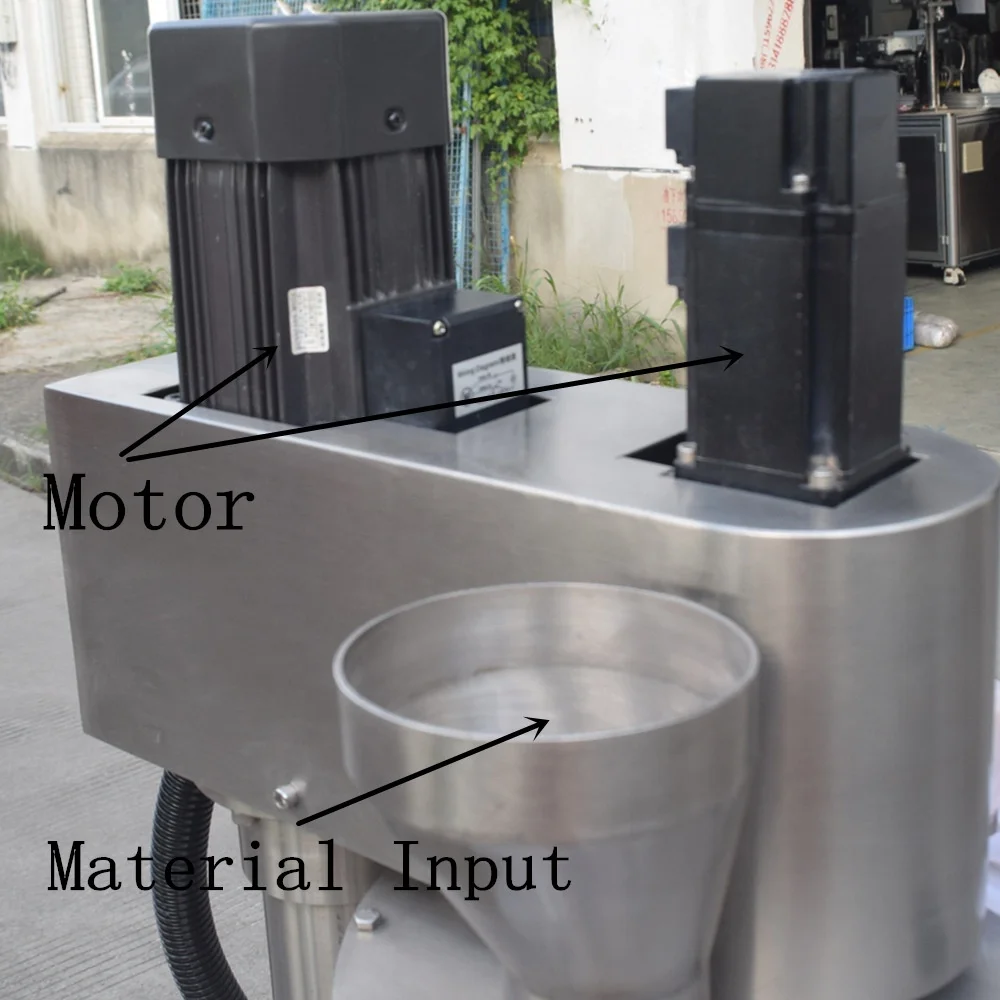

2. Screw feeding adopts servo motor and the accuracy of control system is high.

3. Vacuum filling system adopts negative pressure principle and applies to kinds of packages.

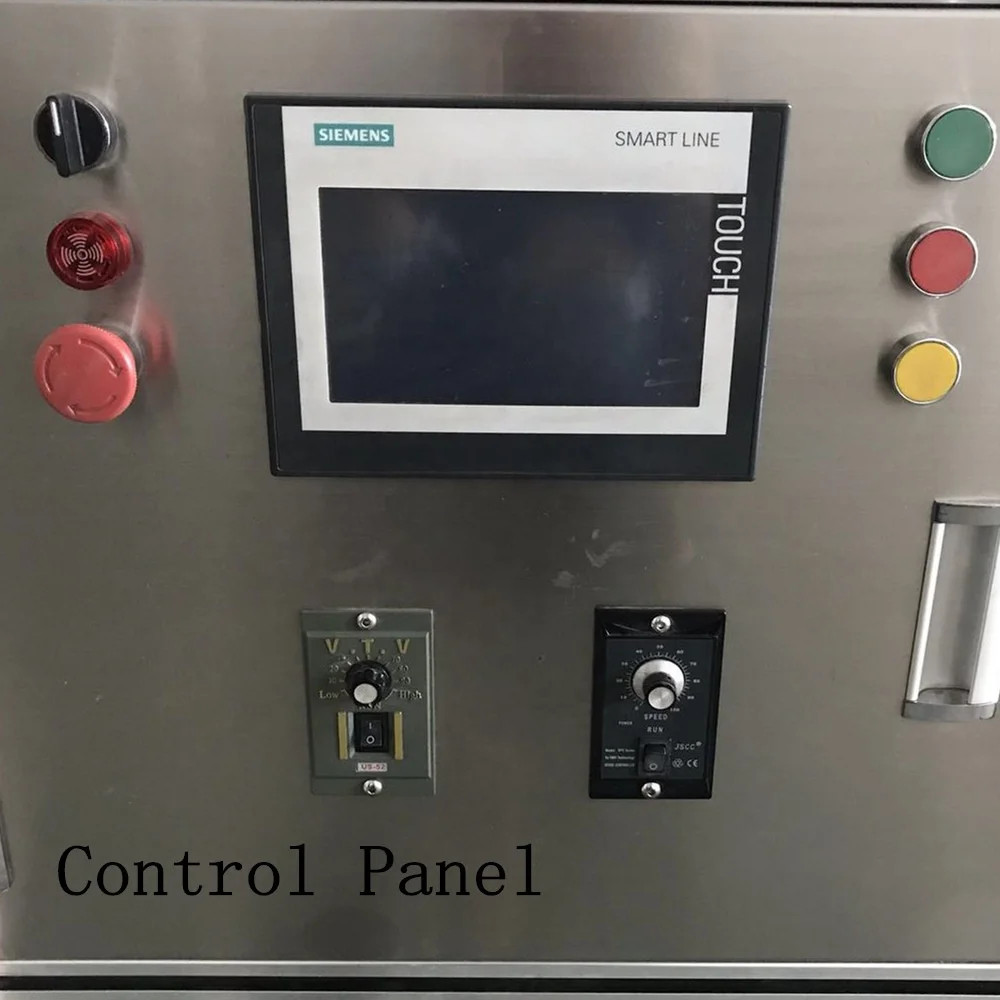

4.Control system adopts man-machine interface mode which is easy to operate.

5. Feeding cylinder adopts rotatable way. Clean and change color conveniently.

6. Achieve automatic production line with conveyor.



Technical Parameters:

Model	JLF-2
Outer Dimension	750*650*1600mm
Tank Volume	15L
Voltage	380V
Power	1KW
Air Consumption	5-6 kgs/cm3
Filling Speed	15-30 pcs/
Weight	260KG
