Характеристики

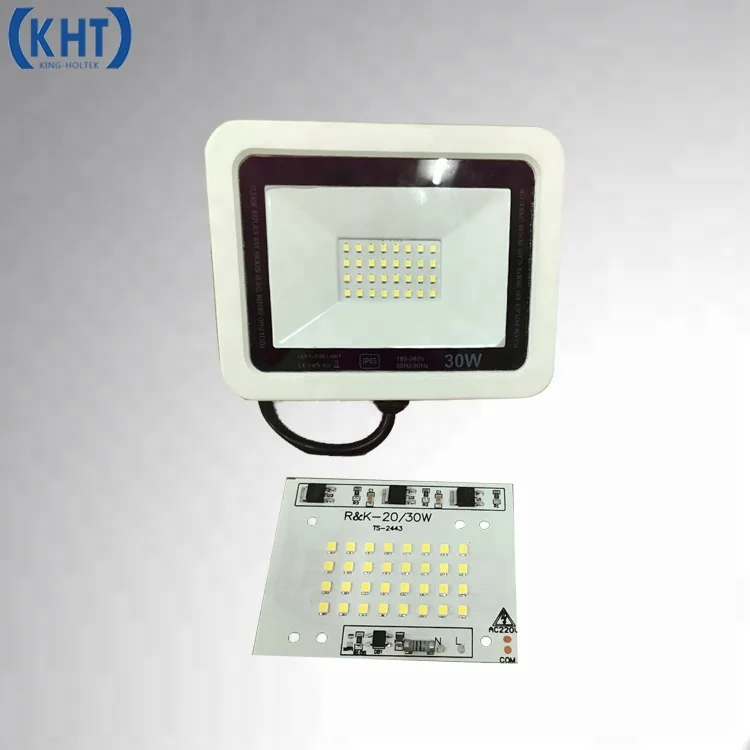

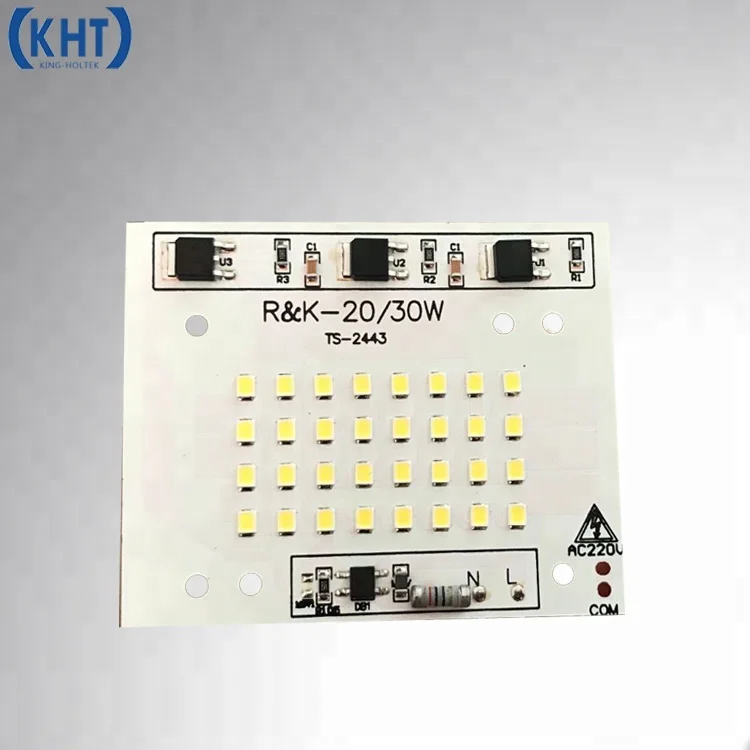

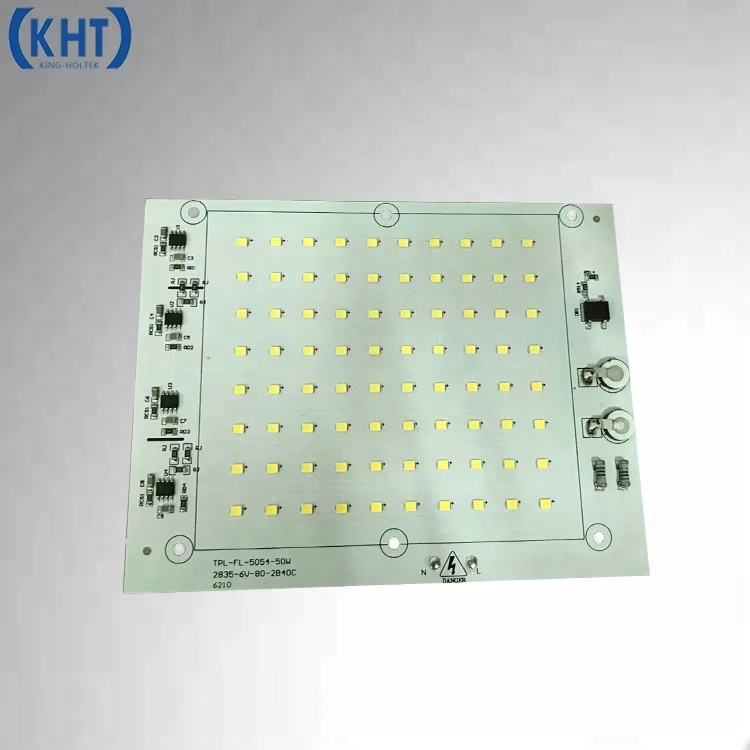

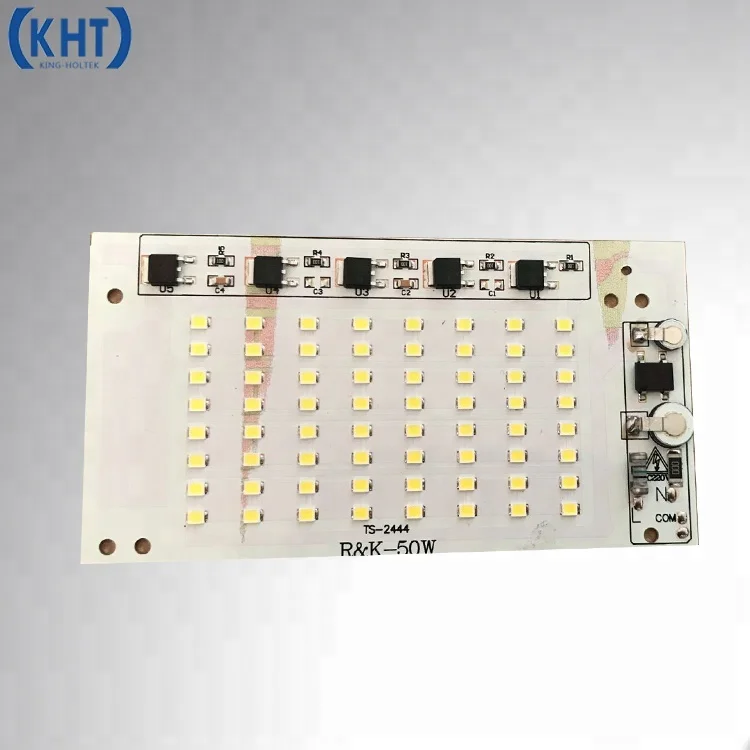

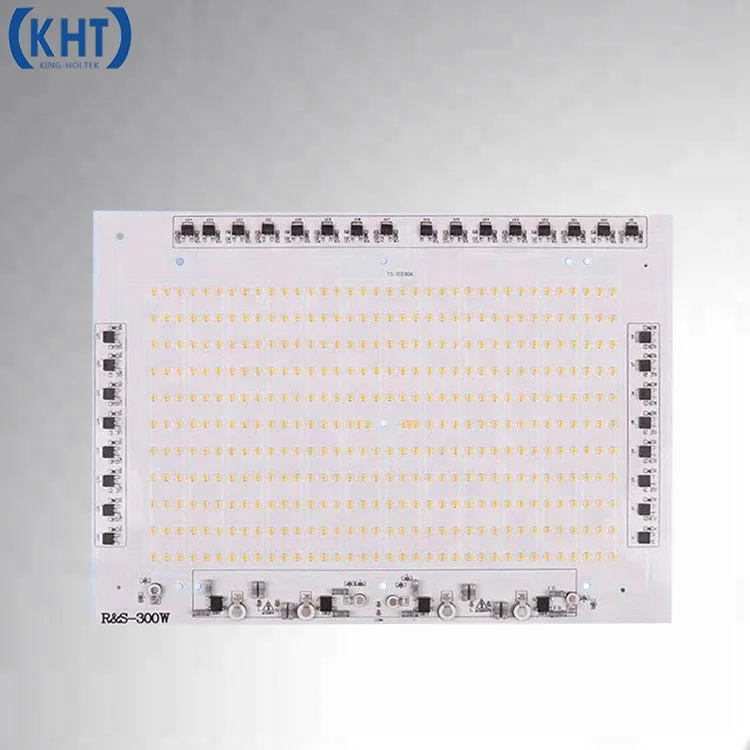

SKD 50w Aluminium square driverless led light pcb for floodlight
1. What is the Specification of our Linear Led moudle
| Application | 50w high bar light | Color Temperature | 6500K (can be customiezed) |
| Power consumption | 50w (can be customzied) | Light output | 100-130lm/w |
| output voltage | 220v | Beam angle | ≥180 |
| operating frequency | 50-60Hz | working temperature | 45°C |
| Leds | SMD3030 | IP rating | IP20 |
| Led light source brand | 3030 | Power factor | >0.9(can be customized) |
| RA | >80 | Long lifespan | 30000Hrs |
| Efficiency | 100lm/w | PCB thickness | 1.4mm |
2.What is the Feature of our Linear Led moudle
1. high lumen SMD chip,RA > 80 (can be customized)
2. AC integrated driver ,can operate with 90-240V ac directluy ,no need led driver
3.With OVP ,OTP and OCP protection, High reliability ,PF >0.9
4. 2.5KV surge protection (optional)
5.High thermal conductive PCB herma conductivity reaches 7.5
6.Long life ,3 years warranty ,
7. The AC linear moudle can use in high bay light ,flood light ,street light ,downlight ,and bulb light
Our Services
1. We can according to your requirement to design
2. Supply the bom list and material cost ,and supply demo pcb
3 .for linear type driverless module ,the most 3 compenents is Alumiun PCB thickness ,SMD led chip lumen ,and SMD capacitor
Alumiun PCB -----------------------related the thermal conductivity and the surge
SMD led chip. -----------------------related the illumination for the led light
SMD capacitor ----------------------related the PF ,and no flicker
Varistor---------------------------------related the surge protection
The most important thing is which linear chip you choose ,constant current ,or constant power or 4-steps dimming
more details ,just contact to us directly
Q1: What products you main business?
A1: We are led driver and driveless manufacutre ,we can supply the PCBA ,aslo can supply SKD for led tube light, led flood light, etc.
Q2: How about your quality?
A2: Our company is manufacture , use top quality material to make sure stable quality and enough brightness, we supply high cost performance products. Every product passed aging test well then delivery to every client.
Q3: How long the wattanty?
A3: We supply 2-5 years warranty. Once you find quality problem from our company during warranty period, please supply us pictures or video to confirm, if it's our quality problem, we will send you relacement, don't undertake shipping cost.
We are looking for worldwide distributors and cooperation companies, if any questions or interest, please don't heasitate to contact us now!
