Высококачественный лидер продаж алюминиевый соленоидный клапан с регулируемым потоком сжиженного нефтяного газа производитель для контроля безопасности

Product Details

This kind of solenoid valve is adopted to add a regulate knob device on the basis of the quick-opening valve, and the gas flow size can be regulated by turning the knob when the valve is opened.

It can be applied to gaseous media such as natural gas, methane, liquefied petroleum gas, etc. There are bypass holes on both sides or bottom of the valve body, and its diameter is G1/4"

Fuel gas solenoid valves are widely applied to the safe transportation of fuel gases so as to start the supply of gases or cut it off upon emergency.

The mediums of gases applicable are: natural gases, methane, liquefied petroleum gas.

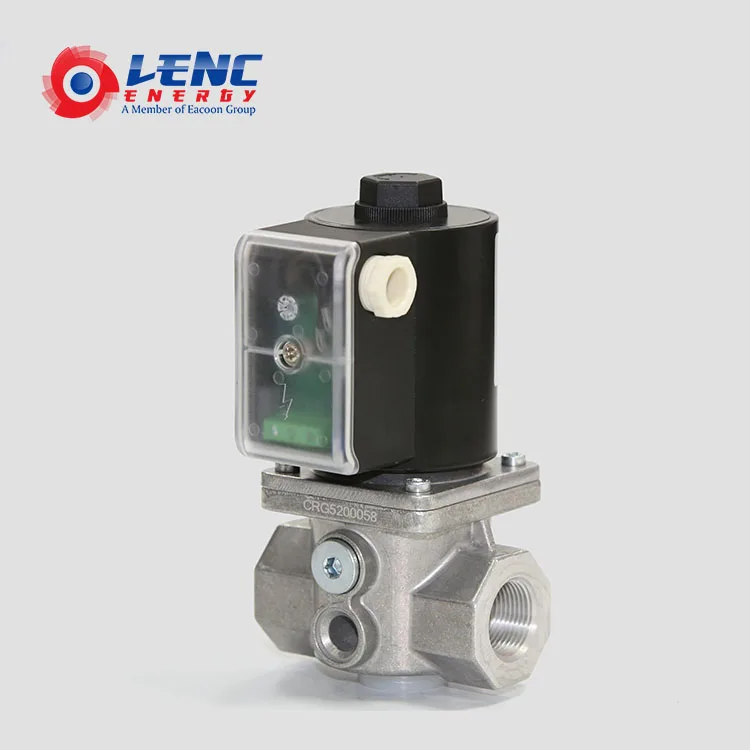

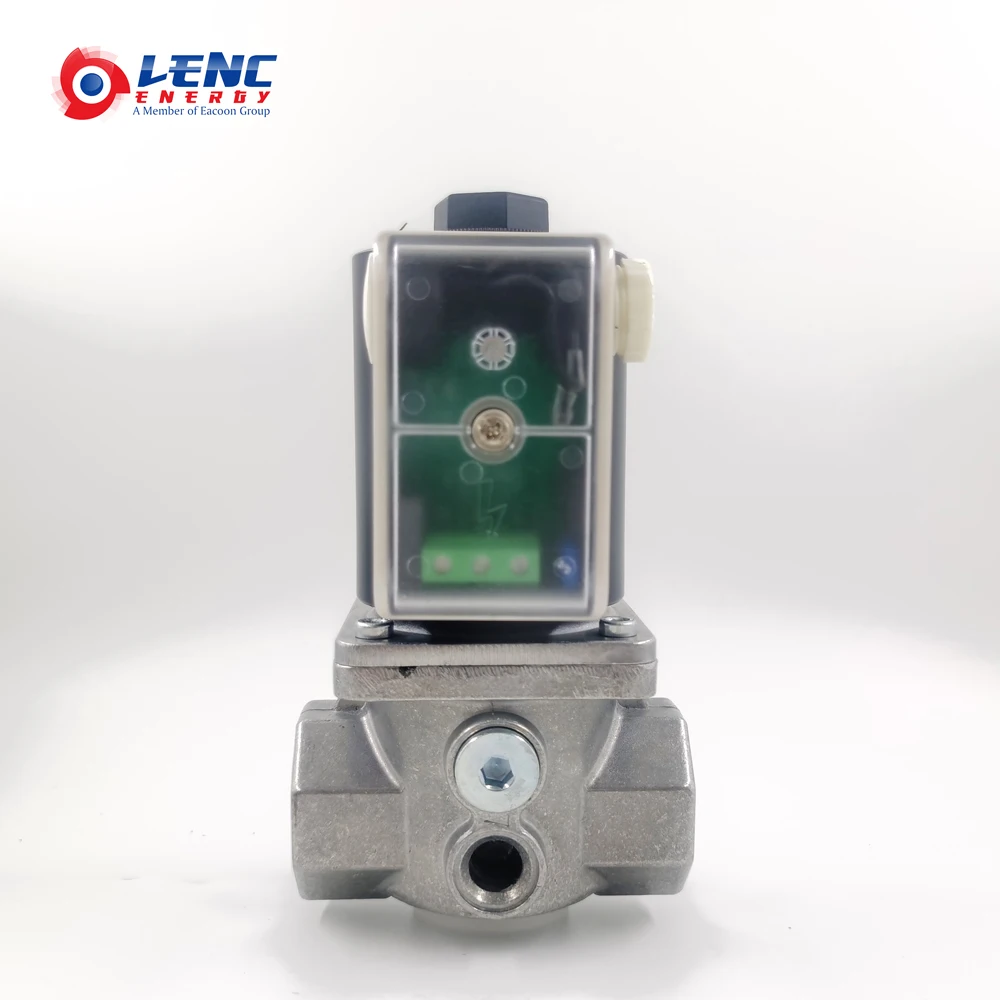

When activated, the blue indicator lights up, this allows the operators to check working mode through visual observation.

Operation and installation

Normally closed type, when the power is on, it will open quickly, and when the power is off, it will be shut down immediately.

By-pass ports are set on both sides and bottom of the valves, with diameter of G1/4” (DN10/15 diameter being G1/8”)

Flow can be regulated

Opening Time: less than 1 second

Closing Time: less than 1 second

Numbers of operations: 20 per minute.

Max working Pressure: 200/360mbar; DN32-50 200mbar

By-pass ports are set on both sides of the valves, with diameter of G1/4”

Built-in filtering

Protection: IP54

Sealing material: Nitrile rubber

Body material: aluminum alloy

Pressure steel spring AISI 302.

The ambient temperature: -15℃- 60℃

Coil temperature: 65℃

Standard and Certificate

Achieving Grade “A” standard

Meet standards EN161

Meet European Gas Standard, CE Certification Approved

Electrical specification

Rated Voltage: 50-60Hz, 230Vac,110Vac,24Vdc (other voltage can be customized).

Coils to Class F, can be 360° rotation, can work 100% continuously for a long time.

Located in GZ city, Guanghzou Liancheng Energy Technology Development Co. Ltd., a subsidiary of Eacoon Group, is a high-tech energy-saving enterprise that integrates R&D, design, production, installation, commissioning ,exporting and service for gas heat energy equipment, valves and accessories.

Established in 2000, we have developed an excellent sales team and after-sales services, thus not only gained our customers’ trust and support, but also the respect and praise from both consumers and competitors.

Combining the techniques and values from around the globe and integrating them with the excellent production capabilities of domestic companies, we have launched our own brand “LENC”, which specializes in exporting burner accessories, such as, burner ignition transformer, solenoid valves, actuators, etc.

In the future ,LENC will focus on providing advanced and reliable solutions for customers and make contribution in the field of energy conservation.
