Характеристики



Product Description

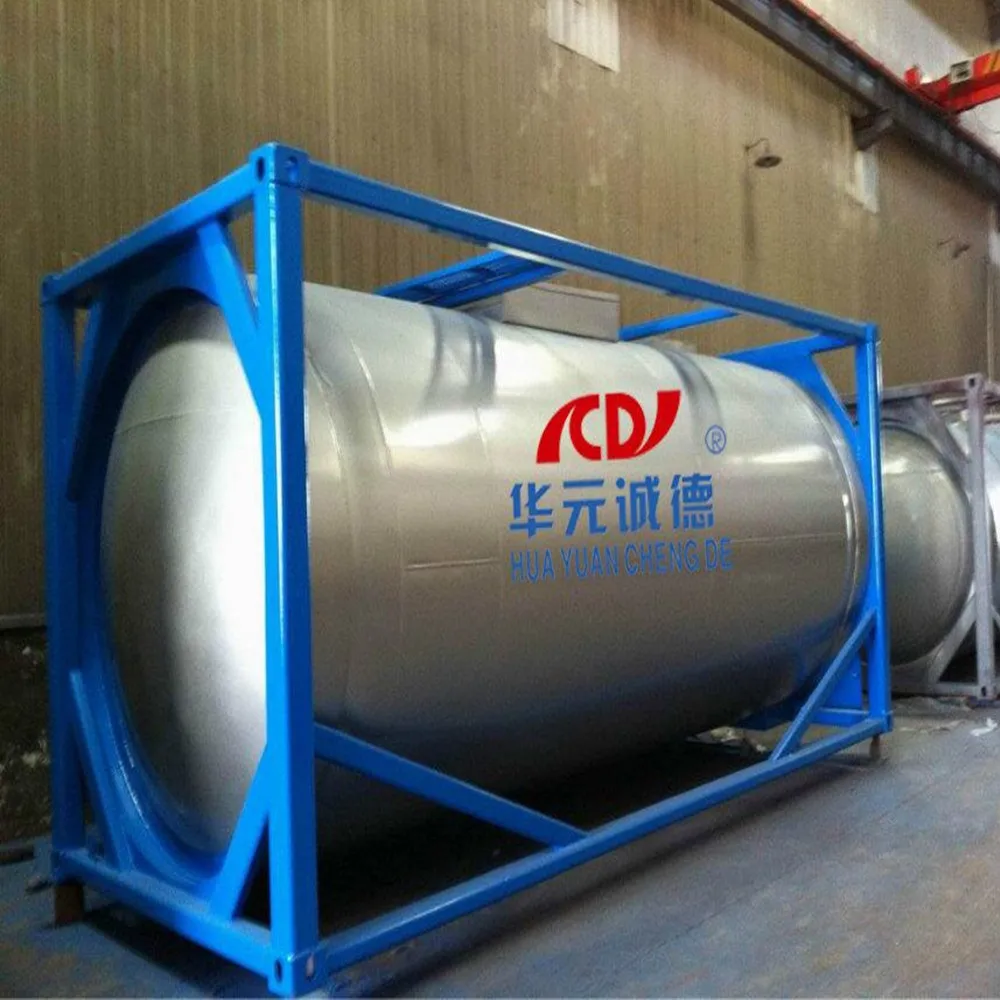

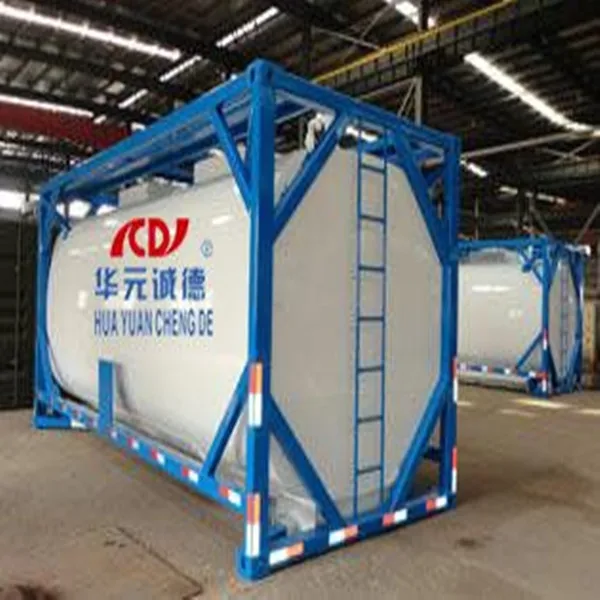

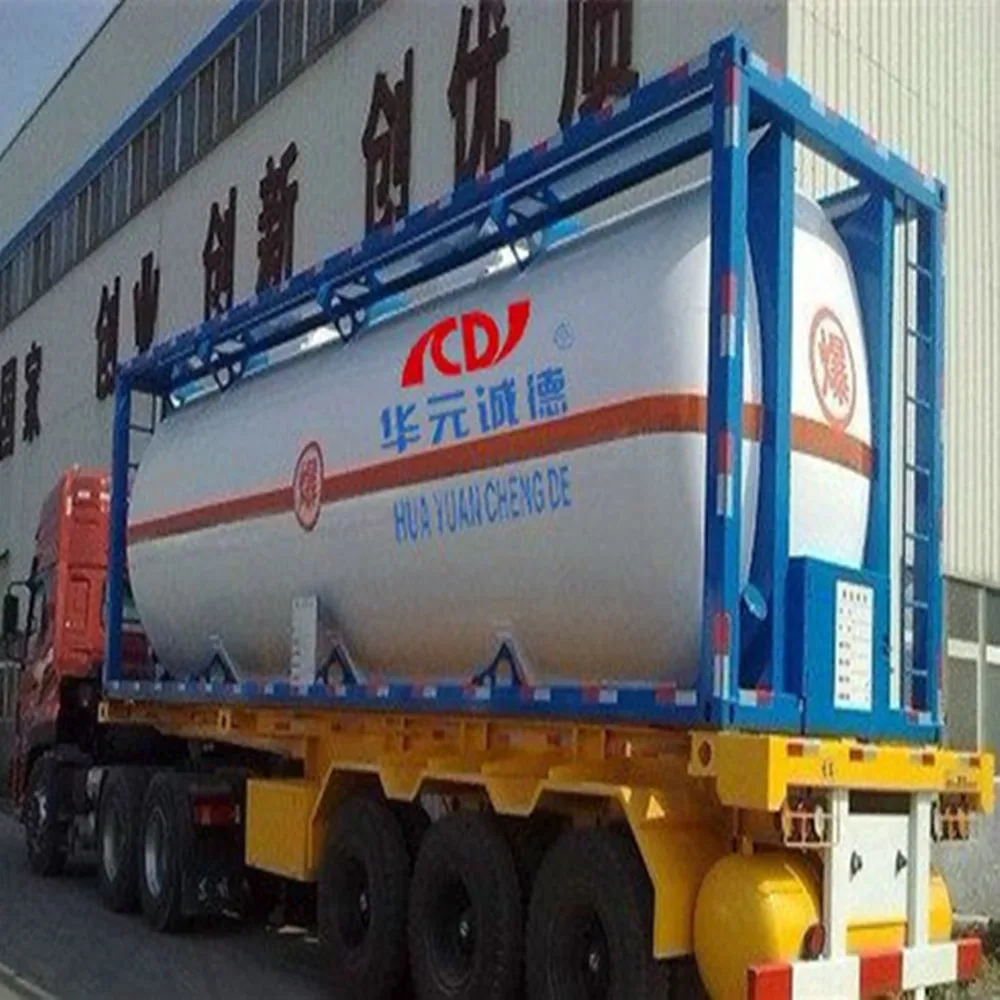

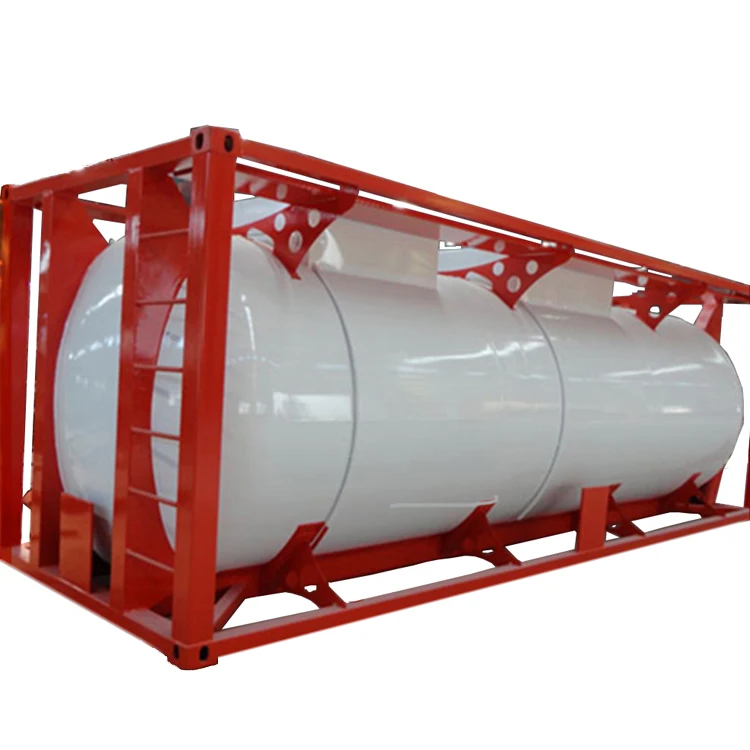

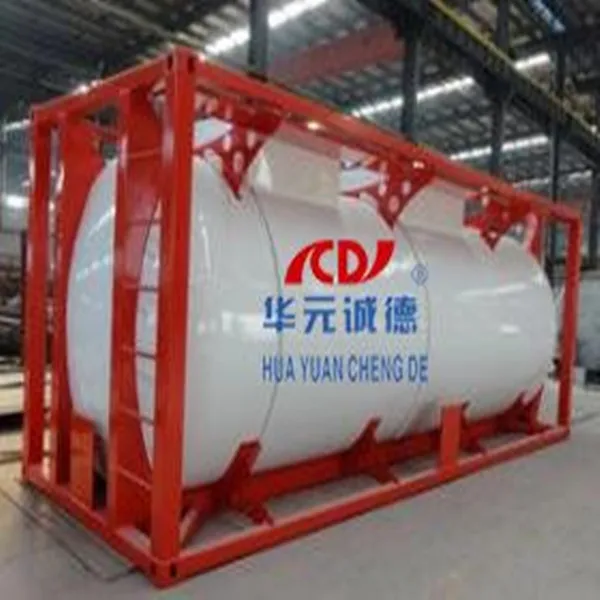

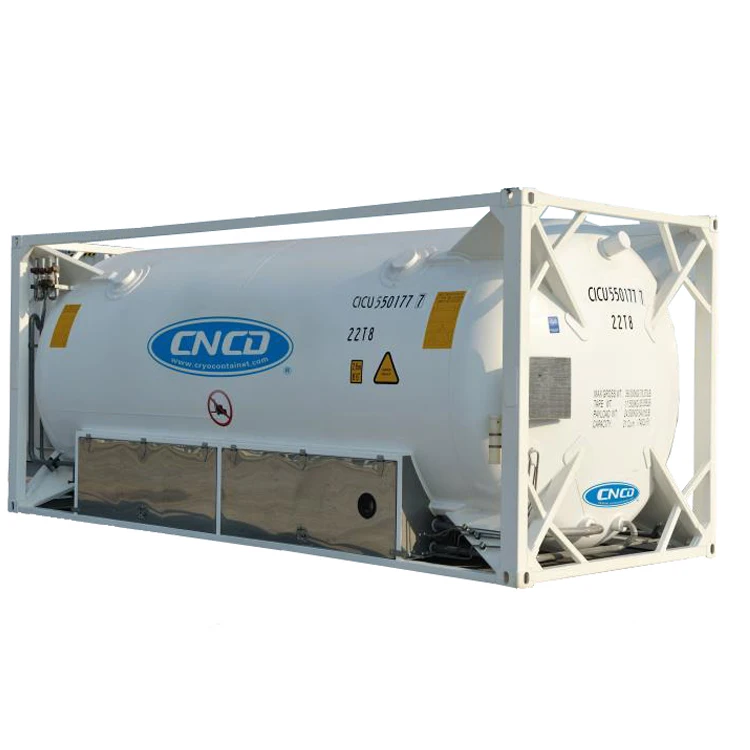

20 ft /40ft ISO certification Tank Container

Tank container is a stainless steel pressure vessel installation the fastening external framework. the tank liner mostly adopted 316 stainless steel . the majority of tank are with steam or electric heating device, inert gas protection device.




Product parameter




















































NameParameter
Model 20Ft
Working Pressure(Inner Tank)1.76MPa
Design Temp(Inner Tank)-196°C
Inner Material16MnDR
Outer MaterialQ345R
Insulation TypeHigh Vacuum multilayer
Inner tank wall thickness20mm
Outer tank wall thickness6mm
Loading medium

LO2,LN2,LAr,LNG


Design standard

a.GB150 <Pressure Vessels>


b.GB/T 18442< Cryogenic >Insulation Pressure Vessels>





c.TSGR0004 <Pressure Vessels’ Safety Technical Supervision Rules>


d ASME CE CU-TR if Special requirements


We can customize the cryogenic tank of special capacity and pressure with different design standard or certificate(GB ASME CE CU-TR INMETRO etc)























































































































Design proposal for the 20feet ISO tank container:

1,Net capacity: not less than 20cubic; Shell of tank container Materials using Wisco Q235 High quality carbon steel 6mm baffle;
2,Two feed inlets,bigger manhole covers, 2 NOS. pressure vent valves( breather valve) , at the end of the bottom , DN80 dump valve(discharge valve). Screw of Openings and valves adopt stainless steel screws, single coaming board on the top of tank Molybdenum red reflective tape;
3,Framework is made of High quality steel, each one ladder at back and forth. With two acid resistant tube, two 4kg fire extinguishers.




Our Products























































ModelInsulation TypeWorking pressure(Mpa)Design Temp(°C )Loading medium
10FtHigh vacuum multilayer0.9-196°C LIN,LOX,LAr,LNG
20Ft1.76-196°C LIN,LOX,LAr,LNG
1.8-196°CLIN,LOX,LAr,LNG
2.1-196°CLIN,LOX,LAr,LCo2,LNG
2.14-40°CLCo2
40Ft0.7-196°CLNG
20FtSunshade-plate2.1-40°CLPG
