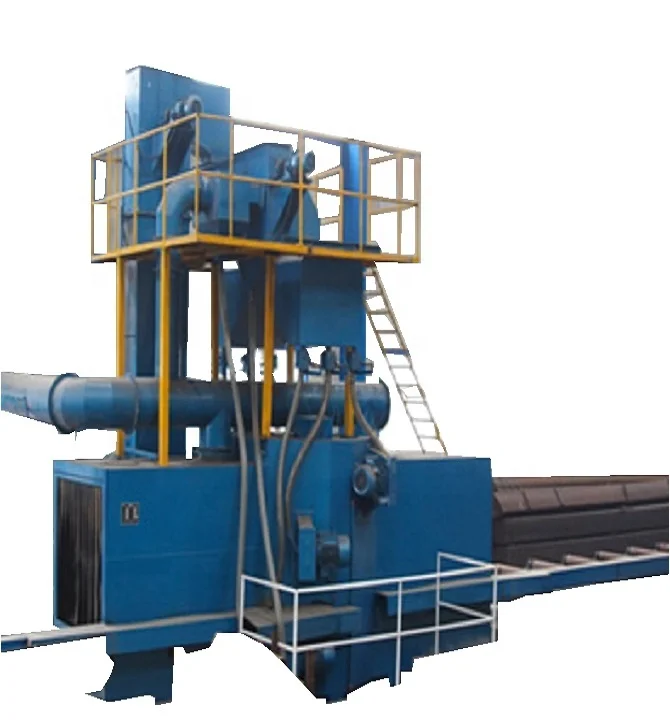

Роликовый тип трубы/H лучевая дробеструйная машина для линии
- Категория: Пескоструй >>>
- Поставщик: Wincoo,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 26656.50 $* | 27989.44 $* |
| Aug-18-2025 | 26432.24 $* | 27754.64 $* |
| Jul-18-2025 | 22176.13 $* | 23285.96 $* |
| Jun-18-2025 | 25984.39 $* | 27283.49 $* |
| May-18-2025 | 22624.70 $* | 23755.54 $* |
| Apr-18-2025 | 25536.34 $* | 26813.63 $* |
| Mar-18-2025 | 25312.56 $* | 26578.97 $* |
| Feb-18-2025 | 25088.15 $* | 26342.13 $* |
| Jan-18-2025 | 24864.8 $* | 26107.70 $* |
Характеристики
Product Description
Shot-blasting machine is a kind of shot-blasting equipment, which is applied to clean the surface of steel structure welding workpiece, H-style steel, plate and other profiles. It can clean away rusty spot, rusty scale,welding slag on the workpiece surface, as well as welding stress, in order to remove stress and improve surface lacquer quality and rot proofness of steel structure and steel.
1 | The machine overall Dimension(mm) | See the drawing |
2 | Chamber open size (W*H) | 2000*1000mm |
3 | Finish level | Sa2 .5 (GB8923-88) |
4 | Roller conveying speed | 0.5~1.0m/min (According A-D grade degree of corrosion of original workpiece surface and workpiece diameter size use the stepless frequency conversion variable speed) |
5 | Surface roughness | 40~85 μ (Depend on abrasive size) |
6 | Suggest abrasive | Recommend steel cut wire, casting alloy shot: Φ0.2~2.5mm, abrasive supply valve max. flow: 300 kg/min. Abrasive loss: 0.15-0.3 kg/h/pcs. |
7 | Electric power supply | 380V, 3P, 50HZ or customer requirement |
8 | Pit requirement | Waterproof |

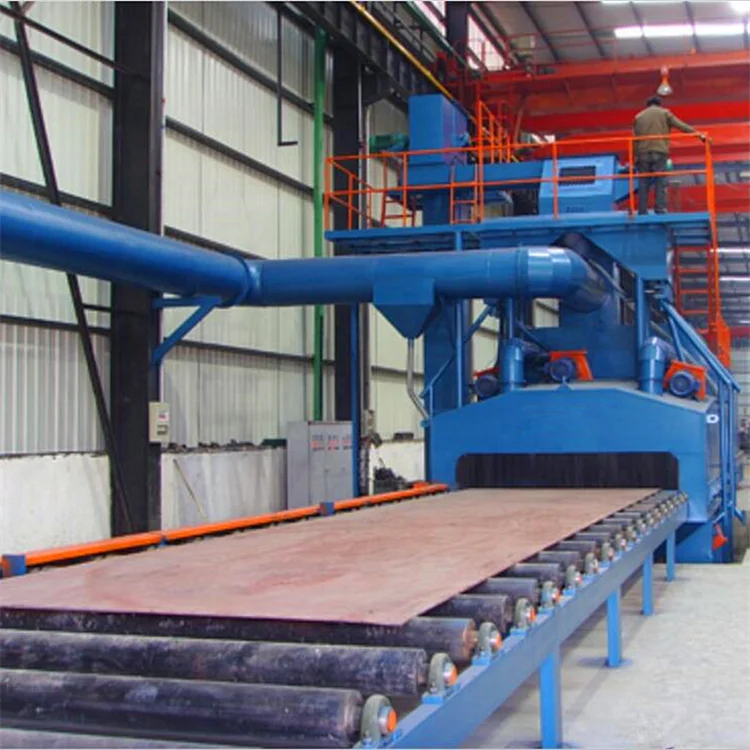

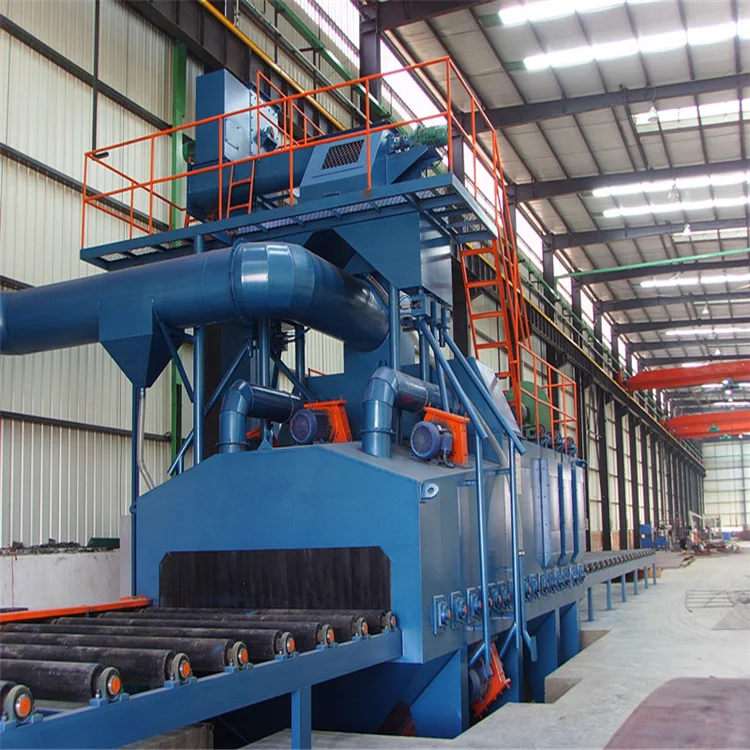

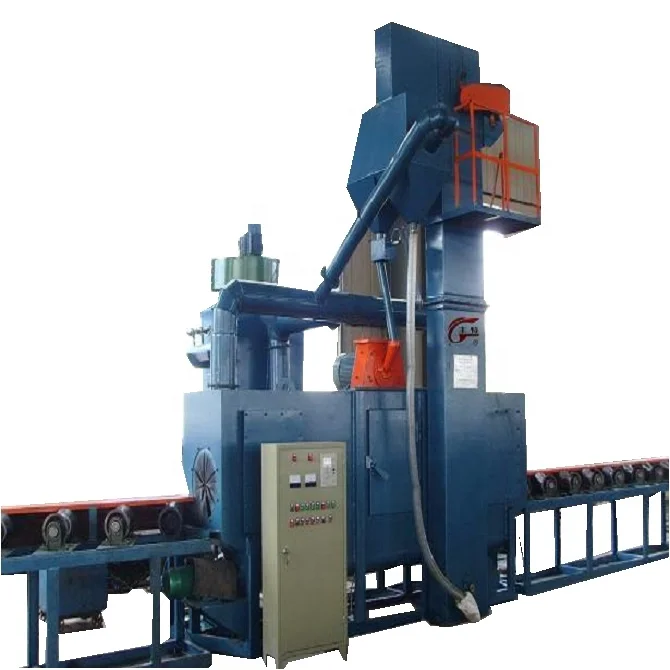

Detailed Images
Compared with other machines made in home factories, this machine has some advantages as following:
* The quantity of shot-blasting and arrangement mode both are calculated by computer mass ejection simulation. The 8 impellers are located at upper and lower, right side and left side, ensuring that the bunch of projectiles ejected by shot-blasting cover the most part of the steel surface, including the end parts. It makes sure that the effect of shot-blasting is overall and effective.
* The system is a centrifugal peering shot-blasting, which is adopted in advantages of massive shot-blasting and high ejection speed. Both the quantity and the momentum of the projectiles ejected to the workpiece surface are highly improved in unit time.So it can shorten the shot-blasting time, and improves the efficiency, comes to a pleasing cleaning quality.
* Dedusting system adopts filtration type of back flushing. Dust collector adopts folded dedust filter cylinder, and the dedusting area has increased. The filter cylinder adopts nano-meter fiber technology; dust collection efficiency is more than 99.99%, especially for dust particles with a diameter of 0.5μm. After efficient filtration, the air is clean and can be recycle used or indoor emission. The pulse controller can adjust the frequency, speed and intensity of ash removal, compared with domestic traditional bag type single grade dedusting system, it has advantages of high dedust efficiency, lower operation resistance, small volume, light weight, easy replacement and so on. Emission quantity meets the national emission standard.
* Shot sand separation system adopts advanced full curtain type, it’s invented by company after a long time research. It’s especially for steel structure shot separation cleaning after blasting. The performance i achieves home and abroad similar product level. The separation combines both wind selection and screening together, separates dust, metal oxide scale fragments,broken sand, large particles from qualified projectile, and obtains clean steel shot.
* Spring steel plates and resistance rubber complex figure type baffles are installed in the two ends of shot-blasting chamber,in order to prevent projectiles splashing. At same time, it decreases the area of chamber in and out ports, so enhances the effect of dedust.
* Projectile clean-away device is installed in every out port of chamber, it can blow away remained projectile on workpiece,reduce the wastage of projectile, lower the leakage of projectile. To the complicated structure workpiece, operator can clean projectile at outside. Dust is absorbed by dedusting system. This system adopts self-circulation type to clean the surface.
* Adopting the international advanced technology projectile controller. Not only can control projectile self-support. But also can through the control valves’work schedule regulate projectile’s flow rate. So as to realize it supply controllable and adjustable. It can guarantee no leakage projectile and jam phenomenon .Diversion safe and reliable.
* Aim at different specifications, shapes and complex degree of steel. The roller running speed can use transducer to on-line adjusting. Make different parts can get cleaning effect.
* The quantity of shot-blasting and arrangement mode both are calculated by computer mass ejection simulation. The 8 impellers are located at upper and lower, right side and left side, ensuring that the bunch of projectiles ejected by shot-blasting cover the most part of the steel surface, including the end parts. It makes sure that the effect of shot-blasting is overall and effective.
* The system is a centrifugal peering shot-blasting, which is adopted in advantages of massive shot-blasting and high ejection speed. Both the quantity and the momentum of the projectiles ejected to the workpiece surface are highly improved in unit time.So it can shorten the shot-blasting time, and improves the efficiency, comes to a pleasing cleaning quality.
* Dedusting system adopts filtration type of back flushing. Dust collector adopts folded dedust filter cylinder, and the dedusting area has increased. The filter cylinder adopts nano-meter fiber technology; dust collection efficiency is more than 99.99%, especially for dust particles with a diameter of 0.5μm. After efficient filtration, the air is clean and can be recycle used or indoor emission. The pulse controller can adjust the frequency, speed and intensity of ash removal, compared with domestic traditional bag type single grade dedusting system, it has advantages of high dedust efficiency, lower operation resistance, small volume, light weight, easy replacement and so on. Emission quantity meets the national emission standard.
* Shot sand separation system adopts advanced full curtain type, it’s invented by company after a long time research. It’s especially for steel structure shot separation cleaning after blasting. The performance i achieves home and abroad similar product level. The separation combines both wind selection and screening together, separates dust, metal oxide scale fragments,broken sand, large particles from qualified projectile, and obtains clean steel shot.
* Spring steel plates and resistance rubber complex figure type baffles are installed in the two ends of shot-blasting chamber,in order to prevent projectiles splashing. At same time, it decreases the area of chamber in and out ports, so enhances the effect of dedust.
* Projectile clean-away device is installed in every out port of chamber, it can blow away remained projectile on workpiece,reduce the wastage of projectile, lower the leakage of projectile. To the complicated structure workpiece, operator can clean projectile at outside. Dust is absorbed by dedusting system. This system adopts self-circulation type to clean the surface.
* Adopting the international advanced technology projectile controller. Not only can control projectile self-support. But also can through the control valves’work schedule regulate projectile’s flow rate. So as to realize it supply controllable and adjustable. It can guarantee no leakage projectile and jam phenomenon .Diversion safe and reliable.
* Aim at different specifications, shapes and complex degree of steel. The roller running speed can use transducer to on-line adjusting. Make different parts can get cleaning effect.
Size Information
Size Chart of The Machine
1 | Roller conveyor system | Total conveying length | 20000mm | |
Roller diameter | 121mm | |||
Roller distance | 800mm | |||
Loading capacity | 1000KG/m | |||
Transporting speed | 0.1-4m/min | |||
Driving motor power | 2*2.2kw | |||
2 | Shot blasting system | Blasting chamber | Material of protective area: SPMn13 | |
Thickness:10 mm | ||||
Material of the chamber outer wall: Q235 steel | ||||
Entrance size (W x H):2000mm x 1000mm | ||||
Sealing auxiliary chamber | Rubber curtains: 5 layers | |||
Material: 65Mn steel mixed wear resist rubber | ||||
Blasting wheel | Wheel quantity: 8units | |||
Blade structure: Straight line | ||||
Blasting capacity: 180kg/min each | ||||
Power:11 kw each | ||||
Speed: 76 m/s | ||||
3 | Abrasive reclaim system | Horizontal screw conveyor | Delivery capacity:90 T/H | |
Screw diameter: 320 mm | ||||
Power:4kw | ||||
Quantity: 1set | ||||
Vane material: 16 Mn | ||||
Vane thickness: 6 mm | ||||
Vertical screw conveyor | Delivery capacity:90 T/H | |||
Screw diameter: 320 mm | ||||
Power:4 kw | ||||
Quantity: 1 set | ||||

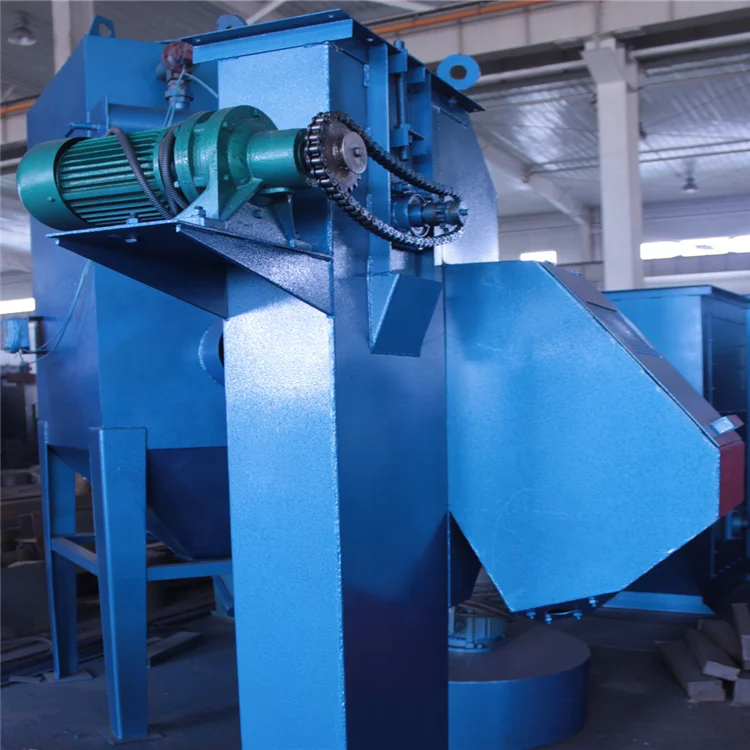

Bucket elevator | Lifting capacity: 90T/H | |||
Lifting speed: 1.21m/s | ||||
Lifting power: 7.5kw | ||||
Bucket material: Cast 16 Mn | ||||
Quantity:1 | ||||
Separator | Quantity of separation: 90 T/H | |||
Air speed: 4-5 m/s | ||||
Waste content: ≤1% (Full curtain and flow curtain type multistage winnowing) | ||||
Quantity:1 | ||||

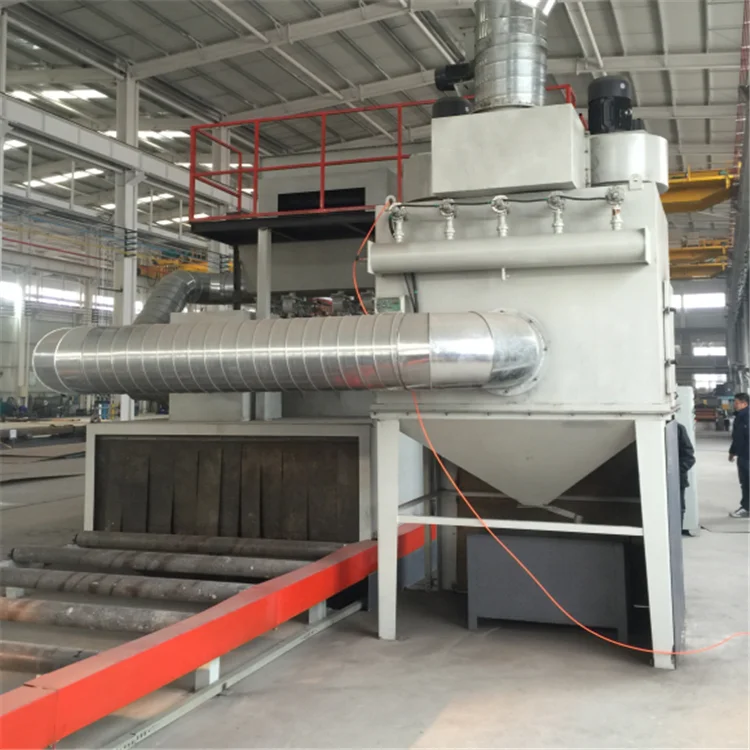

4 | Dust removal system | Filtering material | Fire-proof polyester coated fitter cartridge | |
Fan power | 18.5kw | |||
Fan model | Y160M2-2 | |||
Ventilation volume | 18526m3/h | |||
Cartridge quantity | 20pcs - φ360×1000 | |||
Total pressure | 2100pa | |||
Filtering area | 300m2 | |||
Dust falling way | Automatic back pulse | |||
Filtering level | Fireproofing, Antistatic | |||
Filtering accuracy | 1 μm | |||
Back-flushing valve quantity | 4pcs | |||
Back-flushing valve diameter | 40mm | |||
Cartridge service life | More than 3 years | |||
De-dusting efficiency | ≥99.2% | |||
Dust emission level | ≤100mg/m3 | |||
Dust loading after cleaning | 10 mg/m3 | |||
5 | Electric control system | PLC | Siemens / Omron PLC automatic control, one-key operating system, automatic fault detection and alarm function | |
6 | Noise | ≤95 dB | ||
7 | Total electric power | About 130.4kw | ||
8 | Compressed air consumption | 0.3m3/min | ||
9 | Compressed air pressure | 0.5-0.7MPa | ||
10 | Production time | 40 days | ||
11 | Packing | 2 x 40’HQ | ||
12 | Warranty | 12 months | ||
