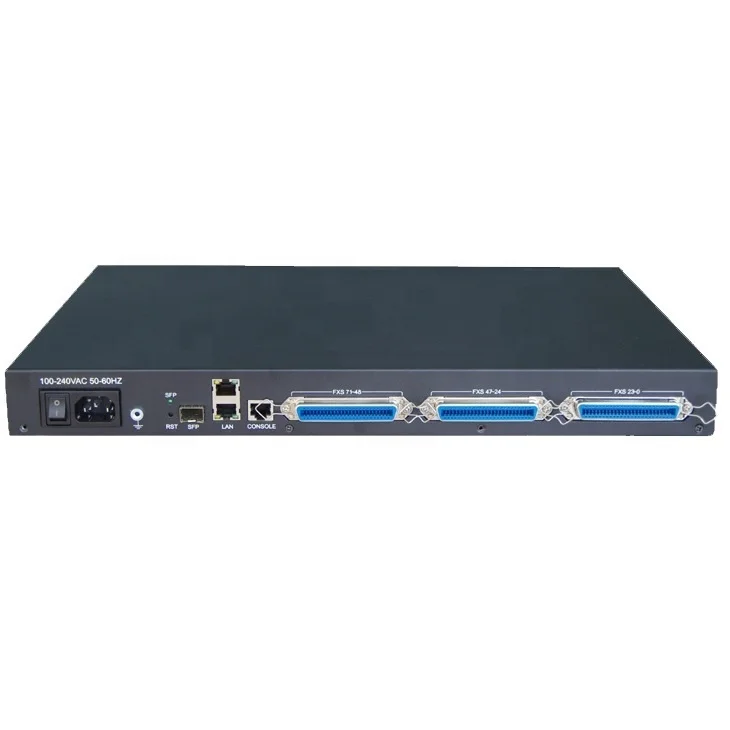

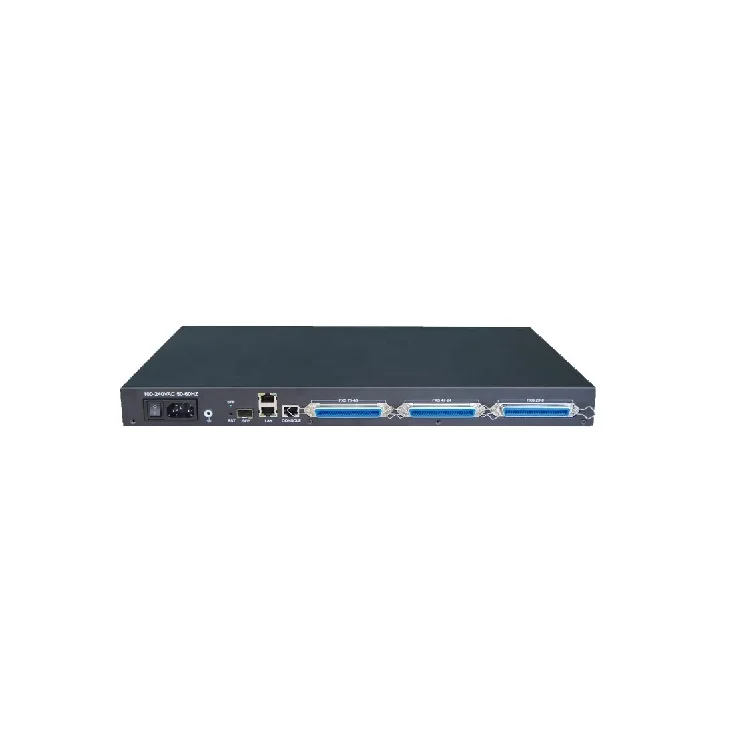

Analog Voice IPPBX 48 FXS VOIP Gateway









Product Description





BD-VOIP-48FXS VoIP Gateway is a functional analog gateway offering seamless connectivity between VoIP and traditional phone system.





This FXS VOIP gateway is a highly-integrated gateway which provides 48 FXS ports with standard R21 interface in 1U size. Users can easily connect their analog phone, fax, PBX via standard voice interface. This VoIP Gateway supports the standard SIP protocol and it's compatible with leading IMS/NGN platform and SIP-based IP telephony system.





The 48port FXS VoIP Gateway is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.








Ordering Information












BD-VOIP-48FXS48FXS VOIP Gateway, 48*FXS ports to SIP, 2*1000Base-Tx, 1*SFP, 1*Console port, 1U 19inch rack mount, one power supply (AC orDC)







Specification


* High density gateway, 48*FXS in 1U size
* Open-standard SIP support
* Support IPv4 and IPv6
* 5KM Maximum Cabling Length
* Elastix/Broadsoft Certification
* Multiple codecs: G.711A/U,G.723.1,G.729A/B, iLBC,AMR
* Fully compatible with leading IMS/NGN, SIP based IP telephony system

































































Item



BD-VOIP-48FXS  FXS VOIP gateway



Physical Interfaces



48*FXS, 2*10/100/1000M BaseT, 1*GE SFP, 1*Console



FXS



•      Connector:RJ21


•      Dial Mode: DTMF and Pulse


•      Pulse: 10 and 20 PPS


•      Caller ID: DTMF/FSK CLI Presentation


•      Max Cable Length: 5KM


•      Reversed Polarity


•      Programmable Call Progress Tone



Voice & FAX



•      G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR


•      Silence Suppression


•      Comfort Noise Generation(CNG)


•      Voice Activity Detection(VAD)


•      Echo Cancellation(G.168), with up to 128ms


•      Adaptive (Dynamic) Jitter Buffer


•      Hook Flash


•      Programmable Gain Control


•      T.38/Pass-through


•      Modem/POS


•      DTMF mode: Signal/RFC2833/INBAND


•      VLAN 802.1P/802.1Q


•      Layer3 QoS and DiffServ



VOIP




•      Protocol: SIP v2.0 (UDP/TCP),RFC3261, SDP,RTP(RFC2833),


        RFC3262,  3263,3264,3265,3515,2976,3311







•      RTP/RTCP, RFC2198, 1889


•      RFC4028 Session Timer


•      RFC3266 IPv6 in SDP


•      RFC2806 TEL URI


•      RFC3581  NAT,rport


•      Primary/Backup SIP Server


•      Outbound Proxy


•      DNS SRV/ A Query/NATPR Query


•      SIP Trunk


•      Early Media/Early Answer


•      NAT:STUN, Static/Dynamic NAT




Supplementary Service



•      Call Waiting


•       Blind  Transfer


•       Attend Transfer


•       Call Pickup


•       Call Forward on Busy


•       Call Forward on No Reply


•       Unconditional Call Forward


•       Warm/Immediately Hotline


•       Call Hold


•       Do-not-disturb


•       3-Way Conference


•       Message Waiting Indicator



Maintenance



•      SNMP v1/v2/v3


•       TR069


•       Auto Provisioning


•       Web/Telnet


•       Configuration Backup/Restore


•       Firmware Upgrade via Web


•       CDR


•       Syslog


•       Ping/Tracert Test


•       Network Capture


•       Outward Test(GR909)


•       NTP/Daylight Saving Time


•       IVR local Maintenance


•       Cloud-based Management



SIP Compatibility



 CISCO, Siemens, AVAYA, , ZTE, etc.



Software Features



•      Hunting Group


•      Web ACL


•      Telnet ACL


•      Action URL


•      PPPoE/IPv4/IPv6


•      Digitmap


•      Bandwidth Optimization


•      Routing Rules based Prefixes


•      Caller/Called Number Manipulation



Power



•      Power Supply: 100-240VAC, 50-60 Hz


•      Power Consumption:75W



Environmental



•      Humidity:10%-90% Non-Condensing





•      Storage Temperature:-20 ℃ ~80 ℃


•      Operating Temperature:0 ℃  ~ 45 ℃



Machine Dimension



472mm*260mm*44mm (1U)



Weight



8KG



Compliance



CE, FCC









Application


* Used for IPCC, IP Dispatch, Unify Communication, VoIP network, operators, and so on.





1.   Basic application


FXS VOIP gateway apli


2.   Connection for two different places/offices via FXS VoIP GatewayChina suppliers IP HTTP Network Protocol IPPBX 16 ports FXS GSM VOIP Gateway


3.   Function and Features of IPPBXChina suppliers IP HTTP Network Protocol IPPBX 16 ports FXS GSM VOIP Gateway


4.   Solutions for IP call centerChina suppliers IP HTTP Network Protocol IPPBX 16 ports FXS GSM VOIP Gateway


5.Example Application





China suppliers IP HTTP Network Protocol IPPBX 16 ports FXS GSM VOIP Gateway





FAQ


1.How can i get a FXS VOIP gateway?
You need place sample order to us.We will arrange the sample production for you.



2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.



3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice  for your confirmation. When we got your advance payment (deposit), we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a  ship forwarder help you clear the custom.



4.How about the shipping for FXS VOIP gateway?
For small orders, we will send the goods by International Express like Fedex/DHL/TNT/UPS(Also you can use your existing DHL/Fedex/UPS accounts for shipping). Usually it takes about 7work days to arrive.


If big quantity we will ship by Ocean transportation, it takes one month to arrive.


if urgnet, you can select shipping by Air, but freight charge will be more expensive.



5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.



Packaging & Shipping


The FXS VOIP gateway will be well packaged by carton with Foam or other shock proof materials.


package and ship for FXS VOIP gateway








Certifications


ISO TUV Certificates for FXS VOIP gateway





ROHS FCC CE Certificates for FXS VOIP gateway





Production&Testing


production for FXS VOIP gatewayparameter testing for FXS VOIP gatewayfactory for FXS VOIP gateway
