Швейцария BELIMO механические безотказный 4NM Виброгаситель
- Категория: Системы ОВКВ и запчасти >>>
- Поставщик: Beijing,Ymer,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.36 $* | 0.16 $* |
| Aug-18-2025 | 0.3 $* | 0.84 $* |
| Jul-18-2025 | 0.97 $* | 0.26 $* |
| Jun-18-2025 | 0.35 $* | 0.13 $* |
| May-18-2025 | 0.21 $* | 0.71 $* |
| Apr-18-2025 | 0.40 $* | 0.23 $* |
| Mar-18-2025 | 0.31 $* | 0.13 $* |
| Feb-18-2025 | 0.78 $* | 0.95 $* |
| Jan-18-2025 | 0.57 $* | 0.17 $* |
Характеристики
Product Description
Product parameters
Mechanical Fail-Safe Damper Actuator LF24-SR
For operation of air control dampers that perform safety function
Torque: 4Nm
Nominal voltage: AC/DC 24V
Control signal: DC(0)2...10V
Position feedback: DC 2...10V
Technical data
·Electrical data
| Nominal voltage | AC 24V 50/60Hz,DC 24V |
| Nominal voltage range | AC 19.2...28.8V / DC 21.6...28.8V |
| Power consumption | 2.5W @nominal torque / 1W@holding |
| For transformer sizing | 5VA |
| Connection | Cable 1m. 4 x075mm |
·Functional data
| Torque | 4Nm @ nominal voltage |
| Control signal Y | DC(0)2...10V @ input impedance 100kΩ |
| Position feedback signal U | DC2...10V @ max.0.7mA |
| Direction of rotation | Selected by L/R switch Selected by L/R mounting |
| Angle of rotation | MAX.95°,37...100% adjustable by mechanical stops |
| Running time motor | 150s |
| Running time spring return | 20s @ -20...50℃ /max.60s @-30℃ |
| Sound power level motor | Max.30dB(A) |
| Sound power level spring return | Max.62dB(A) |
| Position indication | Mechanical |
·Safety
| Protection class | lll Safety extra-low voltage |
| Degree of protection | IP54 |
| Ambient temperature | -30..50℃ |
| Non-operating temperature | -40..80℃ |
| Humidity | 5...95% PH,non-condensing |
| Maintenance | Maintenance-free |
·Weight
Weight | Approx. 1. 6kg |

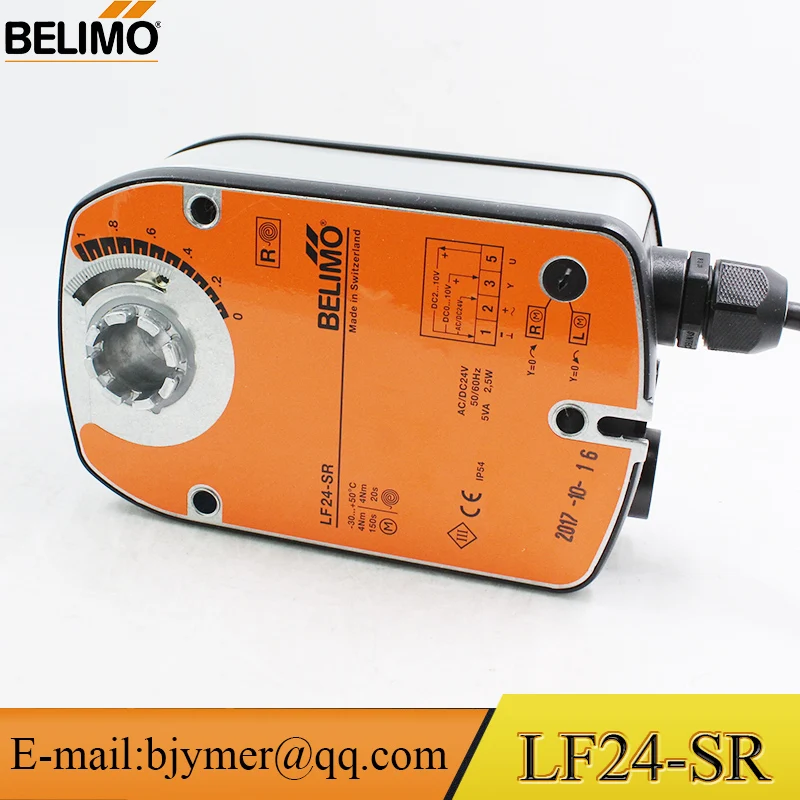

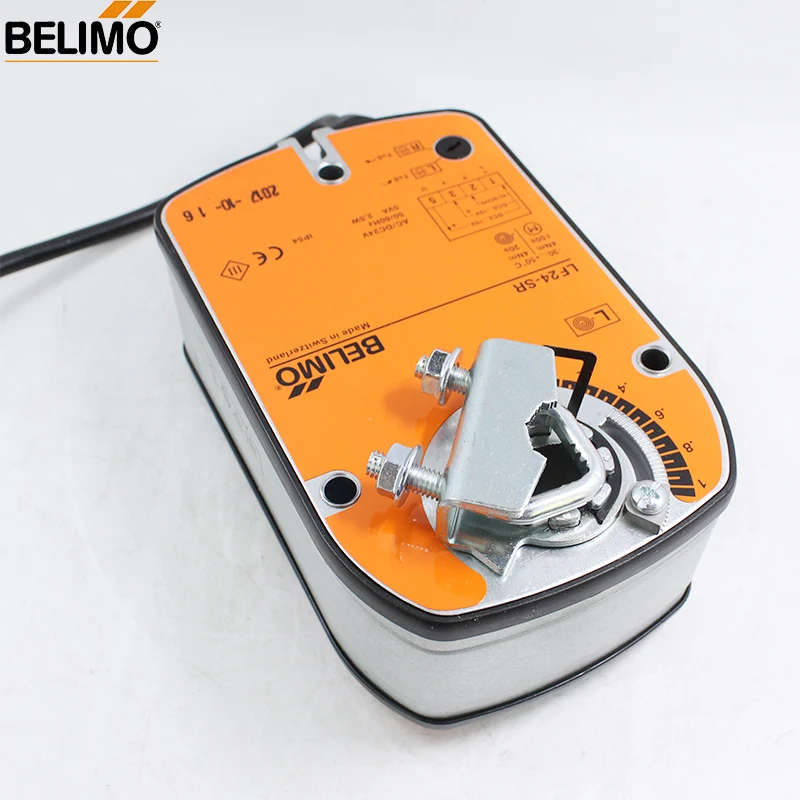

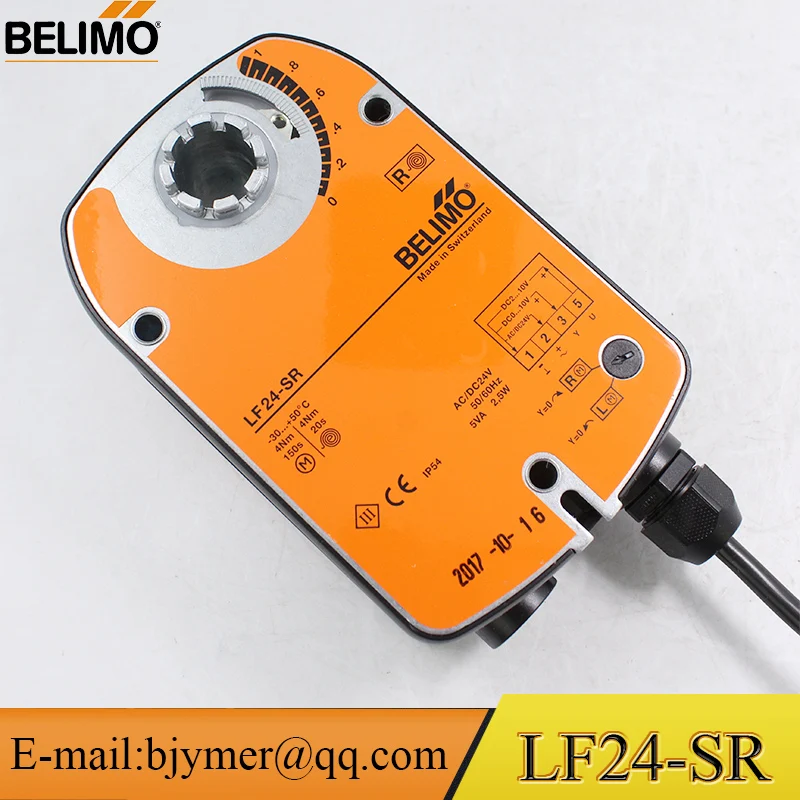

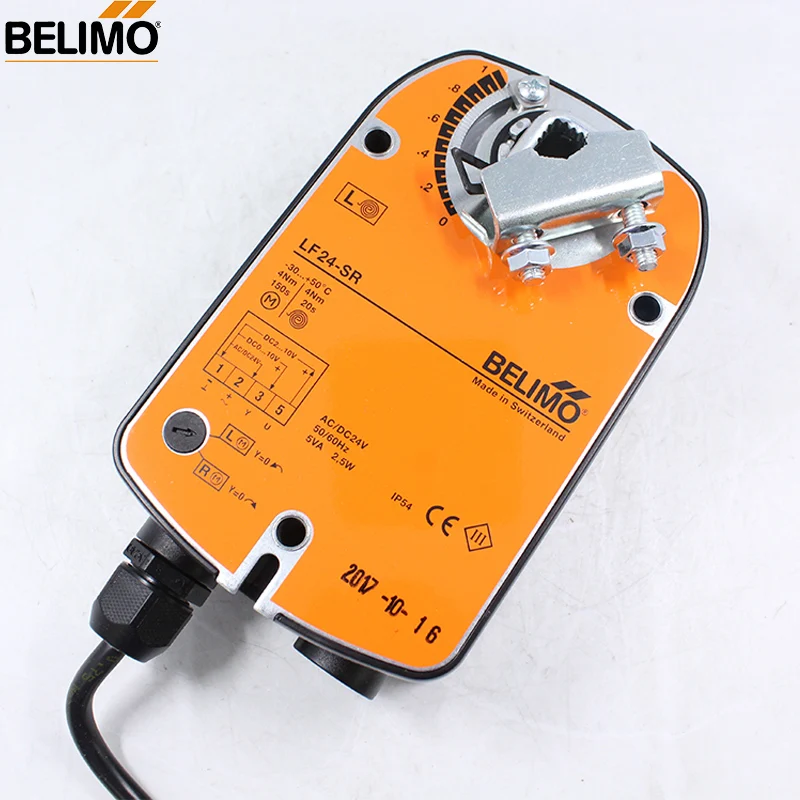

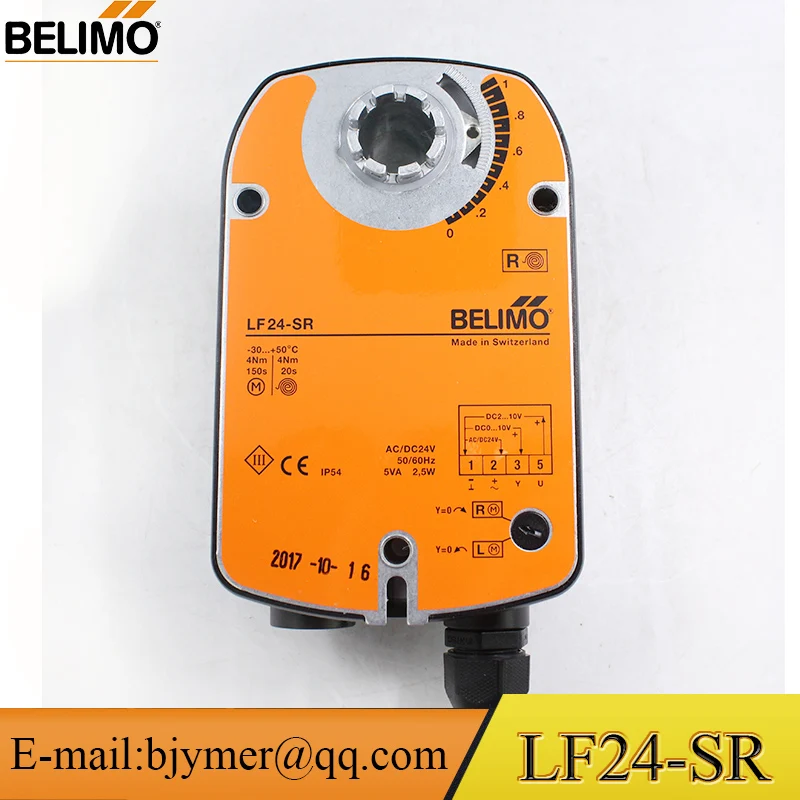

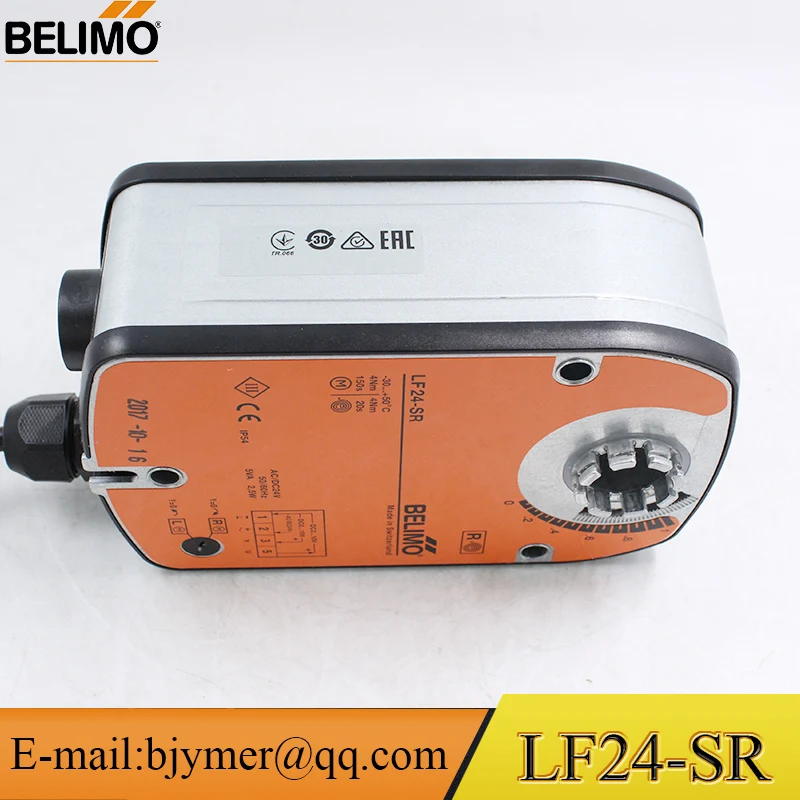

Prouduct show
About us
Our manufacturing philosophy is to ensure stable quality and just in time delivery. We have an advanced machining shop.experienced operation team. The high level of automation throughout the organization helps us to serve the most.
YMER is a supplier of valves offering Pipe, Iron valve, Steel valveand Brass valve. Our products are durable, solid and reliable witha competitiveprice. YMER is always willing to offer our service along with great quality products to our customers. Please choose us as your most loyal partner and achieve every precious success.
