Домашнее пивоваренное оборудование «сделай сам» микропивоварня 100 л
- Категория: Машины для производства напитков и вина >>>
- Поставщик: Shandong,Hulk,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 5831.10 $* | 6123.48 $* |
| Aug-15-2025 | 5782.81 $* | 6071.16 $* |
| Jul-15-2025 | 4851.20 $* | 5094.51 $* |
| Jun-15-2025 | 5684.11 $* | 5968.31 $* |
| May-15-2025 | 4949.54 $* | 5196.54 $* |
| Apr-15-2025 | 5586.27 $* | 5865.6 $* |
| Mar-15-2025 | 5537.25 $* | 5814.71 $* |
| Feb-15-2025 | 5488.62 $* | 5762.74 $* |
| Jan-15-2025 | 5439.48 $* | 5711.66 $* |
Характеристики
Product Description
DIY Home Beer Brewing Equipment Microbrewery 100L 50L
HULK 100L Electric Home Brewing Equipment Brewing Kit is specially customized for homebrew hobbies, entry-level MircroBreweries, Pilot Brewing System, or a full-scale nano-Brewery Production.
Whole system pipelines are specially built up according to your brewing recipes, we'll even personalize the system with your logo.
| C: Cooling Unit | B: Fermentation Tank | A: Brewhouse System |

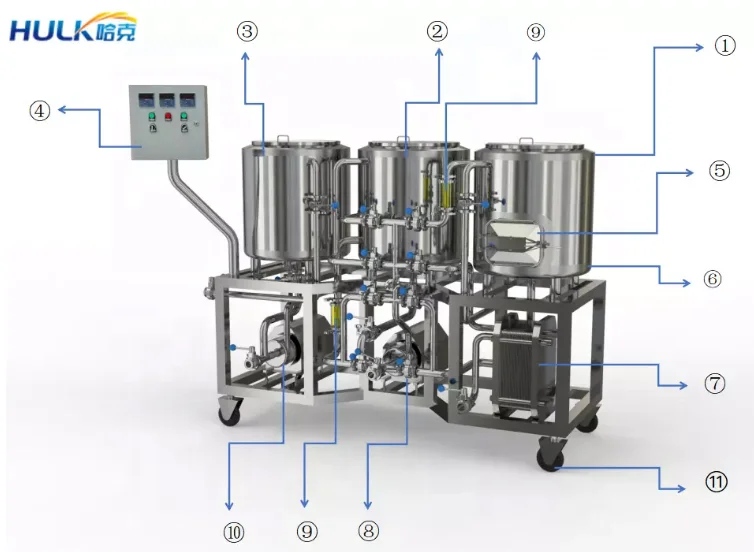

System description from right to left:
A:Brewhouse system | Mash tun/Brew kettle | 100L |
| Lautering/whirlpool tank | 100L | |
| Plate heat exchanger | 0.5-1m3 | |
| Pump | 1m3/h | |
B:Fermentation system | Fermentation tank | 100L |
| Yeast adding tank | 10L | |
| Wort oxygenator | 1m3/h | |
| Cooling system | Chiller | 1.5p |
| Glycol water tank | 100L-200L | |
| pump | 1m3/h |
Comments:
- Provided with installed pipes, including valves and sensors
- Integrated pump system
- CIP system: optional, separated CIP for tanks to prevent cross product interference
- Customized PID / PLC( HMI touch screen,optional) Control System
- Whole Brewhouse system installed on a complete platform, easy moving, loading&unloading, turnkey solution
| Specification | Descriptions |
| Product Name | 100L Electric Home Brewing Equipment Brewing Kit |
| Beer Output Capacity | 100L per batch, 1~2 batches per day |
| Floor Area (Dimension) | Brewhouse System: 2500mm(L)*1100mm(W)*1650mm(H) Fermenting System: 2600mm(L)*1000mm(W)*1500mm(H) |
| Brewing Beer Types | Ale, Lager, DIY taste Craft beer, pilot beer, etc. |
| Applicable Voltage | 110V/ 220V /380V/ 415V (adjustable) |
| Power Consuming | 15 kW |
| Heating Method | 6kw Electric Heating Elements, customized. |
| Operability | Turnkey Solution, easy. |
| Installation | Assembled ready to use, removable. |
| Material | Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated; External-Jacket(SUS304) thickness: 2mm, Hairline polishing. |
| Fermenters' Pressure | Design pressure 0.3MPa(43.5psi); Working pressure 0.15Mpa(21.7psi). |
Every Beer Brewing Equipment details is strictly in accordance with the requirements of the drawings, high standards require ourselves to complete the production process with high efficiency.

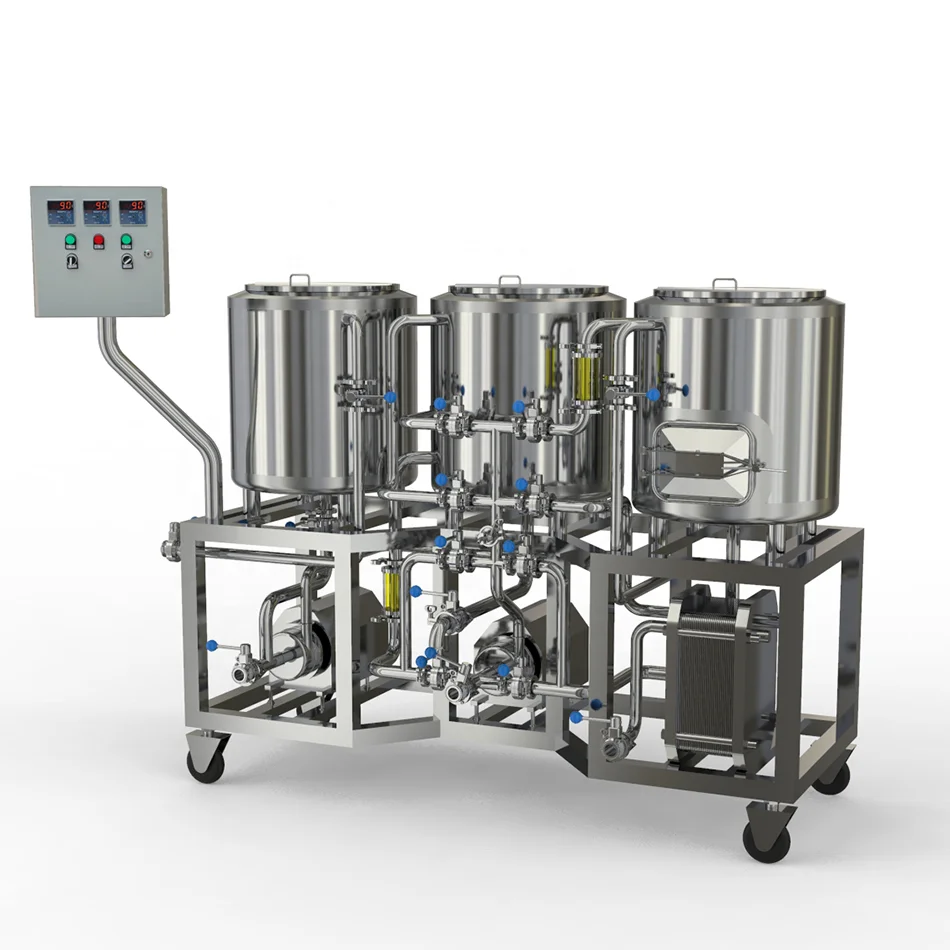

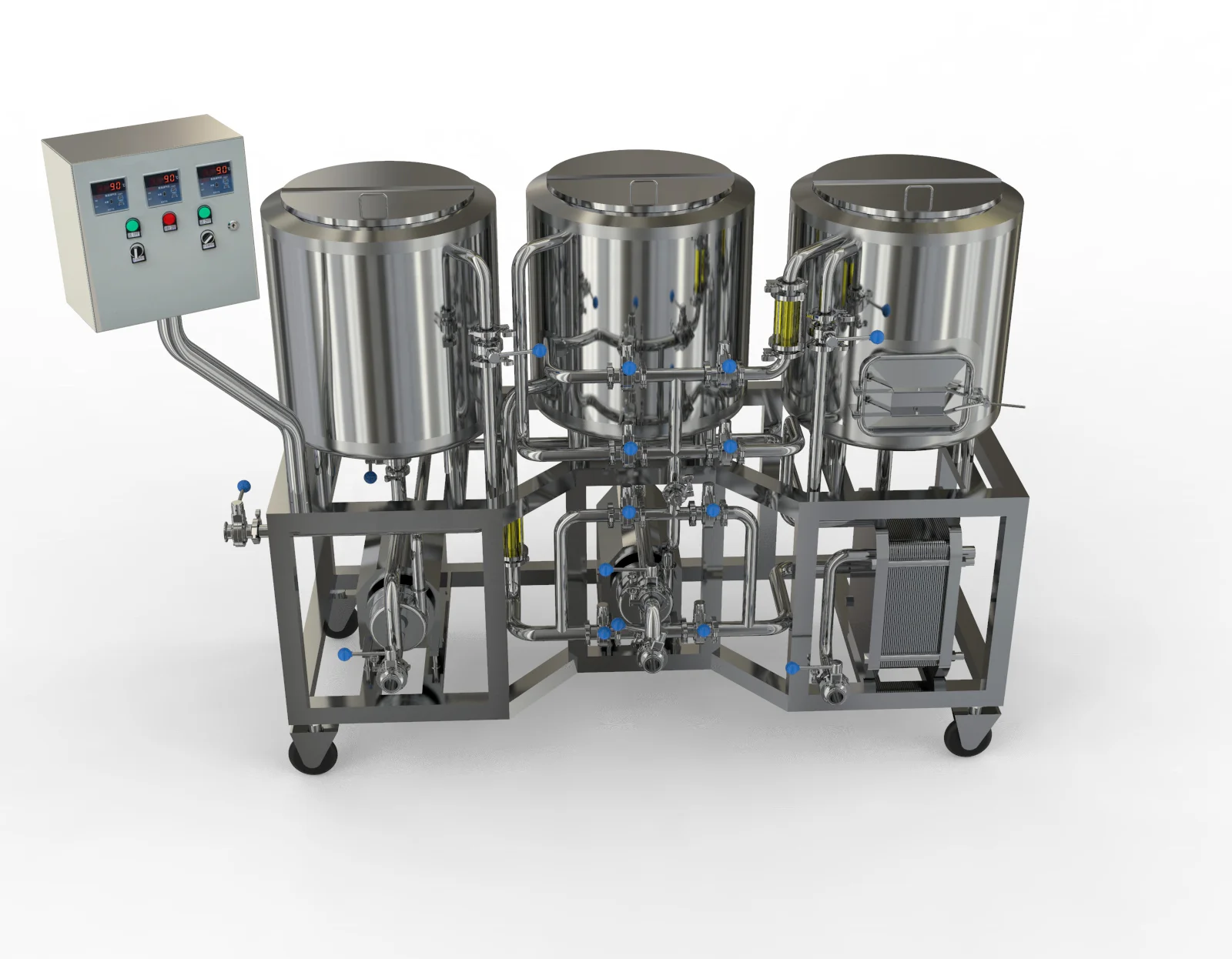

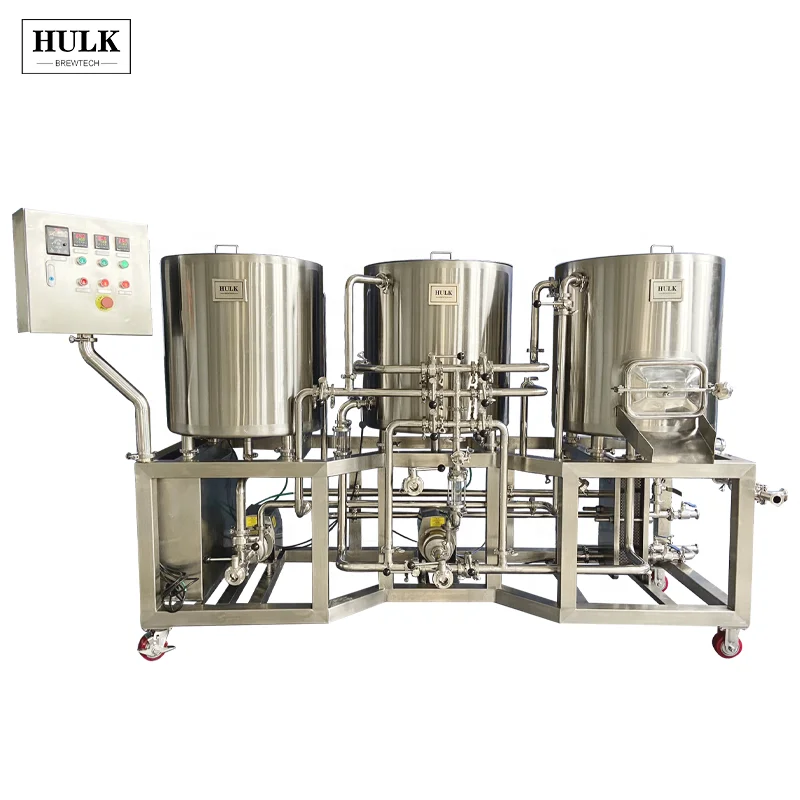

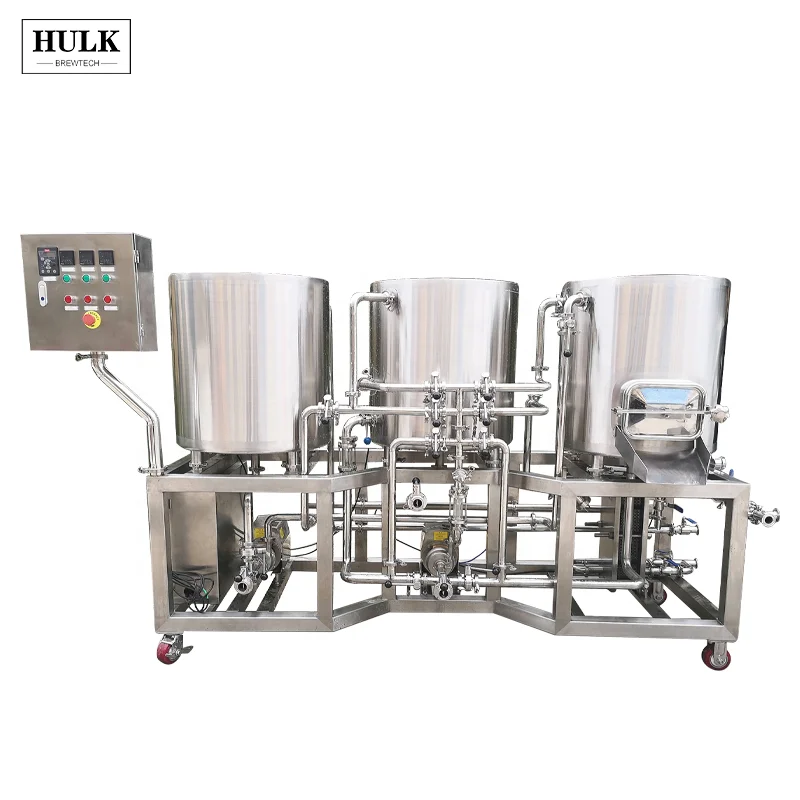

> Detail Pictures Overview of Brewhouse System:

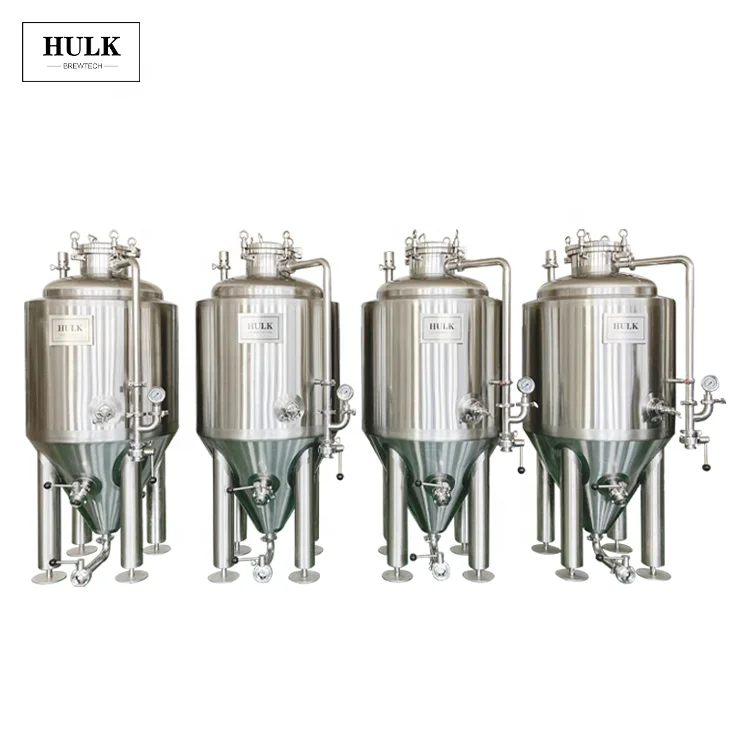

> Detail Pictures Overview of Fermenting System:
You can find the corresponding products together with this brewhouse by clicking the below items:
Hulk brewery equipment company, with over 10 years sales and R&D experience, desire to provide comprehensive brewing business solutions for you. We are happy to deal with OEM & Customized orders from customers all over the world. Keep developing, improving, listening, and learning from our customers, a long-term cooperation is the bone of hulk.
Our success is not only due to the quality of our work, it’s down to attitude, our approach and the way we treat our clients.
Have a question? Or just tip of suggestions? Don't delay, Contact HULK Now!
Following with CE, ISO certificates, Our HULK Equipment company has been verified by Alibaba and International SGS group, which means our quality and service are further approved by international standards and reliable as customers' feedback.
Quality is the foundation of our company's pursuit of excellence, all your trust encourages HULK to move forward.
We have professional advisory services, provide three services for customers.
1. Pre-sale service:
Recommending suitable equipment according to customer requirements, customized process flow chart and design brewery layout according to the customer work factory. Analyze craft beer project cost and benefit, provide successful beer brewing project for your reference.
2. Sale of service:
Timely communication with customers about equipment production schedules, guide customers to do factory preparation works, and also help customers handle the relevant business license procedures, help customers check and inspect the brewery and coordinate delivery works.
3. After-sale service:
Professional brew maters and engineers guide for installation and operation, can teach craft beer brewing technology and skill. Also provide a variety of craft beer brewing recipe, raw materials and lifetime technical support.
Our HULK R&D person stands in customer's point of view, take practicability and operability as the primary criteria for judging product attributes.
