Refrigerant Recovery Unit

Цена:634,90 $ - 675,40 $*

Количество:

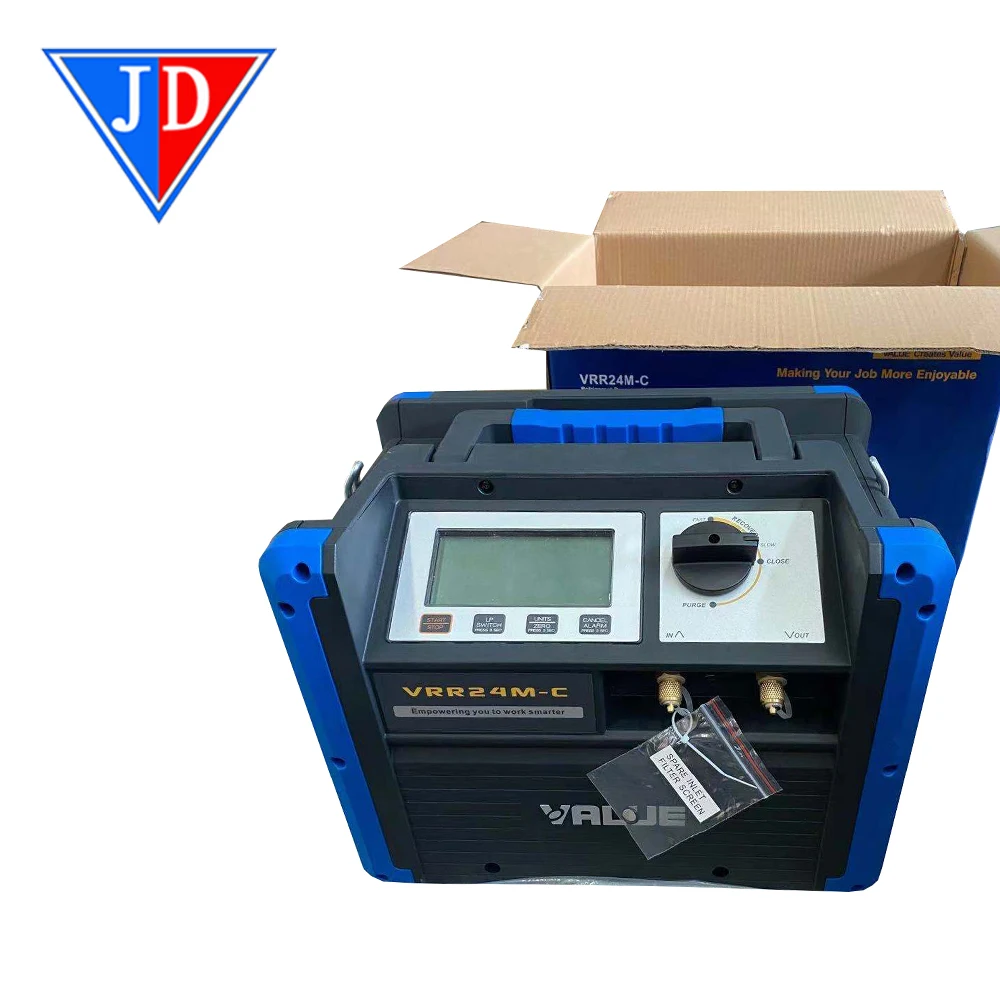

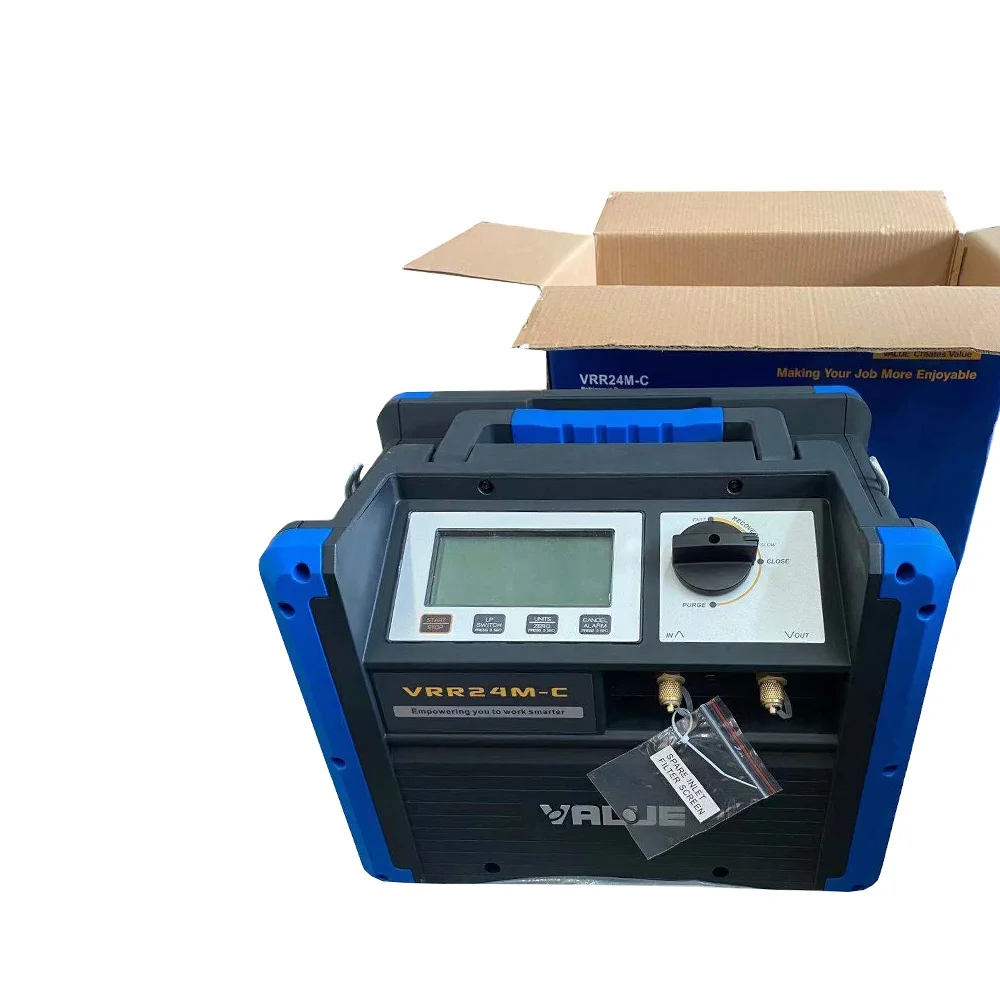

Refrigerant Recovery Unit VRR24M-C

Product Description

Characteristics:

1.Professinal design,one-key operation more convenient.

2.Oil-less compressor suitable for all kinds of refrigerant.

3.With self-cleaning function preventing different refrigerant mixture.

4.With high-low pressure protection unit more convenient and safe.

5.Working status indication lamps.

Specifications

Model		VRR12L			VRR24L			VRR24M
Suitable refrigerant		III:R12,R134a, R410C,R500.						III:R12,R134a, R410C,R406a,R500,12345YF.
		IV:R22,R401A,R401B, R402B,R407C,R407D, R408A,R409A,R411A, R411B,R412A,R502,R509.						IV:R22,R401A,R401B, R402B,R407C,R407D, R408A,R409A,R411A, R411B,R412A,R502,R509.
		V:R402A,R404A,R407A, R407B,R410A,R507.						V:R32,R402A,R404A,R407A, R407B,R410A,R507.
Power supply		220-240VAC, 50-60Hz
Rotary speed		1450rpm/1750rpm						3000rpm
Motor		3/4HP AC quadrupole, capacitor starting, capacitor operation			1HP AC quadrupole capacitor starting, capacitor operation			3/4HP
Electric current		4A			5A			5A
Compressor		Oil-free lubrication,air-cooled,piston.
High pressure protection		38.5bar/3850kPa(558psi) according to model.
Recovery rate(kg/min)		III	IV	V	III	IV	V	III	IV	V
	Vapor	0.20	0.25	0.25	0.40	0.50	0.50	0.40	0.50	0.50
Recovery rate(kg/min)	Hydraulic	1.60	1.80	2.20	3.0	3.50	3.50	3.30	3.85	3.85
	Push/pull	4.60	5.60	6.30	7.50	8.50	9.50	7.50	8.50	9.50
Operation Temp		0℃-40℃
Dimension(mm)		400250355						380250260
Weight		13.0kg			13.5kg			10.5kg
