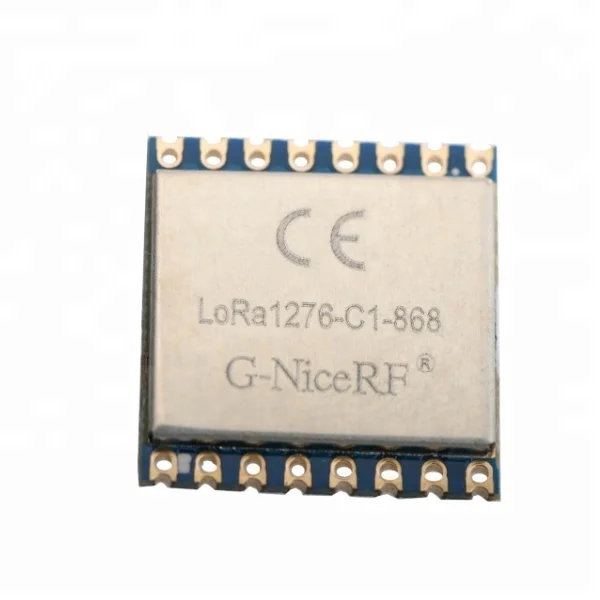

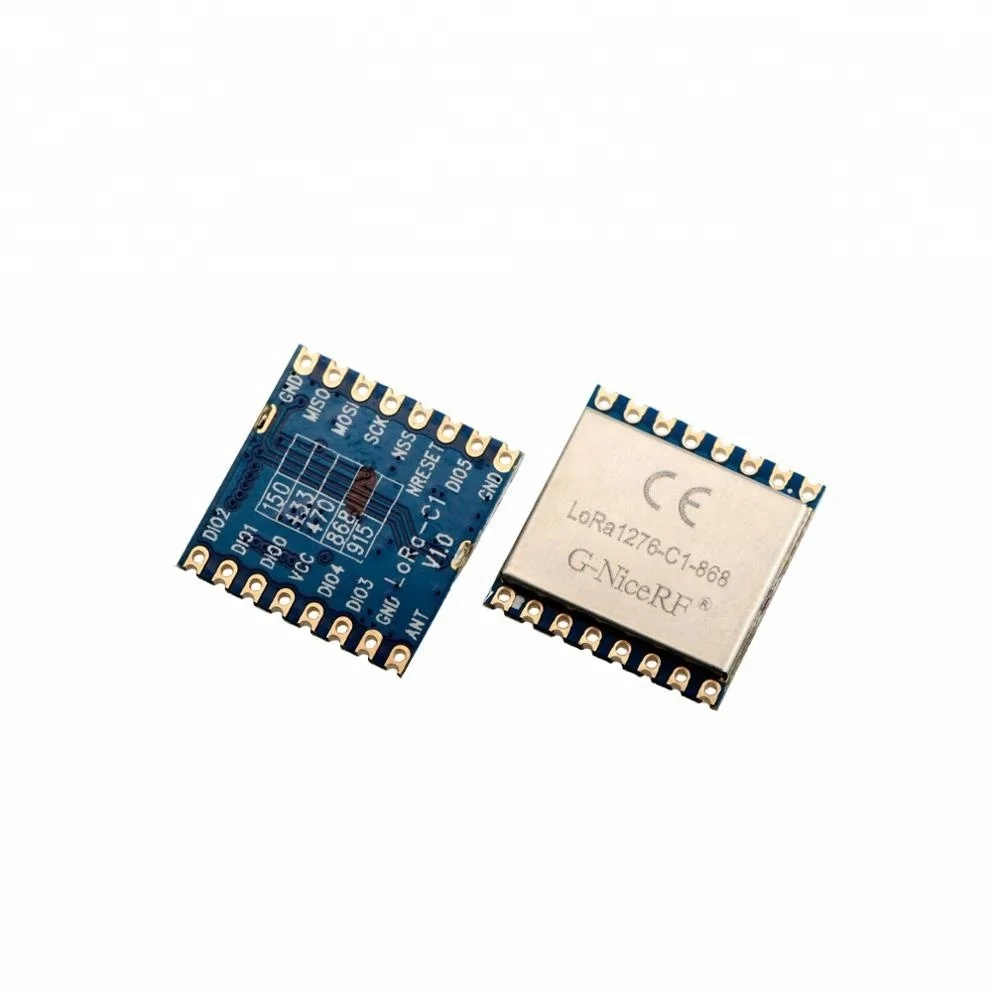

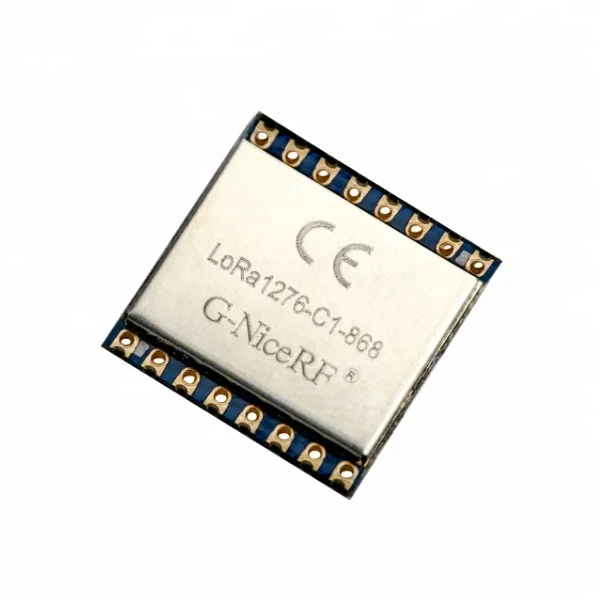

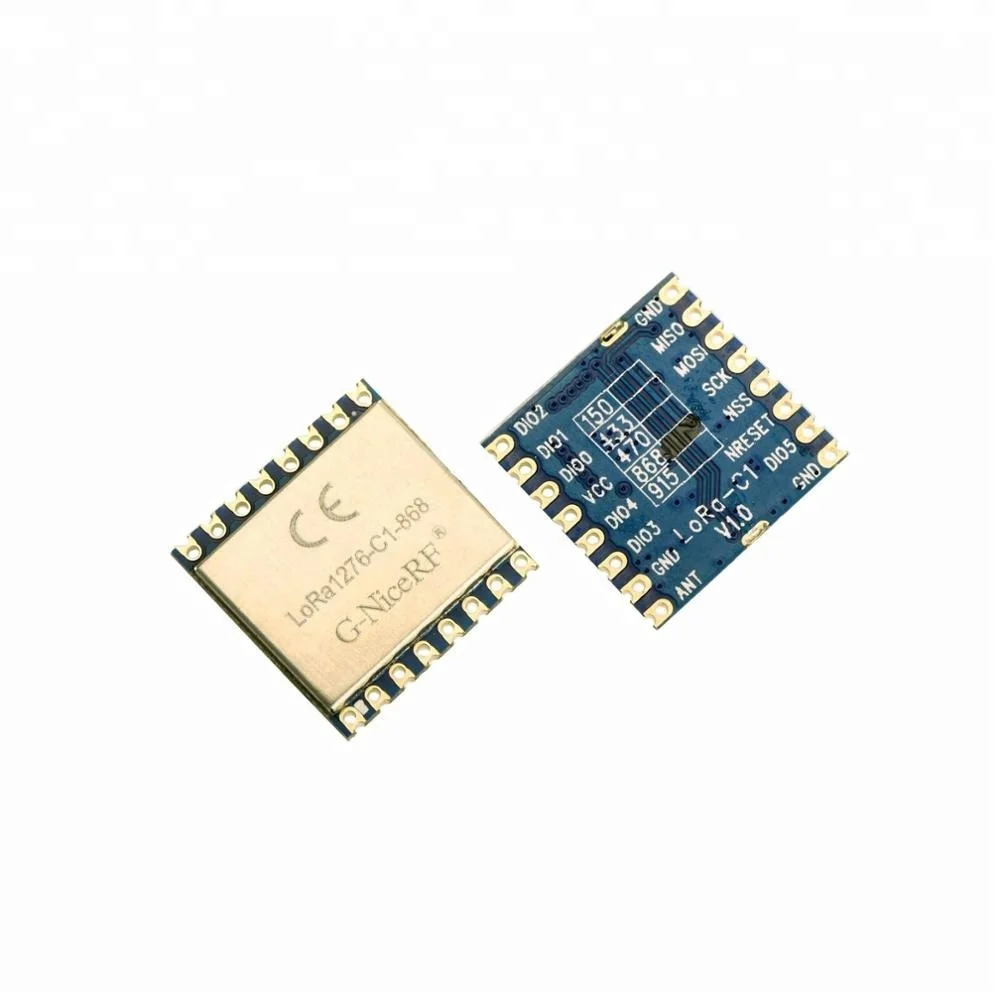

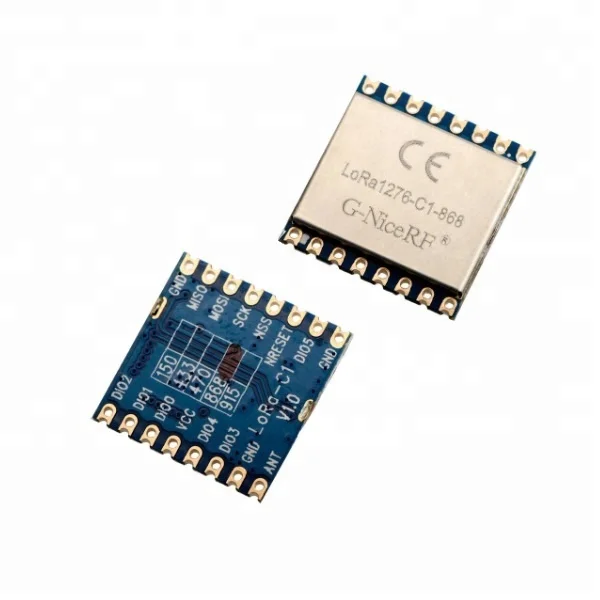

Lora1276-C1 Высокая чувствительность 4 км передатчик дальнего расстояния приемник lora модуль для счетчика
- Категория: Wireless & RF Modules >>>
- Поставщик: NiceRF,Wireless,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.43 $* | 0.38 $* |
| Aug-18-2025 | 0.63 $* | 0.30 $* |
| Jul-18-2025 | 0.70 $* | 0.17 $* |
| Jun-18-2025 | 0.24 $* | 0.55 $* |
| May-18-2025 | 0.15 $* | 0.99 $* |
| Apr-18-2025 | 0.94 $* | 0.64 $* |
| Mar-18-2025 | 0.67 $* | 0.64 $* |
| Feb-18-2025 | 0.54 $* | 0.94 $* |
| Jan-18-2025 | 0.41 $* | 0.18 $* |
Характеристики
Here is the order list :
- 2PCS Lora1276-C1 868MHz RF Modules
- 2PCS 868MHz Spring Antennas
- Please leave a massage to confirm if you need 915MHz frequency, otherwise we will send 868MHz
Lora1276-C1 integrates Semtech RF transceiver chip SX1276, which adopts LoRa TM Spread Spectrum modulation frequency hopping technique. The features of long distance and high sensitivity (-139 dBm) make this module perform better than FSK and GFSK module. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance. This module is 100mW and ultra small size, widely used in AMR,remote industrial control filed.
Feature:
- Frequency Range:868 / 915 MHz(Customizable:137~1020MHz)
- Sensitivity up to -139dBm @Lora
- Maximum output power:20 dBm
- 13mA@receiver mode
- Sleep current <200 nA
- Data transfer rate:@FSK,1.2-300 Kbps
- @Lora TM,0.018-37.5 Kbps
- Lora TM,FSK,GFSK & OOK Modulation mode
- Built-in ESD Protection
- 127 dB Dynamic Range RSSI
- Packet engine up to 256 bytes with FIFO and CRC
- Hopping frequency
- Built-in temperature sensor and low battery indicator
- Excellent blocking immunity
- Operating Temperature Range:--40~+85°C
Application:
- Remote meter reading
- Industrial control
- Home automation remote sensing
- Toys control
- Sensor network
- Tire pressure monitoring
- Health monitoring
- Wireless PC peripherals
Electrical Characteristics:
Schematic

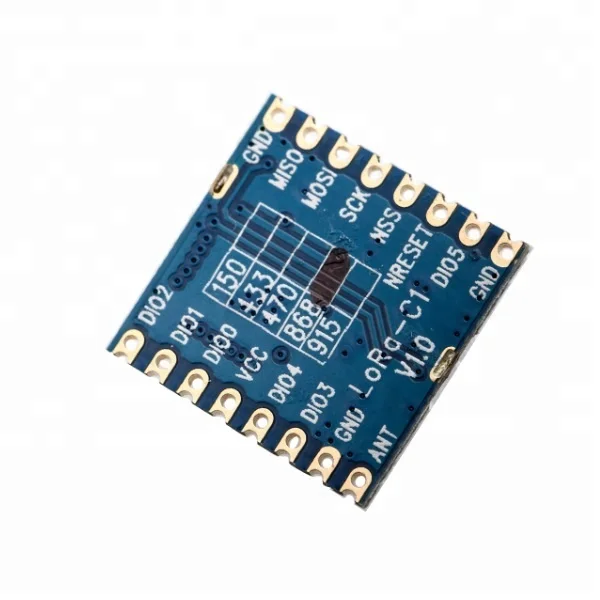

Pin definition
Mechanism Dimensions:
Accessories:
Antenna:
The antenna is important in the communication. For this module, the match impedance is 50 Ohm. We have many kinds of antenna for customer to choose, please contact the corresponding sales engineer for help, or find the antenna in our website.
USB Bridge board:
The USB Bridge is useful for customers to configure the parameters and simply to do communication test with PC. There are 2 types of USB Bridge, which are SU108-TTL, SU108 - 485. SU108 -TTL is for TTL Interface, SU108 - 485 is for 485 Interface:
