50L double Sigma blade screw extruding Kneader Mixer

50L double Sigma blade screw extruding Kneader Mixer

Категория: Mixing Equipment >>>
Поставщик: Zhucheng,Yuanyang,Trading,Co.,Ltd.

Цена:2 000,00 $ - 7 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	2380.80 $*	2499.88 $*
Aug-17-2025	2360.80 $*	2478.61 $*
Jul-17-2025	1980.12 $*	2079.57 $*
Jun-17-2025	2320.2 $*	2436.96 $*
May-17-2025	2020.26 $*	2121.21 $*
Apr-17-2025	2280.59 $*	2394.51 $*
Mar-17-2025	2260.23 $*	2373.9 $*
Feb-17-2025	2240.86 $*	2352.78 $*
Jan-17-2025	2220.7 $*	2331.39 $*

Характеристики

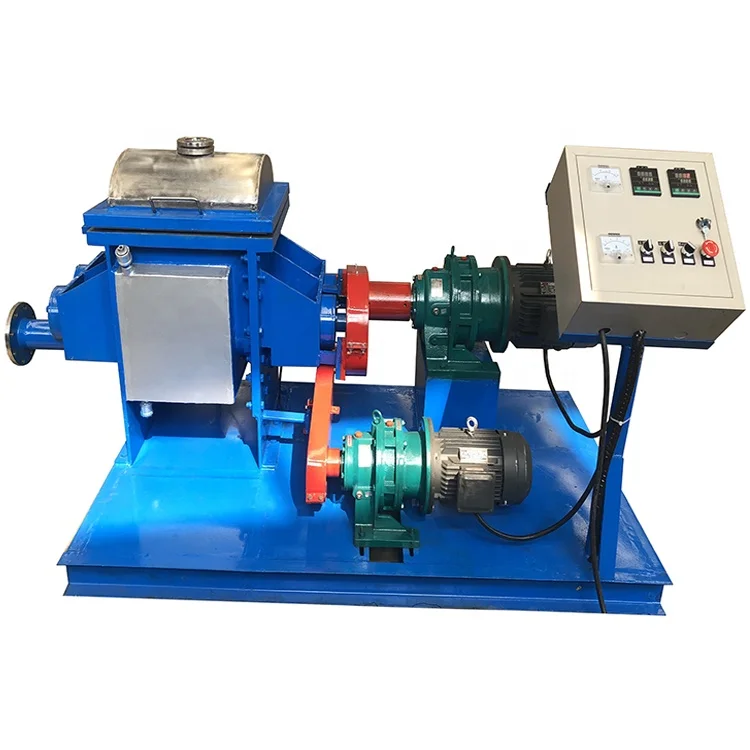

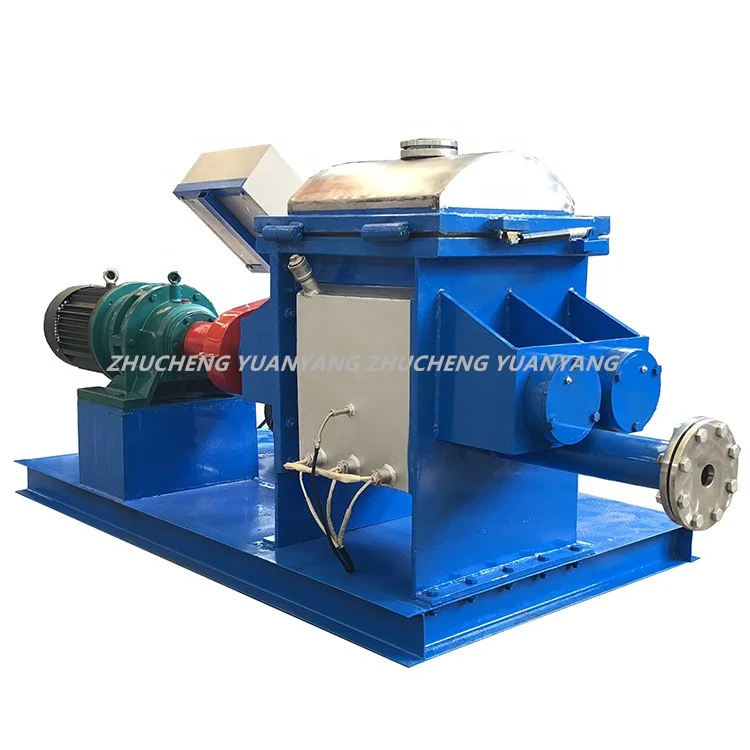

50L double Sigma blade screw extruding Kneader Mixer Machine

Product Overview

This is a multi-functional equipment combining kneading, mixing, vulcanizing and polymerizing, specially to process high viscosity and elastoplastic materials.

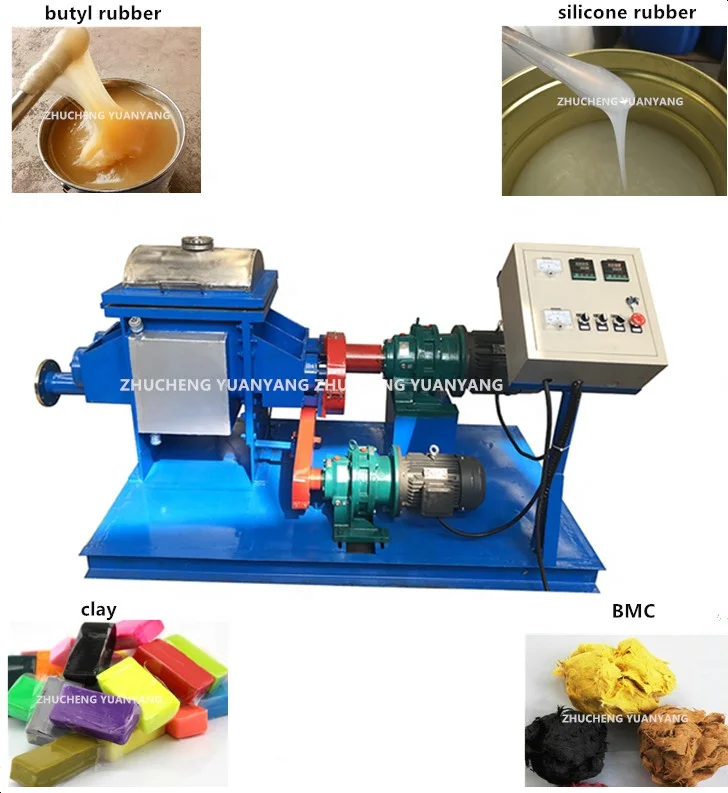

It can be widely used in Silicone Resins, Sealant, Silicon rubber, Silica gel, Hotmelt adhesive, BMC/CMC, Pigment paste, Thermal plastics, Bubble gum, dough, chewing gum, soft candy, cheese, Toothpaste, Batteries, Glass cement etc

STRUCTURE

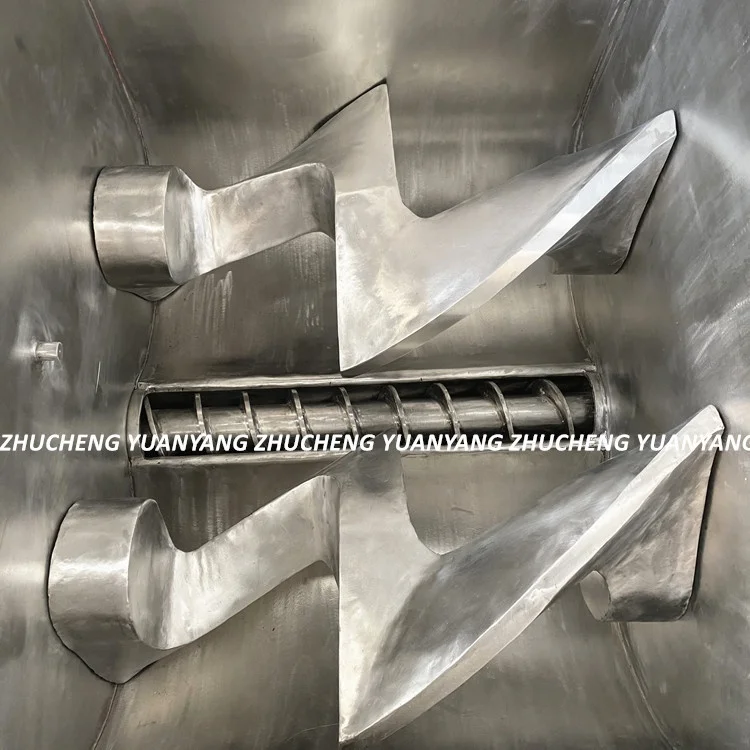

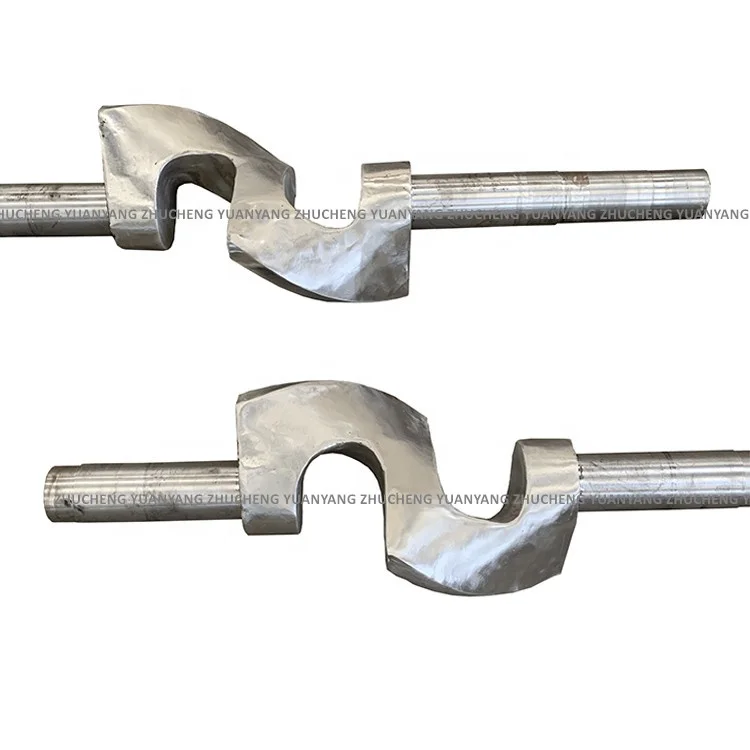

This kind Double Sigma Kneader is “ Screw extruding type”, that composed of: Kneading part ( double sigma blade + mixing chamber), Frame part, Driving system (motor, gear reducer etc) ,Extruding part (used for screw extrusion discharging) and Electric control system.

PRODUCT SPECIFICATIONS

Full volume	50L
Working volume	20-30L
Discharging	Screw extruding
Main motor	5.5KW, equipped with gear reducer
Extrusion motor	3KW, equipped with gear reducer
Material	Electric heater heating Heating element:1KW *3 PCS
Heating	Electric heater heating Heating element: 1KW * 3 PCS
Rotate speed	Master blade: 33 RPM Slave blade: 25 RPM
Dimension	2150 * 100 * 1050 mm
