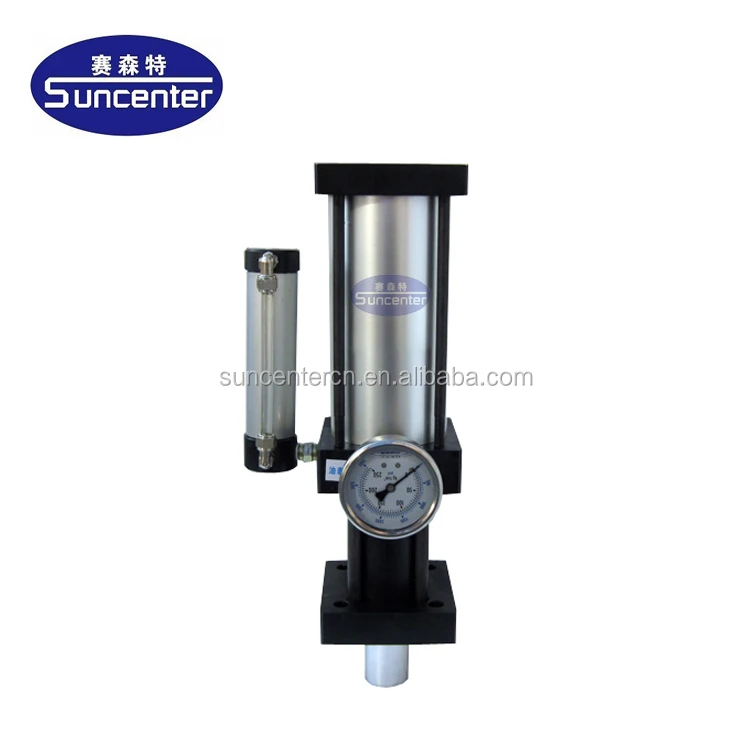

Hydraulic Oil Cylinder
Suncenter Hydro-pneumatic cylinder
Introduction

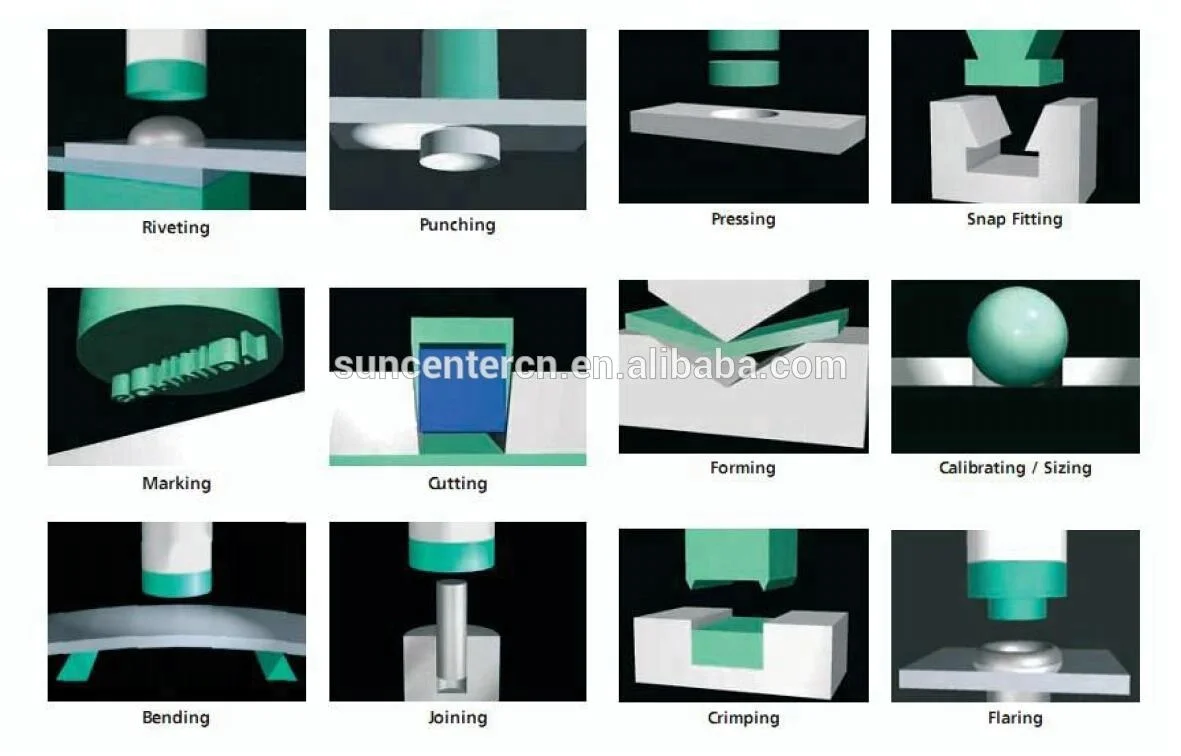

Hydro-pneumatic cylinder is the name of the new generation of power cylinders for press and plant engineering applications. The cylinder is used when high forces are required, for example for punching, splitting, pressing, stamping, molding, riveting, clamping, compressing or spot welding. In power stroke mode users are provided with many times the force of a comparable conventional pneumatic cylinder with the same air consumption. Hydro-pneumatic cylinder is designed in the same way as a double-acting pneumatic cylinder and is also controlled in the same manner. It is equipped with a pneumohydraulic pressure booster which generates a power stroke when necessary depending on the counterforce. The power cylinder can be operated directly from the compressed air network by means of a pneumatic valve.
Simple operation
With its clever design the Hydro-pneumatic cylinder can be controlled in the same manner as a double-acting pneumatic cylinder. In contrast to conventional power cylinders, switchover from fast stroke to power stroke takes only approx. 0.05 seconds, without venting noises and without requiring an additional valve.
Tool-conserving operation
Positioning of the operating piston with the tool on the workpiece is extremely precise and therefore protects the tool, as only the surface of the piston rod is effective due to the design of the device with its freely-actuated operating piston.
On version SST-3T with a piston rod diameter of 20mm and a nominal pressure of 6 bar, for example, this contact force is 90kg; switchover from fast stroke to power stroke is therefore initiated at a counterforce of 90kg. The operating piston is hydraulically damped when it is pushed into the high-pressure sleeve and moves smoothly without jerking.
Switchover from fast stroke to power stroke is unnoticeable. While conventional pneumatic cylinders ,shoot through“ at full power, for example during punching operations, the Hydro-pneumatic cylinder gently makes contact with the workpiece with a low force and then builds up the full power.
Machining workpieces with varying heights does not pose a problem, as the power stroke is only generated when a corresponding counterforce is met at any position throughout the overall stroke.
On version SST-3T with a piston rod diameter of 20mm and a nominal pressure of 6 bar, for example, this contact force is 90kg; switchover from fast stroke to power stroke is therefore initiated at a counterforce of 90kg. The operating piston is hydraulically damped when it is pushed into the high-pressure sleeve and moves smoothly without jerking.
Switchover from fast stroke to power stroke is unnoticeable. While conventional pneumatic cylinders ,shoot through“ at full power, for example during punching operations, the Hydro-pneumatic cylinder gently makes contact with the workpiece with a low force and then builds up the full power.
Machining workpieces with varying heights does not pose a problem, as the power stroke is only generated when a corresponding counterforce is met at any position throughout the overall stroke.
Short flow path
The pressure booster and fluid reservoir are carried along during fast stroke and power stroke to ensure a favorable flow and hydraulic interaction.This enables the use of a highly viscous hydraulic oil which minimizes oil leakages.
The newly patented Hydro-pneumatic cylinder is an alternative to high-volume pneumatic systems, pure hydraulic systems and mechanical actuators. Various sizes are available for different power ranges and stroke lengths.
The newly patented Hydro-pneumatic cylinder is an alternative to high-volume pneumatic systems, pure hydraulic systems and mechanical actuators. Various sizes are available for different power ranges and stroke lengths.
Practical Application
With its variable power stroke and fast stroke,the hydro-pneumatic cylinder is suitable for universal applications.the operating piston is extended in fast stroke mode until it makes contact with a counterforce.the power stroke is initiated when a specific counterforce – depending on the size of the device – is generated.the high-pressure sleeve is pushed further over operation piston.the high pressure chamber is closed and a high pressure builds up.
During this advance motion the oil is forced from the oil tank into the operating piston area.power stroke and fast stroke are interactive and form the operating range of the hydro-pneumatic cylinder.
During this advance motion the oil is forced from the oil tank into the operating piston area.power stroke and fast stroke are interactive and form the operating range of the hydro-pneumatic cylinder.
Working illustration

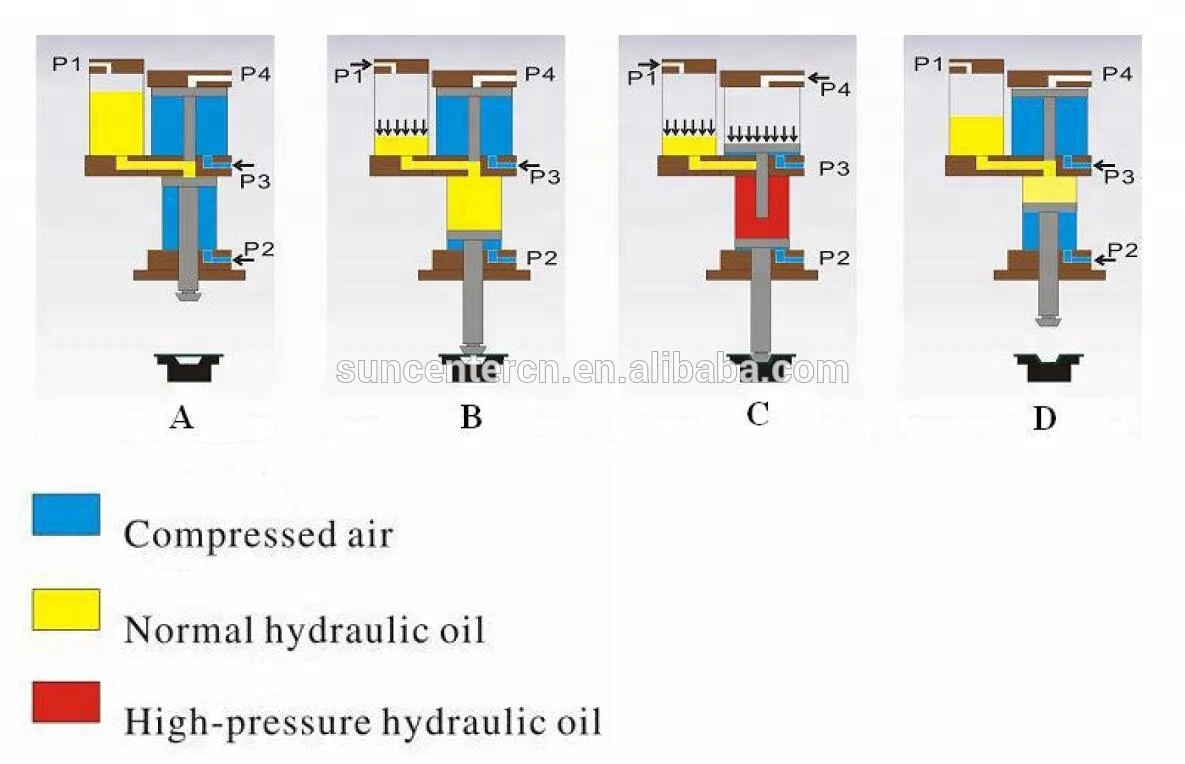

It is powered by pressed air. The pressed air pushing piston, and made the rod into increased pressure cavity to increase the hydraulic oil pressure, then we gain the larger output force by the piston rod. It is widely used in the position that need large output force but only has pressed air. Its features are compact in structure, beautiful figure.
A:compressed air comes into P2 and P3.
B:(fast stroke):compressed air comes into P1 and P3,P2 is on exhausting air state.air pressure acts on the hydraulic oil surface in the tank,then hydraulic oil drives the piston rod to touch workpiece.
C:(power stroke) compressed air comes into P4,compressed air acts on the surface of piston,then piston rod moves to squeeze hydraulic oil,as oil can not be compressed,so high pressure oil pushes piston to press workpiece.
D:(return stroke)compressed air comes into P2 ,P3 and P4 exhaust,hydraulic oil returns to tank and piston is lifted up.
B:(fast stroke):compressed air comes into P1 and P3,P2 is on exhausting air state.air pressure acts on the hydraulic oil surface in the tank,then hydraulic oil drives the piston rod to touch workpiece.
C:(power stroke) compressed air comes into P4,compressed air acts on the surface of piston,then piston rod moves to squeeze hydraulic oil,as oil can not be compressed,so high pressure oil pushes piston to press workpiece.
D:(return stroke)compressed air comes into P2 ,P3 and P4 exhaust,hydraulic oil returns to tank and piston is lifted up.
Advantages
1. Operates only with air, without hydraulic power units
2. High travel stroke force, because of pressure applied to the working - and adjustment piston
3. Fast air-operated approach stroke and return stroke
4.Automatic change-over from approach stroke to power stroke
5. High stroke frequency, depending on the stroke length
6.Compact cylinder design, which can be used in any mounting position
6.Compact cylinder design, which can be used in any mounting position
How to Choose Our Cylinders
How to select Suncenter hydropneumatic cylinders?
1.What output force do you need? (how many tons,10T/50T/100T?)
2.How long approach stroke(pneumatic stroke) do you need? (how long millimeters,50MM,100MM,150MM,200MM,250MM,300MM)
3.How long power stroke(hydraulic stroke) do you need? (how long millimeters,usually for 5MM,10MM,15MM,20MM)
4.What is the driven air pressure from your air compressor can you provide?
5.Installation type,vertical or the others?
1.What output force do you need? (how many tons,10T/50T/100T?)
2.How long approach stroke(pneumatic stroke) do you need? (how long millimeters,50MM,100MM,150MM,200MM,250MM,300MM)
3.How long power stroke(hydraulic stroke) do you need? (how long millimeters,usually for 5MM,10MM,15MM,20MM)
4.What is the driven air pressure from your air compressor can you provide?
5.Installation type,vertical or the others?
About Suncenter
Dongguan Suncenter Fluid Control Equipment Co., Ltd is the member company of Suncenter Group, which is located in Dongguan city of
Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide
various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best
product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.
Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide
various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best
product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.
Our main products including:
1. High Pressure Booster Pumps ( Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
2. High Pressure Systems (Gas/Liquid Booster System,Hydro test bench,Chemical injection system,CO2/FM200 filling machine, Tube
Expanding Machine)
3. High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine, Valve test bench,Impulse Testing
Machine, etc.)
4. Hydro-pneumatic cylinders and machines(pneumatic hydraulic cylinders,pneumatic riveting machines,pneumatic press machines etc.)
1. High Pressure Booster Pumps ( Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
2. High Pressure Systems (Gas/Liquid Booster System,Hydro test bench,Chemical injection system,CO2/FM200 filling machine, Tube
Expanding Machine)
3. High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine, Valve test bench,Impulse Testing
Machine, etc.)
4. Hydro-pneumatic cylinders and machines(pneumatic hydraulic cylinders,pneumatic riveting machines,pneumatic press machines etc.)
Our Services & Strength
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Customer review
Our Advantages
-1. 15 years of manufacturing experience history.
-2. faster lead time, the fastest delivery is about 5-10 working days.
-3. CE & SGS certificate approval factory.
-4. Quality control for every step while production.
-5. Professional engineers have working experience in Maximator.
-2. faster lead time, the fastest delivery is about 5-10 working days.
-3. CE & SGS certificate approval factory.
-4. Quality control for every step while production.
-5. Professional engineers have working experience in Maximator.
Certifications
FAQ
Q: Are you factory?
A: Yes, we have more than 15 years experiences in high pressure fluid exchange and controlling field,we provide various kinds of pneumatic
and hydraulic boosters,systems and solutions.
and hydraulic boosters,systems and solutions.
Q: Where's your location? can I visit you?
A: Welcome to visit Suncenter, we are in Dongguan City, Guangdong province, China.
Q: How to operate the machine?
A: After you get the machine, we will send you the working video to teach you for maintenance and operating.
Q: How long is your warranty?
A: 13 months.
