CR хлор Дозирующий перистальтический насос 12В для переноса
- Категория: Pumps & Parts >>>
- Поставщик: Baoding,Chuangrui,Precision,Pump,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.30 $* | 0.76 $* |
| Aug-16-2025 | 0.63 $* | 0.32 $* |
| Jul-16-2025 | 0.43 $* | 0.20 $* |
| Jun-16-2025 | 0.60 $* | 0.58 $* |
| May-16-2025 | 0.71 $* | 0.20 $* |
| Apr-16-2025 | 0.17 $* | 0.21 $* |
| Mar-16-2025 | 0.82 $* | 0.11 $* |
| Feb-16-2025 | 0.89 $* | 0.20 $* |
| Jan-16-2025 | 0.77 $* | 0.6 $* |
Характеристики
Product Description

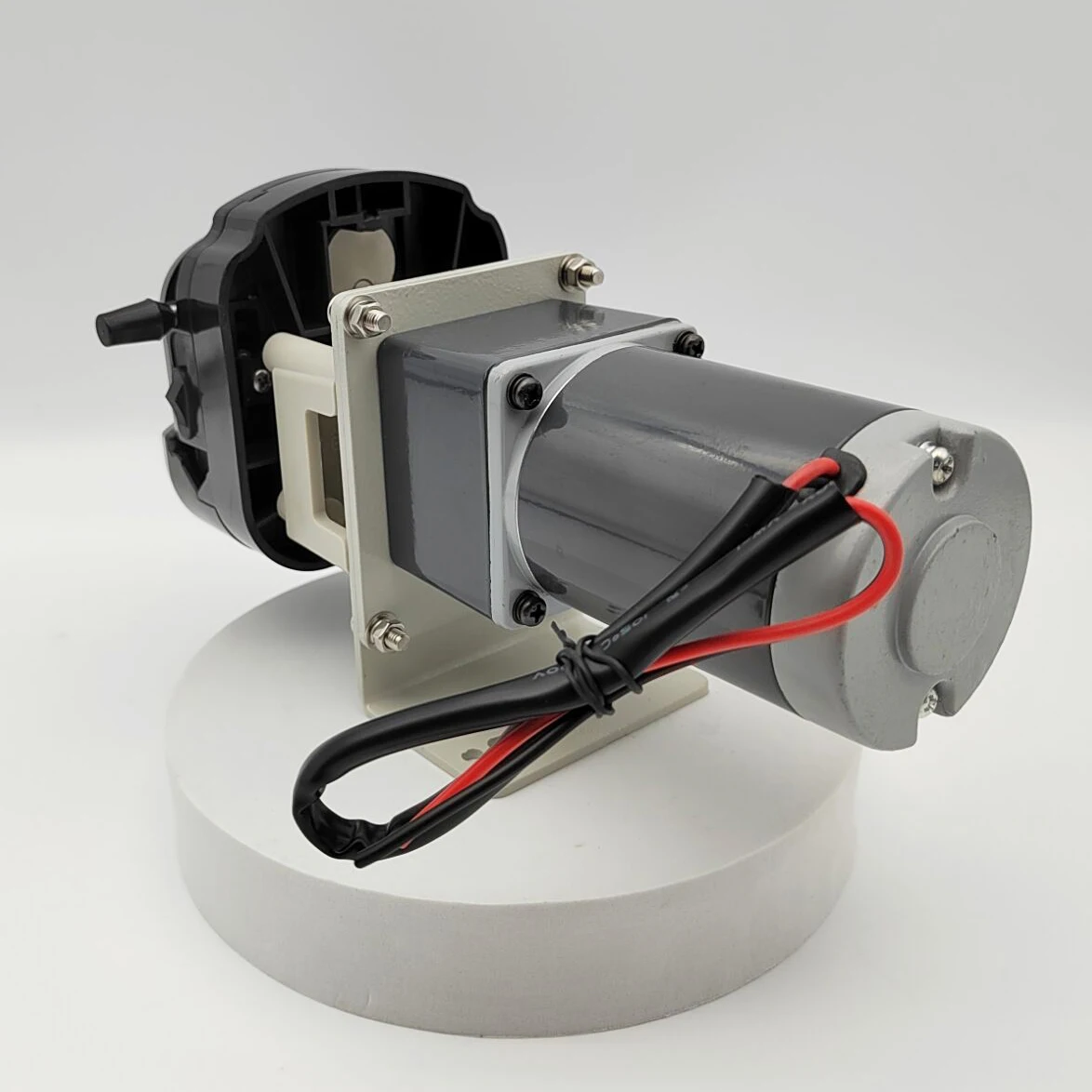

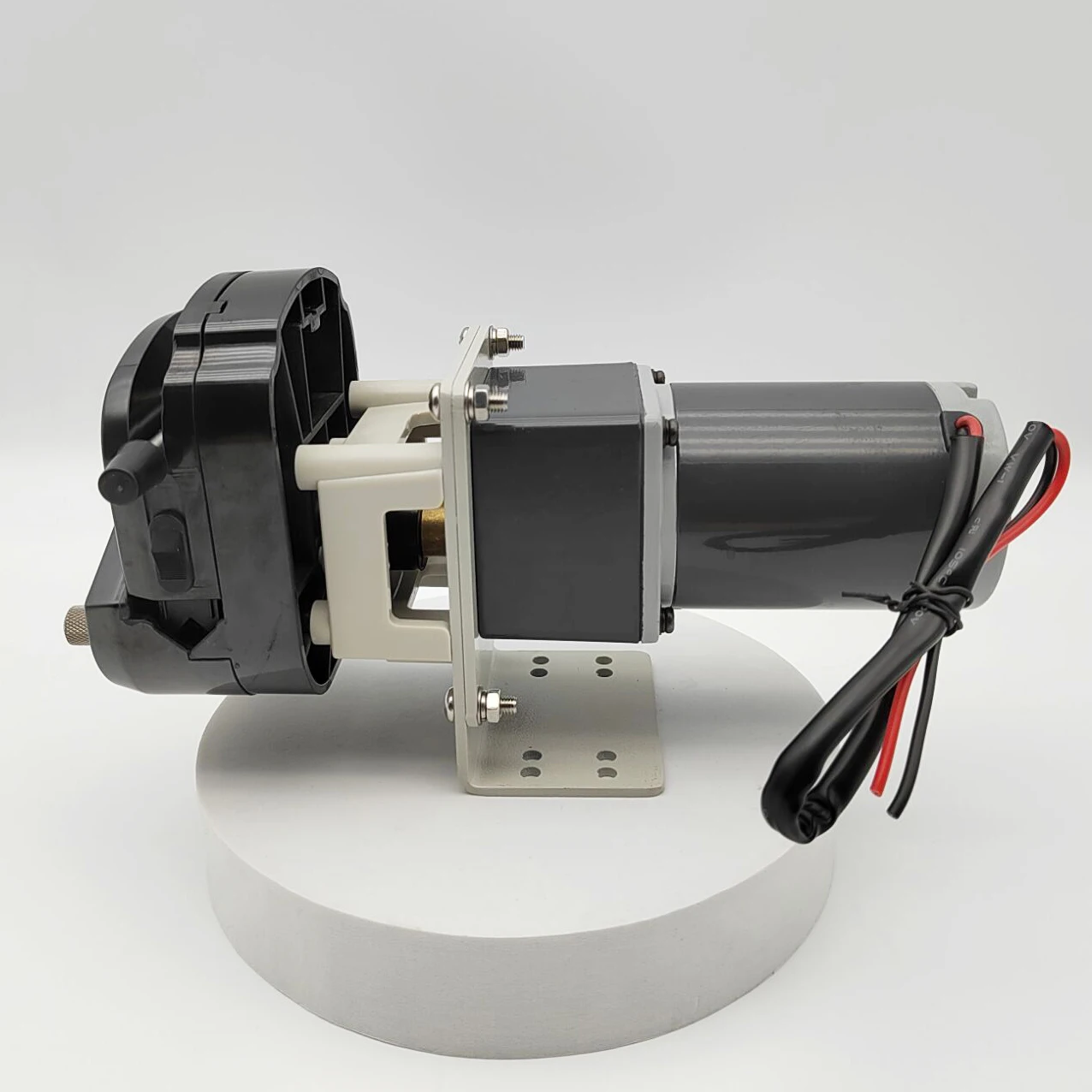

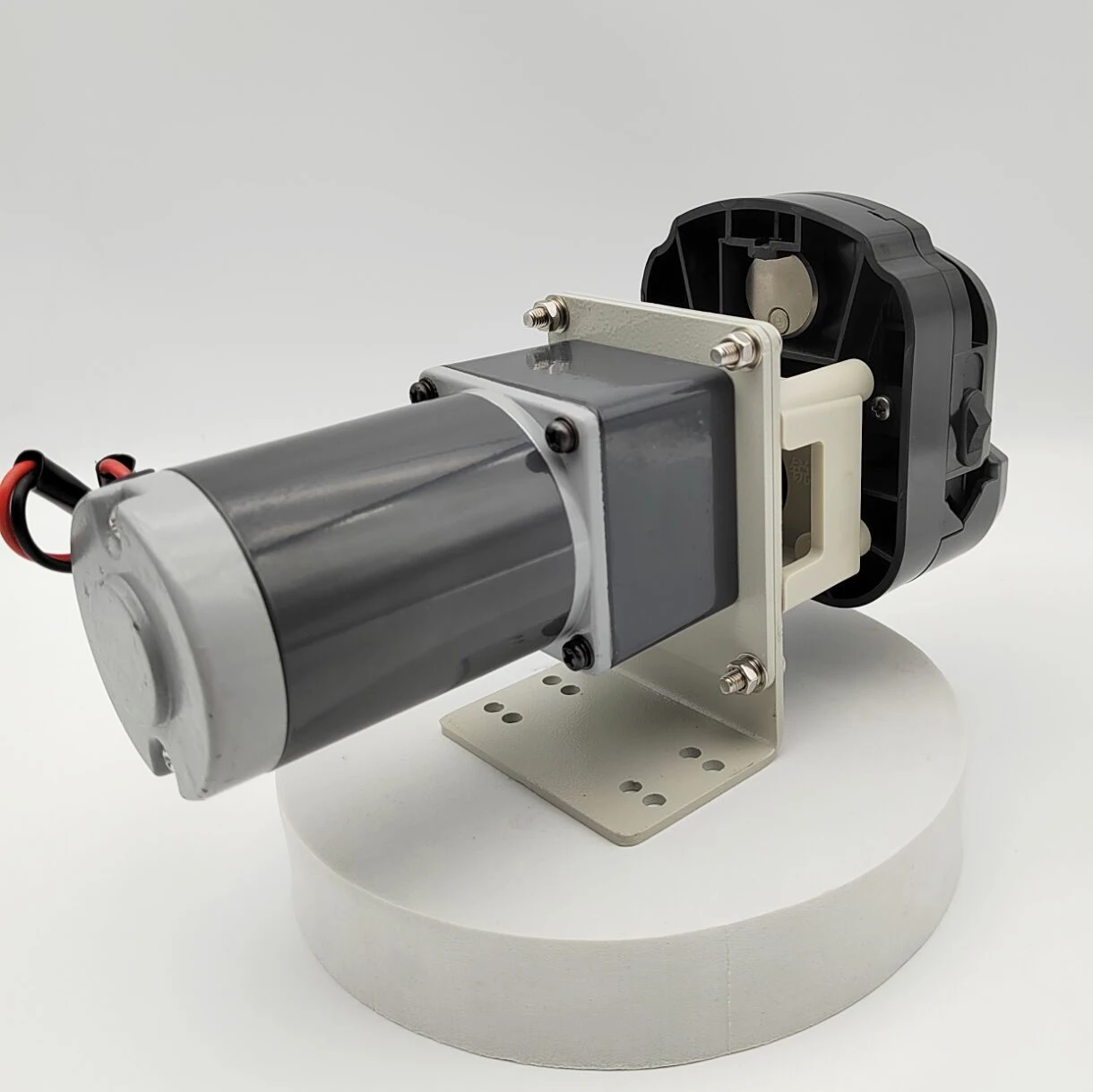

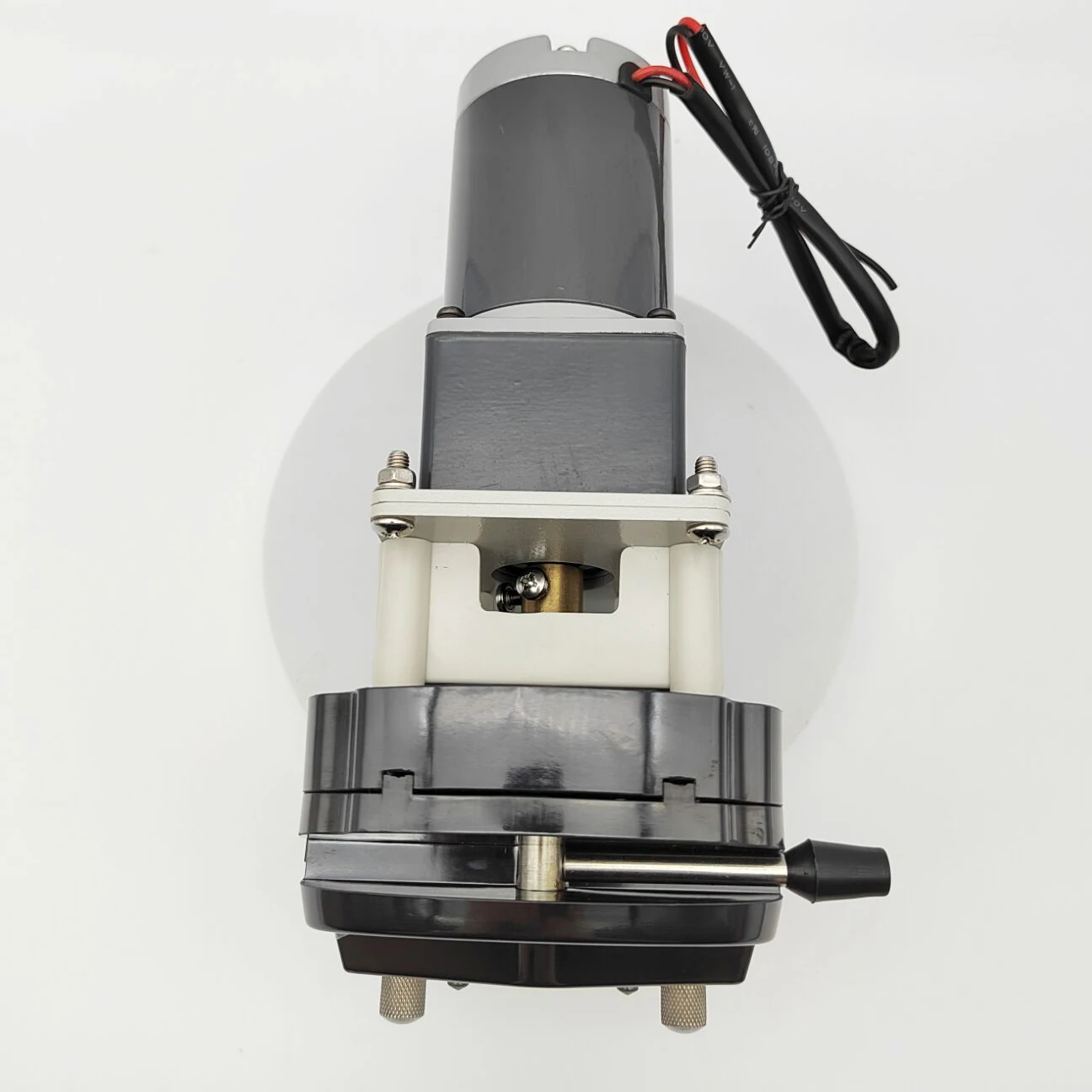

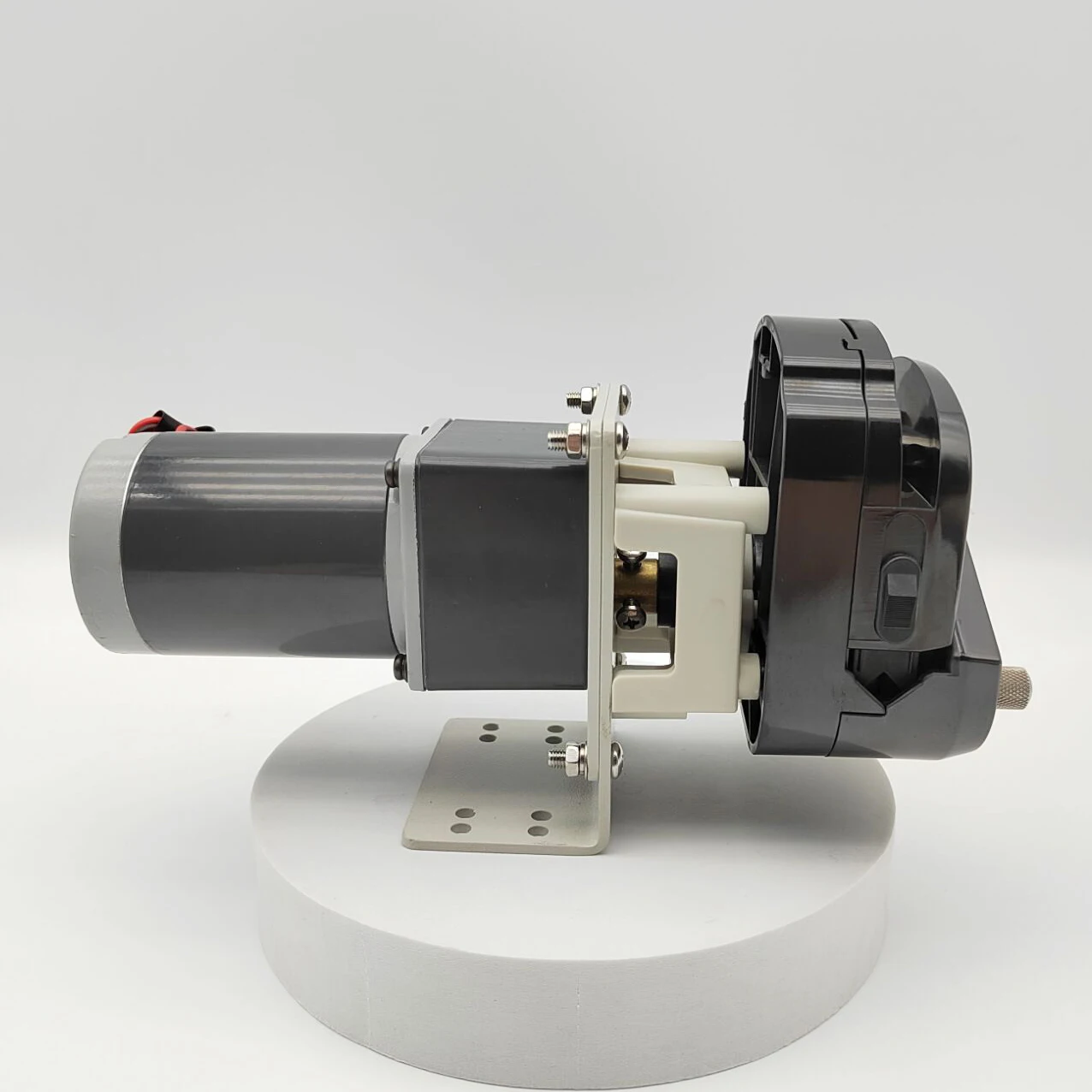

Chuangrui Small liquid handling pump
The OEM 201 small peristaltic pump have superb features built-in and flexible design to meet specific customer needs.Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic pump powerful functions.
Order guide
micro small DC 12V pump DC 24V pump compact DC peristaltic dosing pump
The micro peristaltic pump suitable for wall thickness 1.6mm Silicon tube, Pharmed bpt etc. material
tube, flow range up to 2280 ml/min. The shell of pump head is made of PPS material and the roller is made of 304 SSS material. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature .
tube, flow range up to 2280 ml/min. The shell of pump head is made of PPS material and the roller is made of 304 SSS material. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature .
Order list for the small peristaltic pump OEM201. Noted: 1.The defaulted model we will send is 20116A with DC24V motor and flow is 2280ml/min 2.Defaulted channel number is 1 ,If you need multiple pls contact us 3, The speed controller is not defaulted, if you need pls contact our sales. 4, The defaulted pump head material is pps (black) 5, Support multiple channels customized, more info ,pls contact us. | ||||||||||||||||
Order number | Model | Pump head model | Motor Voltage | Motor Power | Motor Speed | Tube Model | Flow(based on water) | Speed control | ||||||||
Order Number | Model | Pump head | Motor Voltage | Motor Power | Motor Speed | Tube model | Max Flow | Speed control | ||||||||
20116A | OEM201-1 | YZ1515x(Black) | DC24V | 15W | 600rpm | 18# | 2280ml/min | NO | ||||||||
20114A | OEM201-1 | YZ1515x(Black) | DC24V | 15W | 400rpm | 18# | 1520ml/min | NO | ||||||||
20116B | OEM201-1 | YZ1515x(white) | DC24V | 15W | 600rpm | 18# | 2280ml/min | NO | ||||||||
20114C | OEM201-1 | YZ1515x(white) | DC24V | 15W | 400rpm | 18# | 1520ml/min | NO | ||||||||
20126D | OEM201-2 | YZ1515x(Black) | DC12V | 15W | 600rpm | 18# | 2280ml/min | NO | ||||||||
20124E | OEM201-2 | YZ1515x(Black) | DC12V | 15W | 400rpm | 18# | 1520ml/min | NO | ||||||||
20126F | OEM201-2 | YZ1515x(White) | DC12V | 15W | 600rpm | 18# | 2280ml/min | NO | ||||||||
20124G | OEM201-2 | YZ1515x(White) | DC12V | 15W | 400rpm | 18# | 1520ml/min | NO | ||||||||
Tube specifications for the pump YZ1515x Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance. | ||||||||||
Tube model | ID(mm) | OD(mm) | Standard material | Flow with 400 rpm(ml/min) | Flow with 600 rpm(ml/min) | |||||
18# | 7.9 | 11.1 | Silicon tube | 1520 | 2280 | |||||
17# | 6.4 | 9.6 | Silicon tube | 1160 | 1740 | |||||
25# | 4.8 | 8 | Silicon tube | 680 | 1020 | |||||
16# | 3.2 | 6.4 | Silicon tube | 328 | 492 | |||||
19# | 2.4 | 5.6 | Silicon tube | 204 | 306 | |||||
14# | 1.6 | 4.8 | Silicon tube | 108 | 162 | |||||
13# | 0.8 | 4 | Silicon tube | 28 | 42 | |||||

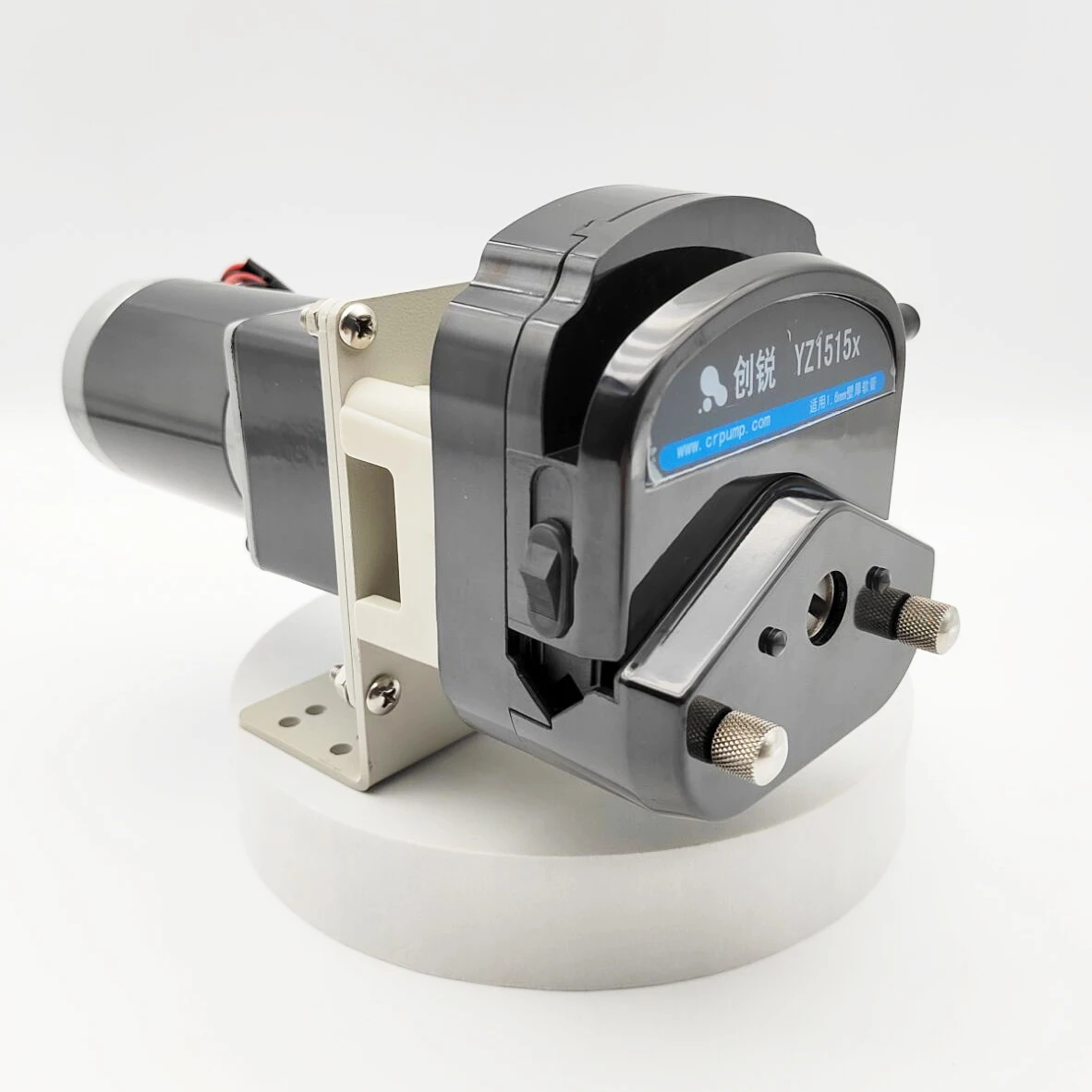

Pump head with PPS material (Black)
Typical application : Chemical industry/ packing machine/printing /fine chemical, laboratory, food canning, chemical reagent filling, Dispense juice, chocolate,
etc.- Refrigeration / Condensate Removal- Analytical / Fluid Transfer, Wastes- Commercial Exercise Eqpt. / Lubrication- Grease Trap Control /etc..
etc.- Refrigeration / Condensate Removal- Analytical / Fluid Transfer, Wastes- Commercial Exercise Eqpt. / Lubrication- Grease Trap Control /etc..
Pump head with PSF material (White)
Typical application : Packing machine/Medical/ Lab/ Analytical Instruments ,Commercial Dish washing / Chemical Dispensing- Vending Machine / Post Mix Syrups- Beverage Dispensing /Timed Dispense of Enzymes- Fluid Sampling / Water Sampling, DC Powered- Water Conditioning / Chlorination/PH control..etc.
Application For additive feeding
Application For waste water application
Order Guide
Dear All ,
Welcome to our website ,wish you have a nice day and will get the harvest from us .=))
To help you choose the suitable pump. can you help me to confirm some details as below :
1,what's the application of the pump ? bottle filling or constant transfer ?
2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?
3, for constant transfer ,what's flowrate you need? ml/min
4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?
Pls send these answers or most details to us, then we will help u to choose the best pump and tube .
Thanks for your time .
Hot Sale
Why Choose Us
Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
About shipping
Fast and safe delivery
- 1.The package contains a peristaltic pump and its accessories.
2.foam and carton packaging can protect the safety of the peristaltic pump during transportation.
3.If you have other packaging needs, please contact us in time.
