Плата микроконтроллера Mini USB Nano V3.0 ATmega328P 5 в 16 м чип
- Категория: "
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5.0 $* | 5.42 $* |
| Aug-17-2025 | 5.16 $* | 5.44 $* |
| Jul-17-2025 | 4.53 $* | 4.23 $* |
| Jun-17-2025 | 5.69 $* | 5.20 $* |
| May-17-2025 | 4.47 $* | 4.42 $* |
| Apr-17-2025 | 5.98 $* | 5.94 $* |
| Mar-17-2025 | 5.91 $* | 5.13 $* |
| Feb-17-2025 | 4.84 $* | 4.18 $* |
| Jan-17-2025 | 4.99 $* | 4.68 $* |
Характеристики

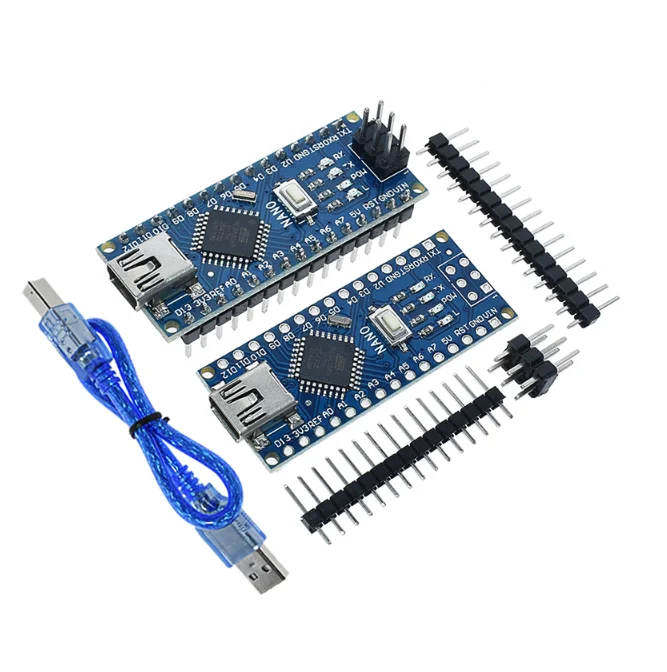

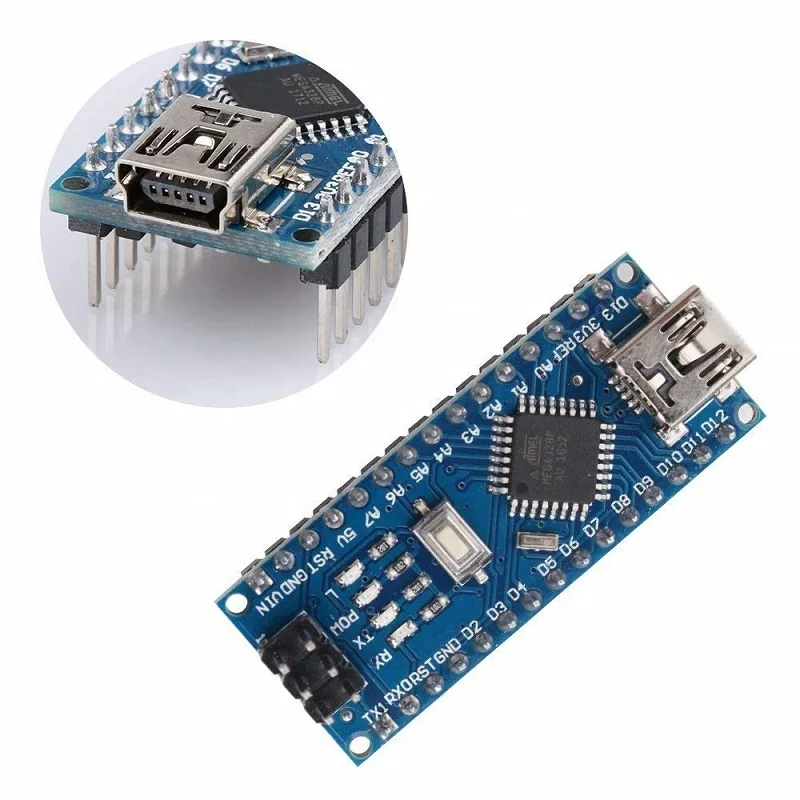

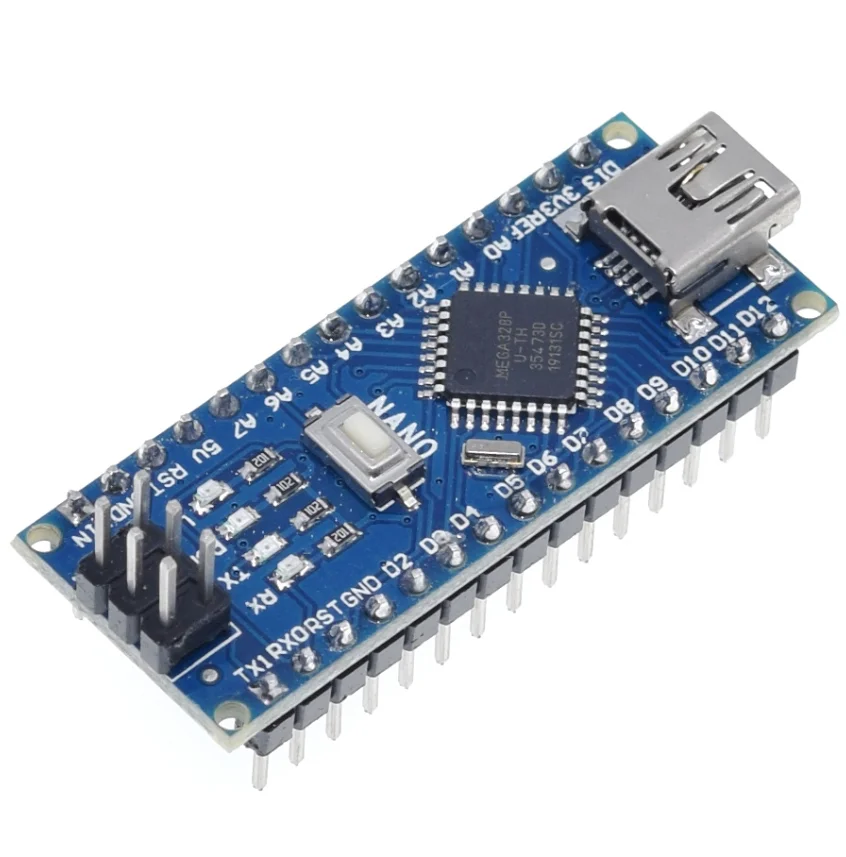

Mini USB Nano V3.0 ATmega328P 5V 16M Micro Controller Board CH340 Chip
ATMEGA328P Module CH340G 5V 16M Mini USB Micro-controller Board
Product Description
| Microcontroller | Atmel ATmega328 |
| Operating Voltage (logic level) | 5 V |
| Input Voltage (recommended) | 7-12 V |
| Input Voltage (limits) | 6-20 V |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| Analog Input Pins | 8 |
| DC Current per I/O Pin | 40 mA |
| Flash Memory | 32 KB (of which 2KB used by bootloader) |
| SRAM | 2 KB |
| EEPROM | 1 KB |
| Clock Speed | 16 MHz |
Features:

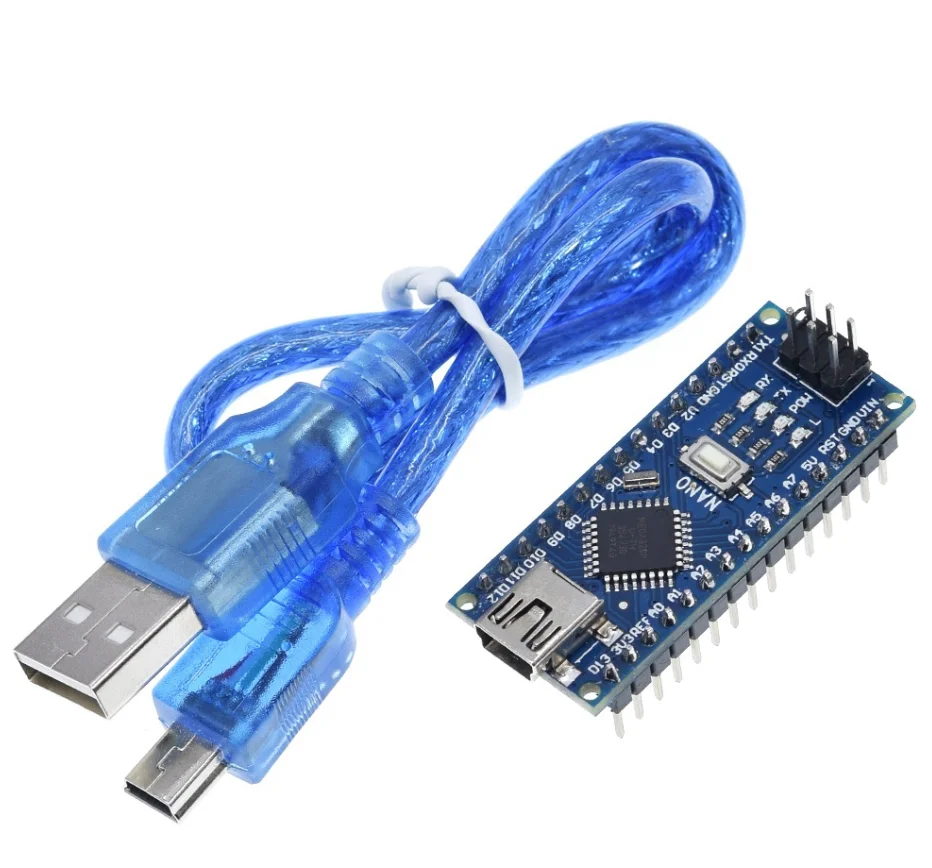

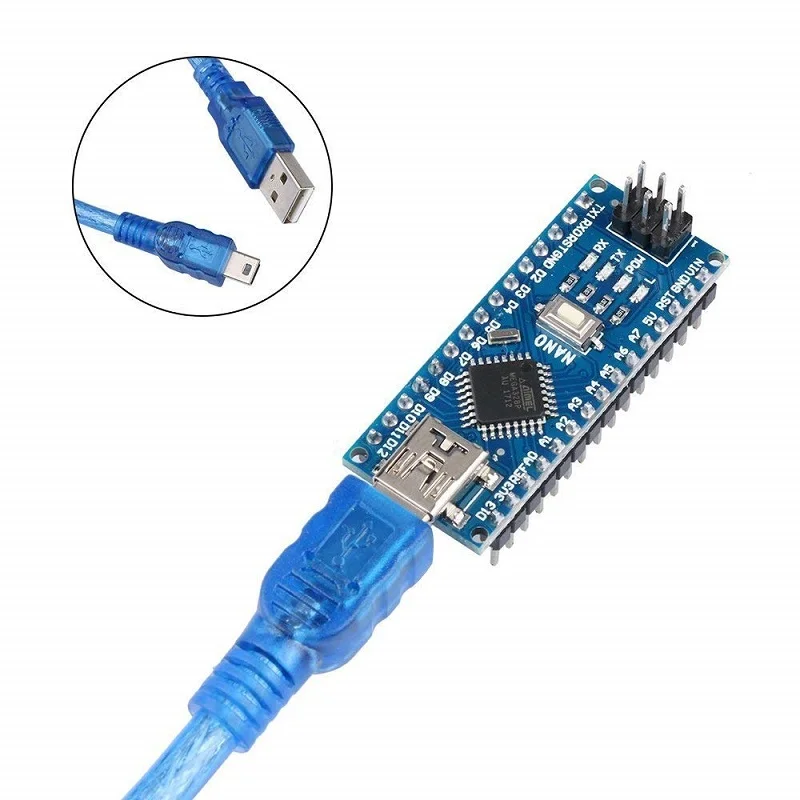

- The Nano is a compact boardThe Nano is a small, complete, and breadboard-friendly board based on the ATmega328P (Nano 3.x). It has more or less the same functionality of the Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
- The Nano can be powered via the Mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
- product description
- Under the premise of ensuring the performance of NANO and the main control chip ATMEGA328P-AU unchanged, we replaced the USB chip, improved the download speed, and increased the stability in win7 win8.
- Instructions:
- 2. Download the USB chip driver Download address: http://wch.cn/downloads.php?name=pro&proid=65
- 3. Plug in the NANO development board and the driver will be installed automatically.
- 4. Select the board in the die NANO
- 5. Select the COM port, this can be queried in my computer, just the port inside your development board
- 6. It is best to choose, NANO's own routine program, burn it in.
- PCB length: 43mm
PCB width: 18mm
Weight: 22G
Wire length: 150 mm
