T73 pcb реле JQC-3FF-S-Z spdt 5vdc 9 В 12 24 постоянного тока 10A 5PIN JQC-3ff 10a 250vac
- Категория: Industrial Controls >>>
- Поставщик: Yueqing,Hongshuo,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.64 $* | 0.20 $* |
| Aug-15-2025 | 0.16 $* | 0.17 $* |
| Jul-15-2025 | 0.30 $* | 0.82 $* |
| Jun-15-2025 | 0.0 $* | 0.20 $* |
| May-15-2025 | 0.94 $* | 0.79 $* |
| Apr-15-2025 | 0.90 $* | 0.7 $* |
| Mar-15-2025 | 0.10 $* | 0.83 $* |
| Feb-15-2025 | 0.63 $* | 0.68 $* |
| Jan-15-2025 | 0.21 $* | 0.0 $* |
Характеристики
T73 pcb relay JQC-3FF-S-Z spdt 5vdc 9v 12v 24V 10A 5PIN JQC-3ff relay 10a 250vac power relay
OEM welcome
Product Description
What's the Specification of Our Relay ?
Contact Data:
| Contact Material | AgsnO |
| Contact Form | 1H(1A) 1Z(1C) |
| Contact Ratings | 1Z(1C):12A/125VAC 7A/250VAC |
| Contact Resistance | 100mΩ Max. at 6VDC 1A |
| Max Switching Current | 15A |
| Max Switching Voltage | 250VAC/ 30VDC |
| Max Switching Power | 1750VAC/210W |
| Life Expectancy Electrical | 100,000 Operations ( at 30 operations/minutes) |
| Life Expectancy Machanical | 1,000,000 Operations |
Coil Data:
| Nominal Voltage (VDC) | Coil Resistance(Ω) | Max Operation Voltage(VDC) | Mix Release Voltage(VDC) | Max Applicable Voltage(VDC) | |
| 0.36W | 0.53W | ||||
| 3 | 25 | 17 | 2.25 | 0.3 | 3.9 |
| 5 | 70 | 47 | 3.75 | 0.5 | 6.5 |
| 6 | 100 | 68 | 4.5 | 0.6 | 7.8 |
| 9 | 225 | 152 | 6.75 | 0.9 | 11.7 |
| 12 | 400 | 270 | 9 | 1.2 | 15.6 |
| 18 | 900 | 611 | 13.5 | 1.8 | 23.4 |
| 24 | 1600 | 1086 | 18 | 2.4 | 31.2 |
Charateristics:
| Temperature Range | -40º~+70º |
| Vibration Resistance | 10~55Hz, 1.5mm |
| Operations Extremes | 10g |
| Damage Limits | 100g |
| humidity | 40%~85% |
| Insulation Resistance | 100mΩ Min at 500VDC |
| Safety Standard | CQC CE |
| Dielectric Strength Between Open Contacts | 750VAC( for one minute/sec) |
| Between Contacts and Coil | 1500VAC( for one minute/sec) |
| Operate Time | 10ms |
| Release Time | 5ms |
| Weight | 9.1g Approx |

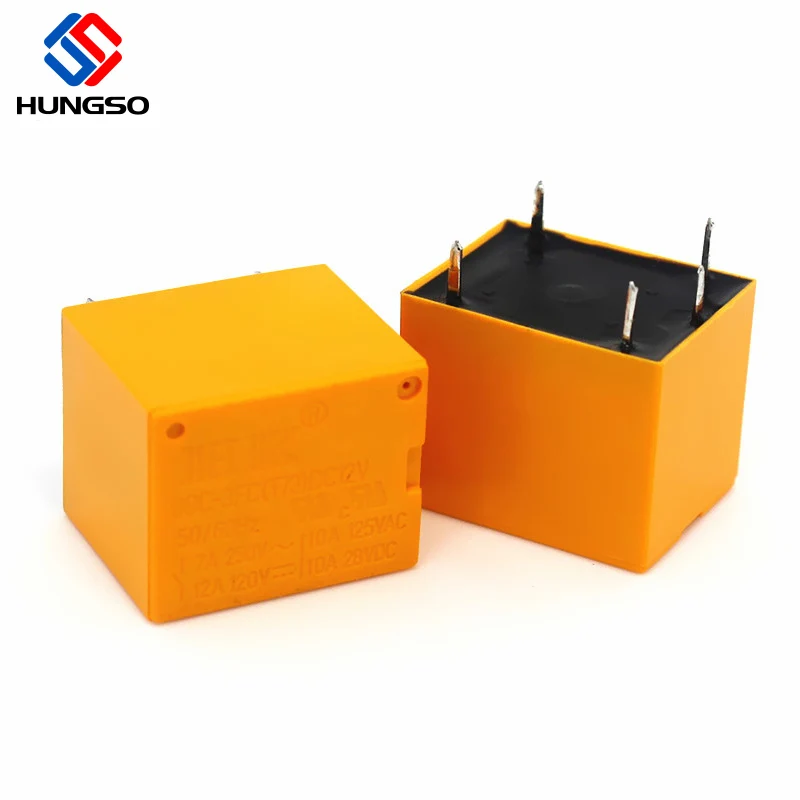

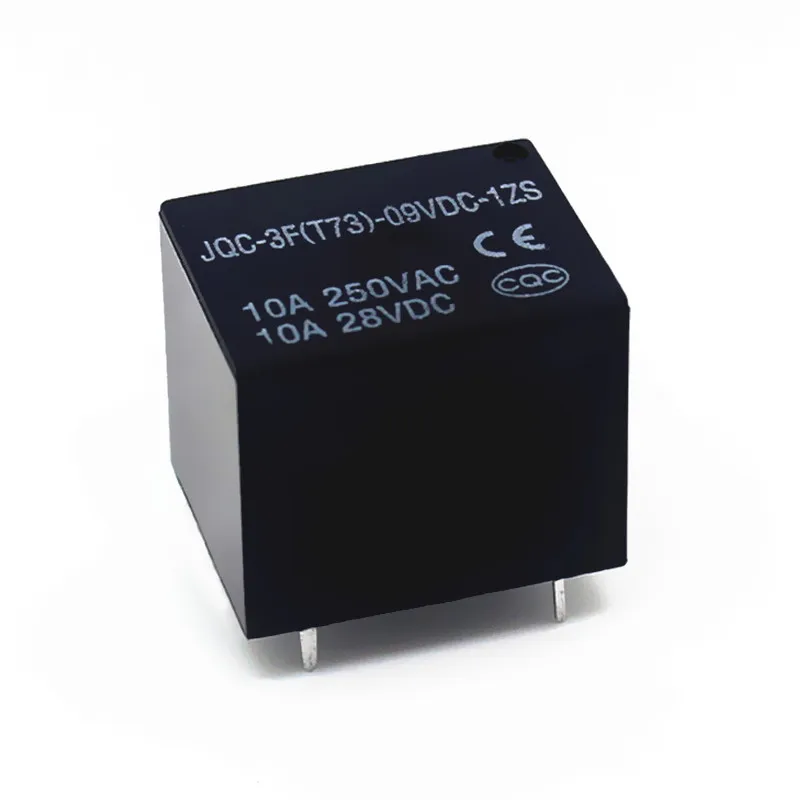

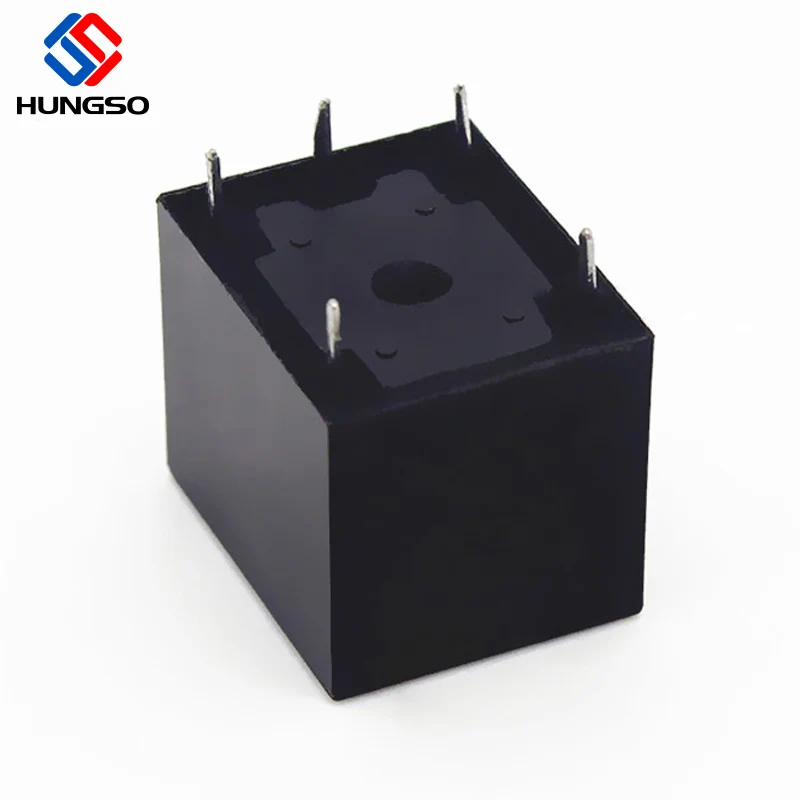

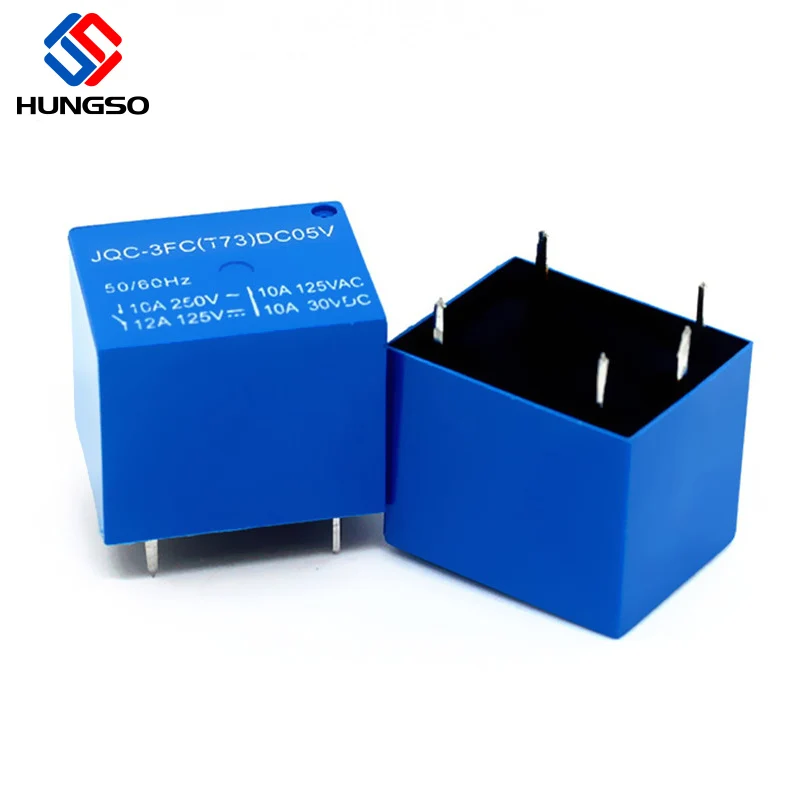

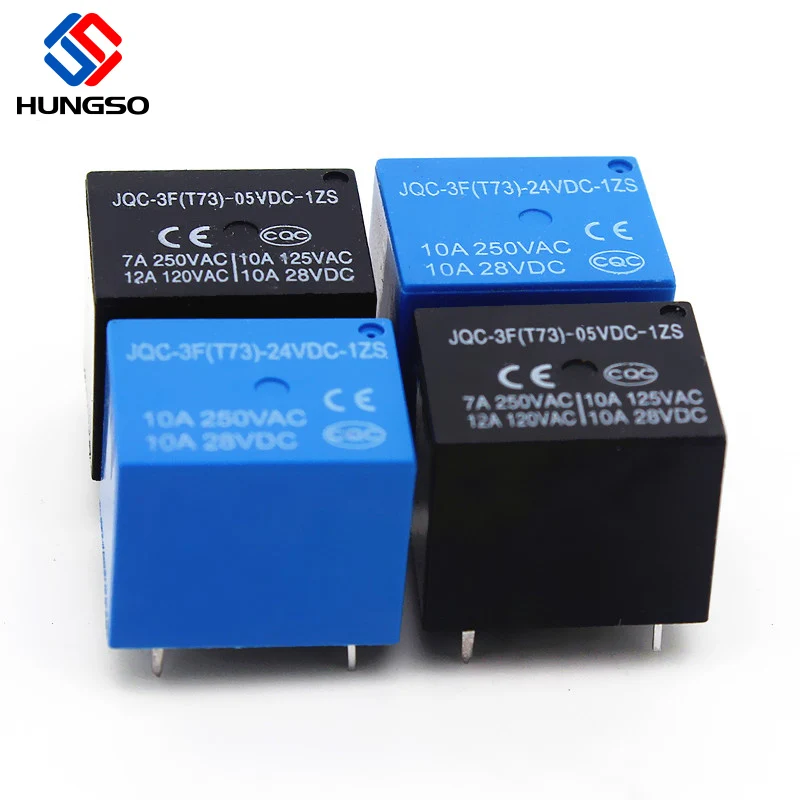

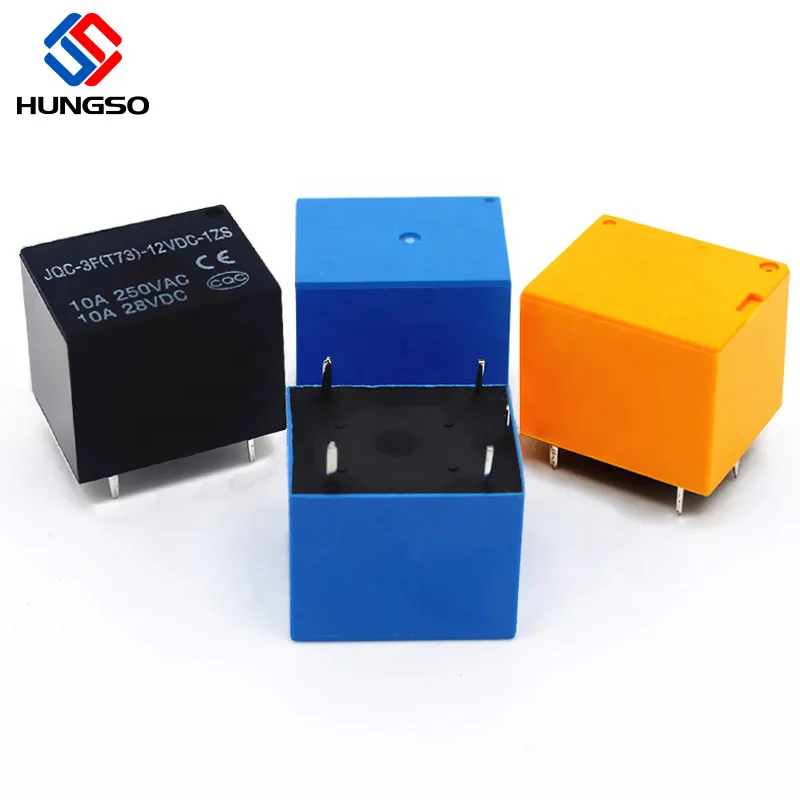

Product Pectures:
Main Product
Company Information
Packaging & Shipping
FAQ
Q: Are you the MANUFACTURER or Trader?
A: we are both the factory and trade company for switching power supply, as well as other products, the products are of high quality with most reasonable price.
Q: What is your MOQ?
A: the MOQ can be only 1pc, we suggest for wholesaler order for smaller order online, welcome to contact us for details.
Q: What is the LEAD TIME?
A: the lead time is usually 2-20 days, it depends on your exact product and quantity.
Q: Do you accept OEM?
A: Yes, it is highly welcome.
