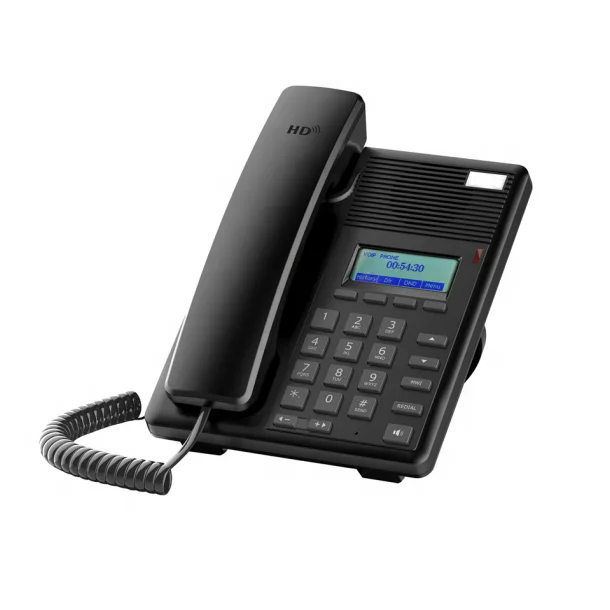

Matrix LCD Display HD VOIP Phone





Product Description

Need an Economic and High CP value IP Telephone with HD voice?  The M2 is highly designed an economic phone that can be used as an integrated or a standalone phone And it is a business class SIP phone with an integrated dual Ethernet switch, G.722 codec supportSRTP, Support 2 SIP accounts, and Headset Interface.
The M Series IP Phones are a Business Grade IP handset with a huge range of features and flexibility. The Series was designed and built for Enterprise Businesses with its modern design and ergonomic feel.

Features

• Call forwarding (busy/ no answer/ always)

• Call transfer ( unattended/ attended/ semi-attended )

• Call holding

• Call waiting

• 3 way call conference

• Capable of 10 way conversation

• BLF list

• Join call

• Call pickup

• Call park

• Redial

• Call back

• Call completion

• Hot desking

• Auto redial

• Predial

• SIP messaging , MWI

• Flexible dial plan

• Barring function for outgoing calls

• Do not disturb

• Auto answer

• Caller ID display

• CLIR(rejects anonymous calls)

• CLIP(to make an anonymous call)

• Dial without registration

• Call logs with missed calls/ incoming calls/ outgoing calls. Each support 300 records

• Phonebook 500 records

• Speed Dial (abbreviated dialing)

• Hotline/Warm-line

• Call rejection

• Black List/ White List

• Intercom/Intercom barge

• Password dial, DTMF hidden

• Action URL/ active URI

• Voice codec setting for each SIP line

• Multicast

• LDAP, XML phonebook

• Web dial

• Keypad lock, Emergency call



Specification



Item

BD-M2

Phone

• Vxworks OS

• Support SIP2.0 (RFC3261) and correlative RFCs

• SIP support 2 SIP servers, and backup SIP proxy servers

• Supports SIP UDP / TCP/ TLS

• SIP support SIP domain, SIP authentication (none, basic, MD5) , DNS name of server, Peer to Peer / IP Call

Audio

• HD voice: HD handset

•Codec: G.711A/u, G.7231 high/low, G.729AB, G.722, G.726-32

• DTMF: In-band, RFC 2833 and SIP INFO

• Full duplex hands- free speaker phone with acoustic

echo cancellation

• Voice Activity Detection (VAD)

• Comfort Noise Generation (CNG)

• Background noise suppression

• Adaptive jitter buffers

• Packet loss concealment

• SRTP

• mute

Network/ Security

• WAN / LAN:10/100M Ethernet ports

• Bridge mode and route

• PPPoE for xDSL

• 802.3af POE(optional)

• VLAN(Voice VLAN/Data VLAN)

• 802.1X

• NAT (NAPT)

• NAT transverse :Support STUN client

• DHCP client on WAN/ DHCP server on LAN

• Main DNS and secondary DNS server

• DNS Relay

• SNTP Client

• Firewall and DMZ

• Web management access restricted

• VPN(L2TP/Open VPN)

• ping, Trace route, telnet



Maintenance & Management

• WEB ,telnet and LCD menu management

• Management with different account right

• Recover firmware and factory reset through POST mode

• Upgrade firmware  via HTTP, HTTPS, FTP, TFTP

• DHCP option66 and custom option for auto provisioning

• Auto Provisioning to upgrade configuration file

with AES(256) encryption

• TR-069 and Syslog



Main Chipset

 Broadcom

Memory

• SDRAM: 16MB

• FLASH: 4MB

Power

• Adapter Input: AC 100-240V

• Adapter Output: DC 5V/1A

• Power consumption: IDLE: 2.5W Active: 2.8W

Display Resolution

128x48 pixels

Machine Dimension

250x205x60 mm

Weight

0.84KG

Work Environment

• Operation Temperature: 0-40℃

• Relative Humidity: 10-65%

Certification

FAQ

1.How can i get a VOIP Phone?
You need place sample order to us.We will arrange the sample production for you.


2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.


3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice  for your confirmation. When we got your advance payment (deposit), we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a  ship forwarder help you clear the custom.


4.How about the shipping for VOIP Phone?
For small orders, we will send the goods by International Express like Fedex/DHL/TNT/UPS(Also you can use your existing DHL/Fedex/UPS accounts for shipping). Usually it takes about 7work days to arrive.

If big quantity we will ship by Ocean transportation, it takes one month to arrive.

if urgnet, you can select shipping by Air, but freight charge will be more expensive.


5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.


Packaging & Shipping

The VOIP Phone will be well packaged by carton with Foam or other shock proof materials.

package and ship for VOIP Phone



Certifications

ISO TUV Certificates for VOIP Phone



ROHS FCC CE Certificates for VOIP Phone

Production&Testing

production for VOIP Phoneparameter testing for VOIP Phonefactory for VOIP Phone
